Caterpillar

XQ125 Rental Power

Rating Prime

100 ekW (125 kVA)

100 ekW (125 kVA)

Frequency

60 Hz

60 Hz

Voltage

120 - 600 V

120 - 600 V

Overview

The Cat XQ125 is powered by a C 4.4 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.

Media

Photos

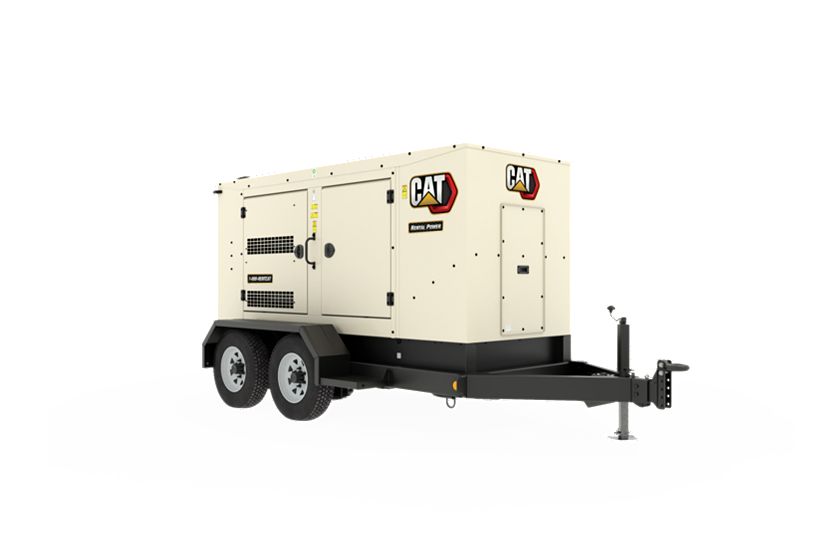

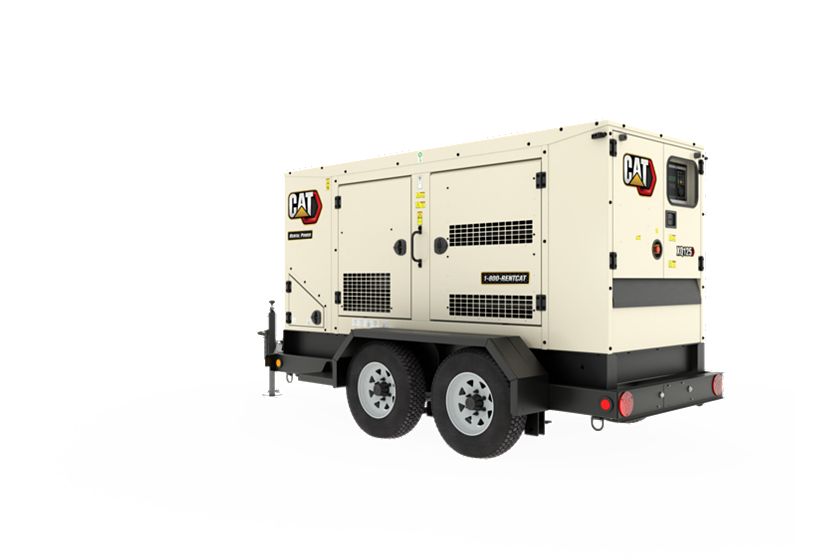

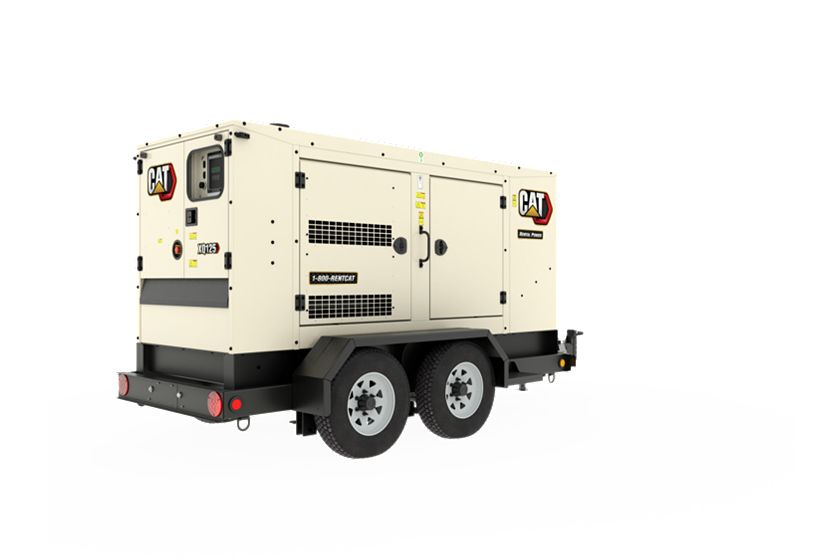

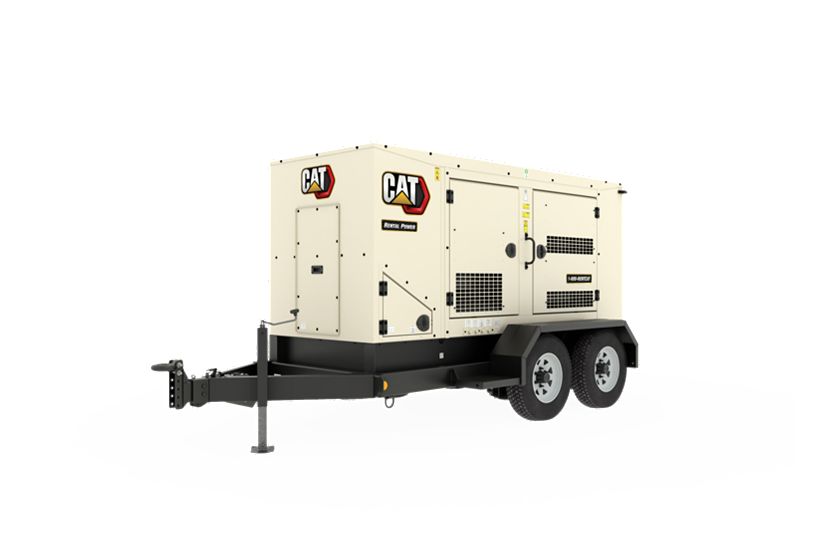

XQ125 – Diesel
XQ125 – Diesel
XQ125 – Diesel
XQ125 – Diesel
XQ125 – Diesel
XQ125 – Diesel
XQ125 – Diesel
XQ125 – Diesel

Videos

Cat Rental Power XQP Product Robust Design Features
Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior View . Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C4.4 Diesel Engine

XQCP digital controls

Cat LC Series Generator

Sound Isolated Operator panel

Cat Connect

Factory designed, built and tested

Worldwide Product Support

500 hr oil change intervals

Improved transportability

Power Distribution

Additional options

Details

Specifications

Spec Value
Rating Prime 100 ekW (125 kVA) 100 ekW (125 kVA)
Frequency 60 Hz 60 Hz
Voltage 120 - 600 V 120 - 600 V
Rating Standby 110 ekW (137 kVA) 110 ekW (137 kVA)
Spec Value
Engine Cat C4.4 Cat C4.4
Fuel Diesel Diesel
Spec Value
Height – Without Trailer 73 in 1858 mm
Length – Without Trailer 127 in 3222 mm
Width – Without Trailer 49 in 1244 mm
Weight with Lube Oil and Coolant, Without Trailer 5230 lb 2372 kg
Spec Value
100% Load 60Hz 7.5 gal/hr 28.4 l/hr
75% Load 60Hz 5.51 gal/hr 20.9 l/hr
50% Load 60Hz 3.8 gal/hr 14.4 l/hr
100% Load 60Hz 8.3 gal/hr 31.3 l/hr
Spec Value
Sound Power @ 7 meters (23 feet) @ Prime Rating 65 dB(A) 65 dB(A)
Sound Power @ 7 meters (23 feet) @ Standby Rating 66 dB(A) 66 dB(A)

Standard Equipment

CAT C4.4 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • LC3114F Frame

Control Panel

  • XQCP dgital set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
