Cat
XQ1140 T4 Final – Diesel
Rating Prime
910 ekW (1136 kVA)
910 ekW (1136 kVA)
Frequency
60 Hz
60 Hz
Voltage
120 - 600V
120 - 600V
Overview
The XQ1140 offers multiple modes of operation to meet your unique needs – even as they change. By incorporating two C18, EPA Tier 4 Final compliant diesel generator sets, this package can provide power output from the generator sets in parallel, N+1 power or independent power from each generator set. That versatility minimizes your operating costs always with the XQ1140 reliability and durability.
Media
Photos
Videos
360° View

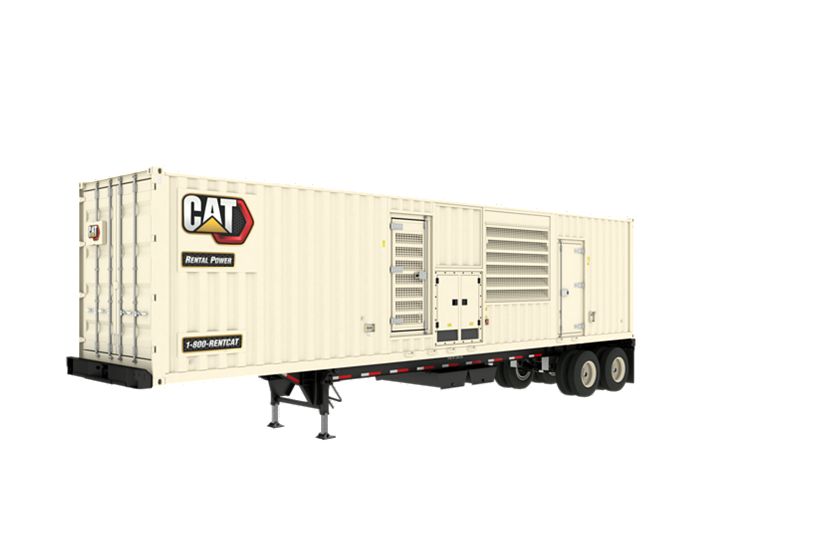

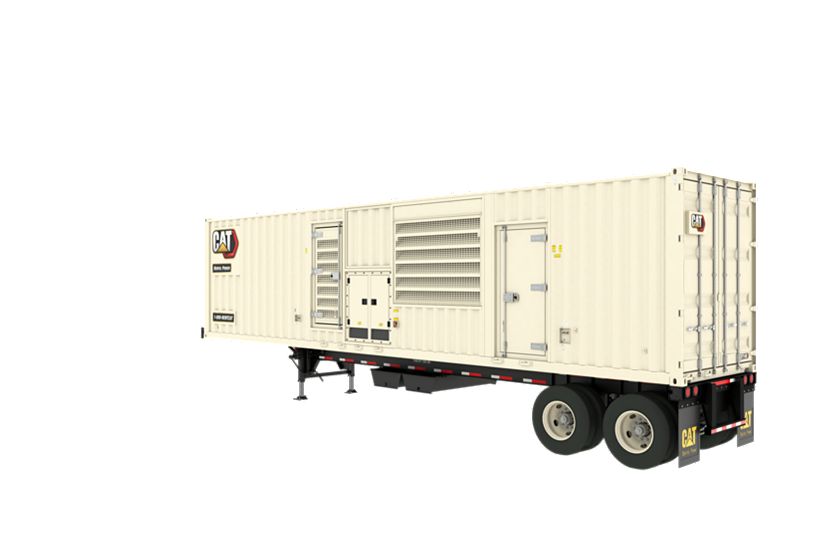

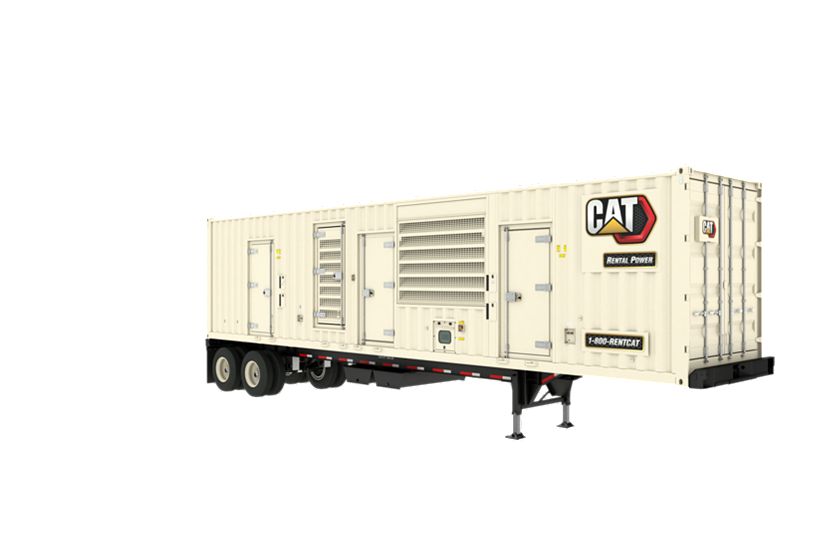

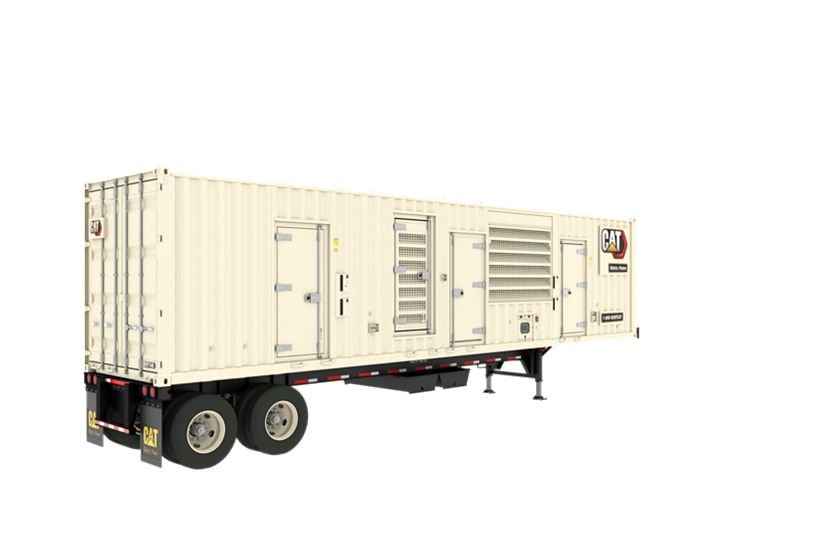

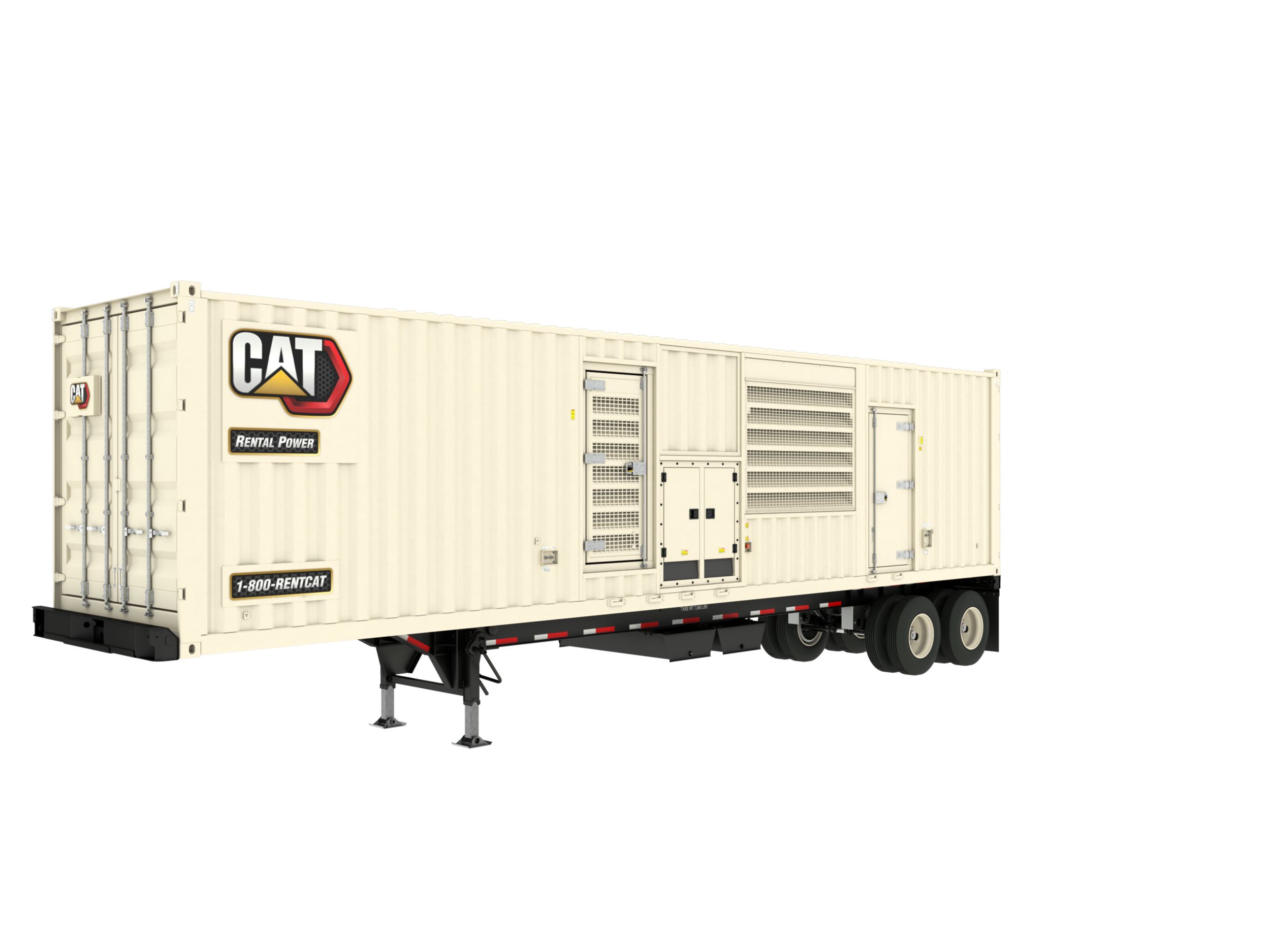

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Fuel/Emissions Strategy
Cat C18 Diesel Engines
CAT EMCP 4.4 Digital Controls
Cat LC Series Generators
Cat Connect
Sound Attenuated Container
500 hr oil change intervals
Factory designed, built and tested
Worldwide Product Support
Additional options
Details
Specifications
Generator Set
| Spec | Value |
|---|---|
| Rating Prime | 910 ekW (1136 kVA) 910 ekW (1136 kVA) |
| Frequency | 60 Hz 60 Hz |
| Voltage | 120 - 600V 120 - 600V |
| Rating Standby | 1000 ekW (1250 kVA) 1000 ekW (1250 kVA) |
Engine
| Spec | Value |
|---|---|
| Engine | Cat C18 Cat C18 |
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Height – Without Trailer | 114 in 2896 mm |
| Length – Without Trailer | 480 in 12192 mm |
| Width – Without Trailer | 96 in 2438 mm |
| Weight with Lube Oil and Coolant, Without Trailer | 50107 lb 22728 kg |
Fuel Consumption
| Spec | Value |
|---|---|
| 100% Load 60Hz | 66.4 gal/hr 252 l/hr |
| 75% Load 60Hz | 52.4 gal/hr 198 l/hr |
| 50% Load 60Hz | 38 gal/hr 144 l/hr |
| 100% Load 60Hz | 71.8 gal/hr 272 l/hr |
| 75% Load 60Hz | 56.6 gal/hr 214 l/hr |
| 50% Load 60Hz | 41 gal/hr 156 l/hr |
Noise rating (with enclosure)
| Spec | Value |
|---|---|
| Sound Power @ 7 meters (23 feet) @ All Ratings | 76 dB(A) 76 dB(A) |
Standard Equipment
Cat C18 Diesel Engines
- Two Cat C18 Diesel Engines
- Reliable, rugged, durable design
- EPA Tier 4 Final and CARB Emissions Certified
- Turbocharged Aftercooled
- Aftertreatment module. DEF System
Alternator and Alternator attachments
- 3 Phase, brushless, 12 lead, Permanent Magnet Excited
- LC6134G Frame
- Anti-condensation space heaters
- Integrated voltage regulator (IVR) with VAR/PF control
- Sized for 105°C temperature rise at 40°C ambient
Control Panels
- Dual EMCP 4.4 genset mounted digital controllers
- Externally accessible Color Touch-Screen HMI Control Center
- Manual and automatic paralleling capability
Governing system
- Electrical governing system ADEM™ A4
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Vertically mounted radiator with vertical airdischarge from the container
- Provides 47°C ambient capability at Prime rating
Charging / Starting System
- UL Listed and CSA Certified 240V, 20 Amp battery charger
- Charging alternator; 24V-80A, heavy duty withintegral regulator and belt guards
- Solar maintainer for batteries
- Single electric starting motor, 24V per engine
Fuel System
- 630-gal (2385 L) double-wall fuel tank, UL 142and ULC 601 Listed and complies with Transport Canada requirements, internal and external fuel fill
- Fuel tanks connected by fuel transfer system withfilter to allow both engines access to all fuel on-board
- Primary and secondary fuel filters
- Fuel cooler
Air inlet system
- Heavy-duty air element, canister type
Distribution
- Externally accessible, Vibration Isolated, 3600A Frame, 1000 Ka, IC, 3-pole electrically operated breaker with lock out tag out provision
- Busbar connections
- Dual customer connections
Sound Attenuated Container
- 40′ ISO high cube container
- Sound level is 76 dB(A) at 7 meters per SAEJ1074 measured at 75% prime load
- Sound attenuated air intake louvers and fivelockable personnel doors with panic release
Lube System
- Pump, integral oil cooler, lube oil, filter, filler and dipstick, and oil sampling valve
- Oil drain line with internal brass ball valve routedto connection point accessible from exterior
General
- Factory tested and inspected
- Full manufacturer’s warranty
- UL, NEMA, ISO, and IEEE standards
Optional Equipment
Trailer
- Two-axle, air-ride chassis with anti-lock brake system
