Caterpillar

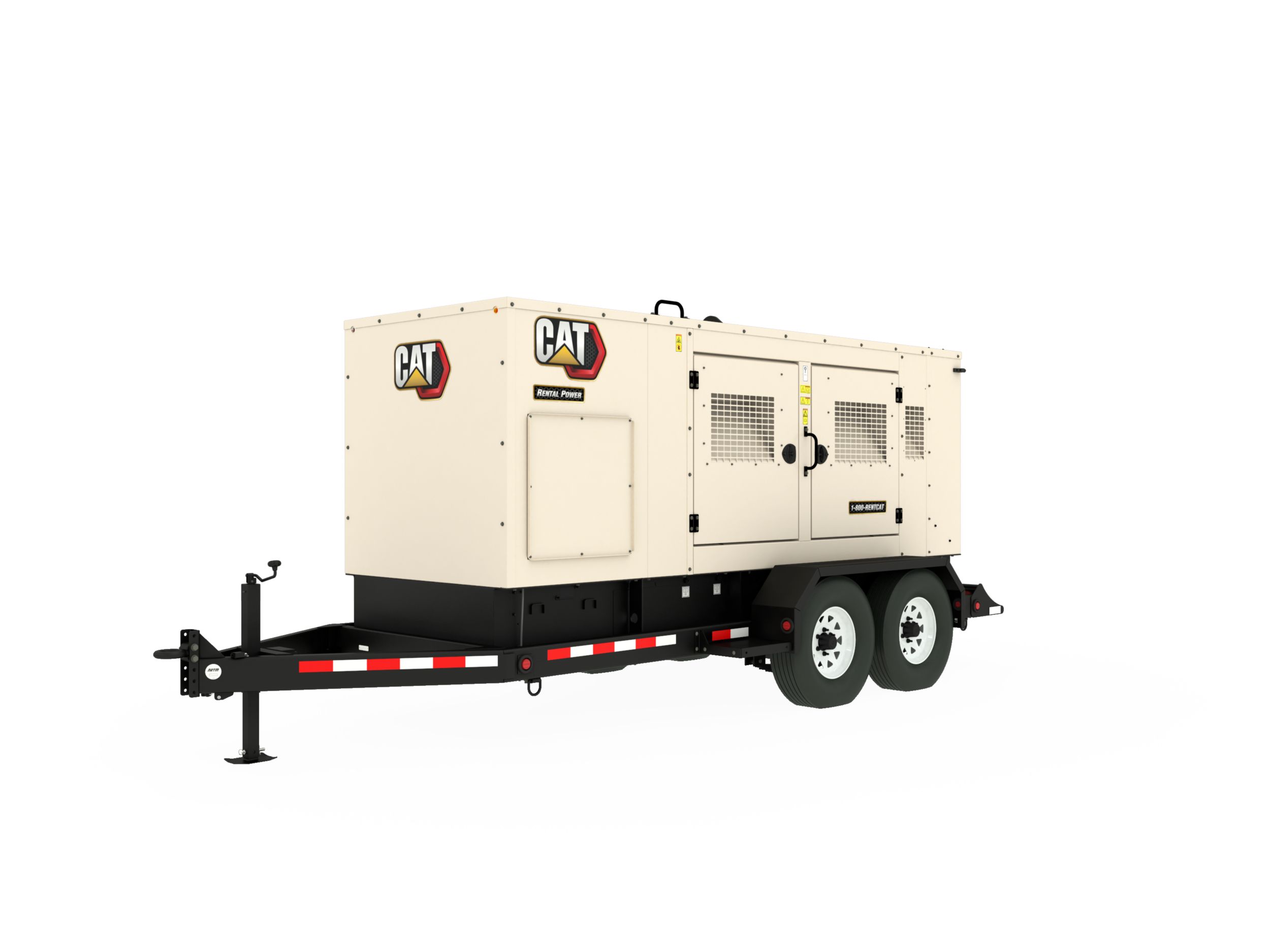

XQ230 Rental Power
Rating Prime
182 ekW (228 kVA)
182 ekW (228 kVA)
Frequency
60 Hz
60 Hz
Voltage
120 - 600 V
120 - 600 V
Overview
The Cat XQ230 is powered by a C 7.1 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.
Media
Photos
Videos
360° View
Exterior
360 Exterior view. Retail Optimised. Double cthe image to zoom in on any area of the product.lick on
Features
Fuel/Emissions Strategy
Cat C7.1 Diesel Engine
CAT EMCP4.2B digital controls
Cat LC Series Generator
Sound Isolated Operator panel
Cat Connect
Factory designed, built and tested
World Wide Product Support
Worldwide Product Support
Improved transportability
Power Distribution
Additional options
Retail Optimised
Details
Specifications
Generator Set
| Spec | Value |
|---|---|
| Rating Prime | 182 ekW (228 kVA) 182 ekW (228 kVA) |
| Frequency | 60 Hz 60 Hz |
| Voltage | 120 - 600 V 120 - 600 V |
| Rating Standby | 200 ekW (250 kVA) 200 ekW (250 kVA) |
Engine
| Spec | Value |
|---|---|
| Engine | Cat C7.1 Cat C7.1 |
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Height – Without Trailer | 78.5 in 1994 mm |
| Length – Without Trailer | 162.2 in 4120 mm |
| Width – Without Trailer | 62.8 in 1595 mm |
| Weight with Lube Oil and Coolant, Without Trailer | 8432 lb 3828 kg |
Fuel Consumption
| Spec | Value |
|---|---|
| 100% Load 60Hz | 14.7 gal/hr 56 l/hr |
| 75% Load 60Hz | 10.8 gal/hr 41 l/hr |
| 50% Load 60Hz | 7.4 gal/hr 28 l/hr |
Noise rating (with enclosure)
| Spec | Value |
|---|---|
| Sound Power @ 7 meters (23 feet) @ All Ratings | 72 dB(A) 72 dB(A) |
Standard Equipment
CAT C7.1 Diesel Engine
- Heavy-duty.
Turbocharged.
After treatment
Generator
- LC5034H Frame
Control Panel
- Digital EMCP4.2B set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
