Cat
XQP200 EU Stage V
Rating Prime
200 kVA
200 kVA
Frequency
50/60 Hz
50/60 Hz
Voltage
220 - 480 V
220 - 480 V
Overview
This XQP200 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
Media

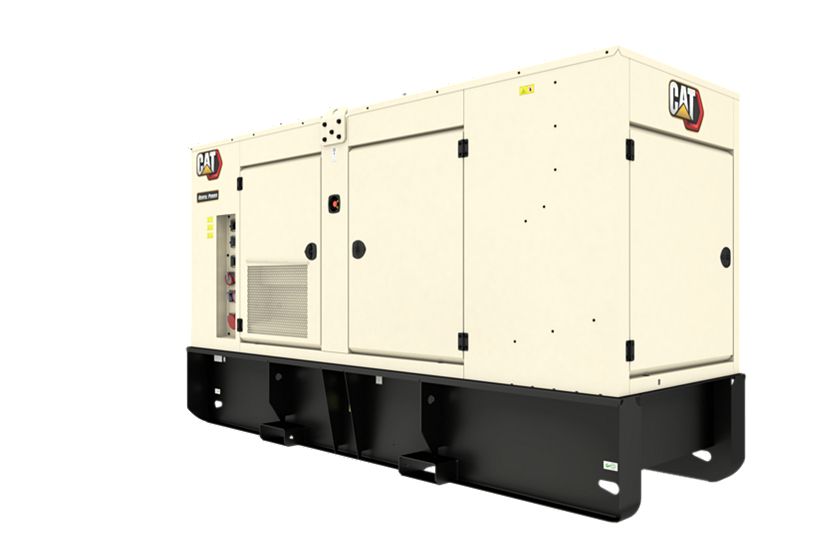

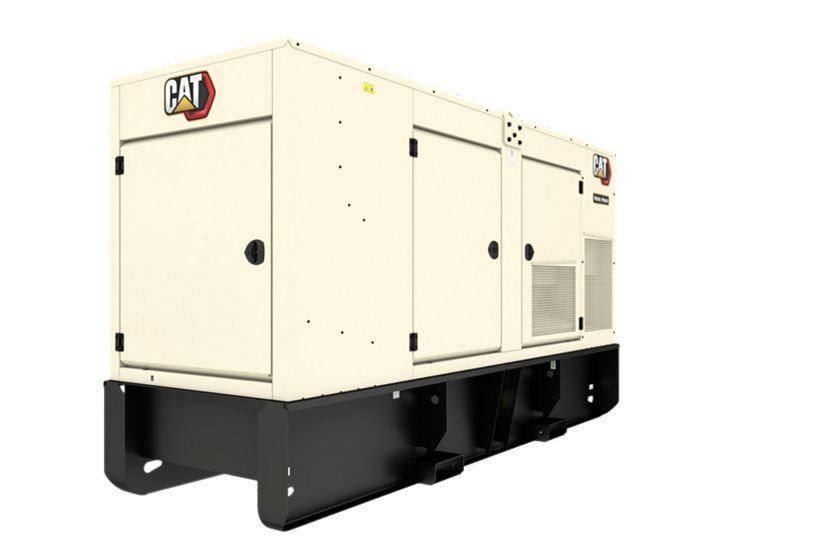

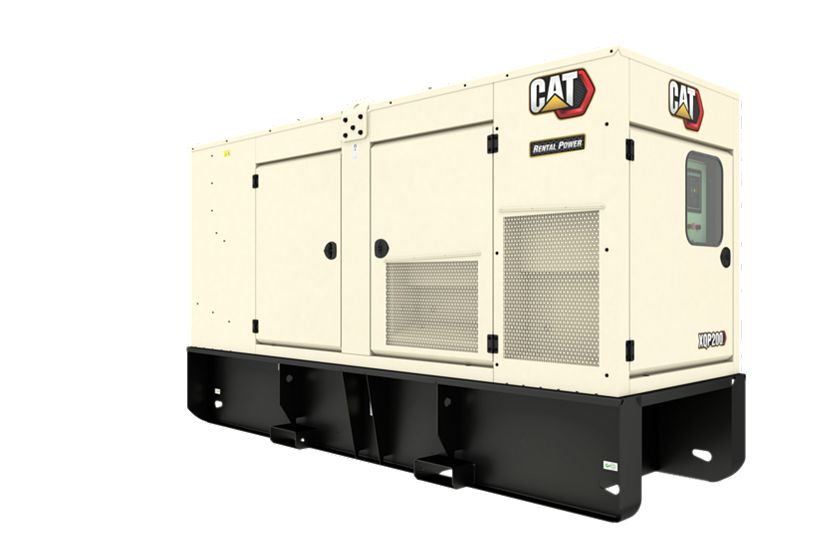

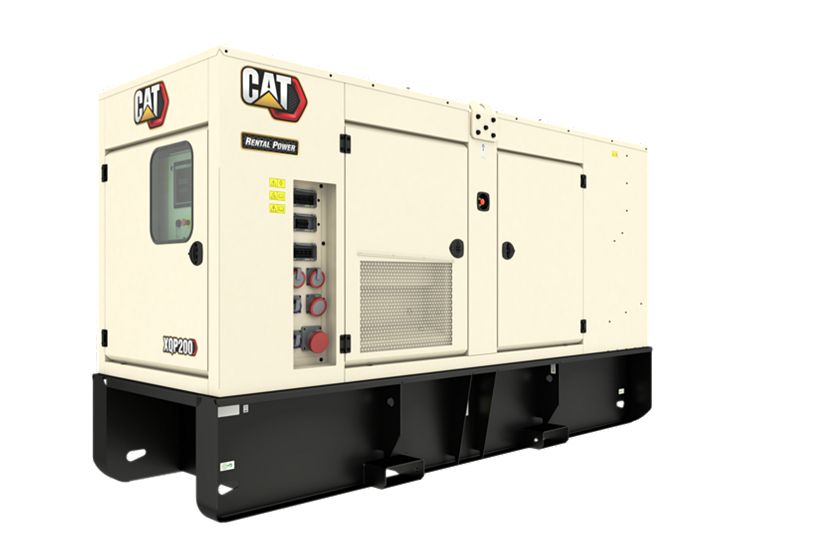

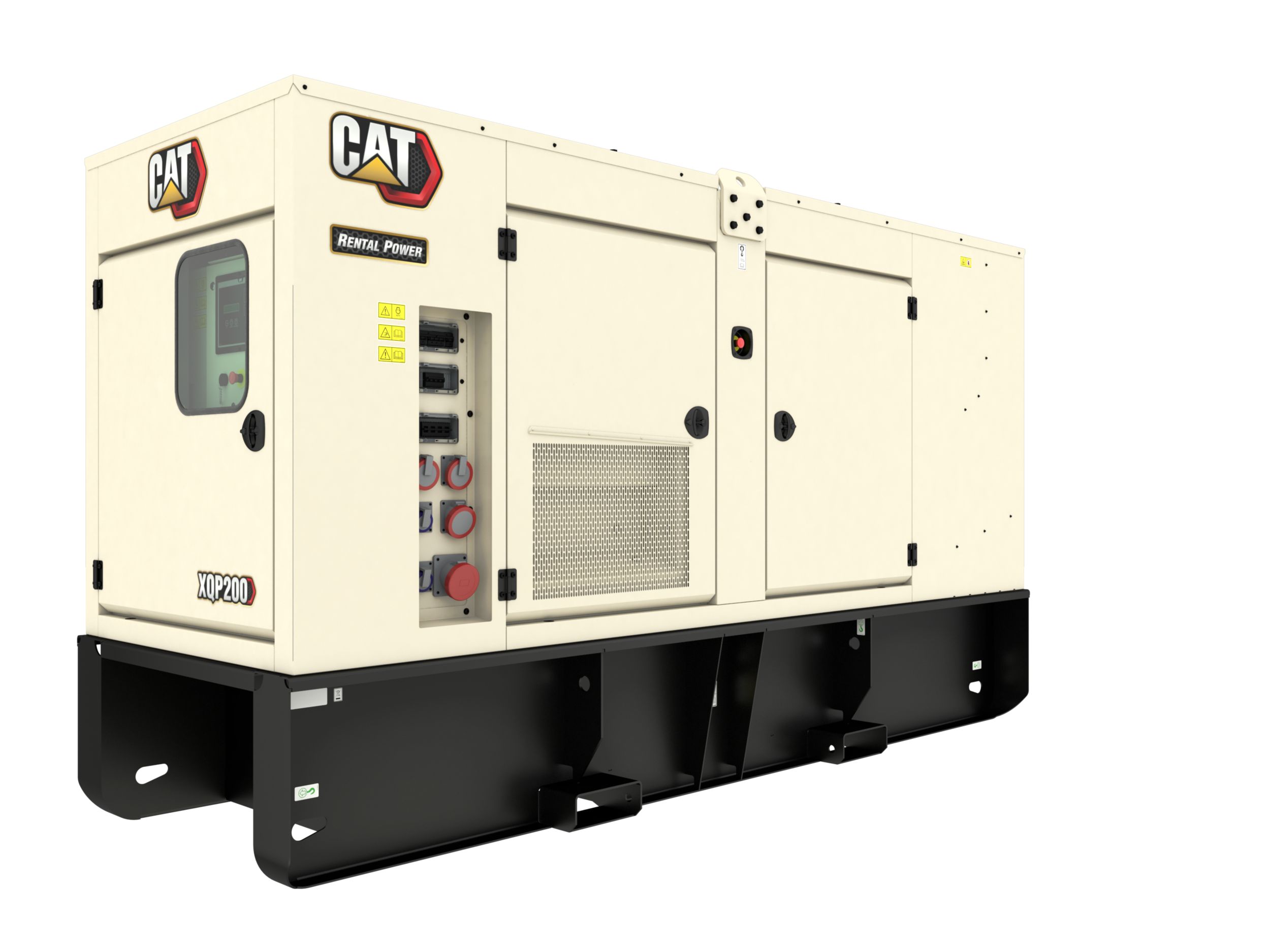

Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Fuel/Emissions Strategy
Cat C7.1 Diesel Engine
Cat XQCP Control Panel
Cat LC5114F Generator
Robust Galvanised Enclosure
Sound Isolated Operator Panel
Cat Connect
Factory Designed, Built and Tested
Worldwide Product Support
500 hr Oil Change Intervals
Improved Transportability
Additional Options Available
Details
Specifications
Generator Set
| Spec | Value |
|---|---|
| Rating Prime | 200 kVA 200 kVA |
| Frequency | 50/60 Hz 50/60 Hz |
| Voltage | 220 - 480 V 220 - 480 V |
| Fuel/Emissions Strategy | EU Stage V EU Stage V |
Engine
| Spec | Value |
|---|---|
| Engine | Cat® C7.1 Cat® C7.1 |
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Width | 56 in 1420 mm |
| Height | 93 in 2350 mm |
| Length | 161 in 4085 mm |
| Weight – With Lube Oil and Coolant | 8049 lb 3651 kg |
Fuel Consumption
| Spec | Value |
|---|---|
| 100% Load 50 Hz | 11.5 gal/hr 43.4 l/hr |
| 100% Load 60 Hz | 14.3 gal/hr 54.3 l/hr |
| 75% Load 50 Hz | 8.6 gal/hr 32.4 l/hr |
| 75% Load 60 Hz | 10.5 gal/hr 39.9 l/hr |
Noise rating (with enclosure)
| Spec | Value |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 75.1 dB(A) 75.1 dB(A) |
Standard Equipment
Cat® C7.1 Diesel Engine
- Twin Turbocharged, air-to-air aftercooler
- Electronic ECM controlled
After Treatment
- Engine Mounted Clean Emissions Module (CEM)
- Diesel Emissions Fluid (DEF)
Alternator
- LC5114F Frame
- Coastal insulation protection
Control Panel
- Digital XQCP set mounted controller
Air Filter
- High efficiency two stage air cleaner, with dust cup andservice indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
- High ambient performance
Charging / Starting System
- 24V heavy duty charging alternator with integral regulator
Fuel System
- 24 hour dual wall fuel tank with internal fuel fill
- Engine mounted primary and secondary fuel filter
Distribution
- Separate robust steel enclosures for control & distribution sections
- 4 pole, 400A main circuit breaker
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
- Sealed quarter-turn compression latches with key orpadlock capabilities
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
- Full manufacturer’s warranty
Optional Equipment
Control Panel
- ComAp InteliGen NTC, Deepsea 8620, DEIF AGC-4
- Syncronising capabilities
Distribution
- CE socket box with integrated MCB & RCBO protection
Fuel Option Pack
- Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender
Drains option Pack
- Oil and coolant drains piped to base frame
