Cat

XQP310 EU Stage V

Rating Prime

310 kVA

310 kVA

Frequency

50/60 Hz

50/60 Hz

Voltage

220 - 480 V

220 - 480 V

Overview

This XQP310 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Media

Photos

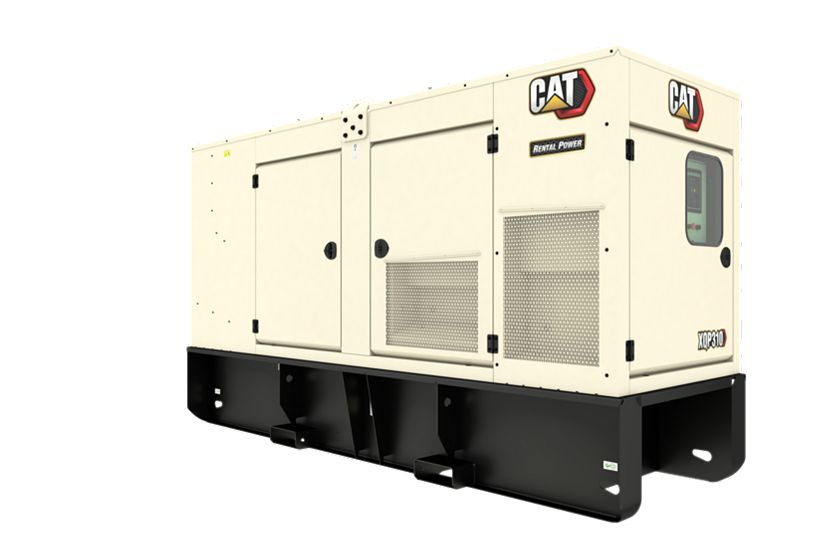

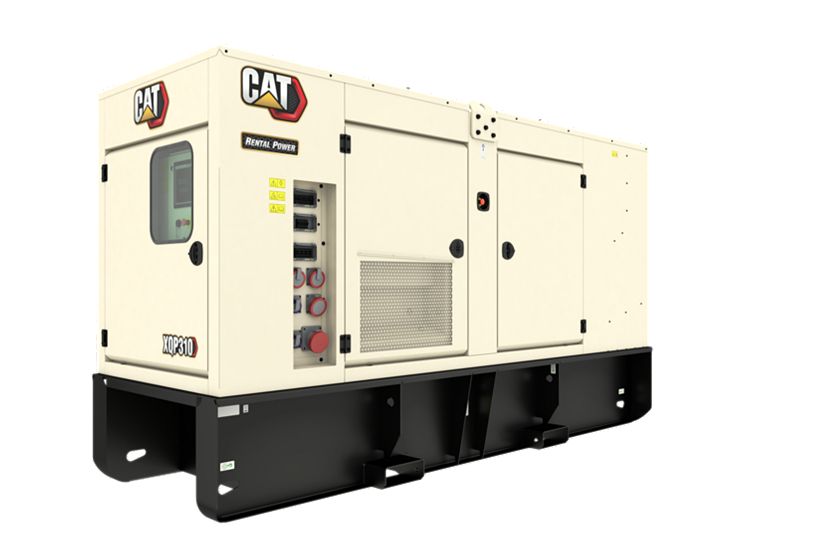

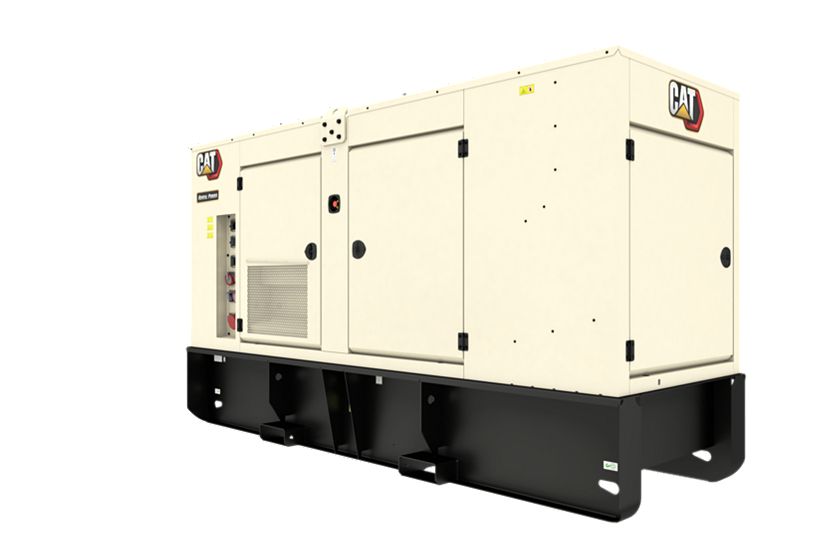

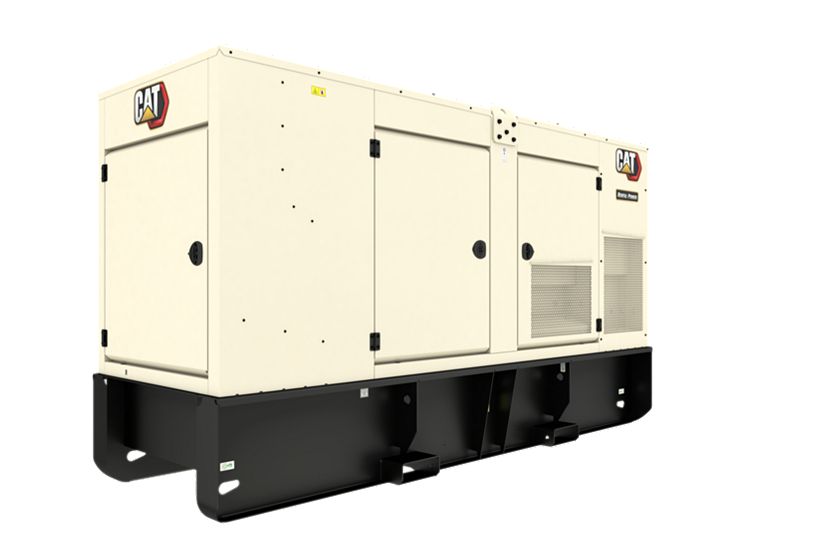

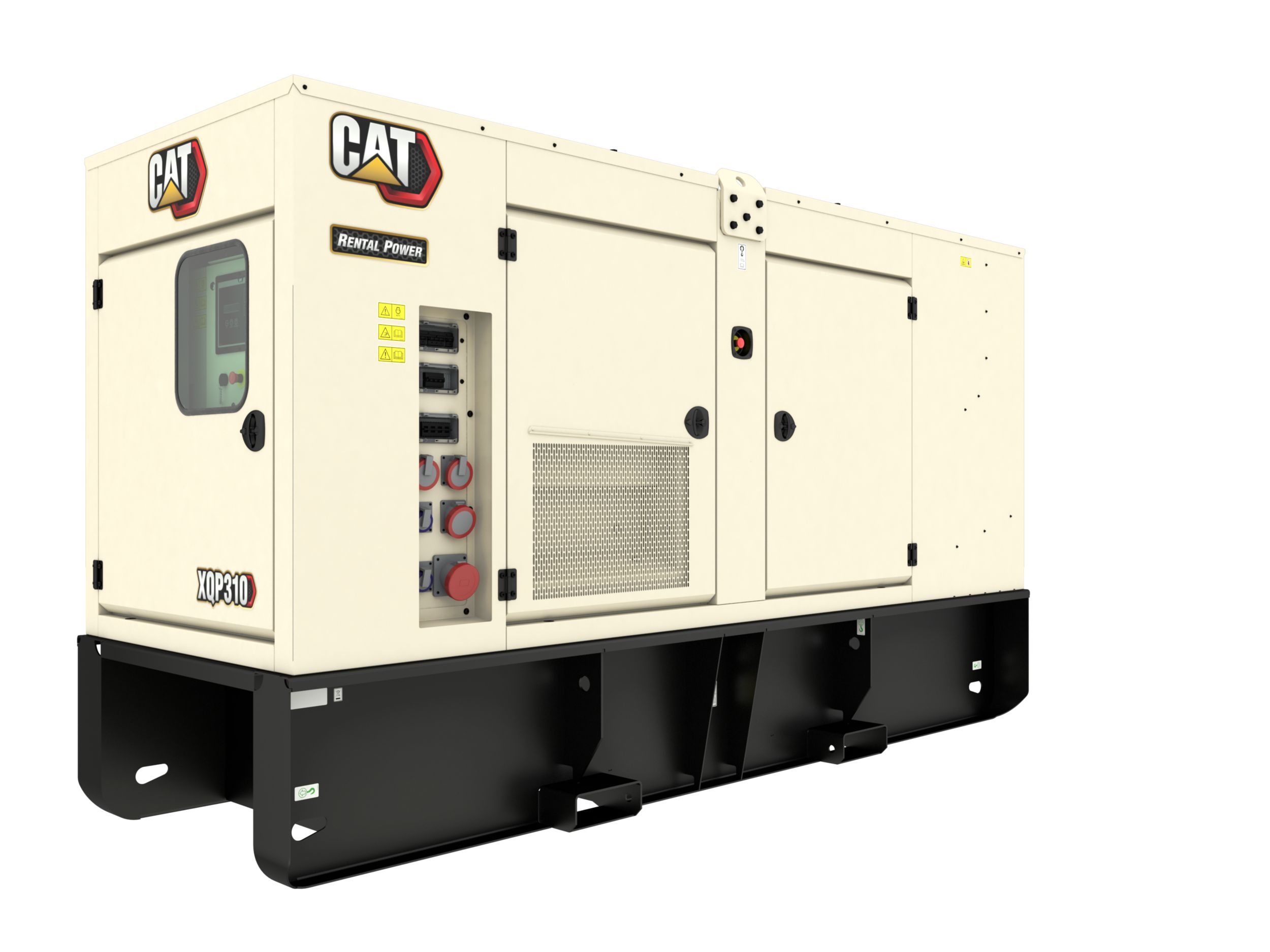

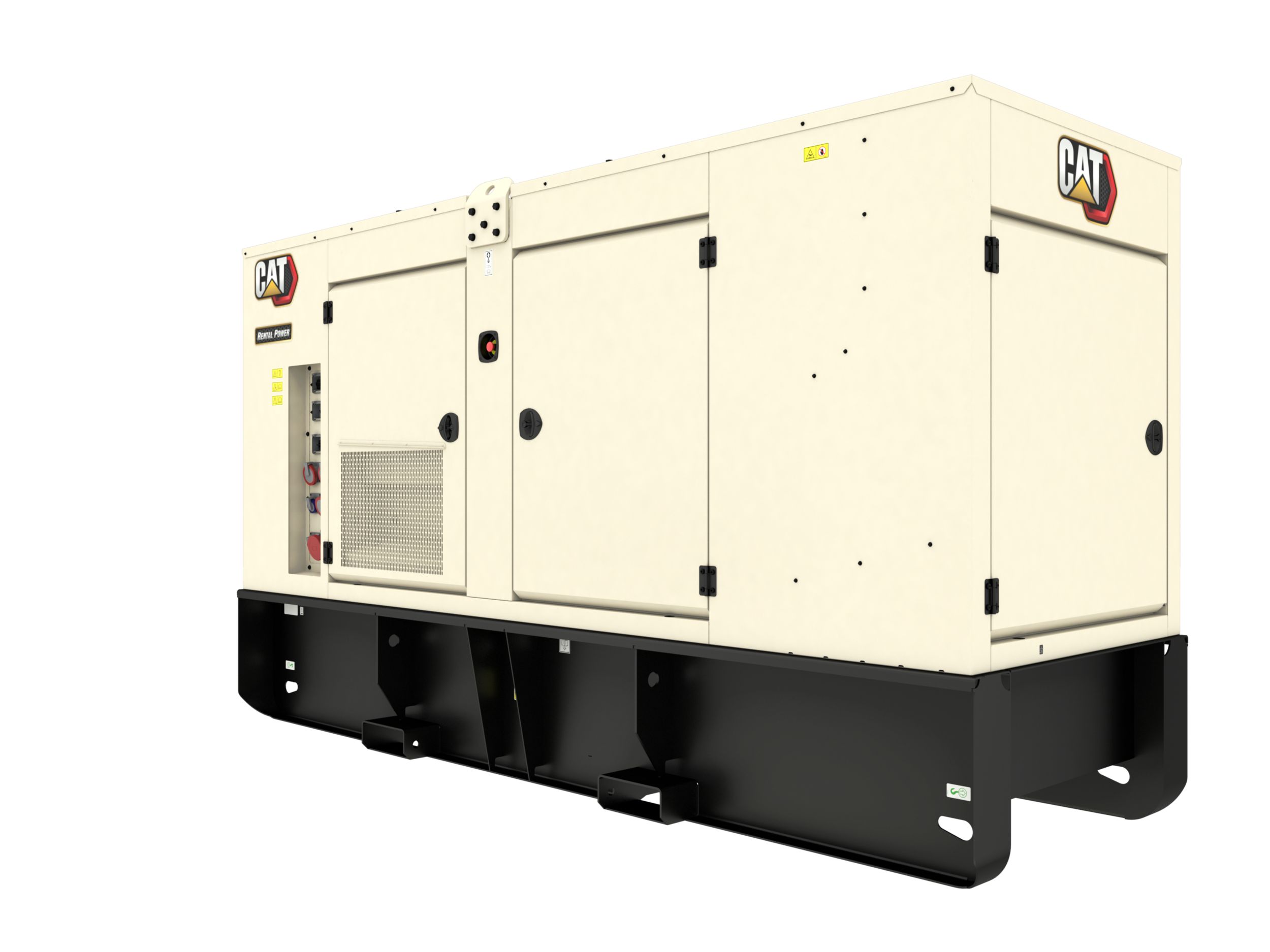

XQP310
XQP310
XQP310
XQP310
XQP310
XQP310
XQP310
XQP310

Videos

Cat Rental Power XQP Product Robust Design Features
Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C9.3B Diesel Engine

Cat EMCP 4.2B Control Panel

Cat LC5114N Alternator

Robust Galvanised Enclosure

Sound Isolated Operator Panel

Cat Connect

Factory Designed, Built and Tested

Worldwide Product Support

500 hr Oil Change Intervals

Improved Transportability

Additional Options Available

Details

Specifications

Spec Value
Rating Prime 310 kVA 310 kVA
Frequency 50/60 Hz 50/60 Hz
Voltage 220 - 480 V 220 - 480 V
Fuel/Emissions Strategy EU Stage V EU Stage V
Spec Value
Engine Cat C9.3 Cat C9.3
Fuel Diesel Diesel
Spec Value
Width 60 in 1514 mm
Height 90 in 2277 mm
Length 161 in 4085 mm
Weight – With Lube Oil and Coolant 9046 lb 4103 kg
Spec Value
100% Load 50 Hz 17.7 gal/hr 67.1 l/hr
100% Load 60 Hz 20.4 gal/hr 77.4 l/hr
75% Load 50 Hz 13.2 gal/hr 50 l/hr
75% Load 60 Hz 14.9 gal/hr 56.5 l/hr

Standard Equipment

Cat® C9.3B Diesel Engine

  • Twin Turbocharged, air-to-air aftercooler
  • Electronic ECM controlled

After Treatment

  • Engine Mounted Clean Emissions Module (CEM)
  • Diesel Emissions Fluid (DEF)

Alternator

  • LC5114N Frame
  • Coastal insulation protection

Control Panel

  • Digital EMCP4.2B set mounted digital controller

Air Filter

  • High efficiency two stage air cleaner, with dust cup andservice indicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory
  • High ambient performance

Charging / Starting System

  • 24V heavy duty charging alternator with integral regulator

Fuel System

  • 12hour dual wall fuel tank with internal fuel fill
  • Engine mounted primary and secondary fuel filter

Distribution

  • Separate robust steel enclosures for control & distribution sections
  • 4 pole, 630A main circuit breaker

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Sealed quarter-turn compression latches with key orpadlock capabilities

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
  • Full manufacturer’s warranty

Optional Equipment

Control Panel

  • ComAp InteliGen NTC, Deep Sea 7320, Deep Sea 8620, DEIF AGC-4
  • Syncronising capabilities

Distribution

  • CE socket box with integrated MCB & RCBO protection

Fuel Option Pack

  • Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender

Drains option Pack

  • Oil and coolant drains piped to base frame
