Cat

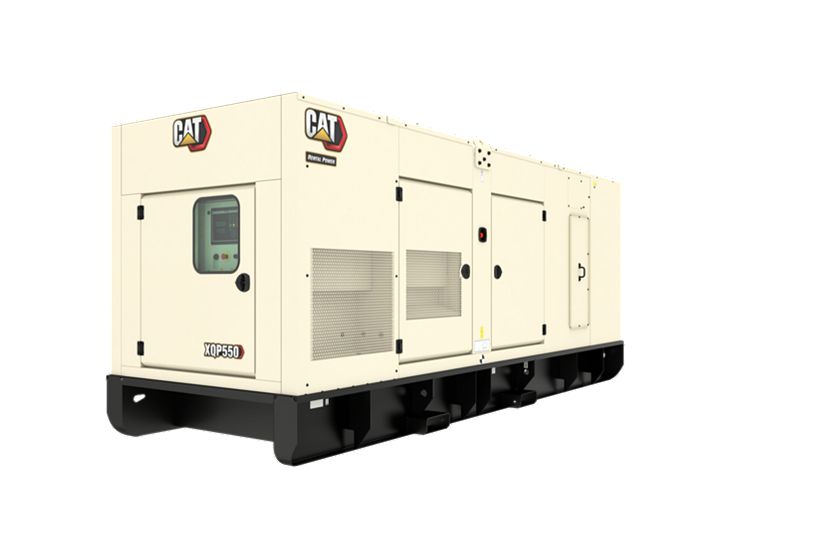

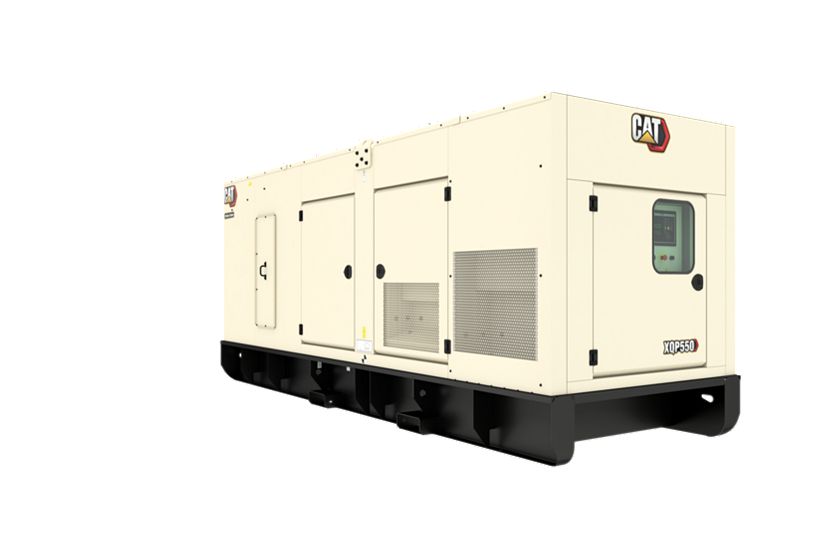

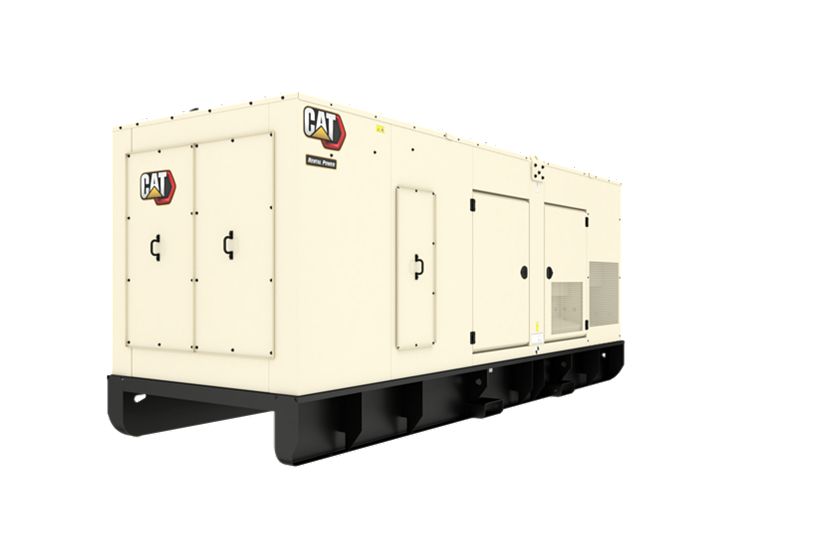

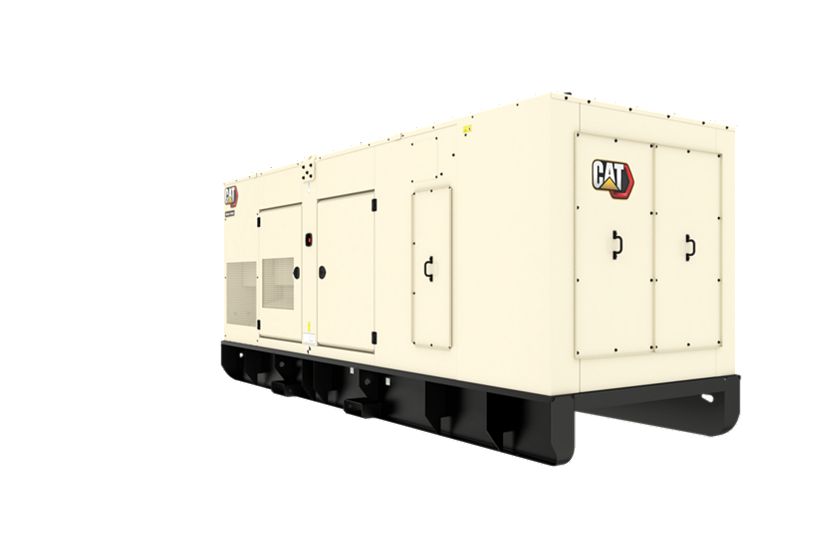

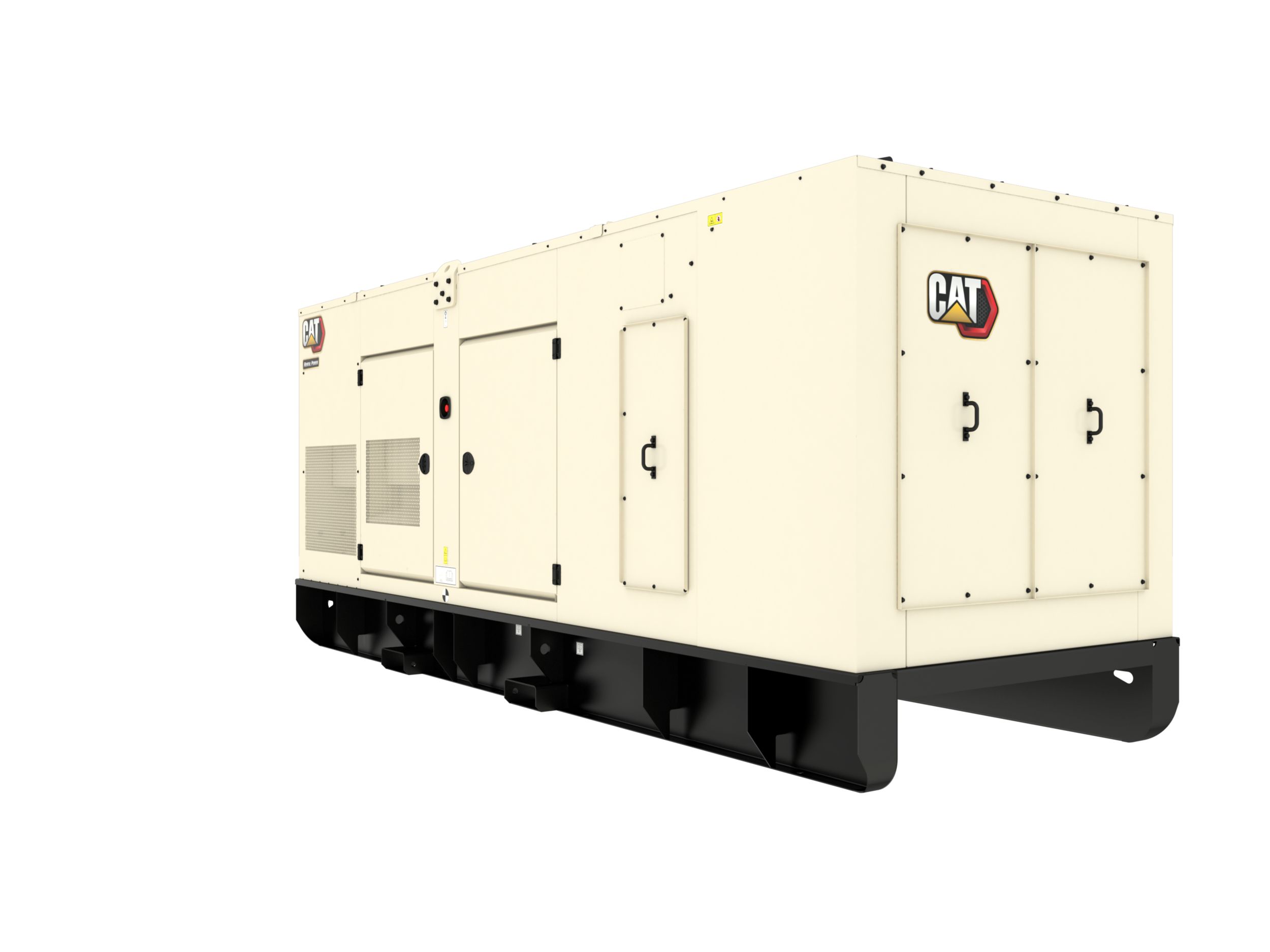

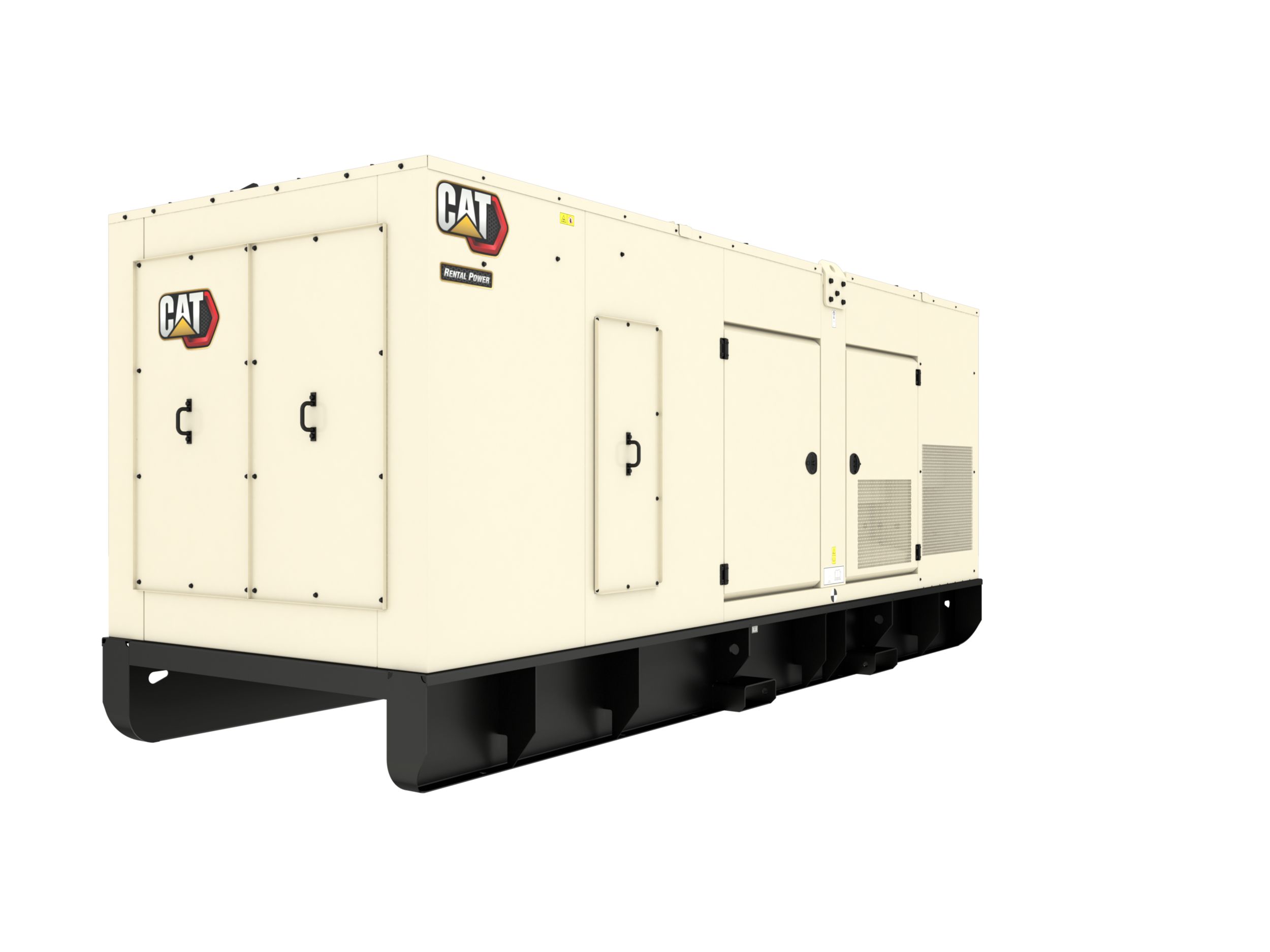

XQP550 EU Stage V
Rating Prime
550 kVA
550 kVA
Frequency
50/60 Hz
50/60 Hz
Voltage
220 - 480 V
220 - 480 V
Overview
The XQP550 generator set is EU Stage V emission standard capable. A unique feature is the introduction of clutch fan drive technology where the fan no longer needs to run continually at full speed and power. This saves additional fuel, while lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures and, most importantly, in evenings when noise levels are most noticeable.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Fuel/Emissions Strategy
Cat C18 Diesel Engine
XQCP Control Panel
Cat LC6114K Generator
Robust Galvanised Enclosure
Sound Isolated Operator Panel
Cat Connect
Factory Designed, Built and Tested
Worldwide Product Support
500 hr Oil Change Intervals
Improved Transportability
Additional Options Available
Details
Specifications
Generator Set
| Spec | Value |
|---|---|
| Rating Prime | 550 kVA 550 kVA |
| Frequency | 50/60 Hz 50/60 Hz |
| Voltage | 220 - 480 V 220 - 480 V |
| Fuel/Emissions Strategy | EU Stage V EU Stage V |
Engine
| Spec | Value |
|---|---|
| Engine | Cat® C18 Cat® C18 |
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Width | 80.3 in 2040 mm |
| Height | 90.5 in 2434 mm |
| Length | 213.3 in 5420 mm |
| Weight – With Lube Oil and Coolant | 14860 lb 6740 kg |
Fuel Consumption
| Spec | Value |
|---|---|
| 100% Load 60 Hz | 34.3 gal/hr 129.7 l/hr |
| 100% Load 50 Hz | 33.4 gal/hr 126.3 l/hr |
| 75% Load 60 Hz | 26.13 gal/hr 98.8 l/hr |
| 75% Load 50 Hz | 24.9 gal/hr 94.5 l/hr |
Noise rating (with enclosure)
| Spec | Value |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 79.19 79.19 |
Standard Equipment
Cat C18 Diesel Engine
- Turbocharged, ATAAC
Generator
- LC6114K Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- XQCP set mounted controller.
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
