Cat

XQP115 EU Stage V

Rating Prime

115 kVA

115 kVA

Frequency

50/60 Hz

50/60 Hz

Voltage

220 - 480 V

220 - 480 V

Overview

This XQP115 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Media

Photos

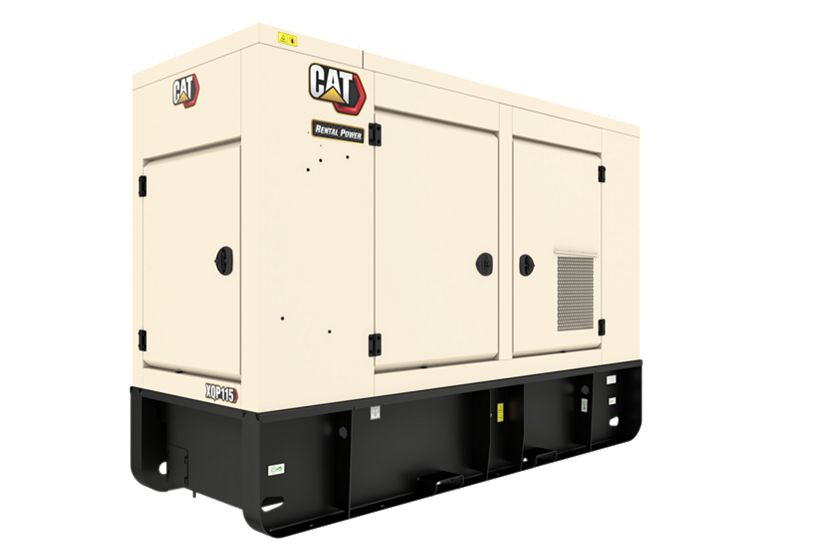

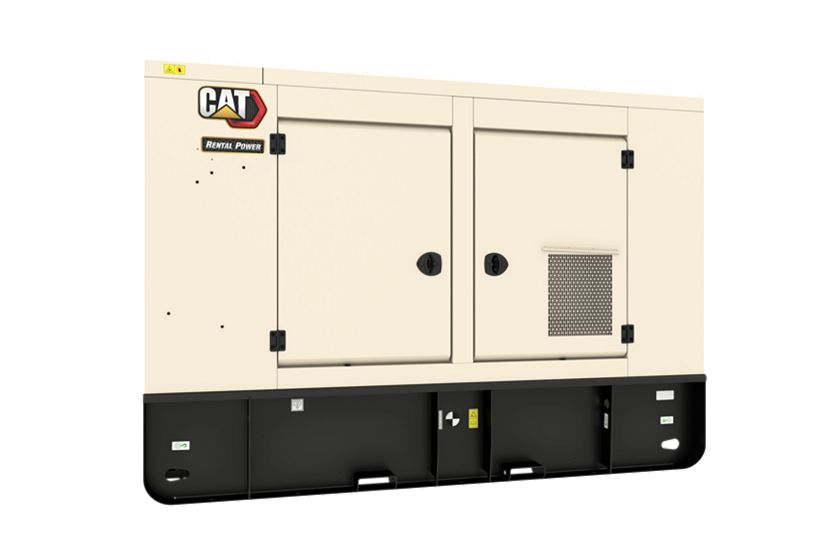

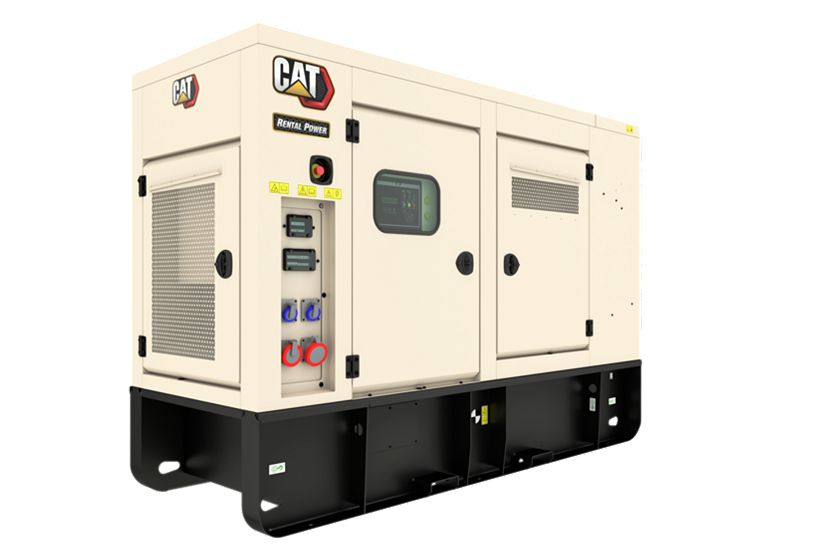

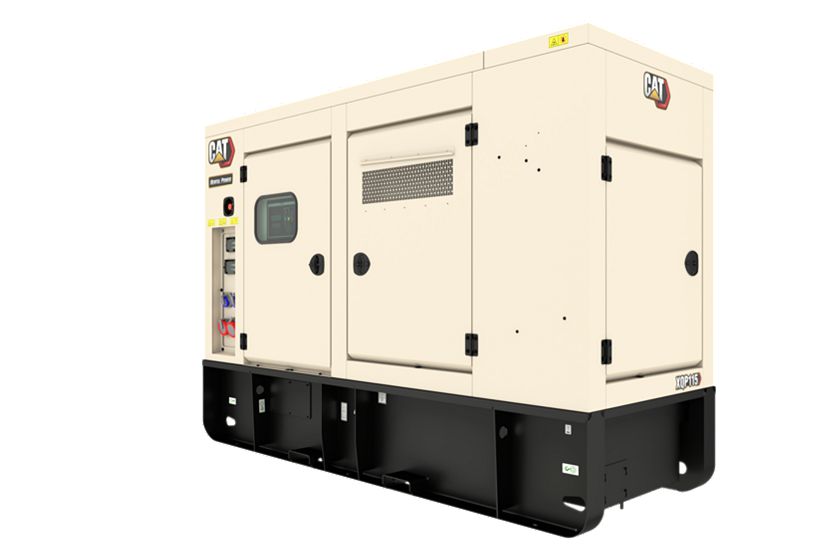

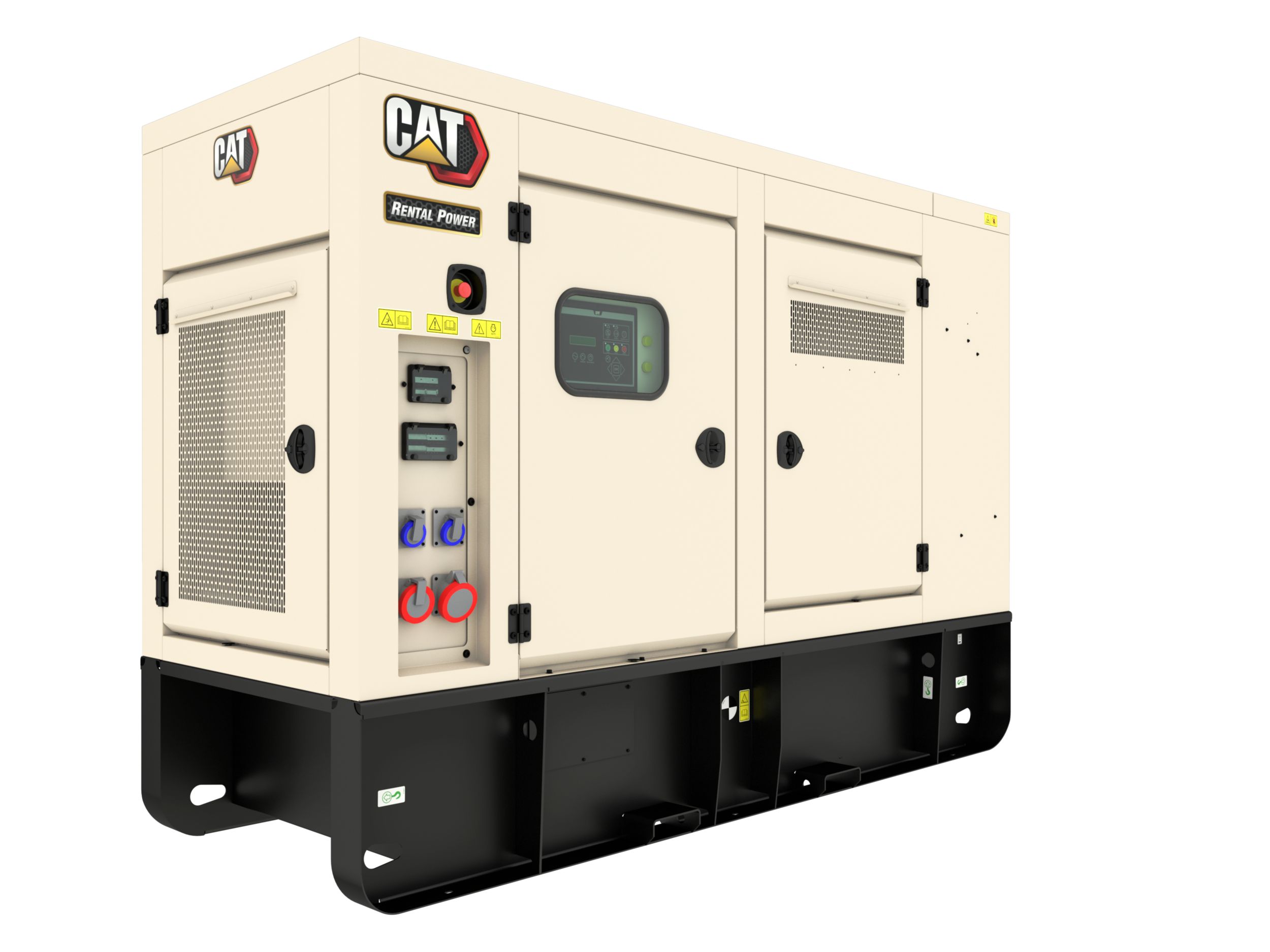

XQP115
XQP115
XQP115
XQP115
XQP115
XQP115
XQP115
XQP115

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C4.4 Diesel Engine

XQCP Control Panel

Cat LC3114F Generator

Robust Galvanised Enclosure

Sound Isolated Operator Panel

Cat Connect

Factory Designed, Built and Tested

Worldwide Product Support

500 hr Oil Change Intervals

Improved Transportability

Additional Options Available

Details

Specifications

Spec Value
Rating Prime 115 kVA 115 kVA
Frequency 50/60 Hz 50/60 Hz
Voltage 220 - 480 V 220 - 480 V
Fuel/Emissions Strategy EU Stage V EU Stage V
Spec Value
Engine Cat® C4.4 Cat® C4.4
Fuel Diesel Diesel
Emissions EU Stage V EU Stage V
Spec Value
Width 45 in 1150 mm
Height 82 in 2076 mm
Length 117 in 2970 mm
Weight – With Lube Oil and Coolant 4579 lb 2077 kg
Spec Value
100% Load 50 Hz 7.2 gal/hr 27.3 l/hr
100% Load 60 Hz 7.4 gal/hr 28 l/hr
75% Load 50 Hz 5.3 gal/hr 20.4 l/hr
75% Load 60 Hz 5.5 gal/hr 21 l/hr
Spec Value
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 75.3 dB(A) 75.3 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 78.9 dB(A) 78.9 dB(A)

Standard Equipment

Cat® C4.4 Diesel Engine

  • Twin Turbocharged, air-to-air aftercooler
  • Electronic ECM controlled

After Treatment

  • Engine Mounted Clean Emissions Module (CEM)
  • Diesel Emissions Fluid (DEF)

Alternator

  • LC3114F Frame
  • Coastal insulation protection

Control Panel

  • XQCP set mounted digital controller

Air Filter

  • Air cleaner, cyclonic/paper with dust cup and serviceindicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory
  • High ambient performance

Charging / Starting System

  • 12V, heavy duty charging alternator with integral regulator and belt guards

Fuel System

  • 24 hour dual wall fuel tank with internal fuel fill
  • Engine mounted primary and secondary fuel filter

Distribution

  • Separate robust steel enclosures for control & distribution sections
  • 4 pole, 200A main circuit breaker

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Sealed quarter-turn compression latches with key orpadlock capabilities

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
  • Full manufacturer’s warranty

Optional Equipment

Distribution

  • CE socket box with integrated MCB & RCBO protection

Fuel Option Pack

  • Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender

Drains option Pack

  • Oil and coolant drains piped to base frame
