Cat

XQ330 Tier 4 Final (264 ekW, 330 kVA)

Rating Prime

264 eKW (330 kVA)

264 eKW (330 kVA)

Frequency

50/60 Hz

50/60 Hz

Voltage

120 - 600 V

120 - 600 V

Overview

The Cat® XQ330 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C9.3 Tier 4 Final compliant engine equipped with the Cat NOx Reduction System. Equipped with the EMCP 4.4 control panel, the XQ330 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Media

Photos

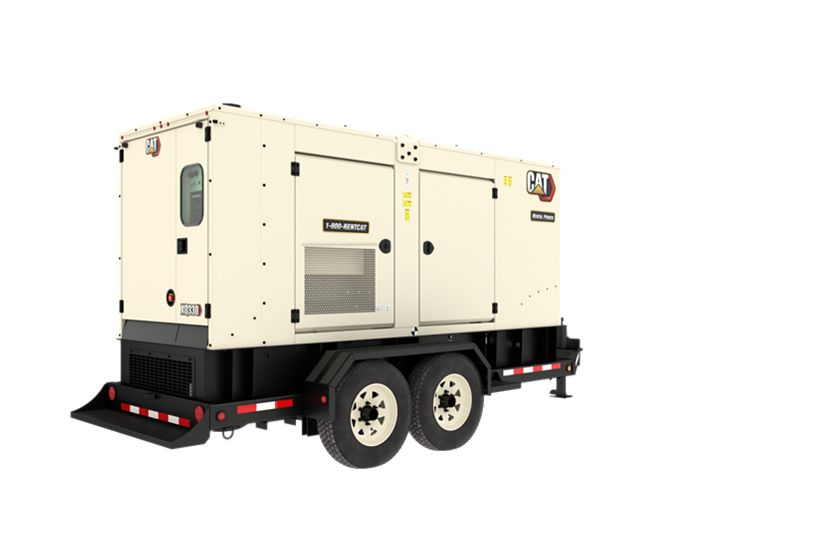

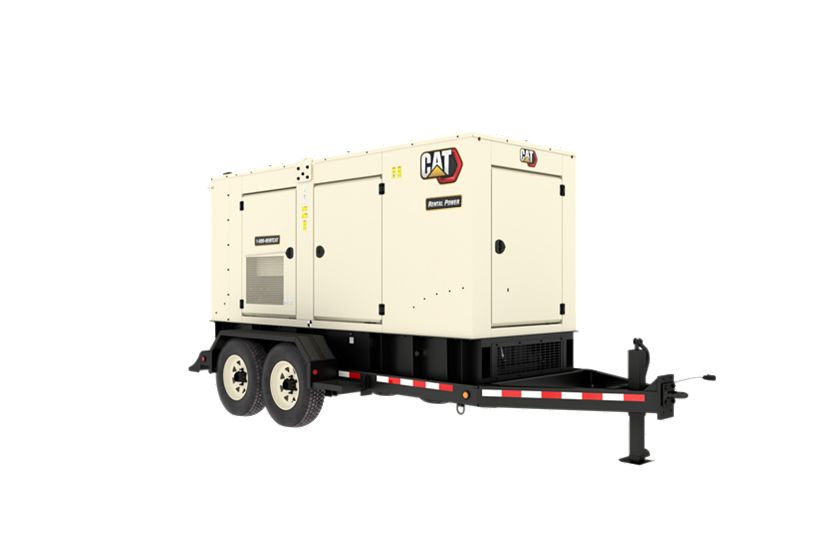

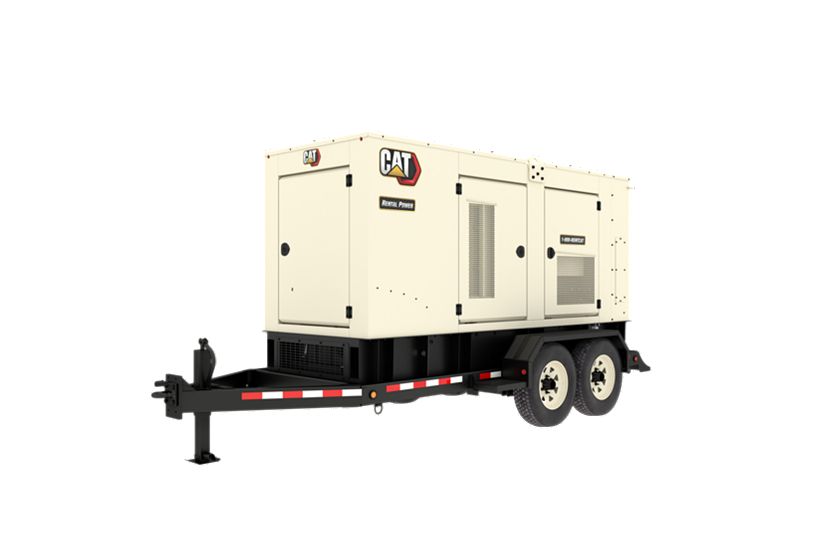

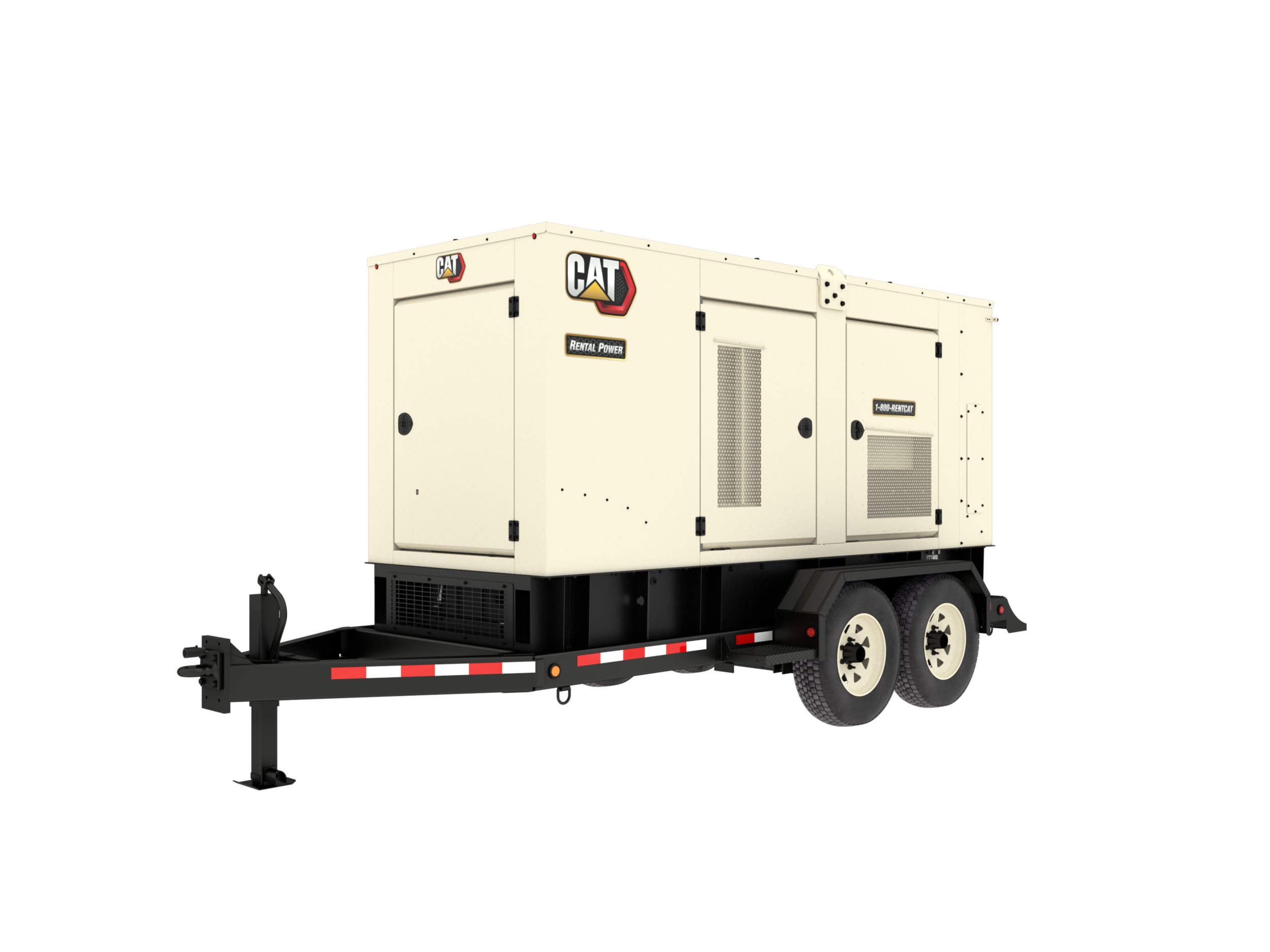

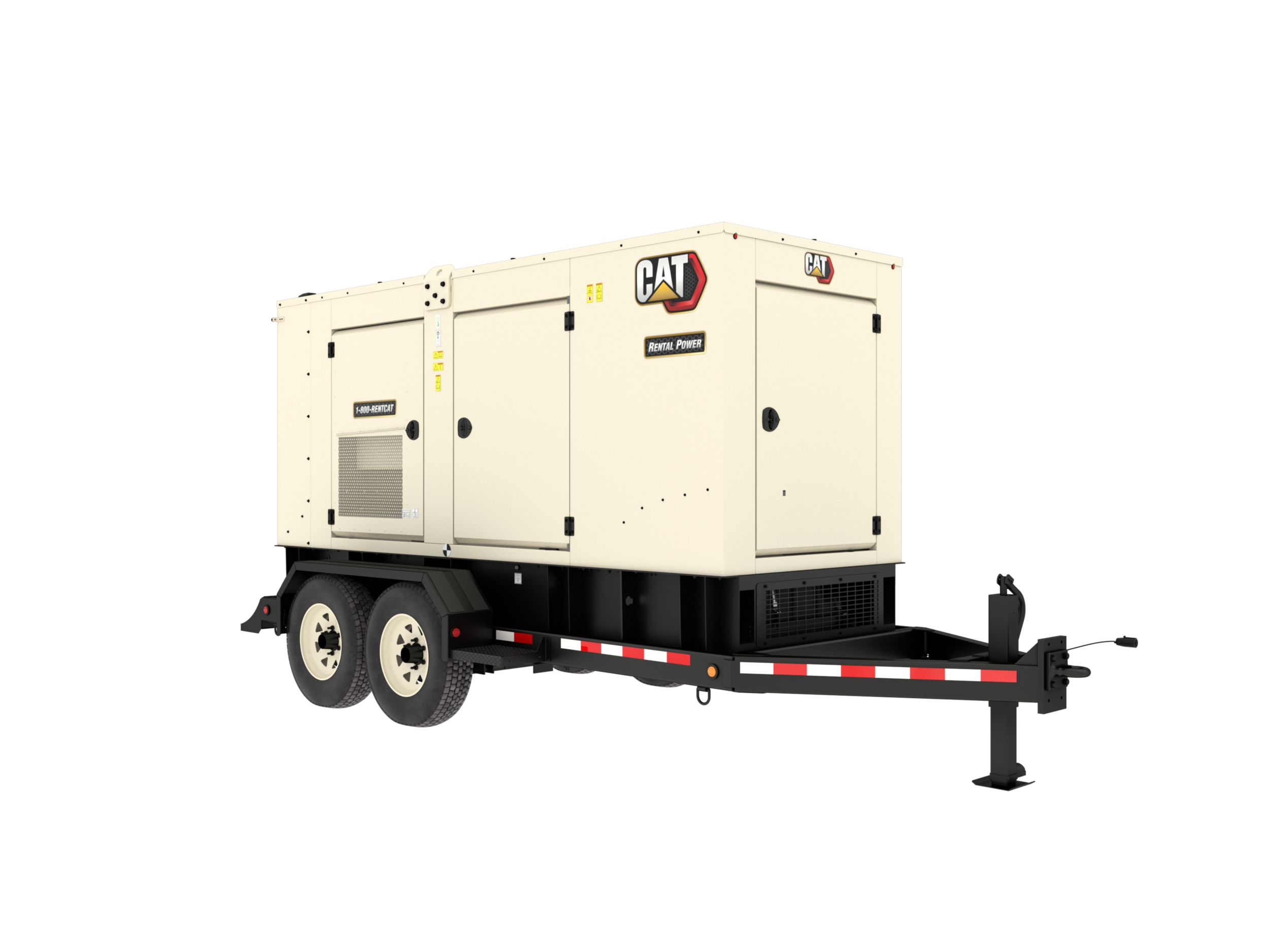

XQ330 Tier 4 Final
XQ330 Tier 4 Final
XQ330 Tier 4 Final
XQ330 Tier 4 Final
XQ330 Tier 4 Final
XQ330 Tier 4 Final
XQ330 Tier 4 Final
XQ330 Tier 4 Final

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C9.3B Diesel Engine

CAT EMCP 4.4 digital controls

Cat LC Series Generator

Sound Isolated Operator panel

Cat Connect

Factory designed, built and tested

Worldwide Product Support

500 hr oil change intervals

Improved transportability

Power Distribution

Additional options

Details

Specifications

Spec Value
Rating Prime 264 eKW (330 kVA) 264 eKW (330 kVA)
Frequency 50/60 Hz 50/60 Hz
Voltage 120 - 600 V 120 - 600 V
Rating Standby 288 ekW (360 kVA) 288 ekW (360 kVA)
Spec Value
Engine C9.3B C9.3B
Fuel Diesel Diesel
Spec Value
Height – Without Trailer 78.5 in 1994 mm
Length – Without Trailer 162.2 in 4120 mm
Width – Without Trailer 92.8 in 1595 mm
Weight with Lube Oil and Coolant, Without Trailer 10405 lb 4720 kg
Spec Value
100% Load 60 Hz 18.5 gal/hr 70 l/hr
75% Load 60 Hz 13.7 gal/hr 52 l/hr
50% Load 60Hz 9.8 gal/hr 37 l/hr
100% Load 50 Hz 16.5 gal/hr 62.5 l/hr
75% Load 50 Hz 12.5 gal/hr 47.3 l/hr
Spec Value
Sound Power @ 7 meters (23 feet) @ Prime Rating 70.2 dB(A) (60Hz) 70.2 dB(A) (60Hz)

Standard Equipment

CAT C9.3B Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • LC5134N Frame

Control Panel

  • Digital EMCP4.4 set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • Single 24V electric starting motor

Fuel System

  • 24 hour dual wall fuel tank

Air Filter

  • Efficient air cleaner with service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 3 pole 1000A maim circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Dual Point Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory 500-hour oil change interval

General

  • Factory tested and inspected
