Caterpillar

XQP20 EU Stage V

Rating Prime

20 kVA

20 kVA

Frequency

50 Hz

50 Hz

Voltage

220 - 415 V

220 - 415 V

Overview

This XQP20 generator set is EU Stage V emission standard capable. It can handle varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Media

Photos

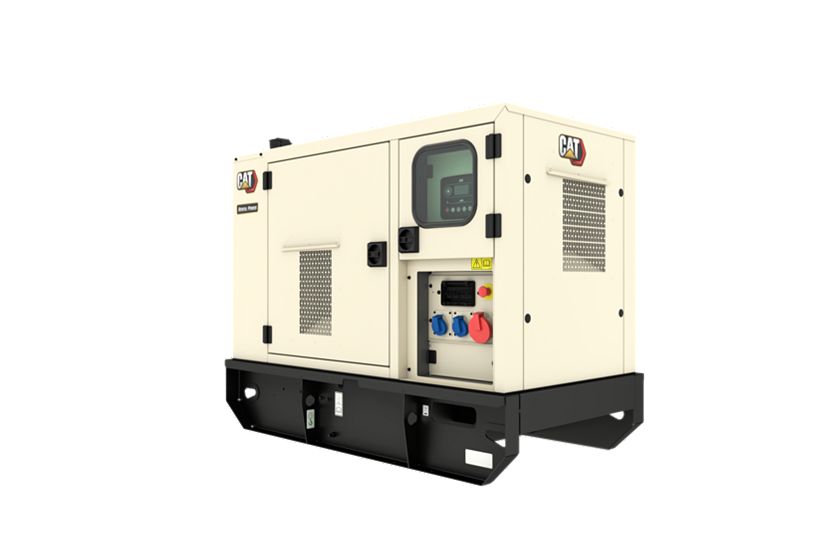

XQP20

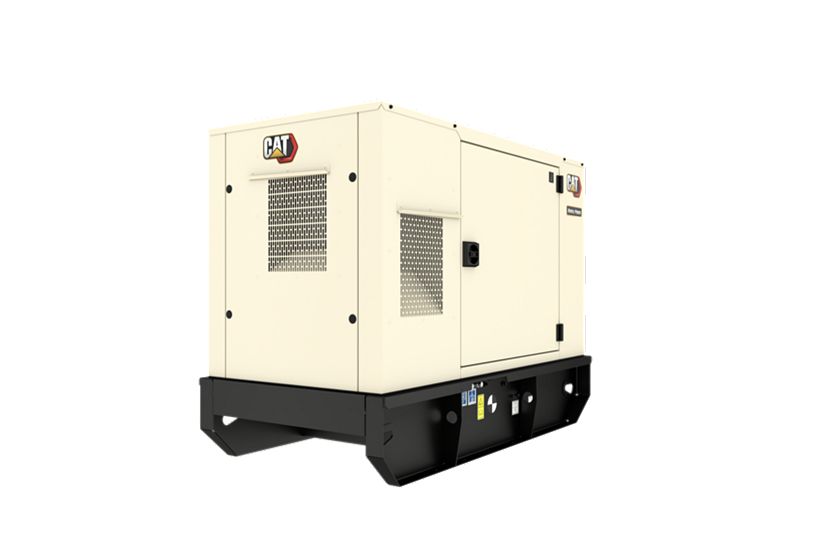

XQP20

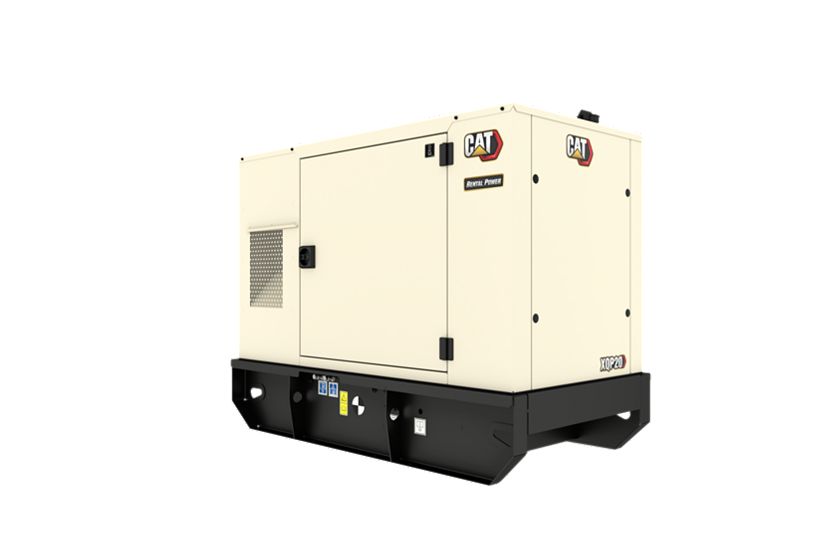

XQP20

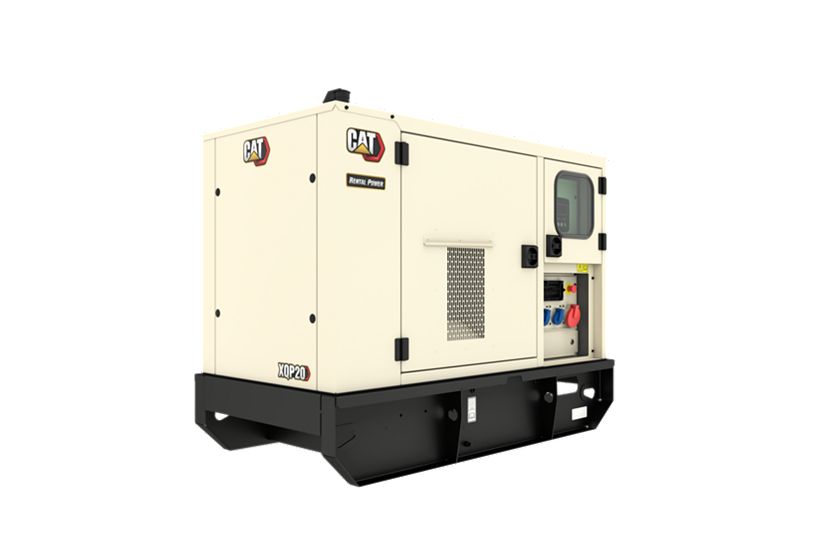

XQP20
XQP20
XQP20
XQP20
XQP20

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C2.2 Diesel Engine

GCCP 1.3 Control Panel

Cat LC1100 Generator

Robust Galvanised Enclosure

Sound Isolated Operator Panel

Cat Connect

Factory Designed, Built and Tested

Worldwide Product Support

500 hr Oil Change Intervals

Improved Transportability

Additional Options Available

Details

Specifications

Spec Value
Rating Prime 20 kVA 20 kVA
Frequency 50 Hz 50 Hz
Voltage 220 - 415 V 220 - 415 V
Fuel/Emissions Strategy EU Stage V EU Stage V
Spec Value
Engine Cat® C2.2 Cat® C2.2
Fuel Diesel Diesel
Emissions EU Stage V EU Stage V
Spec Value
Width 39.1 in 1001 mm
Height 50.1 in 1300 mm
Length 67.1 in 1718 mm
Weight – With Lube Oil and Coolant 1793 lb 815 kg
Spec Value
100% Load 50 Hz 1.45 gal/hr 5.5 l/hr
75% Load 50 Hz 1.05 gal/hr 4 l/hr
Spec Value
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 65 dB(A) 65 dB(A)

Standard Equipment

Cat® C2.2 Diesel Engine

  • Naturally aspirated
  • Mechanical Governor

Alternator

  • LC1100 Frame
  • Coastal insulation protection

Control Panel

  • GCCP 1.3 set mounted digital controller

Air Filter

  • Air cleaner, cyclonic/paper with dust cup and serviceindicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory
  • High ambient performance

Charging / Starting System

  • 12V, heavy duty charging alternator with integral regulator and belt guards

Fuel System

  • 12 hour dual wall fuel tank with internal fuel fill
  • Engine mounted primary and secondary fuel filter

Distribution

  • Separate robust steel enclosures for control & distribution sections
  • 4 pole, 40A main circuit breaker

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Sealed quarter-turn compression latches with key or padlock capabilities

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
  • Full manufacturer’s warranty

Optional Equipment

Distribution

  • CE socket box with integrated MCB & RCBO protection

Fuel Option Pack

  • Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender

Drains option Pack

  • Oil and coolant drains piped to base frame
