Caterpillar

XQP1100 Rental Generator Set

Rating Prime

1100 kVA

1100 kVA

Frequency

50/60 Hz

50/60 Hz

Voltage

127 - 480 V

127 - 480 V

Overview

Packaging 1100 kVA in a 20’ ISO transportable container, the power density offering in the XQP1100 is increased and paralleling controls with an Electrically Operated (EO) breaker are featured as standard equipment. The XQP1100 is a fully self-contained unit capable of running eight hours without refueling.

Media

Photos

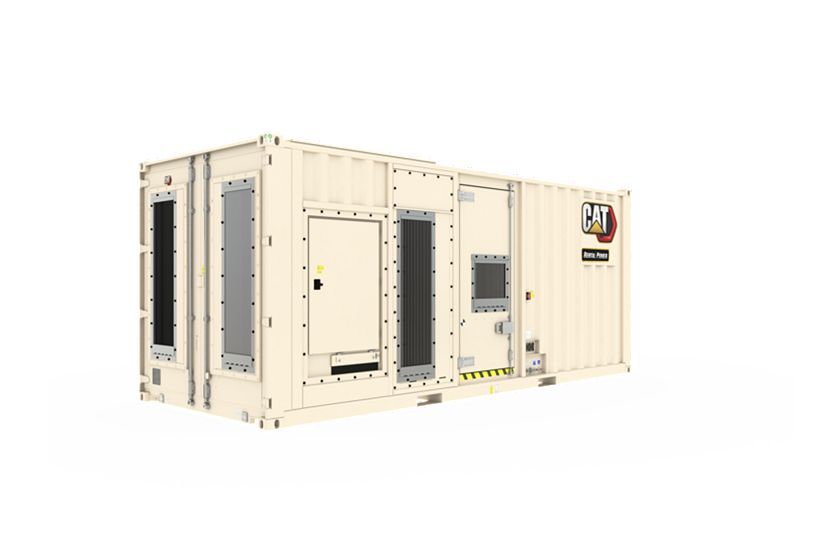

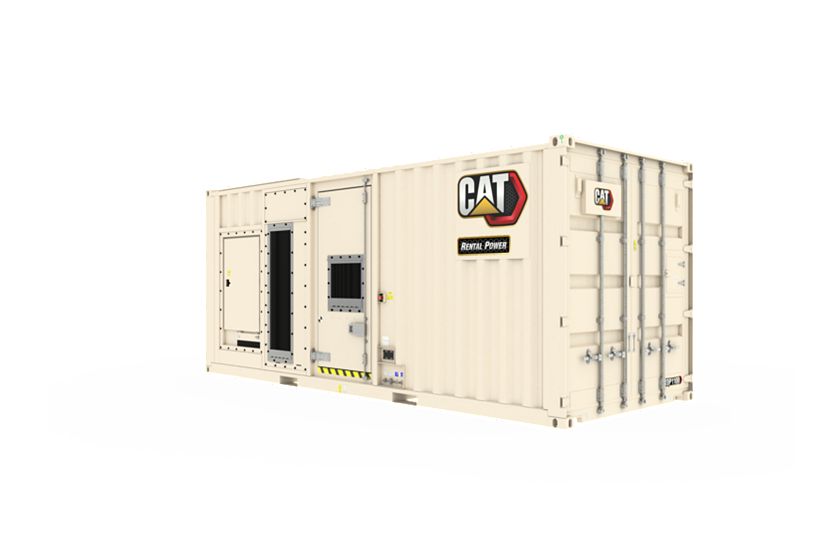

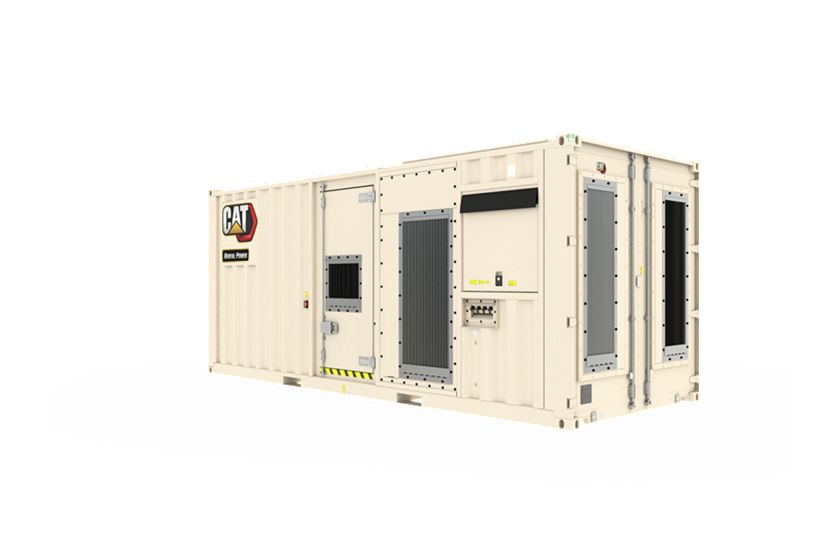

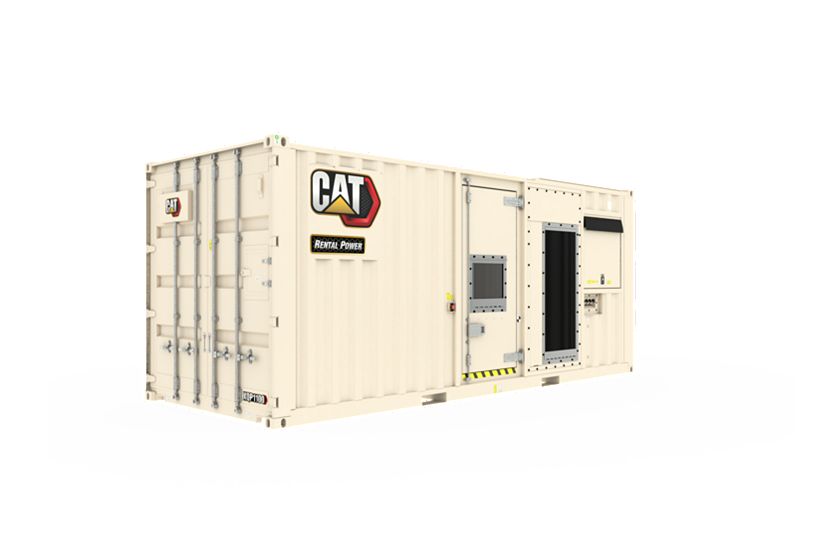

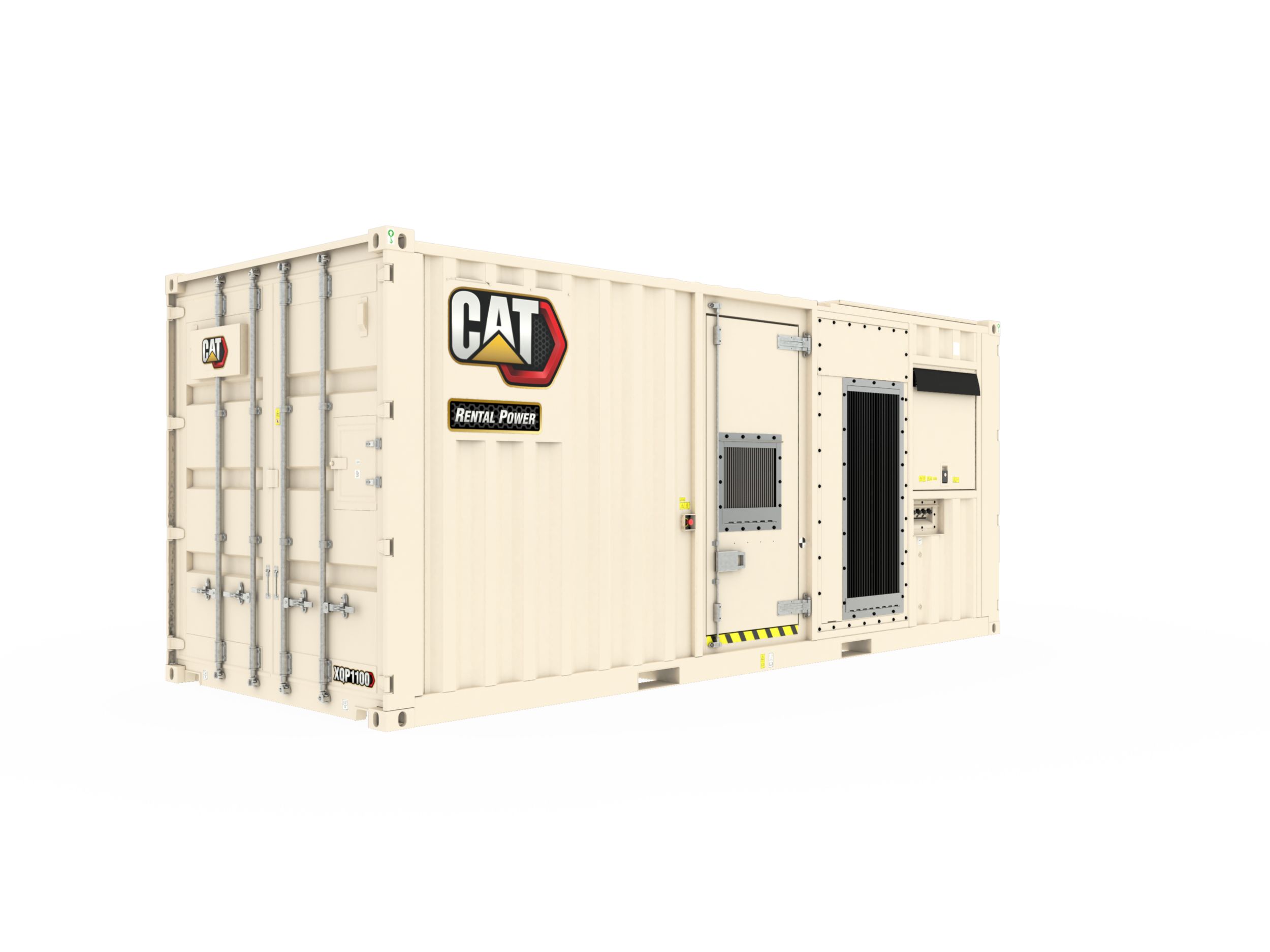

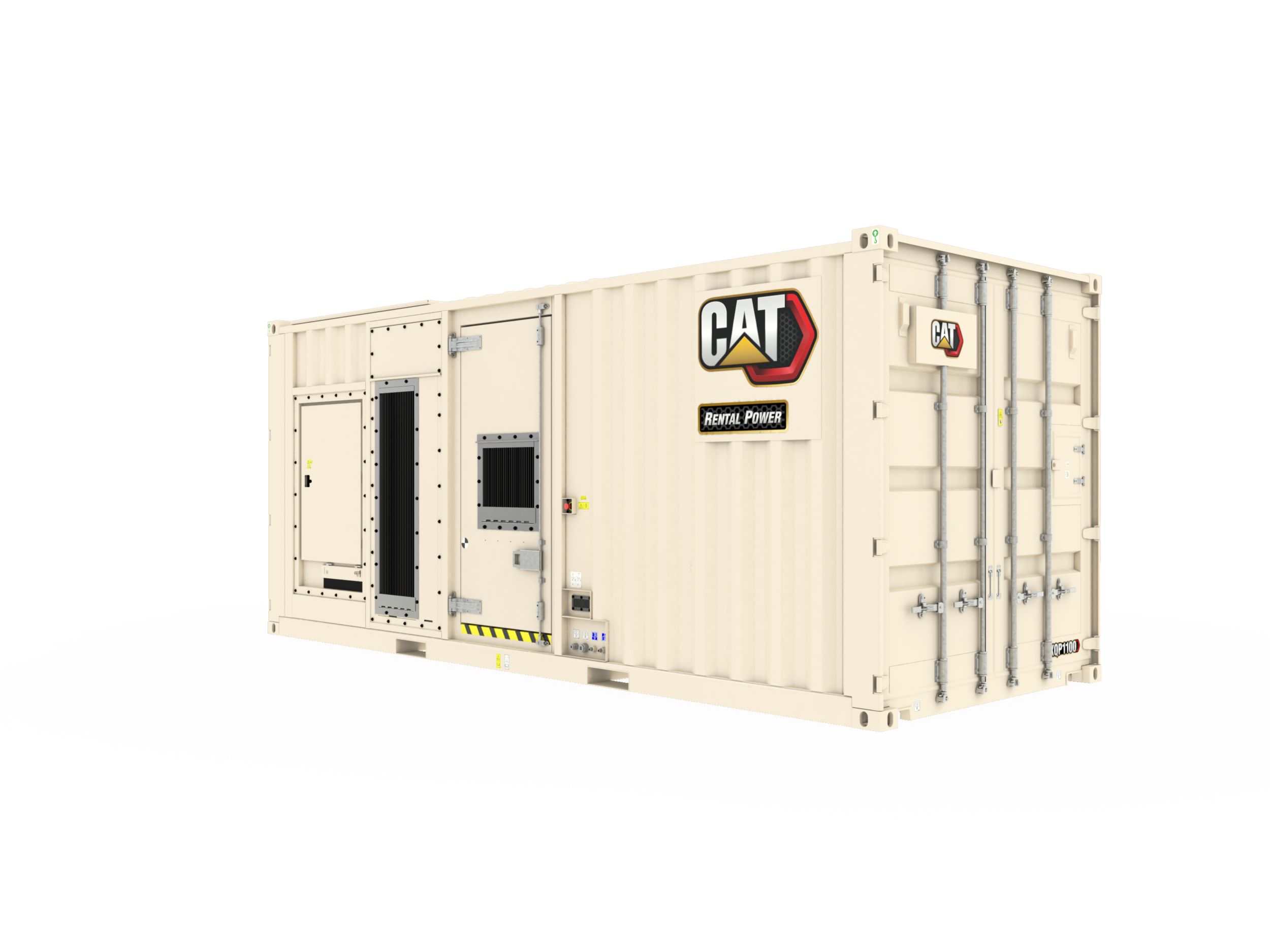

XQP1100
XQP1100
XQP1100
XQP1100
XQP1100
XQP1100
XQP1100
XQP1100

Videos

Cat Rental Power XQP Product Robust Design Features
Cat Rental Power XQP Product Electrical Features

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C32 Diesel Engine

Cat EMCP 4.4 Control Panel

Cat SR500 Generator

Robust Galvanised Enclosure

Sound Isolated Operator Panel

Cat Connect

Factory Designed, Built and Tested

Worldwide Product Support

500 hr Oil Change Intervals

Improved Transportability

Additional Options Available

Details

Specifications

Spec Value
Rating Prime 1100 kVA 1100 kVA
Frequency 50/60 Hz 50/60 Hz
Voltage 127 - 480 V 127 - 480 V
Spec Value
Engine Cat C32 Cat C32
Fuel Diesel Diesel
Spec Value
Width 96 in 2438 mm
Height 102 in 2591 mm
Length 240 in 6096 mm
Weight – With Lube Oil and Coolant 32053 lb 14539 kg
Spec Value
100% Load 50Hz 57.6 gal/hr 218.2 l/hr
100% Load 60Hz 67 gal/hr 253.6 l/hr
75% Load 50Hz 43.2 gal/hr 163.4 l/hr
75% Load 60Hz 50 gal/hr 189.2 l/hr
50% Load 50Hz 30.6 gal/hr 116 l/hr
50% Load 60Hz 133.6 l/hr 35.3 gal/hr
Spec Value
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 84 dB(A) 84 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 85 dB(A) 85 dB(A)

Standard Equipment

CAT C32 Diesel Engine

  • Turbocharged

Generator

  • E3875L4 Frame

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory

Charging / Starting System

  • 24V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • Fuel tank with 6 way directional valve for external supply

Control Panel

  • Digital EMCP4.4 set mounted controller

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
