EMCP 4.4 Master Control Panel

The EMCP 4.4 Master Control Panel is a wall mounted system that monitors and controls up to eight engine generators for operation in parallel with or without a single utility source.

Media

Photos

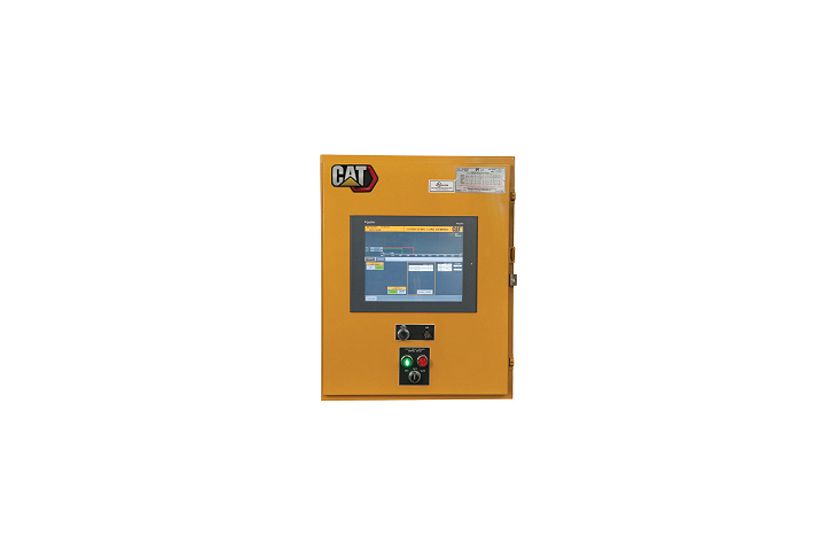

Master Control Panel
Master Control Panel

Documents

Features

Product Features

Details

Specifications

Spec Value
Configuration Remote monitoring and control for up to 8 generator sets via high-speed network. Enables paralleling a group of EMCP 4.4 equipped generator sets to a single utility source. Remote monitoring and control for up to 8 generator sets via high-speed network. Enables paralleling a group of EMCP 4.4 equipped generator sets to a single utility source.
Modes of Operation Emergency standby, island, utility paralleling Emergency standby, island, utility paralleling
Application LV and MV (208V - 38 kV) LV and MV (208V - 38 kV)
Spec Value
ANSI Protective Devices 15/25, 27/59, 81 O/U, 32, 40, 50, 51 15/25, 27/59, 81 O/U, 32, 40, 50, 51
Spec Value
ANSI Protective Devices 15/25. 27/59, 81 O/U, 32,47 (Industrial Grade) 15/25. 27/59, 81 O/U, 32,47 (Industrial Grade)
Spec Value
Certifications IBC, CBC, UBC & OSHPD Certified IBC, CBC, UBC & OSHPD Certified
Control Panel Enclosure NEMA 1 wall-mounted construction NEMA 1 wall-mounted construction
Operating Temperature 0°C to 50°C 0°C to 50°C
Storage Temperature -20°C to +60°C -20°C to +60°C
Low Voltage Standards NEMA SG-5, CSA, ANSI C37.51, ANSI C37.20.1, UL 1558 or UL 891, NFPA 110, NFPA 99 and NFPA 70 NEMA SG-5, CSA, ANSI C37.51, ANSI C37.20.1, UL 1558 or UL 891, NFPA 110, NFPA 99 and NFPA 70
Medium Voltage Standards NEMA SG-5, ANSI / IEEE C37.20.2, CSA-C22.2 No. 31-M89, EEMAC G8-3.2, NFPA 70, NFPA 99 and NFPA 1110 NEMA SG-5, ANSI / IEEE C37.20.2, CSA-C22.2 No. 31-M89, EEMAC G8-3.2, NFPA 70, NFPA 99 and NFPA 1110

Standard Equipment

Configuration

  • Wall mounted supervisory control system provides centralized monitoring and control of up to eight generators equipped with EMCP4.4 paralleling control panels

Application

  • LV and MV (208V – 15 kV) 50/60Hz

Operating Temperature

  • 0-50 C

Medium Voltage Standards

  • UL 508A

Emergency Transfer Load Manager Standard Equipment

  • Data Table Interface
  • 19″ Color Touchscreen

Optional Equipment

Emergency Transfer Load Manager Optional Equipment

  • Utility Monitoring and Circuit Breaker Control I/O provided in XLM version of Master Control Panel provided in XLM version of Master Control Panel

Related Products - Attachments

  • Diesel Generator Sets – C9, C13, C15, C18, C27, C32, 3500, C175
