Caterpillar

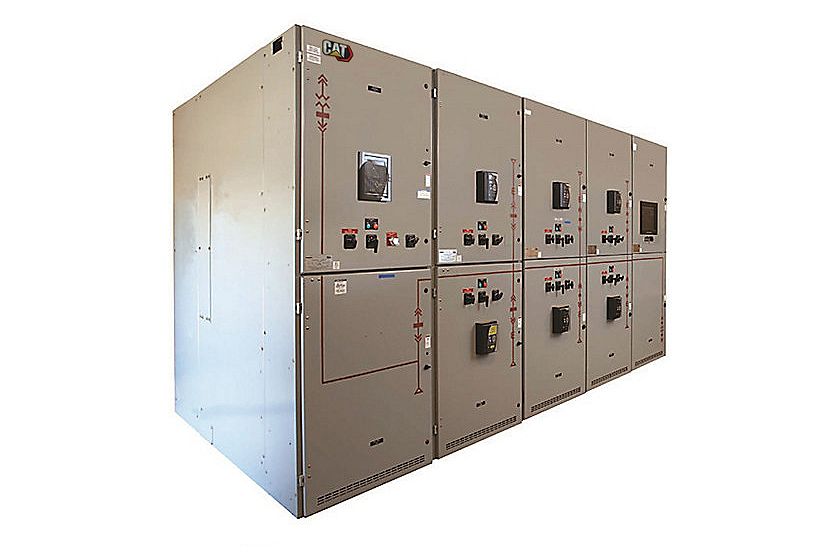

Cat Customizable Switchgear and Controls
Custom Switchgear and controls are design to provide a power generation, automation and distribution system specific to electrical needs.
Media
Photos
Details
Specifications
Technical Summary
| Spec | Value |
|---|---|
| Configuration | Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc |
| Modes of Operation | All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical power needs All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical power needs |
| Application | LV and MV ( 208V - 38 kV) 50 / 60 Hz LV and MV ( 208V - 38 kV) 50 / 60 Hz |
Generator Protective Devices
| Spec | Value |
|---|---|
| ANSI Protective Devices | Per customer specification Per customer specification |
Utility Protective Devices
| Spec | Value |
|---|---|
| ANSI Protective Devices | Per customer specification Per customer specification |
Environmental Parameters
| Spec | Value |
|---|---|
| Certifications | Per customer specification Per customer specification |
| Control Panel Enclosure | Per customer specification Per customer specification |
| Operating Temperature | Per customer specification Per customer specification |
| Storage Temperature | Per customer specification Per customer specification |
| Low Voltage Standards | Per customer specification Per customer specification |
| Medium Voltage Standards | Per customer specification Per customer specification |
Standard Equipment
Generator Demand Priority Control
- Per customer specifications
Optional Equipment
Data Table Interface
- Per customer specifications
Supplemental Hardware Synchronization check relay (ANSI 25 Device)
- Per customer specifications
Remote Power Monitoring System
- Per customer specifications
