Cat

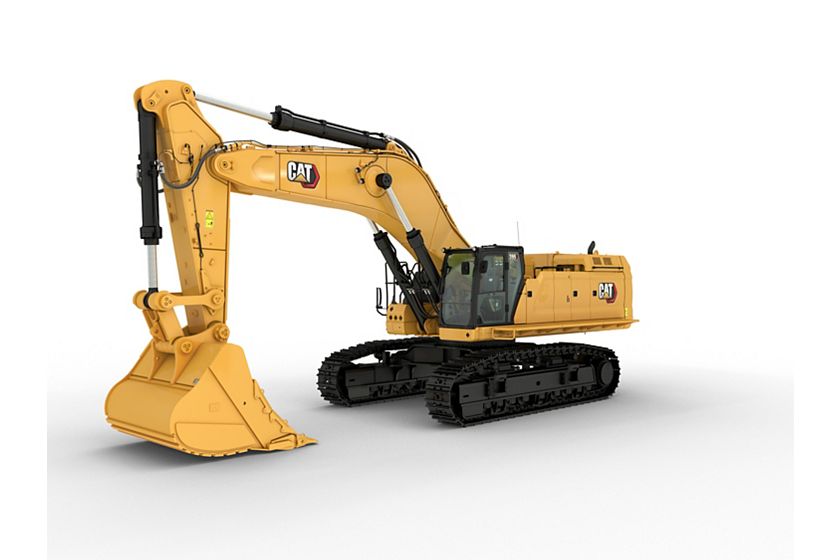

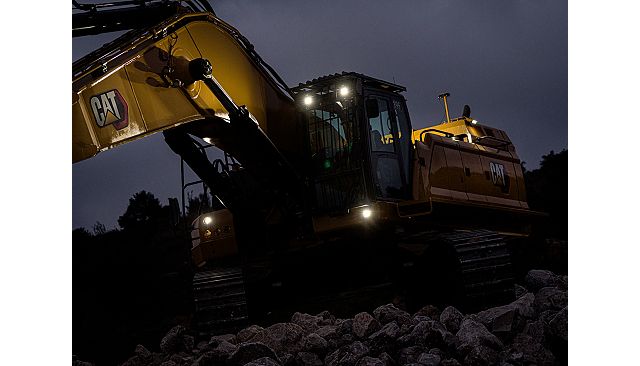

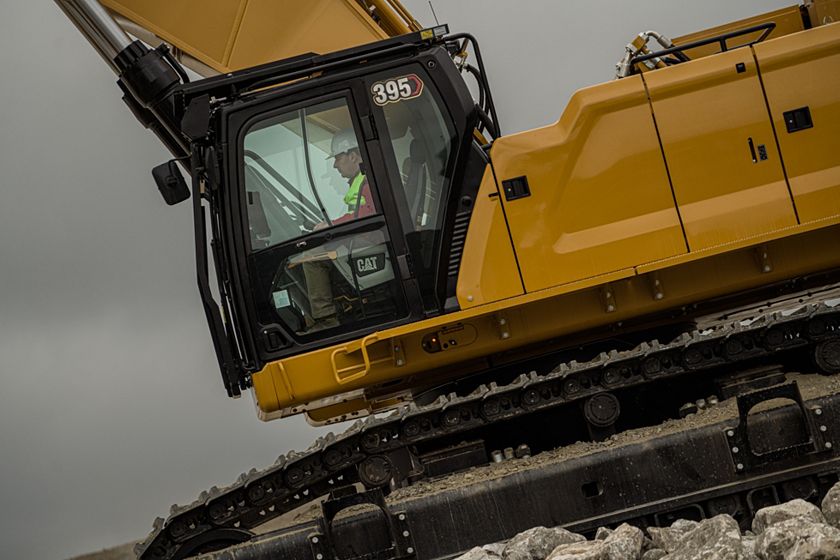

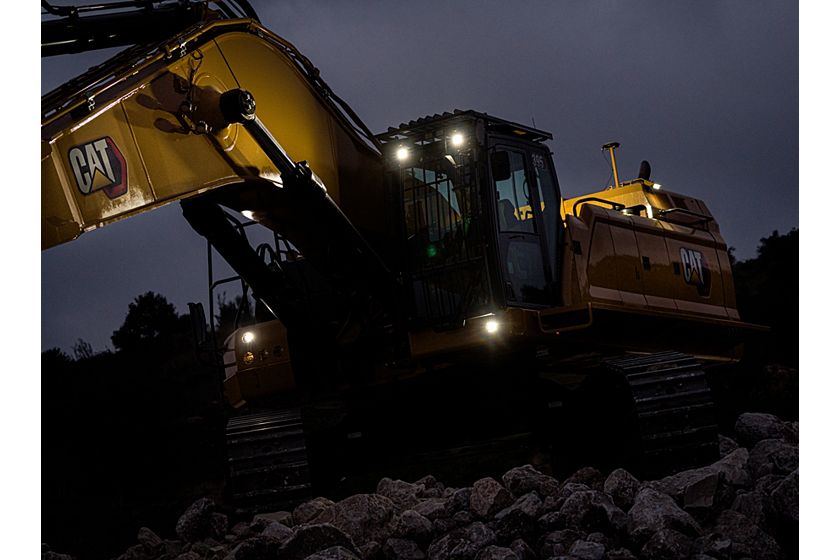

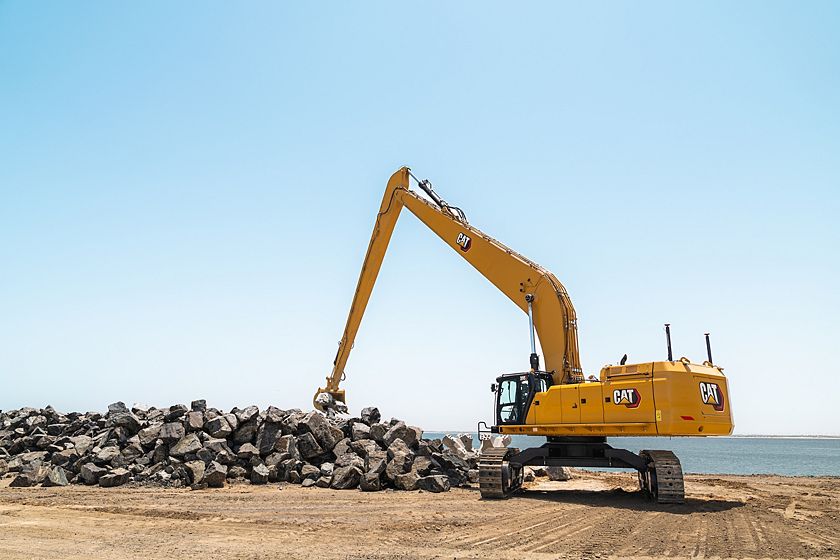

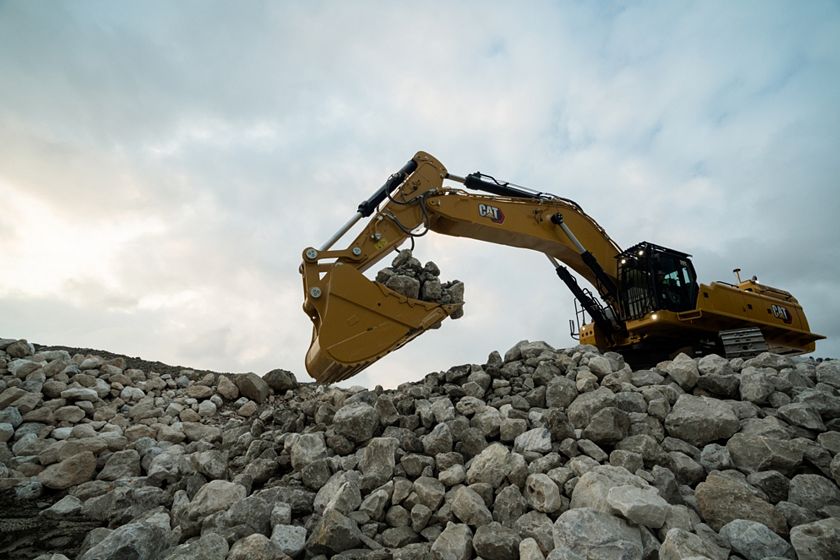

Cat® 395 Hydaulic Excavator

Net Power – ISO 9249

542 hp

404 kW

Operating Weight

207400 lb

94000 kg

Maximum Digging Depth

31.9 ft

9670 mm

Overview

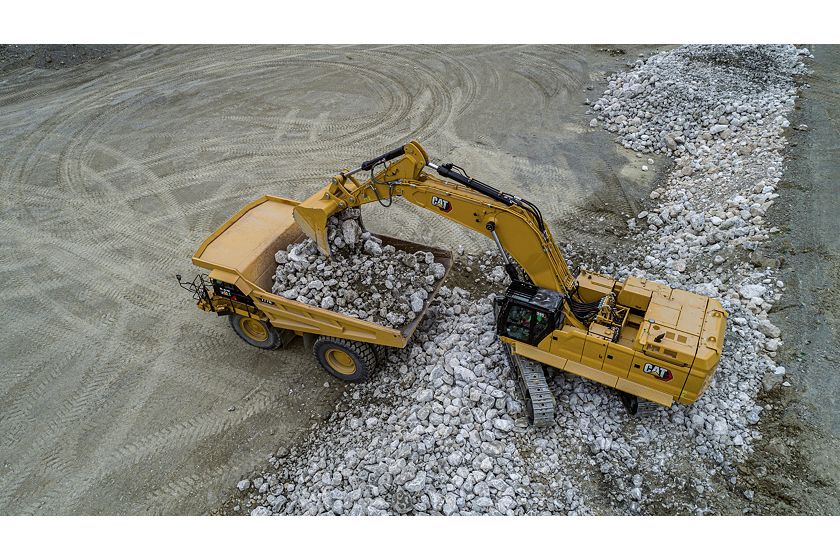

The Cat® 395 Excavator is a powerhouse that gets the job done every time. Built with the 540 horsepower Cat C18 engine, this machine is a groundbreaking rockstar with fast cycle times and a powerful digging force that eases bucket penetration and digs down deep with maximum digging depths from 7.2 m (23.7 ft) up to 11.7m (38.5 ft). Equipped with the latest Cat technology, the 395 helps you make informed and smart decisions to help improve jobsite efficiency, increase productivity, and return safely home every day. If you want to generate big-time results for your business, put the 395 next generation excavator to work. It is the top choice in its size class.

Media

Photos

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product. Exterior (HTML) 01 Hotspot 01

Interior

360° Interior view. Double click on the image to zoom in on any area of the product.

Features

Details

Specifications

Spec Value
Net Power – ISO 9249 542 hp 404 kW
Net Power – ISO 9249 (DIN) 550 hp (metric) 550 hp (metric)
Engine Model Cat C18 Cat C18
Engine Power – ISO 14396 543 hp 405 kW
Engine Power – ISO 14396 (DIN) 551 hp (metric) 551 hp (metric)
Bore 6 in 145 mm
Stroke 7 in 183 mm
Displacement 1105 in³ 18.1 l
Biodiesel Capability B20¹ B20¹
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Spec Value
Main System – Maximum Flow – Implement 281 gpm 1064 L/min
Maximum Pressure – Equipment 5366 psi 37000 kPa
Maximum Pressure – Travel 5076 psi 35000 kPa
Maximum Pressure – Swing 4496 psi 31000 kPa
Spec Value
Maximum Swing Torque 267333 lbf·ft 362 kN·m
Note (1) *For CE-marked machine default value may be set lower *For CE-marked machine default value may be set lower
Spec Value
Operating Weight 207400 lb 94000 kg
Note (1) Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device. Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device.
Spec Value
Fuel Tank Capacity 322 gal (US) 1220 l
Cooling System 19 gal (US) 71 l
Engine Oil 18 gal (US) 67 l
Swing Drive 6 gal (US) 24 l
Final Drive – Each 5 gal (US) 20 l
Hydraulic System – Including Tank 196 gal (US) 740 l
Hydraulic Tank 98 gal (US) 372 l
DEF Tank 21 gal (US) 80 l
Spec Value
Boom GP 8.4m (25'7") GP 8.4m (25'7")
Stick Reach 4.4 m (14'5") Reach 4.4 m (14'5")
Bucket SD 5.2m³ (6.8 yd³) SD 5.2m³ (6.8 yd³)
Shipping Height – Top of Cab 12 ft 3670 mm
Handrail Height 12.4 ft 3750 mm
Shipping Length 49.6 ft 15090 mm
Tail Swing Radius 15.11 ft 4840 mm
Counterweight Clearance 5.5 ft 1640 mm
Ground Clearance 2.9 ft 830 mm
Track Length 20.1 ft 6350 mm
Track Length to Center of Rollers 16.1 ft 5120 mm
Track Gauge 11.6 ft 3510 mm
Transport Width 12.9 ft 3880 mm
Note Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps
Spec Value
Maximum Digging Depth 31.9 ft 9670 mm
Boom GP 8.4m (25'7") GP 8.4m (25'7")
Stick Reach 4.4 m (14'5") Reach 4.4 m (14'5")
Bucket SD 5.2m³ (6.8 yd³) SD 5.2m³ (6.8 yd³)
Maximum Reach at Ground Level 48.3 ft 14710 mm
Maximum Cutting Height 44.5 ft 13540 mm
Maximum Loading Height 30.4 ft 9250 mm
Minimum Loading Height 9.11 ft 3030 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 31.4 ft 9560 mm
Maximum Vertical Wall Digging Depth 22.3 ft 6770 mm
Bucket Digging Force – ISO 86100 lbf·ft 383 kN
Stick Digging Force – ISO 68540 lbf·ft 305 kN
Spec Value
Recyclability 98% 98%
Spec Value
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1859), the system contains 1.3 kg (2.9 lb) of refrigerant, which has a CO2 equivalent of 1.859 metric tonnes (2.049 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1859), the system contains 1.3 kg (2.9 lb) of refrigerant, which has a CO2 equivalent of 1.859 metric tonnes (2.049 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

  • High-resolution 254 mm (10″) LCD touch screen monitor
  • Heated seat with air-adjustable suspension (Deluxe only)
  • Heated and cooled seat with auto adjustable suspension (Premium only)
  • Sound suppressed cab with viscous mounts
  • Automatic bi-level air conditioner
  • Jog dial and shortcut keys for monitor control
  • Keyless push-to-start engine control
  • Height-adjustable console, infinite with no tool
  • Tilt-up left-side console
  • 51 mm (2″) orange seat belt
  • Bluetooth integrated radio (including USB, aux port and microphone)
  • 2 x 12V DC outlets
  • Cup and storage compartments
  • Openable two-piece front window (Premium optional)
  • Upper radial wiper with washer (Deluxe only)
  • Parallel wiper with washer (Premium only)
  • Openable polycarbonate skylight hatch (Premium optional)
  • LED dome light
  • Floor welcome light
  • Roller front sunscreen
  • Roller rear sunscreen (Deluxe optional)
  • Rear window emergency exit
  • Washable floor mat
  • Beacon Ready

CAT TECHNOLOGY

  • VisionLink™
  • Remote Flash
  • Remote Troubleshoot
  • Work tool recognition and tracking (PL161)

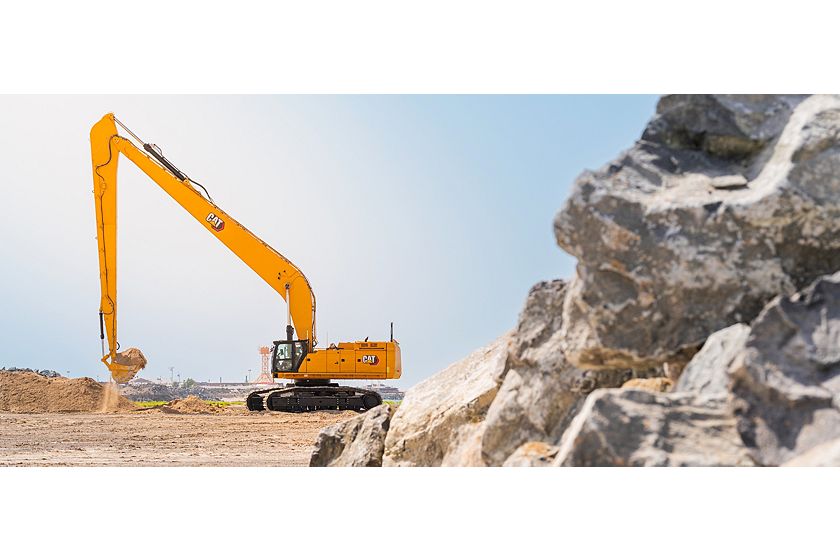

  • Cat Grade with 2D
  • Cat Assist
  • Cat Payload

ELECTRICAL SYSTEM

  • Maintenance-free 1,400 CCA batteries (x2)
  • Centralized electrical disconnect switch
  • Chassis light

ENGINE

  • Three selectable modes: Power, Smart, and Eco
  • Auto engine speed control
  • Up to 4500m (14,760 ft) altitude capability
  • 52°C (126°F) high-ambient cooling capacity
  • -18°C (-0.4°F) cold start capability
  • Hydraulic reverse fan
  • Double element air filter with integrated pre-cleaner
  • 3 vertical side-by-side cooling system
  • Remote disable
  • 95 Amp alternator

HYDRAULIC SYSTEM

  • Boom and stick regeneration circuit
  • Electronic main control valve
  • Dedicated closed loop swing circuit
  • Anti-reaction valve
  • Auto hydraulic oil warmup
  • Auto swing parking brake
  • High performance hydraulic return filter
  • Two speed travel
  • Bio hydraulic oil capability

SAFETY AND SECURITY

  • Caterpillar One Key security system
  • 2D E-Fence
  • Lockable fuel drain compartment
  • Lockable external tool / storage box
  • Lockable door, fuel, and hydraulic tank locks
  • Lockable disconnect switch
  • Service platform with anti-skid plate & recessed bolts
  • Full handrail mount on platform
  • Mirror package
  • Signaling/warning horn
  • Travel alarm
  • Ground-level secondary engine shutoff switch
  • Rearview and right-hand-sideview cameras
  • Walkway

SERVICE AND MAINTENANCE

  • Integrated vehicle health management system
  • Auto lube ready
  • Reversing cooling fan
  • Grouped location of engine oil & fuel filters
  • Scheduled Oil Sampling (S·O·S) ports
  • QuickEvac maintenance ready

UNDERCARRIAGE AND STRUCTURES

  • Long variable gauge undercarriage
  • Grease lubricated track
  • Swivel guard
  • HD bottom guard
  • HD travel motor guard
  • Standard counterweight
  • Towing eye on base frame

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat® dealer for details.

BOOMS AND STICKS

  • 7.25 m (23’9″) Mass boom
  • 8.4 m (27’7″) GP boom
  • 10 m (32’10”) Reach boom
  • 2.92 m (9’7″) GP stick
  • 2.92 m (9’7″) Mass stick
  • 3.4 m (11’2″) Mass stick
  • 3.4 m (11’2″) GP stick
  • 3.7 m (12’2″) GP stick
  • 4.4 m (14’5″) HD Reach stick
  • 5.5 m (18’1″) HD Reach stick
  • Bucket linkage, HB2 type without lifting eye, Autolube ready
  • Bucket linkage, HB2 type without lifting eye, Autolube ready
  • Bucket linkage, JC type with lifting eye, Autolube ready
  • Bucket linkage, JC type without lifting eye, Autolube ready

CAB

  • Operator Protective Guards (OPG)
  • Additional high-resolution LCD touch screen monitor for Cat® Grade Advanced 2D and 3D
  • Cat® Stick Steer
  • Auxiliary relay

CAT TECHNOLOGY

  • Operator Coaching
  • Cat Grade with 2D with Attachment Ready Option (ARO)
  • Cat Grade with 3D (single or dual GNSS)
  • Cat Grade 3D Ready
  • Cat Grade Connectivity
  • Cat Advanced Payload
  • Cat Tiltrotator (TRS) integration

ELECTRICAL SYSTEM

  • LED boom and cab lights
  • 1,800 lumen LED premium surround lights

ENGINE

  • Cold start block heaters
  • -32°C (-25°F) cold start capability

HYDRAULIC SYSTEM

  • SmartBoom™
  • Advanced tool control
  • Medium-pressure auxiliary circuit
  • Quick coupler circuit
  • Hydraulic efficiency monitoring

SAFETY AND SECURITY

  • Swing alarm
  • 360° visibility
  • Boom lowering check valve
  • Stick lowering check valve
  • Tilt-up walkway
  • Inspection lighting

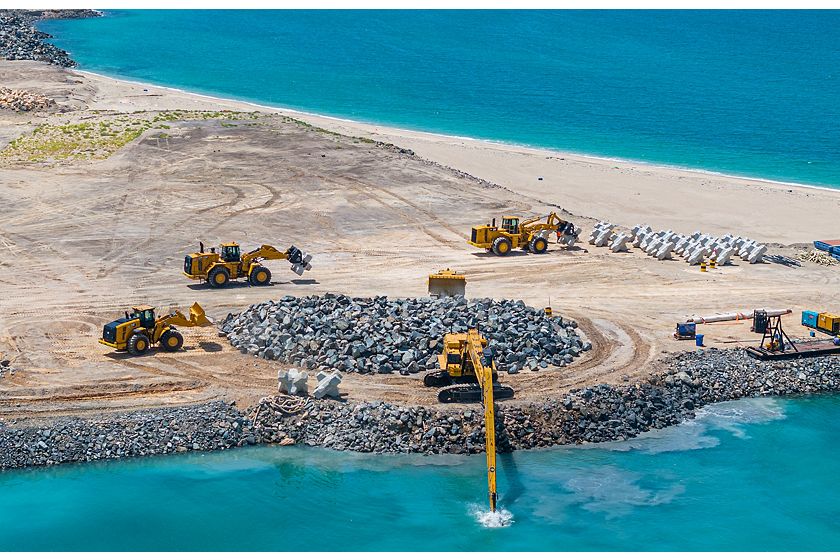

  • Cat Command (remote control)

SERVICE AND MAINTENANCE

  • Fast-fill fuel system
  • QuickEvac maintenance ready
  • Electric refueling pump with auto shutoff

UNDERCARRIAGE AND STRUCTURES

  • 650mm (26″) HD double grouser track shoes
  • 750mm (30″) HD double grouser track shoes
  • 900mm (35″) HD double grouser track shoes
  • Three-piece segmented track guiding guards
  • Two-piece segmented track guiding guards
  • Counterweight with removal device

OTHER OPTIONAL CONFIGURATION

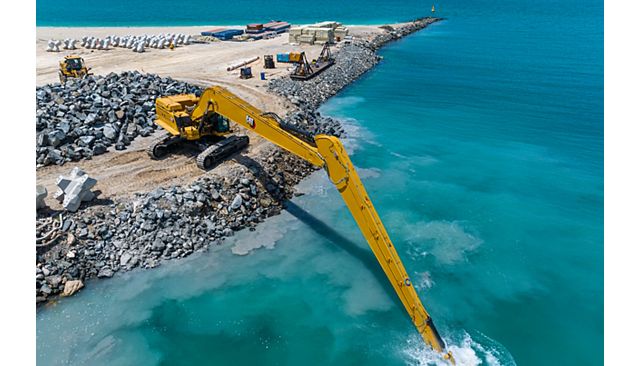

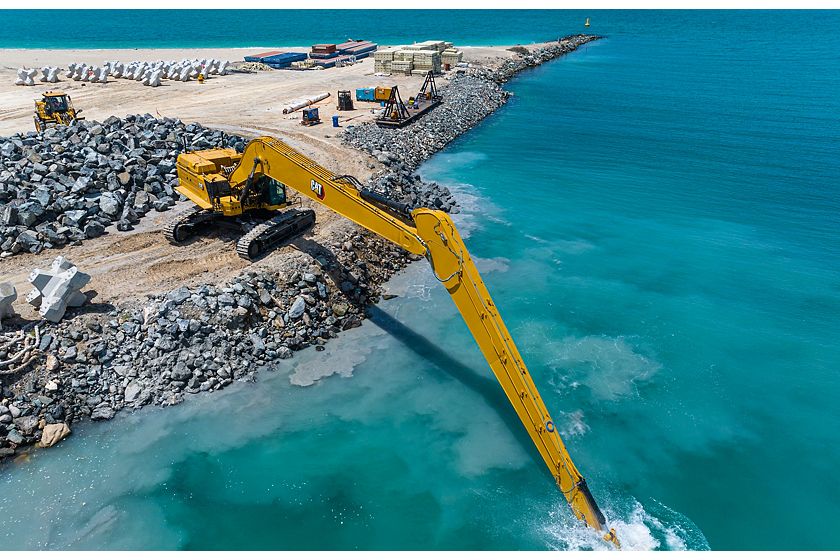

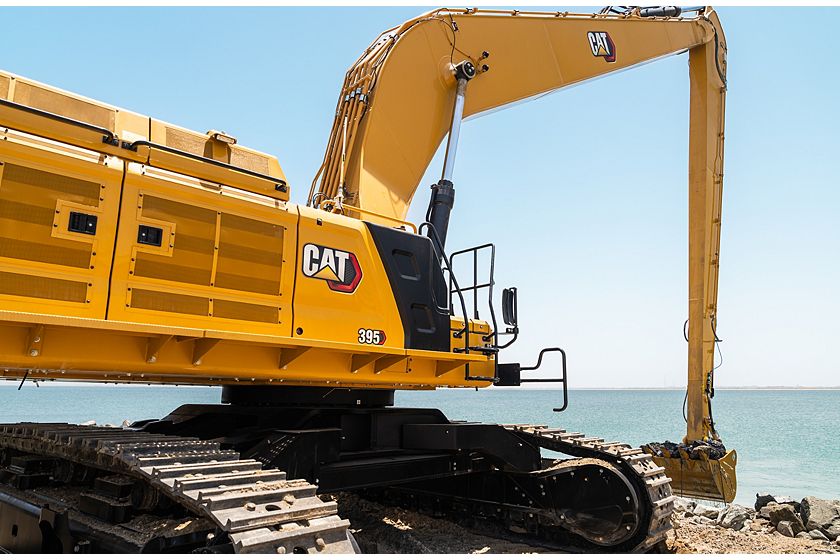

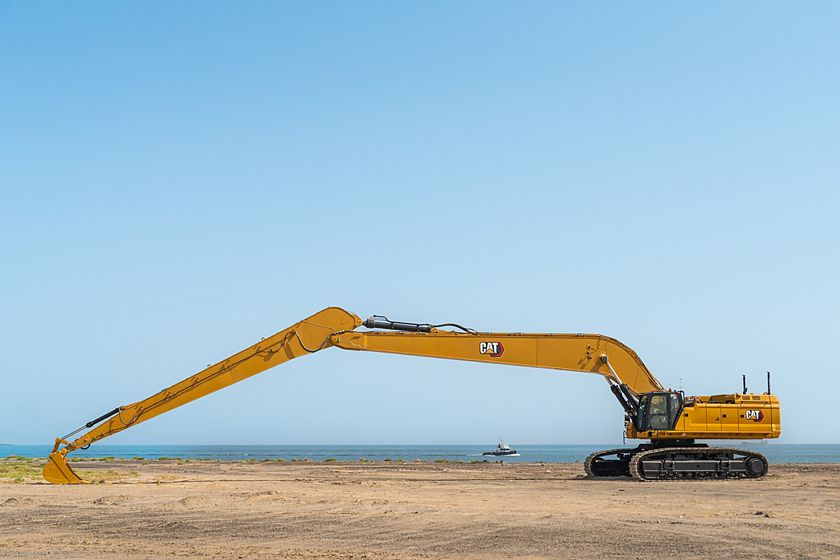

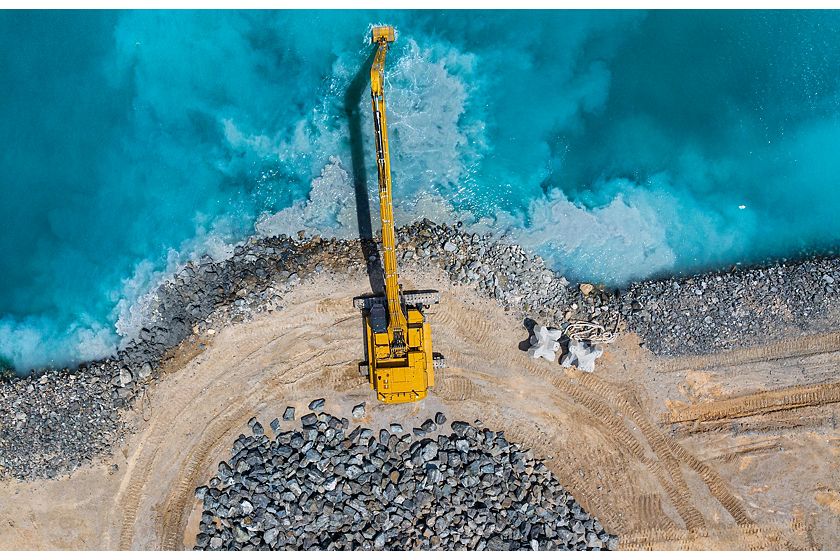

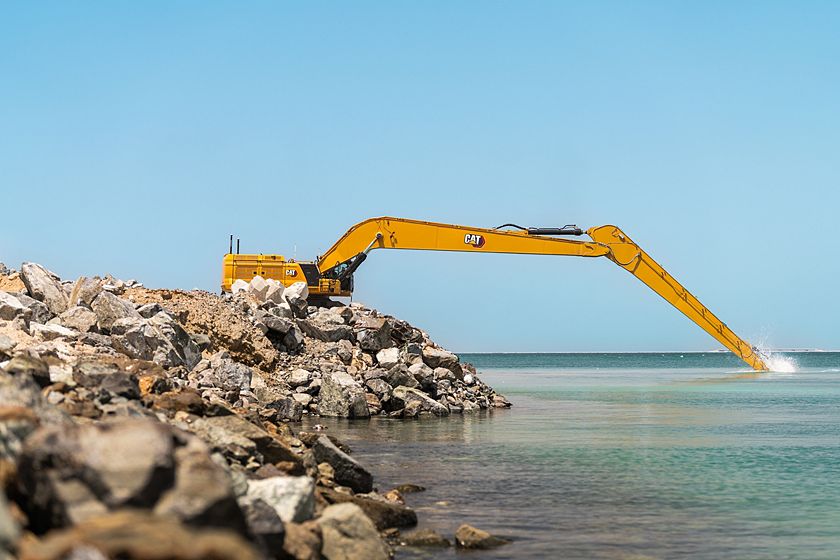

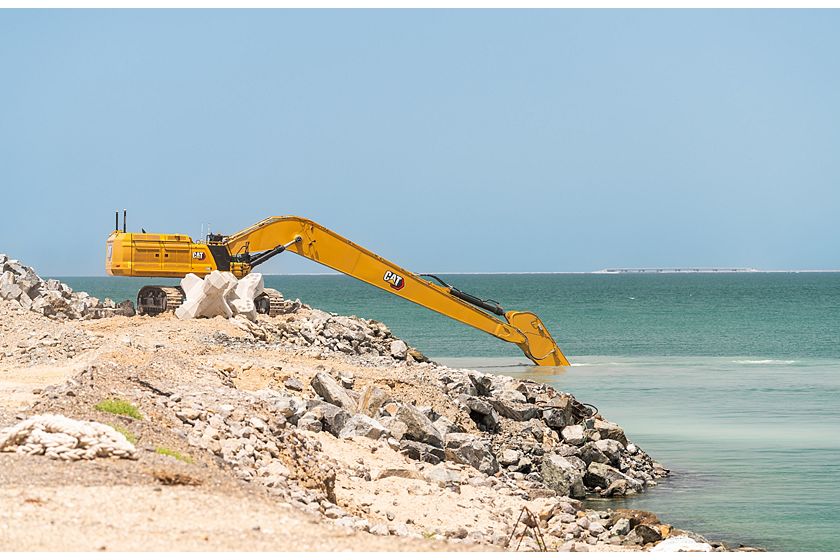

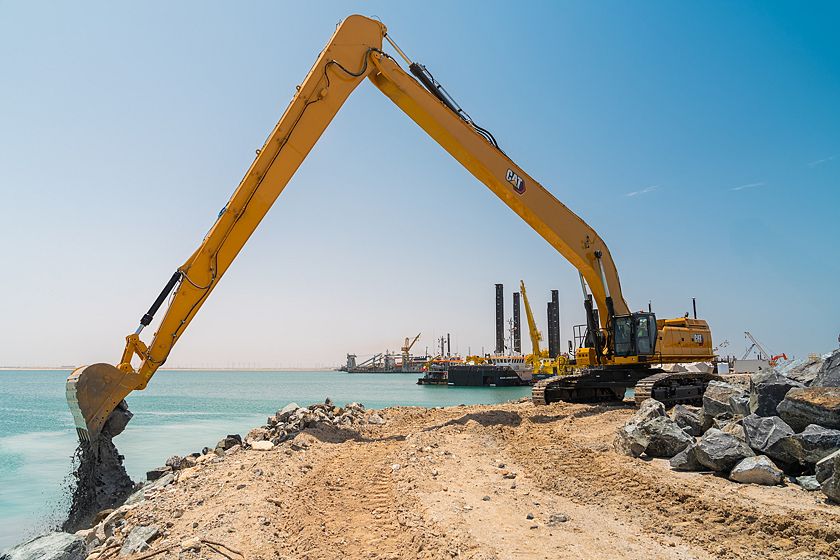

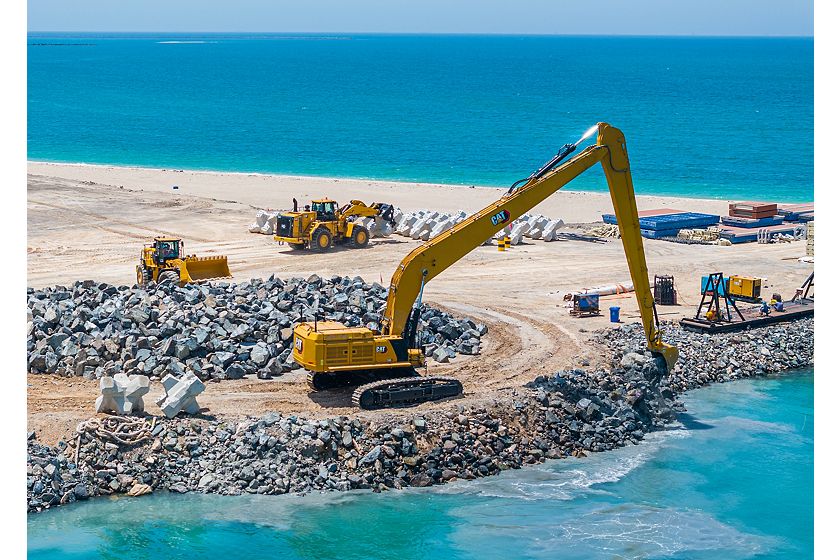

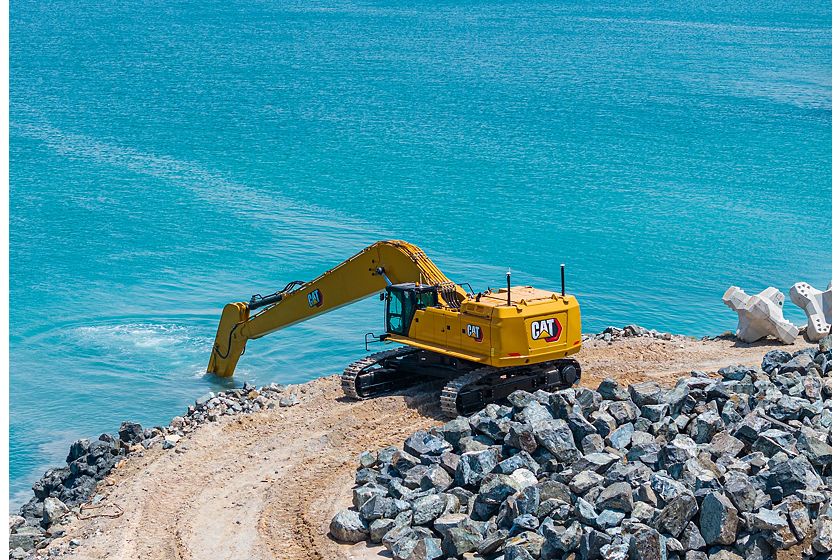

  • Long Reach (LRE)
