Caterpillar

300.9D VPS & HPU300 Mini Hydraulic Excavator

Net Power

13 hp

9.7 kW

Operating Weight

2399 lb

1088 kg

Dig Depth

68 in

1731 mm

Overview

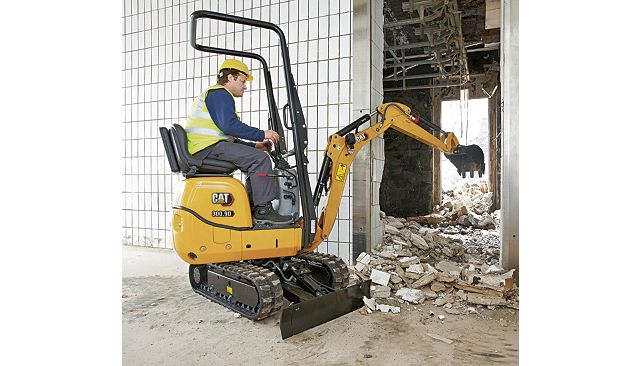

The innovative Cat 300.9D VPS with HPU300 Mini Excavator delivers versatility in a compact size with a choice of diesel or electric power. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.

Media

Photos

300.9D VPS & HPU300
300.9D VPS & HPU300
300.9D VPS & HPU300
300.9D VPS & HPU300
300.9D VPS & HPU300
300.9D VPS & HPU300

Videos

Learn about the Cat 300.9D Versatile Power System Mini Excavator with the HPU300.
Learn how to set up the Cat 300.9D Versatile Power System Mini Excavator with the HPU300.

Documents

Features

Versatility in a Compact Size

Extending Undercarriage and Blade

Foldable Safety Frame

Simple Controls

Easy Service

Attachments

Details

Specifications

Spec Value
Dig Depth 68 in 1731 mm
Spec Value
Dumping Height – Maximum 80 in 2035 mm
Reach at Ground Level 119 in 3027 mm
Stick Force 1012 lbf 4.5 kN
Bucket Force 2000 lbf 8.9 kN
Spec Value
Net Power 13 hp 9.7 kW
Engine Model Yanmar 3TNV70 Yanmar 3TNV70
Emissions Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Spec Value
Gross Power 13 hp 9.7 kW
Engine Type Liquid Cooled, 3 Cylinder, Diesel Liquid Cooled, 3 Cylinder, Diesel
Fuel Tank Capacity 2.6 gal (US) 10 l
Spec Value
Operating Weight 2399 lb 1088 kg
Spec Value
Length × Width × Height 2476 × 700 × 1507 mm (108 × 28 × 59 in) 2476 × 700 × 1507 mm (108 × 28 × 59 in)
Operating Weight 2399 lb 1088 kg
Shipping Weight 2178 lb 988 kg
Spec Value
Operating Pressure – Swing Gear 1015 psi 70 bar
Operating Pressure – Front Linkage and Travel 2466 psi 170 bar
Rotation Speed 8 r/min 8 r/min
Pump Type Gear Gear
Pump Flow 6 gal/min 22 l/min
Hydraulic Tank Capacity 3.7 gal (US) 14 l
Spec Value
Length × Width × Height 930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in) 930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in)
Operating Weight 423 lb 192 kg
Spec Value
Lift Height 8 in 197 mm
Dig Depth 7 in 174 mm
Width 28 in 700 mm
Height 8 in 200 mm
Spec Value
Flow Rate 5.3 gal/min 20 l/min
Hydraulic Oil Tank Capacity 2.4 gal (US) 9 l
Connecting Hose Length 32.8 ft 10 m
Operating Pressure 2756 psi 190 bar
Spec Value
Input Current 16A 16A
Motor Type 3 Phase Electric Motor 3 Phase Electric Motor
Performance – North America 12 hp 9 kW
Performance – Europe 10 hp 7.5 kW
Spec Value
Travel Speed 1.1 mile/h 1.8 km/h
Track Width 7.1 in 180 mm
