Operational Data

Spec	Value
Operating Weight – Without Safety Frame	2061 lb 935 kg
Digging Force – Bucket	2000 lb 8.9 kN
Digging Force – Stick	1011 lb 4.5 kN
Operating Weight – With Safety Frame	2170 lb 985 kg

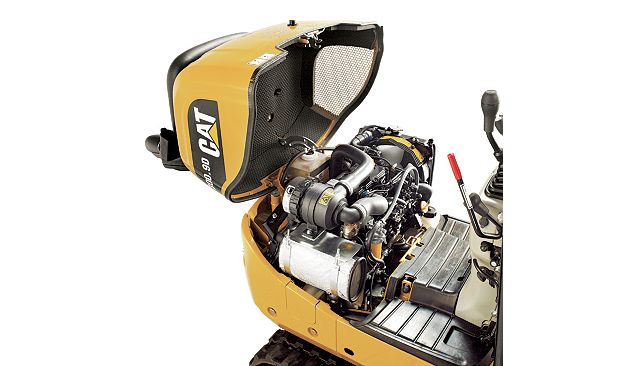

Engine

Spec	Value
Net Power	13 hp 9.6 kW
Engine Model	Yanmar 31NV70 Yanmar 31NV70
Rated Speed	2100 r/min 2100 r/min
Maximum Engine Output	18 hp 13.7 kW
Gross Power – ISO 14396	18 hp 13.7 kW
Diesel Tank Volume	2.64 gal (US) 10 l
Displacement	52 in³ 854 cm³
Flywheel Output ISO	13 hp 9.6 kW
Battery	12 V, 20 Amp 12 V, 20 Amp
Type	Water cooled model 3-cylinder diesel engine Water cooled model 3-cylinder diesel engine
Make/Type	Yanmar 31NV70 Yanmar 31NV70
Emissions	Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

Weights

Spec	Value
Operating Weight – Without Safety Frame	2061 lb 935 kg
Operating Weight – With Safety Frame	2170 lb 985 kg
Operating Weight	2061 lb 935 kg

Dimensions

Spec	Value
Dig Depth	68 in 1731 mm

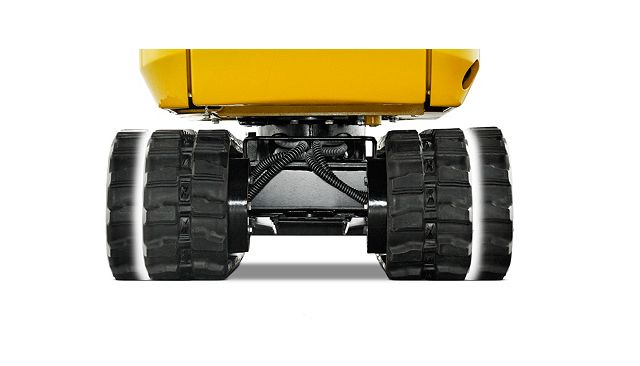

Undercarriage Width – Extended	2.83 ft 864 mm

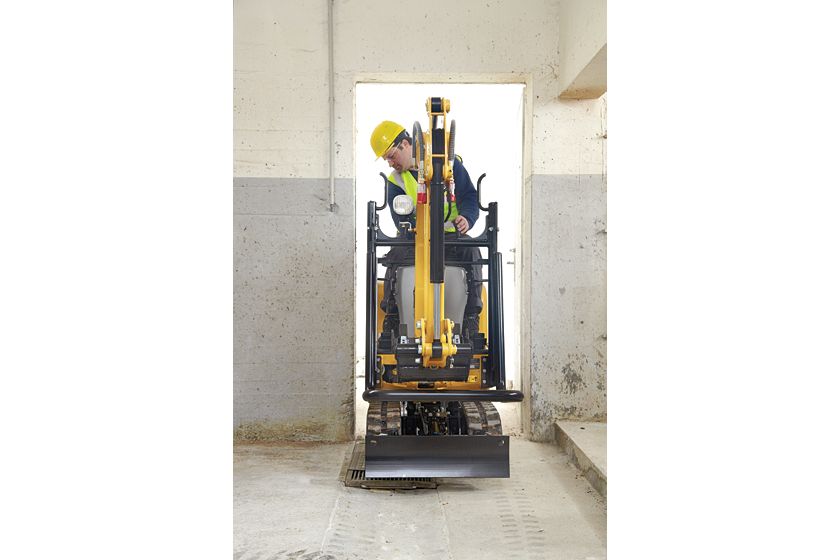

Width	2.4 ft 730 mm
Height – With ROPS Safety Frame Folded Down	4.94 ft 1507 mm
Maximum Dump Height	6.68 ft 2035 mm
Maximum Dozer Lift Height	8 in 197 mm
Length – Undercarriage	4 ft 1220 mm
Maximum Vertical Dig Depth	4.43 ft 1349 mm
Minimum Front Linkage Swing Radius	3.77 ft 1150 mm
Boom Swing Angle – Left	55 ° 55 °
Undercarriage Width – Retracted	2.33 ft 711 mm
Boom Swing Angle – Right	56 ° 56 °
Maximum Reach	10.09 ft 3074 mm
Maximum Reach – Ground Level	9.92 ft 3023 mm
Transport Length – Arm Lowered	9 ft 2746 mm
Track Width	7 in 180 mm
Tail Swing Radius	2.41 ft 736 mm
Maximum Dozer Dig Depth	7 in 174 mm
Maximum Dig Height	9.39 ft 2863 mm
Height – With ROPS Safety Frame Unfolded	7.47 ft 2276 mm

Hydraulic System

Spec	Value
Pumps	2 gear pumps 2 gear pumps
Discharge Capacity	11.4 + 11.4 L/min (3 + 3 gal/min) 11.4 + 11.4 L/min (3 + 3 gal/min)
Operating Pressure for the Work and Travel Hydraulics	2466 psi 170 bar
Operating Pressure Pivot	1015 psi 70 bar
Hydraulic Tank Capacity	3.7 gal (US) 14 l

Chassis and Swivel Gear

Spec	Value
Gradeability	30°/58% 30°/58%
Travel Speed	1.12 mile/h 1.8 km/h
Track Width	7 in 180 mm
Ground Clearance	5 in 127 mm
Ground Pressure	3.5 psi 0.25 kg/cm²
Machine Swing Speed	8 r/min 8 r/min
Number of Rollers – Each Side	2 2

Operating Specifications

Spec	Value
Stick Length – Standard	34.8 in 890 mm
Machine Overhang	12.5 in 318 mm

Dozer Blade

Spec	Value
Height	8 in 200 mm
Dig Depth	7 in 174 mm
Width	28 in 700 mm
Lift Height	8 in 197 mm

Noise Emissions

Spec	Value
Sound Power Level (LWA) (to 2000/14/EG)	93 dB(A) 93 dB(A)
