Caterpillar

301.7 CR Mini Hydraulic Excavator

Net Power

21 hp

15.7 kW

Operating Weight

4222 lb

1915 kg

Dig Depth

100 in

2540 mm

Overview

The Cat® 301.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Media

Photos

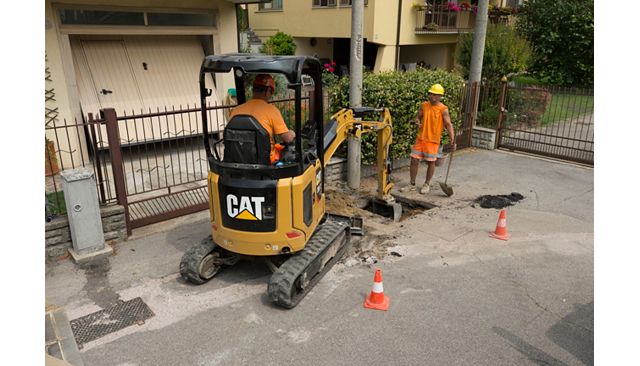

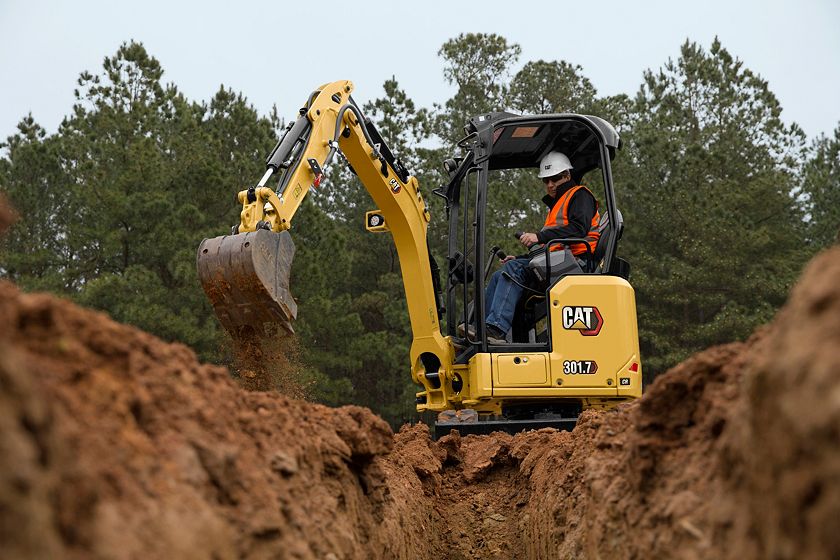

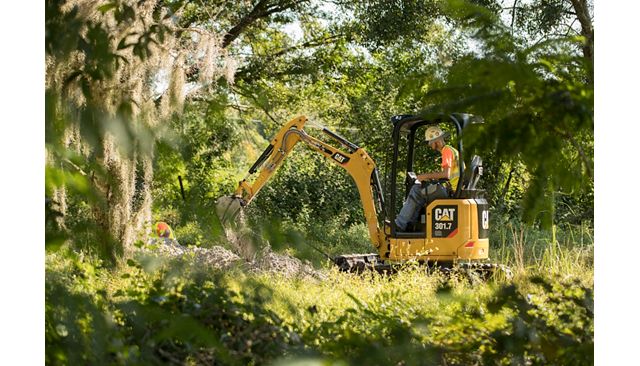

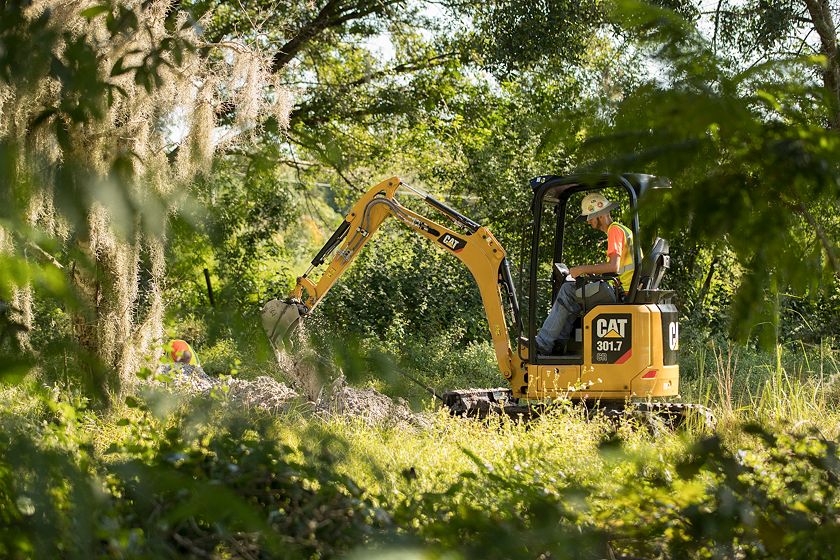

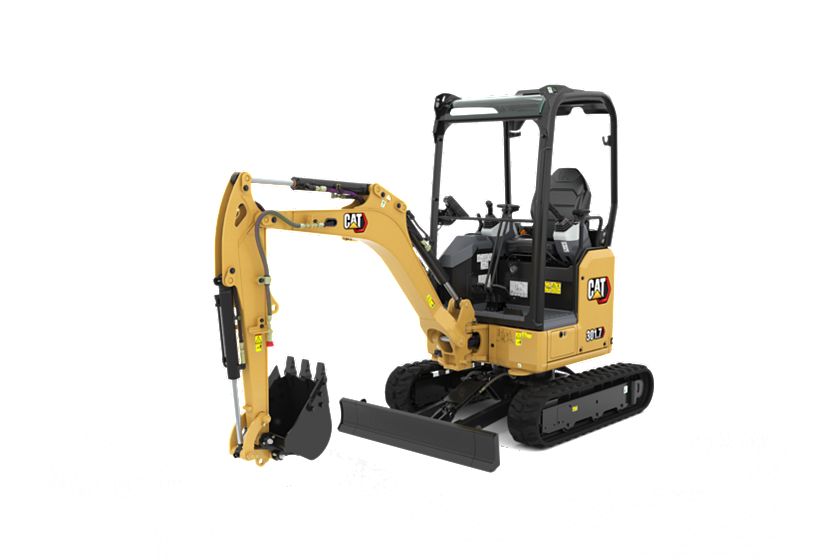

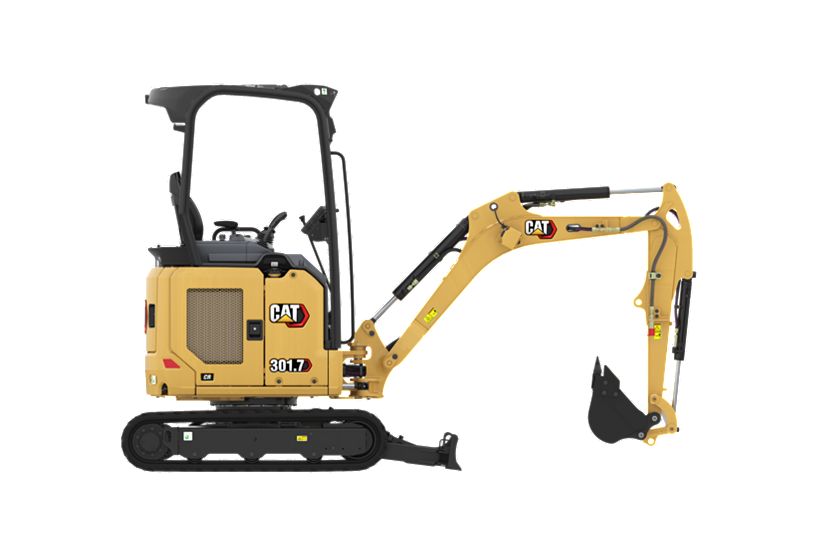

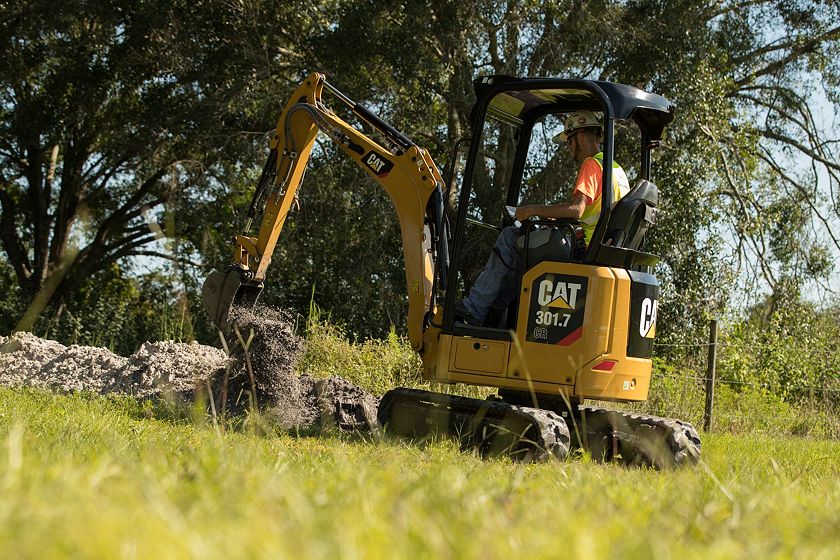

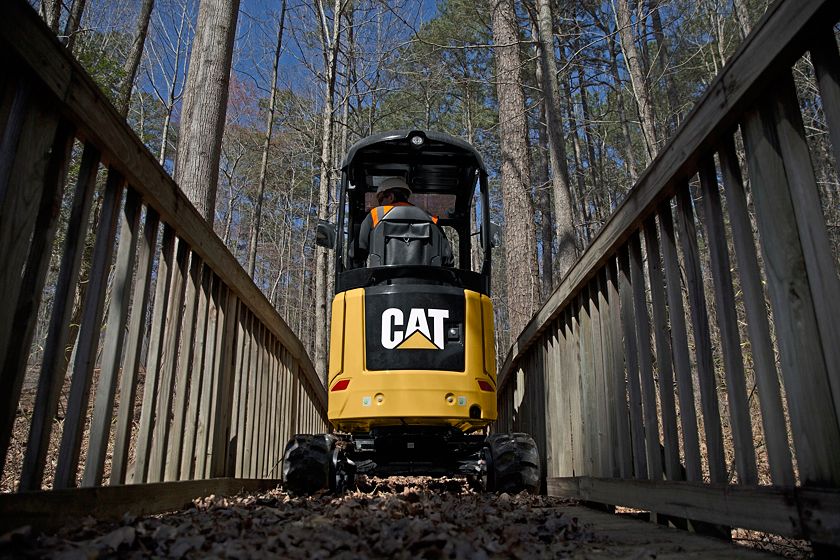

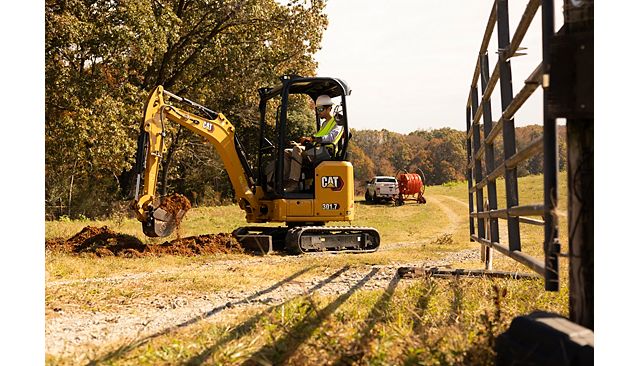

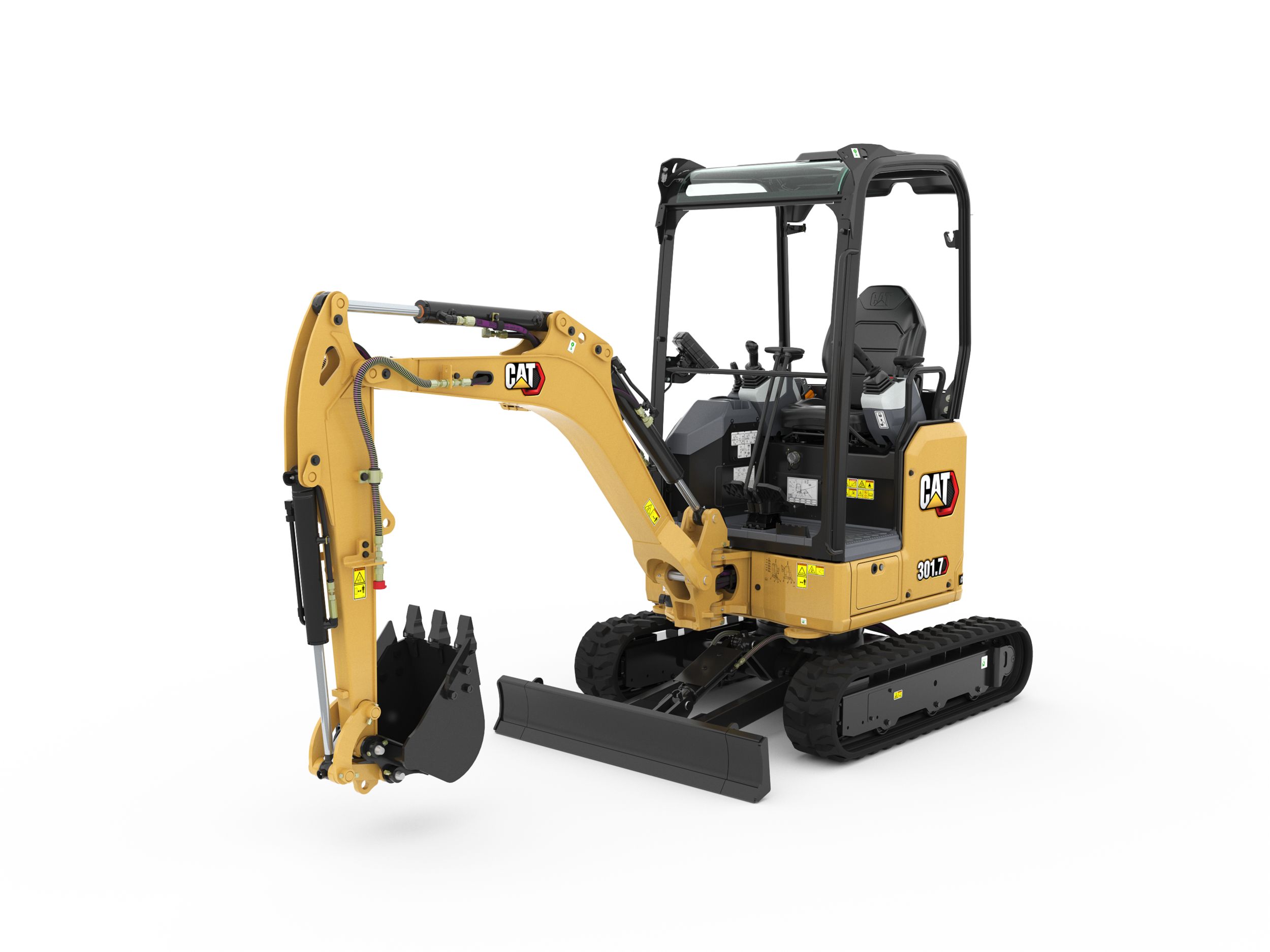

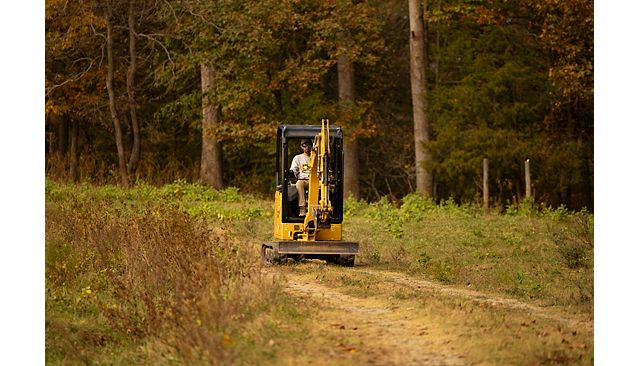

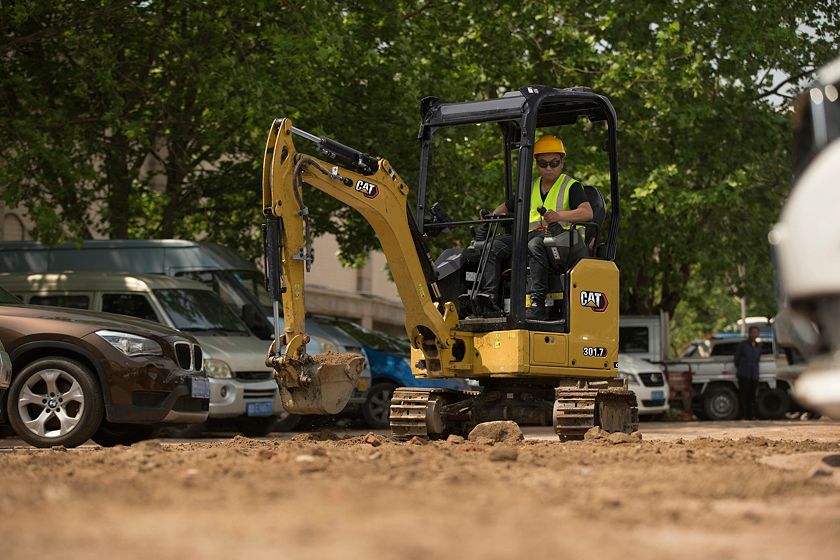

301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator

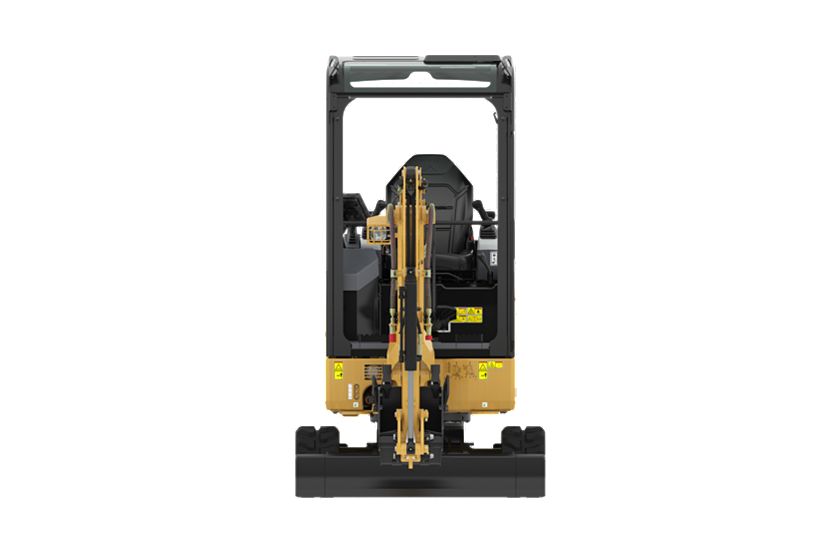

Front View
Front View

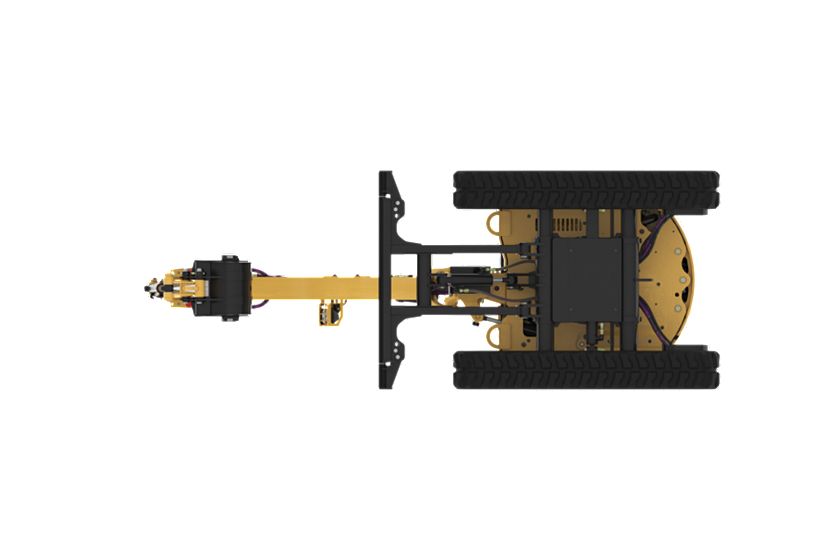

Top View
Top View
Left View
Left View

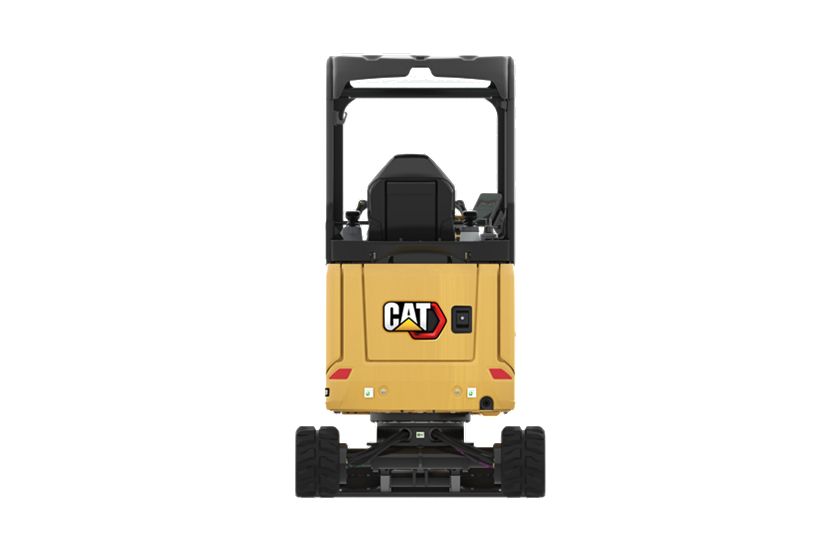

Rear View
Rear View
Bottom View
Bottom View

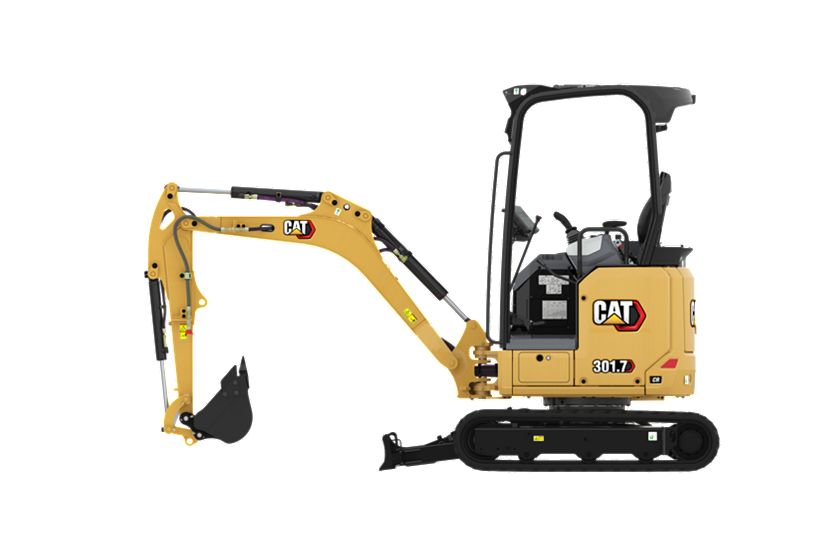

Right View
Right View

Videos

See the new Cat 1-2 Ton Mini Excavators in action.
Learn about the features and benefits of the new Cat 1-2 Ton Mini Excavators.
Easy to read monitor lets you adjust machine settings to your operating preference.
Hear how the F&H Contractors team in Florida uses the Cat 301.7 CR Mini Excavator to help their business succeed.
Hear how Sandro Zoppellaro of VPS in Italy uses the Cat 301.7 CR Mini Excavator to help the business succeed.

360° View

Exterior

Model shown represents features on all Cat® Mini Excavators except where indicated.

Interior

Model shown represents features on all Cat® Mini Excavators except where indicated.

Documents

Features

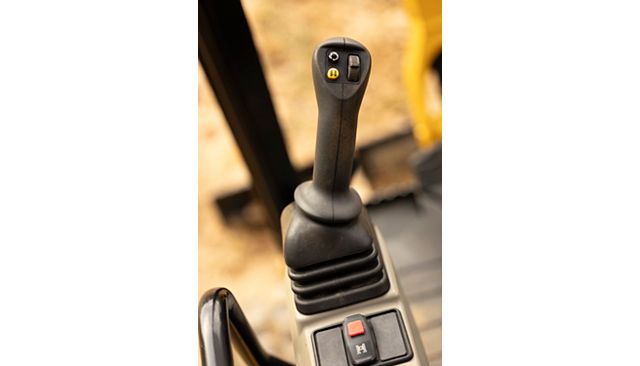

301.7 CR Mini Excavator

ALL DAY COMFORT

301.7 CR Mini Excavator

EASY TO OPERATE

301.7 CR Mini Excavator

STICK STEER TRAVEL MODE

301.7 CR Mini Excavator

BIG PERFORMANCE IN A COMPACT DESIGN

301.7 CR Mini Excavator

SAFETY ON THE JOB SITE

301.7 CR Mini Excavator

SIMPLE SERVICE FOR LESS DOWNTIME

301.7 CR Mini Excavator

LOWER OPERATING COSTS

301.7 CR Mini Excavator

SUSTAINABILITY

Details

Specifications

Spec Value
Net Power 21 hp 15.7 kW
Engine Model C1.1 C1.1
Engine Power 21.6 hp 16.1 kW
Bore 3 in 77 mm
Stroke 3.2 in 81 mm
Displacement 69 in³ 1.1 l
Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1) Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Spec Value
Operating Weight 4222 lb 1915 kg
Minimum Operating Weight with Canopy* 3946 lb 1790 kg
Maximum Operating Weight with Canopy** 4222 lb 1915 kg
EU: CE Plate Weight*** 4167 lb 1890 kg
Note (1) *Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank. *Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
Note (2) **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (3) ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Spec Value
Long Stick 22 lb 10 kg
Steel Tracks 110 lb 50 kg
Expandable Undercarriage Standard Standard
Heavy Counterweight 148 lb 67 kg
Spec Value
Travel Speed – High 2.7 mile/h 4.4 km/h
Travel Speed – Low 1.8 mile/h 2.9 km/h
Maximum Traction Force – High Speed 2675.2 lbf 11.9 kN
Maximum Traction Force – Low Speed 4136.5 lbf 18.4 kN
Ground Pressure – Minimum Weight 4 psi 27.9 kPa
Ground Pressure – Maximum Weight 4.4 psi 30 kPa
Gradeability – Maximum 30 degrees 30 degrees
Spec Value
Cooling System 1 gal (US) 3.9 l
Engine Oil 1.2 gal (US) 4.4 l
Fuel Tank 5.8 gal (US) 22 l
Hydraulic Tank 4.8 gal (US) 18 l
Hydraulic System 6.9 gal (US) 26 l
Spec Value
Pump Flow at 2,400 rpm 17.4 gpm 66 L/min
Operating Pressure – Equipment 3553.4 psi 245 bar
Operating Pressure – Travel 3553.4 psi 245 bar
Operating Pressure – Swing 2132.1 psi 147 bar
Auxiliary Circuit – Primary – Flow 8.7 gpm 33 L/min
Auxiliary Circuit – Primary – Pressure 3553.4 psi 245 bar
Auxiliary Circuit – Secondary – Flow 3.7 gpm 14 L/min
Auxiliary Circuit – Secondary – Pressure 3553.4 psi 245 bar
Digging Force – Stick – Standard 2135.7 lbf 9.5 kN
Digging Force – Stick – Long 1865.9 lbf 8.3 kN
Digging Force – Bucket 3641.9 lbf 16.2 kN
Type Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Spec Value
Machine Swing Speed 9.8 r/min 9.8 r/min
Spec Value
Width* 39 in 990 mm
Height 8.9 in 225 mm
Note *Expanded – 1300 mm (51 in) *Expanded – 1300 mm (51 in)
Spec Value
Roll Over Protective Structure (ROPS) ISO 12117-2:2008 ISO 12117-2:2008
Tip Over Protective Structure (TOPS) ISO 12117:1997 ISO 12117:1997
Top Guard ISO 10262:1998 (Level I) ISO 10262:1998 (Level I)
Spec Value
Dig Depth 92.5 in 2350 mm
Vertical Wall 70.9 in 1800 mm
Maximum Reach – Ground Level 153.5 in 3900 mm
Maximum Reach 156.3 in 3970 mm
Maximum Dig Height 135 in 3430 mm
Maximum Dump Clearance 96.5 in 2450 mm
Boom In Reach 64.2 in 1630 mm
Tail Swing 25.6 in 650 mm
Maximum Blade Height 10.6 in 270 mm
Maximum Blade Depth 10.4 in 265 mm
Boom Height – Shipping Position 42.9 in 1090 mm
O/A Shipping Height 90.6 in 2300 mm
Swing Bearing – Height 17.4 in 442 mm
O/A Undercarriage Length 62.6 in 1590 mm
Overall Shipping Length* 142.5 in 3620 mm
Boom Swing – Right 50 ° 50 °
Boom Swing – Left 65 ° 65 °
Track Belt/Shoe Width 9.1 in 230 mm
Track Width – Retracted 39 in 990 mm
Track Width – Expanded 51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage 5.5 in 140 mm
Stick Length 37.8 in 960 mm
Note *Overall Shipping Length depends on blade position during shipment. *Overall Shipping Length depends on blade position during shipment.
Spec Value
Dig Depth 100 in 2540 mm
Vertical Wall 74.4 in 1890 mm
Maximum Reach – Ground Level 159.8 in 4060 mm
Maximum Reach 162.6 in 4130 mm
Maximum Dig Height 137.4 in 3490 mm
Maximum Dump Clearance 98.8 in 2510 mm
Boom In Reach 63.8 in 1620 mm
Tail Swing 25.6 in 650 mm
Maximum Blade Height 10.6 in 270 mm
Maximum Blade Depth 10.4 in 265 mm
Boom Height – Shipping Position 40.9 in 1040 mm
O/A Shipping Height 90.6 in 2300 mm
Swing Bearing – Height 17.4 in 442 mm
O/A Undercarriage Length 62.6 in 1590 mm
Overall Shipping Length* 141.3 in 3590 mm
Boom Swing – Right 50 ° 50 °
Boom Swing – Left 65 ° 65 °
Track Belt/Shoe Width 9.1 in 230 mm
Track Width – Retracted 39 in 990 mm
Track Width – Expanded 51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage 5.5 in 140 mm
Stick Length 45.7 in 1160 mm
Note *Overall Shipping Length depends on blade position during shipment. *Overall Shipping Length depends on blade position during shipment.
Spec Value
Average Exterior Sound Pressure (ISO 6395:2008) 93 dB(A) 93 dB(A)
Note European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”
Spec Value
Recyclability 95% 95%

Standard Equipment

ENGINE

  • Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
  • Automatic Engine Idle
  • Automatic Engine Shutdown
  • Automatic Two Speed Travel
  • Fuel Water Separator
  • Power on Demand (not available in all regions)
  • Variable Displacement Piston Pump
  • Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

  • Smart Tech Electronic Pump
  • Accumulator
  • Automatic Swing Brake
  • Auxiliary Hydraulic Lines
  • One and Two Way Auxiliary Flow
  • Continuous Auxiliary Flow
  • Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

  • Tilt-up Canopy
  • Top Guard ISO 10262:1998 Level I
  • ROPS – ISO 12117-2:2008
  • TOPS – ISO 12117:1997
  • Machine 2-Point Lifting
  • Stick Steer Mode
  • Travel Cruise Control
  • Control Pattern Changer (optional in some regions)
  • Adjustable Wrist Rests
  • Washable Floor Mat
  • Travel Pedals and Hand Levers
  • Machine Security
  • Machine Security – Standard Key with Pass Code
  • Vinyl Non-Suspension Seat
  • Hydraulic Lockout – All Controls
  • Retractable High Visibility Seat Belt (75 mm/3 in)
  • Coat Hook
  • Cup Holder
  • Storage Pocket
  • Skylight
  • Mounting Bosses for Front
  • Signaling/Warning Horn

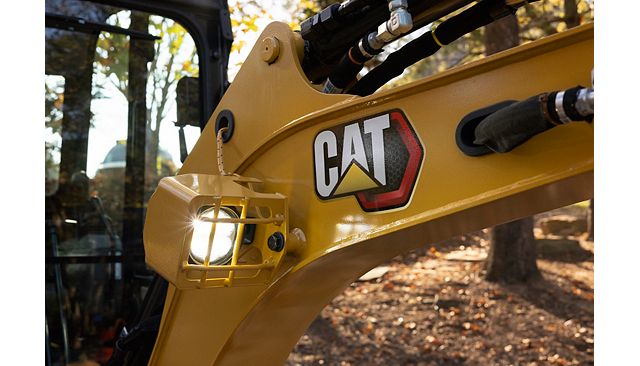

  • Boom Light, Halogen
  • Utility Space for Mobile Phone
  • Next Generation Color LCD Monitor (IP66)
    – Fuel Level and Coolant Temperature Gauges
    – Maintenance and Machine Monitoring
    – Performance and Machine Adjustments
    – Numeric Security Code
    – Multiple Languages
    – Hour Meter with Wake Up Switch

UNDERCARRIAGE

  • Expandable Undercarriage
  • Rubber Belt (230 mm/9 in wide)
  • Dozer Blade
  • Dozer Blade Float
  • Hydraulic Track Adjusters
  • Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

  • One Piece Boom (1780 mm/70 in)
  • Standard Stick (960 mm/37.8 in)
  • Front Shovel Capable
  • Front Shovel Capable – Pin-On
  • Thumb Ready (not available in all regions)
  • Certified Lifting Eye (optional in some regions)

ELECTRICAL

  • 12 Volt Battery
  • Software (machine and monitor)
  • Maintenance Free Battery
  • Signaling/Warning Horn
  • 12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT

  • Control Pattern Changer (optional in some regions)
  • No Travel Pedals and Hand Levers
  • Machine Security – Push to Start with Key Fob/Pass Code
  • Vinyl Suspension Seat
  • LED Front Lights
  • LED Front and Rear Lights
  • LED Boom Light
  • Mirrors Left and Right
  • Seat Belt Reminder System

UNDERCARRIAGE

  • Steel Track (230 mm/9 in wide)

BOOM, STICK AND LINKAGES

  • Long Stick (1160 mm/45.7 in)
  • Front Shovel Capable – Dual Lock Manual Coupler
  • Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
  • 2nd Auxiliary Hydraulic Lines
  • Boom Lowering Check Valve
  • Stick Lowering Check Valve
  • Hydraulic Quick Coupler Lines (not available in all regions)

ELECTRICAL

  • Battery Disconnect
  • Product Link PL243 (regulations apply)
  • Product Link PLE643 (regulations apply)
  • Travel Alarm (standard in some regions)

GUARDING

  • Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 PSA)
  • Polycarbonate Half Height Front Guard (Canopy only)

OTHER

  • Bio Oil Capable
  • Eco Drain
  • Water Jacket Heater
  • Heavy Counterweight
