Caterpillar

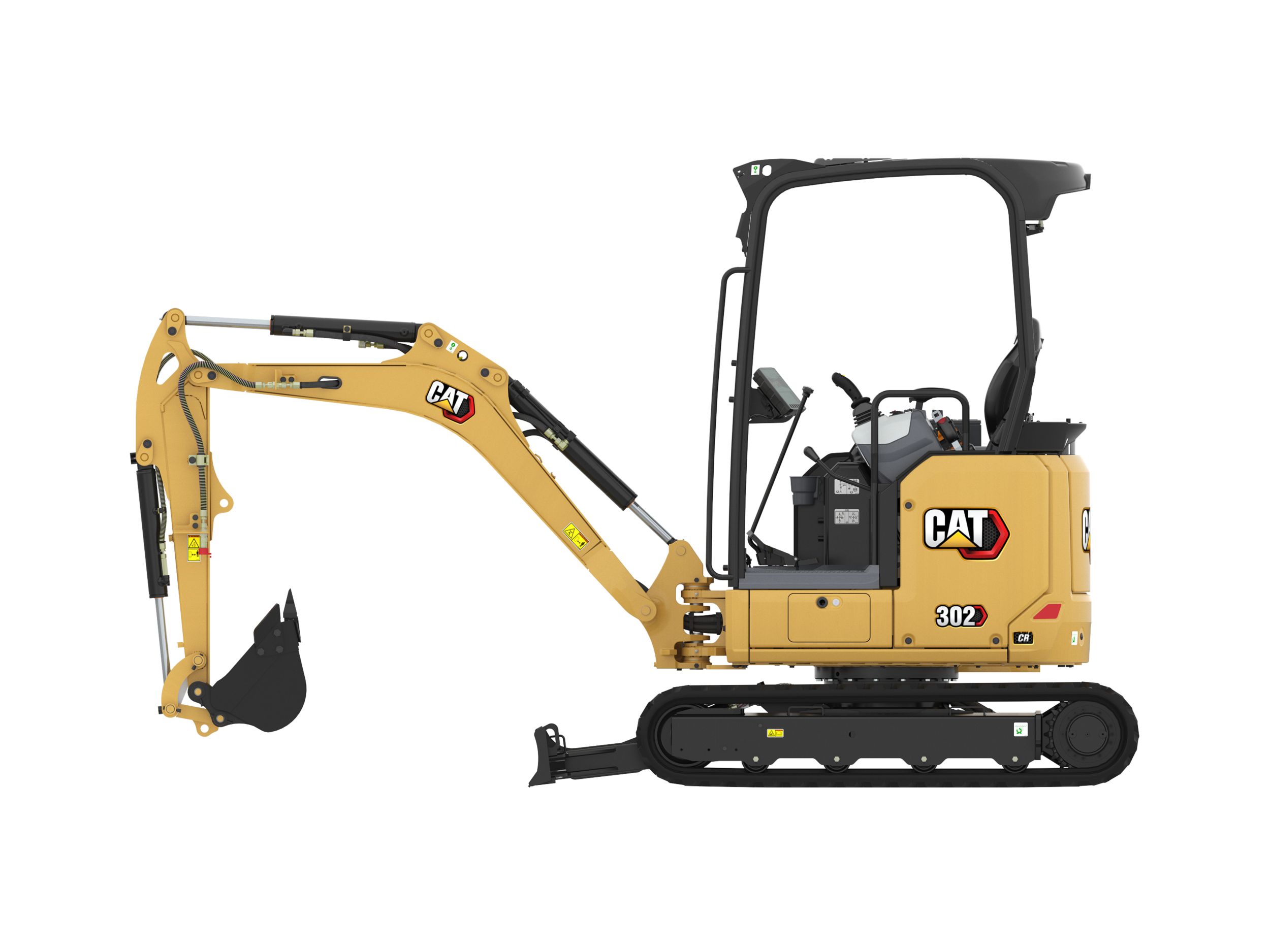

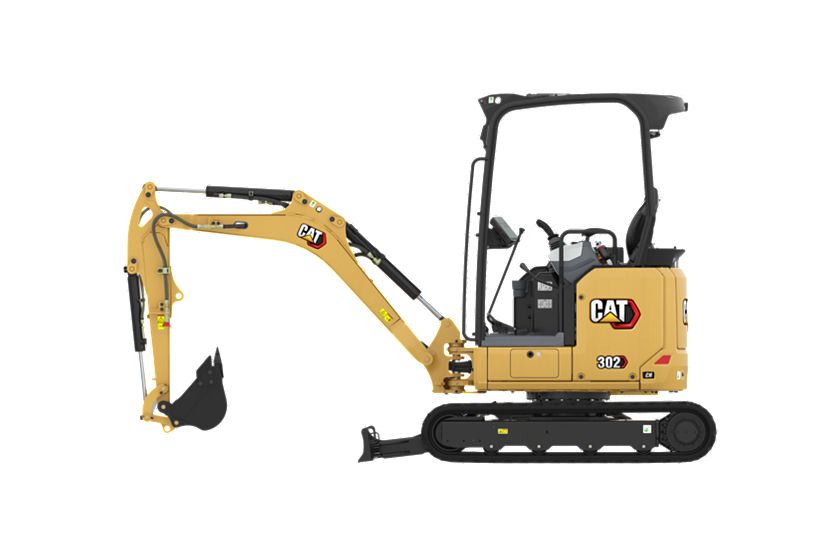

302 CR Mini Hydraulic Excavator
Net Power
21 hp
15.7 kW
Operating Weight
4987 lb
2262 kg
Dig Depth
101.2 in
2570 mm
Overview
The Cat® 302 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
Media

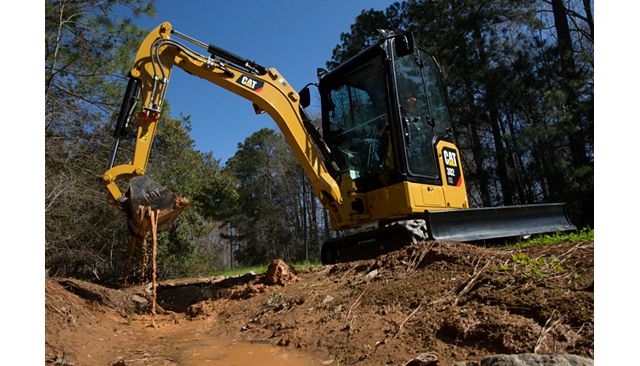

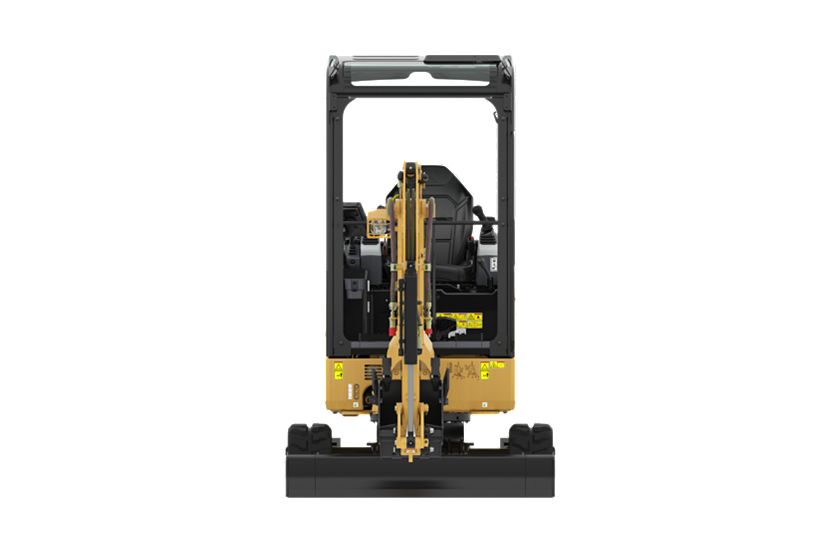

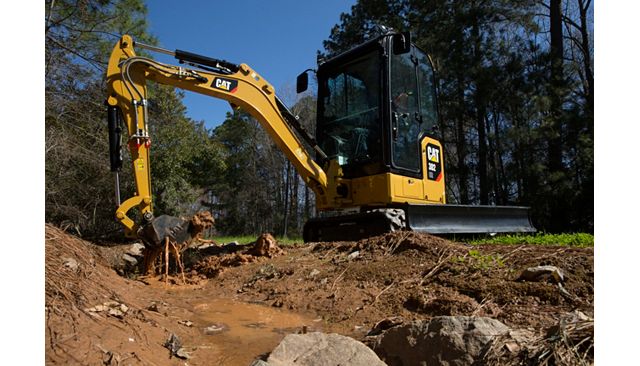

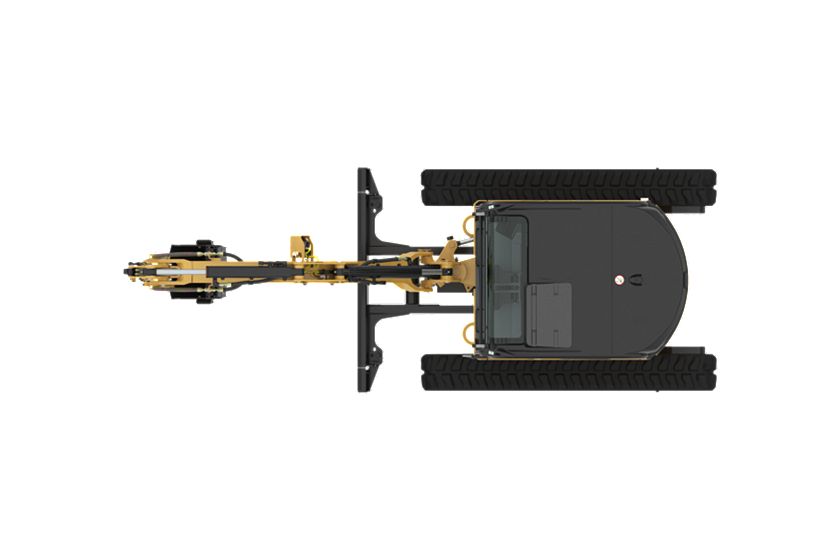

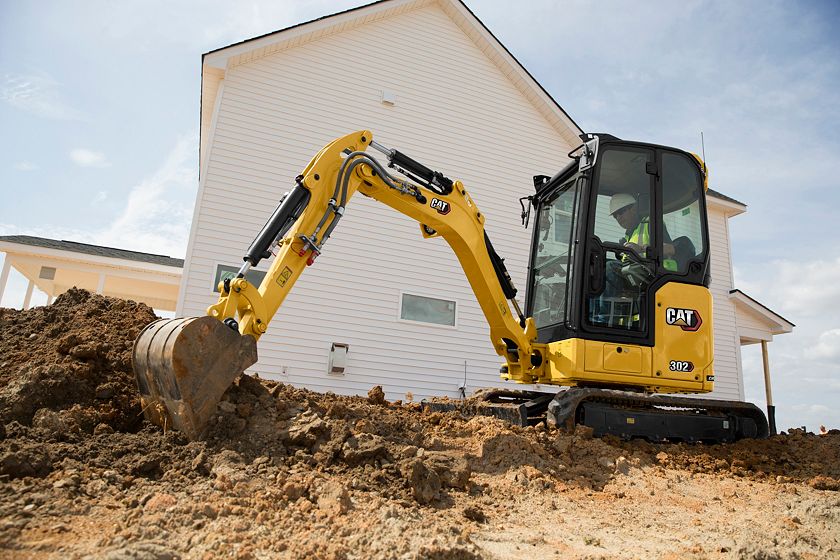

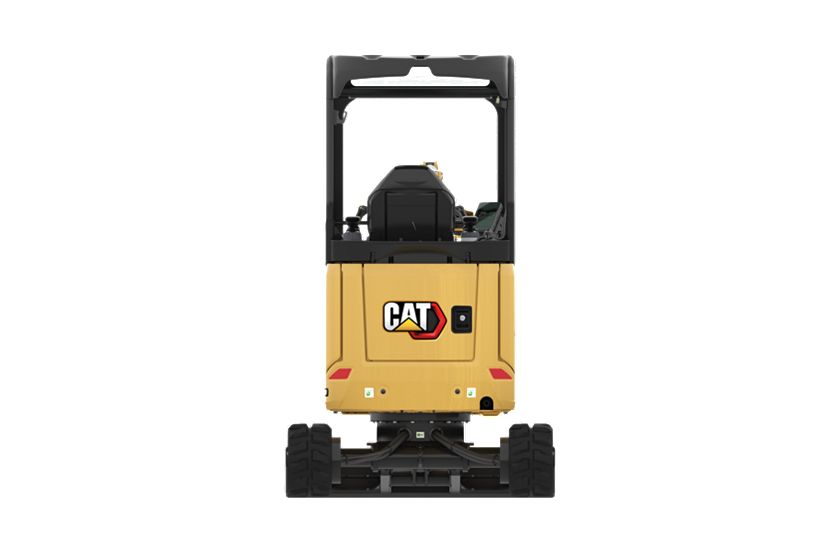

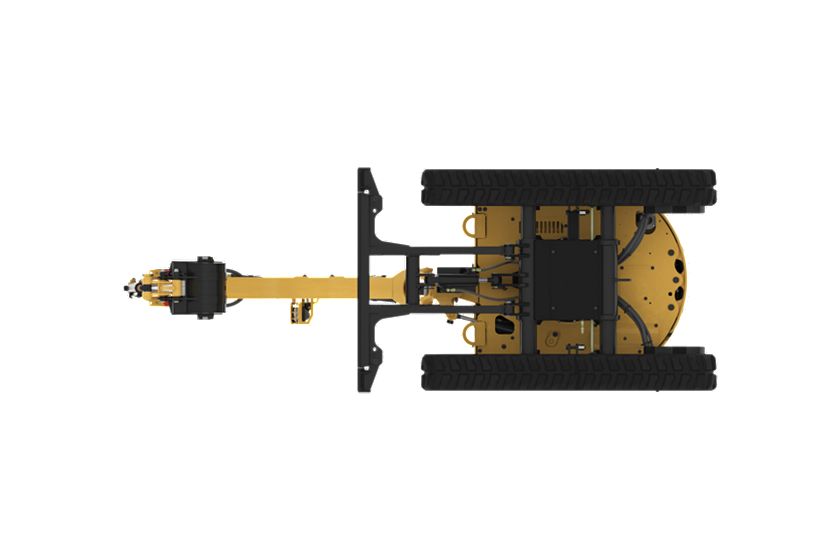

Photos
Videos

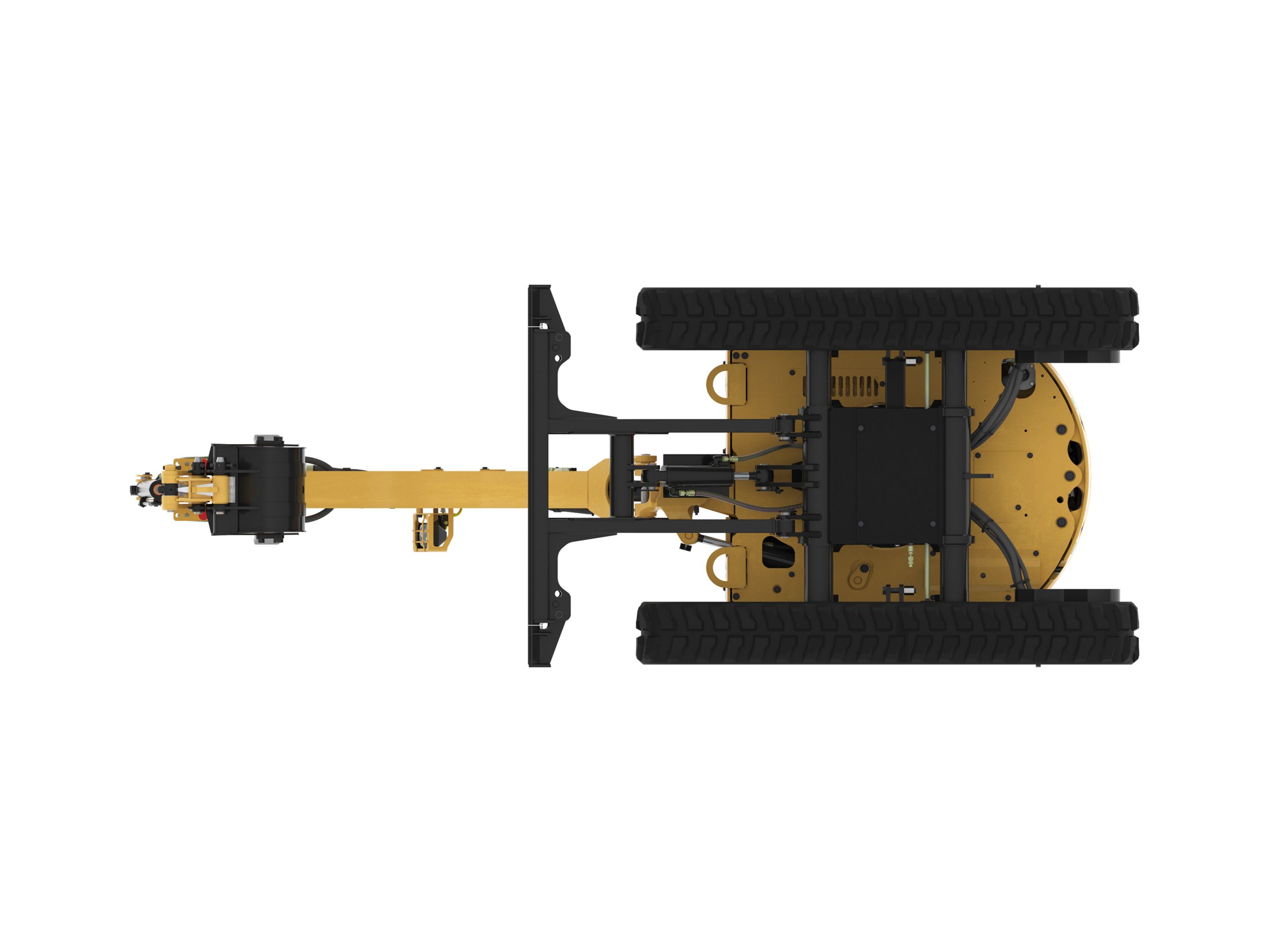

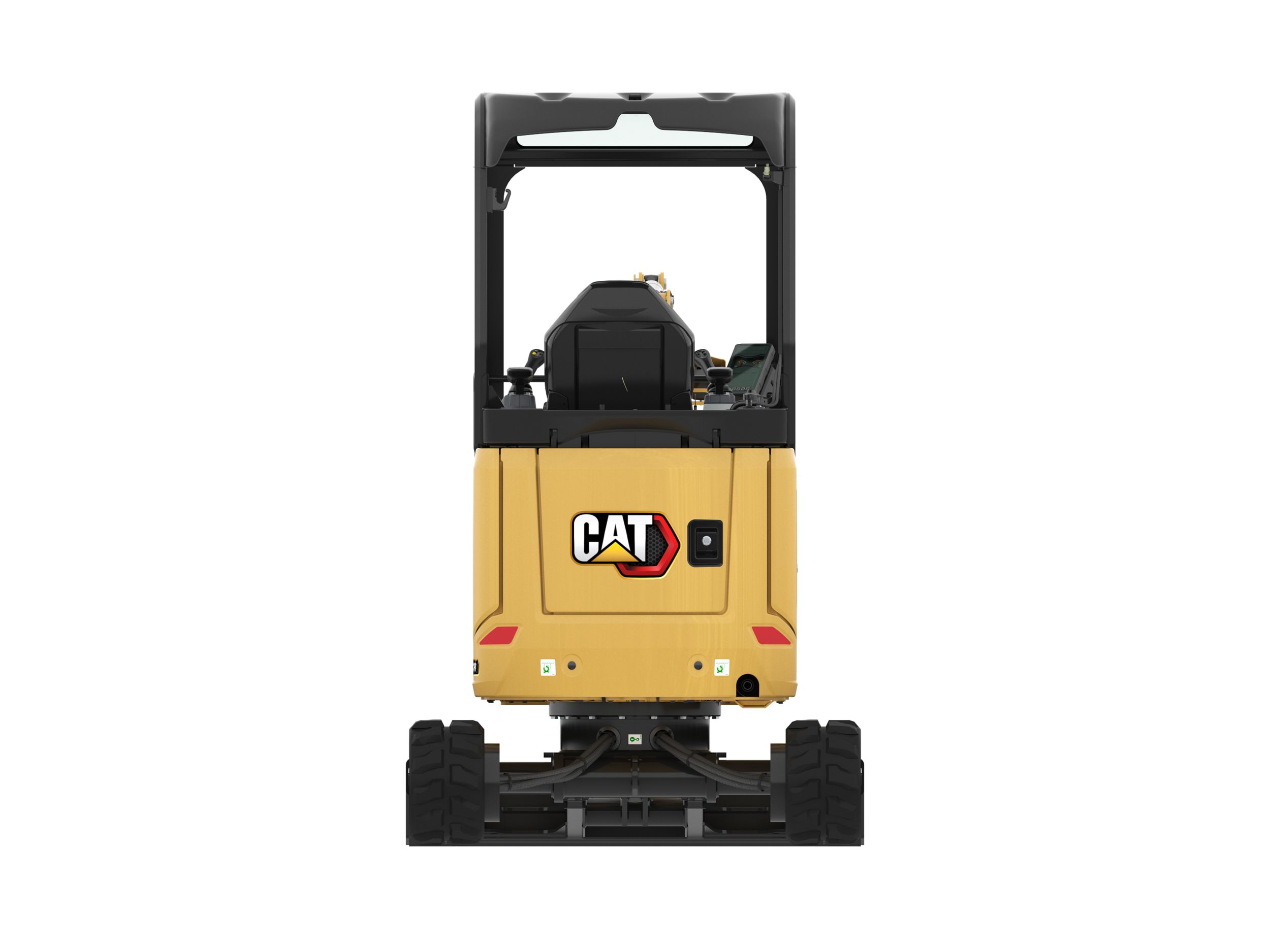

360° View

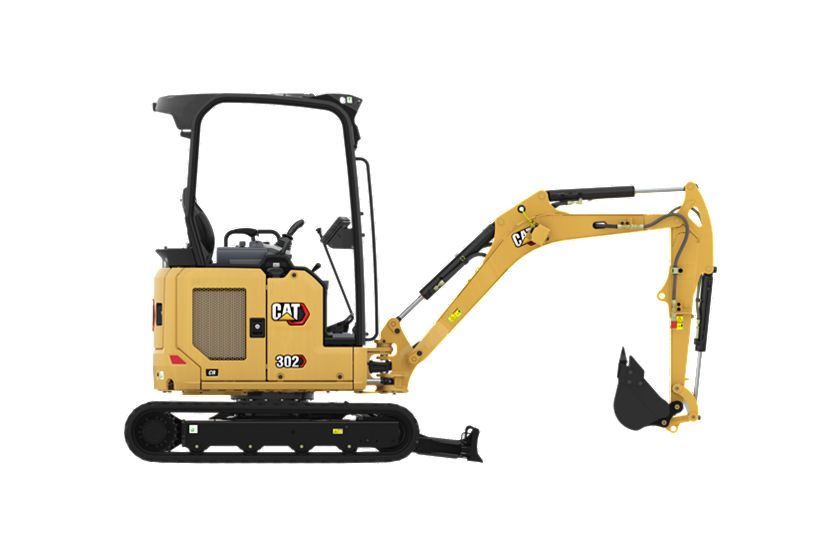

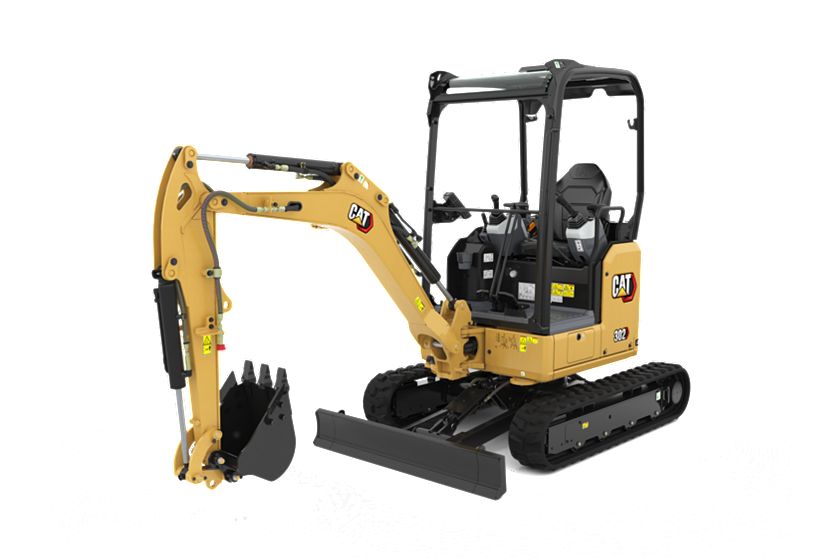

Exterior
Model shown represents features on all Cat® Mini Excavators except where indicated.

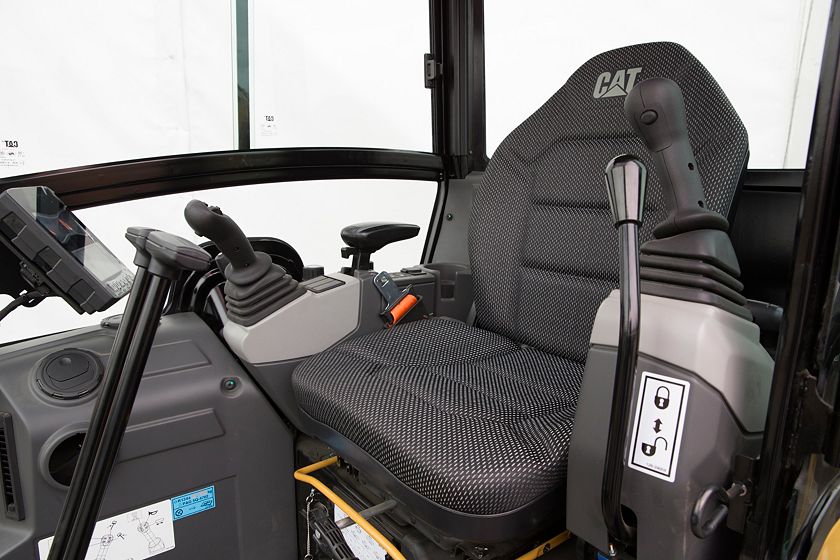

Interior
Model shown represents features on all Cat® Mini Excavators except where indicated.
Details
Specifications
Engine
Spec | Value |
---|---|
Net Power | 21 hp 15.7 kW |
Engine Model | C1.1 C1.1 |
Net Power – 2,400 rpm – ISO 9249, 80/1269/EEC | 21 hp 15.7 kW |
Gross Power – SAE J1995:2014 | 21.6 hp 16.1 kW |
Bore | 3 in 77 mm |
Stroke | 3.2 in 81 mm |
Displacement | 69 in³ 1.1 l |
Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
Note | Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture. |
Note (1) | Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load. |
Weights
Spec | Value |
---|---|
Operating Weight | 4987 lb 2262 kg |
Minimum Operating Weight with Canopy* | 4229 lb 1918 kg |
Maximum Operating Weight with Canopy** | 4588 lb 2081 kg |
Minimum Operating Weight with Cab* | 4535 lb 2057 kW |
Maximum Operating Weight with Cab** | 4987 lb 2262 kg |
EU: CE Plate Weight with Canopy*** | 4508 lb 2045 kg |
EU: CE Plate Weight with Cab*** | 4718 lb 2140 kg |
Note (1) | *Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank. *Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank. |
Note (2) | **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. |
Note (3) | ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. |
Weight Increase from Minimum Configuration
Spec | Value |
---|---|
Long Stick | 18 lb 8 kg |
Steel Tracks | 132 lb 60 kg |
Expandable Undercarriage | 212 lb 96 kg |
Travel System
Spec | Value |
---|---|
Travel Speed – High | 2.7 mile/h 4.4 km/h |
Travel Speed – Low | 1.8 mile/h 2.9 km/h |
Maximum Traction Force – High Speed | 2967.5 lbf 13.2 kN |
Maximum Traction Force – Low Speed | 4496.2 lbf 20 kN |
Ground Pressure – Minimum Weight | 3.4 psi 23.7 kPa |
Ground Pressure – Maximum Weight | 3.9 psi 26.8 kPa |
Gradeability – Maximum | 30 degrees 30 degrees |
Service Refill Capacities
Spec | Value |
---|---|
Cooling System | 1 gal (US) 3.9 l |
Engine Oil | 1.2 gal (US) 4.4 l |
Fuel Tank | 6.9 gal (US) 26 l |
Hydraulic Tank | 4.8 gal (US) 18 l |
Hydraulic System | 6.9 gal (US) 26 l |
Hydraulic System
Spec | Value |
---|---|
Type | Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump |
Pump Flow at 2,400 rpm | 17.4 gpm 66 L/min |
Operating Pressure – Equipment | 3553.4 psi 245 bar |
Operating Pressure – Travel | 3553.4 psi 245 bar |
Operating Pressure – Swing | 2132.1 psi 147 bar |
Auxiliary Circuit – Primary – Flow | 8.7 gpm 33 L/min |
Auxiliary Circuit – Primary – Pressure | 3553.4 psi 245 bar |
Auxiliary Circuit – Secondary – Flow | 3.7 gpm 14 L/min |
Auxiliary Circuit – Secondary – Pressure | 3553.4 psi 245 bar |
Digging Force – Stick – Standard | 2540.3 lbf 11.3 kN |
Digging Force – Stick – Long | 2203.1 lbf 9.8 kN |
Digging Force – Bucket | 4406.3 lbf 19.6 kN |
Swing System
Spec | Value |
---|---|
Machine Swing Speed | 9.8 r/min 9.8 r/min |
Blade
Spec | Value |
---|---|
Width* | 42.9 in 1090 mm |
Height | 8.9 in 225 mm |
Note | *Expanded – 1400 mm (55 in) *Expanded – 1400 mm (55 in) |
Certification - Cab and Canopy
Spec | Value |
---|---|
Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 ISO 12117-2:2008 |
Tip Over Protective Structure (TOPS) | ISO 12117:1997 ISO 12117:1997 |
Top Guard | ISO 10262:1998 (Level I) ISO 10262:1998 (Level I) |
Dimensions - Standard Stick
Spec | Value |
---|---|
Dig Depth | 93.3 in 2370 mm |
Vertical Wall | 72.8 in 1850 mm |
Maximum Reach – Ground Level | 159.1 in 4040 mm |
Maximum Reach | 161.8 in 4110 mm |
Maximum Dig Height | 139.8 in 3550 mm |
Maximum Dump Clearance | 100.8 in 2560 mm |
Boom In Reach | 65.4 in 1660 mm |
Tail Swing | 29.5 in 750 mm |
Maximum Blade Height | 11.2 in 285 mm |
Maximum Blade Depth | 11.6 in 295 mm |
Boom Height – Shipping Position | 42.1 in 1070 mm |
O/A Shipping Height | 90.6 in 2300 mm |
Swing Bearing – Height | 17.4 in 442 mm |
O/A Undercarriage Length | 72.8 in 1850 mm |
Overall Shipping Length* | 153.5 in 3900 mm |
Boom Swing – Right | 50 ° 50 ° |
Boom Swing – Left | 65 ° 65 ° |
Track Belt/Shoe Width | 9.8 in 250 mm |
Track Width – Retracted | 42.9 in 1090 mm |
Track Width – Expanded | 55.12 in 1400 mm |
Minimum Ground Clearance Below Undercarriage | 5.9 in 150 mm |
Stick Length | 37.8 in 960 mm |
Note | *Overall Shipping Length depends on blade position during shipment. *Overall Shipping Length depends on blade position during shipment. |
Dimensions - Long Stick
Spec | Value |
---|---|
Dig Depth | 101.2 in 2570 mm |
Vertical Wall | 76.4 in 1940 mm |
Maximum Reach – Ground Level | 165.7 in 4210 mm |
Maximum Reach | 168.1 in 4270 mm |
Maximum Dig Height | 142.5 in 3620 mm |
Maximum Dump Clearance | 103.9 in 2640 mm |
Boom In Reach | 65.4 in 1660 mm |
Tail Swing | 29.5 in 750 mm |
Maximum Blade Height | 11.2 in 285 mm |
Maximum Blade Depth | 11.6 in 295 mm |
Boom Height – Shipping Position | 40.2 in 1020 mm |
O/A Shipping Height | 90.6 in 2300 mm |
Swing Bearing – Height | 17.4 in 442 mm |
O/A Undercarriage Length | 72.8 in 1850 mm |
Boom Swing – Right | 50 ° 50 ° |
Overall Shipping Length* | 152.8 in 3880 mm |
Boom Swing – Left | 65 ° 65 ° |
Track Belt/Shoe Width | 9.8 in 250 mm |
Track Width – Retracted | 42.9 in 1090 mm |
Track Width – Expanded | 55.12 in 1400 mm |
Minimum Ground Clearance Below Undercarriage | 5.9 in 150 mm |
Stick Length | 45.7 in 1160 mm |
Note | *Overall Shipping Length depends on blade position during shipment. *Overall Shipping Length depends on blade position during shipment. |
Air Conditioning System
Spec | Value |
---|---|
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe). |
Sound
Spec | Value |
---|---|
Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) 72 dB(A) |
Average Exterior Sound Pressure (ISO 6395:2008) | 99 dB(A) 99 dB(A) |
Note | European Union Directive “2000/14/EC” European Union Directive “2000/14/EC” |
Sustainability
Spec | Value |
---|---|
Recyclability | 95% 95% |
Standard Equipment
ENGINE
- Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
HYDRAULICS
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Line Quick Disconnects
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Hydraulic Lines
OPERATOR ENVIRONMENT
- Tilt-up Canopy or Tilt-Up Cab
- Machine 2-Point Lifting
- Travel Cruise Control
- Control Pattern Changer (optional in some regions)
- Adjustable Wrist Rests
- Washable Floor Mat
- Travel Pedals and Hand Levers
- Stick Steer Mode
- Machine Security
- Standard Key with Pass Code
- Fabric Suspension Seat (Cab only)
- Hydraulic Lockout – All Controls
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Storage Pocket
- Skylight
- Mounting Bosses for Front
- Signaling/Warning Horn
- Interior Light (Cab only)
- Boom Light, Halogen
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch
UNDERCARRIAGE
- Rubber Belt (250 mm/10 in wide)
- Dozer Blade
- Dozer Blade Float
- Hydraulic Track Adjusters
- Tie Downs on Track Frame
BOOM, STICK AND LINKAGES
- One Piece Boom (1850 mm/73 in)
- Standard Stick (960 mm/37.8 in)
- Front Shovel Capable
- Front Shovel Capable – Pin-On
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (optional in some regions)
ELECTRICAL
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Lock Out/Tag Out Battery Disconnect
- Signaling/Warning Horn
- 12 Volt Power Socket
GUARDING
- ROPS – ISO 12117-2:2008
- TOPS – ISO 12117:1997
- Top Guard ISO 10262:1998
Optional Equipment
OPERATOR ENVIRONMENT
- Cab with Air Conditioning
- Cab with Heater
- Control Pattern Changer (optional in some regions)
- No Travel Pedals and Hand Levers
- Push to Start with Key Fob/Pass Code
- Vinyl Non-Suspension Seat (Canopy only)
- Seat Belt Reminder System
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Mirrors Left and Right
- Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
UNDERCARRIAGE
- Expandable Undercarriage
- Steel Track (250 mm/10 in wide)
BOOM, STICK AND LINKAGES
- Long Stick (1160 mm/45.7 in)
- Front Shovel Capable – Dual Lock Manual Coupler
- Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Hydraulic Quick Coupler Lines (not available in all regions)
ELECTRICAL
- Product Link PL243 (regulations apply)
- Product Link PLE643 (regulations apply)
- Travel Alarm (standard in some regions)
GUARDING
- Polycarbonate Half Height Front Guard (Canopy only)
- Polycarbonate Front Guard (ISO 10262:1998 Level 1 and EN356 PSA)
OTHER
- Bio Oil Capable
- Eco Drain
- Water Jacket Heater
