Caterpillar

Cat?� 3406C Fire Pump Engine

The Cat?� 3406C Industrial Diesel Fire Pump Engine is offered in ratings ranging from 218-359 kW (292-482 hp) @ 1750-2300 rpm. These ratings are non-certified and available for global non-regulated areas. They are FM Approved and UL Listed. Additional 3406C ratings with or without radiators are available, but not FM approved or UL listed. Starting on demand is a must for a fire pump engine – always. Cat?� fire pump engines have a reputation for reliable starts and long efficient service.

Media

Photos

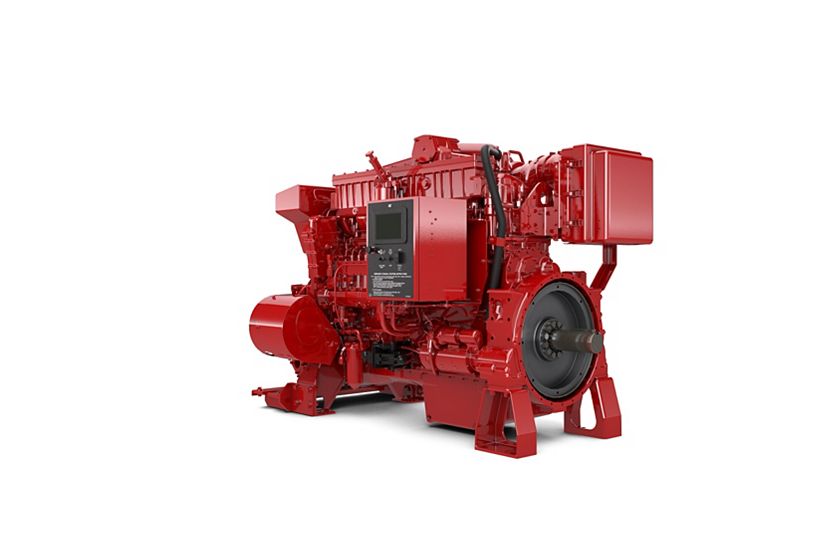

3406C Fire Pump
3406C Fire Pump

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Features

Reliable, Quiet and Durable Power

Quality

World-class Product Support Offered Through Global Cat Dealer Network

World-class Product Support Offered Through Global Cat Dealer Network

Details

Specifications

Spec Value
Maximum Power 482 hp 359 kW
Rated Speed 1750-2300 rpm 1750-2300 rpm
Minimum Power 292 hp 218 kW
Spec Value
Emissions Non-Certified. Available for global non-regulated areas. FM Approved, UL Listed Non-Certified. Available for global non-regulated areas. FM Approved, UL Listed
Spec Value
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel Inline 6, 4-Stroke-Cycle Diesel
Bore 5.4 in 137 mm
Stroke 6.5 in 165 mm
Displacement 893 in³ 14.6 l
Compression Ratio 14.5:1 14.5:1
Aspiration Turbocharged Aftercooled Turbocharged Aftercooled
Rotation from Flywheel End Counterclockwise Counterclockwise
Aftertreatment - -
Spec Value
Length 65.4 in 1660 mm
Height 52.6 in 1335 mm

Standard Equipment

Air Inlet System

  • Dry or watercooled manifold and turbocharger

Charging System

  • Charging Alternator, 24 volt, 35 amp

Control System

  • Hydra-mechanical governor

Cooling System

  • Thermostats and housing
  • Jacket water pump, gear driven, centrifugal
  • Heat exchanger
  • Expansion tank
  • FM Required Raw Water Cooling Loops: 1.5″ iron, horizontal or vertical, 1.5″ 316 stainless steel, horizontal or vertical
  • Optional Radiator, not UL listed or FM approved

Exhaust System

  • Exhaust manifold, water-cooled (wet) or dry
  • Exhaust elbow, dry, 152 mm (6 in), 4 bolt flange

Flywheels and Flywheel Housing

  • SAE No. 1 flywheel
  • SAE No. 1 flywheel housing
  • SAE standard rotation

Fuel System

  • Fuel filter, LH
  • Fuel transfer pump
  • Primary fuel filter / water separator

Instrumentation

  • Instrument panel, LH
  • Engine oil pressure gauge
  • Fuel pressure gauge
  • Water temperature gauge
  • Service meter

Lube System

  • Crankcase breather
  • Oil cooler
  • Lube oil filter
  • Oil filler in valve cover and dipstick, both RH
  • Rear sump oil pan
  • Oil filler in valve cover
  • Dipstick

Mounting System

  • Supports

Power Take-Offs

  • Flywheel stub shaft

Protection System

  • Stop-Start System, automatic (compatible with NFPA 20 requirements, able to be energized from either of two battery sources and capable of manual starter actuation)

General

  • Vibration damper and guard
  • Lifting eyes
  • Paint – fire pump red, optional radiator painted black
