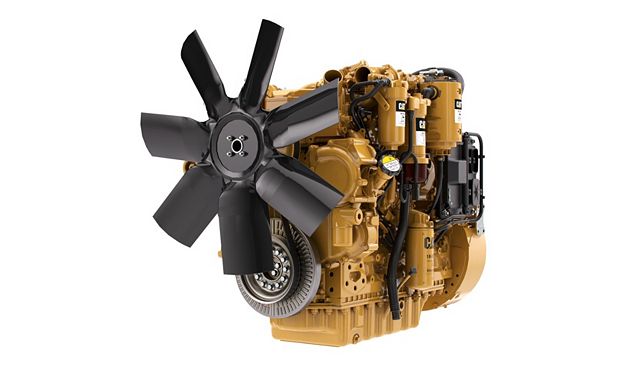

Cat?� C7.1 ACERT?�� Diesel Engine
The C7.1 Industrial Diesel Engine is offered in ratings from 129-225 bkW (172-302 bhp) @ 2200 rpm and meets U.S. EPA Tier 4 Final, EU Stage V emission standards. Industries and applications powered by C7.1 engines include: Agriculture, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment.
Media
Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Documents
Features
Advanced Features
Ideal Applications
Total Cost of Ownership
Cat Dealer Product Support
Safety
Details
Specifications
Power Rating
| Spec | Value |
|---|---|
| Maximum Power | 320 hp 240 kW |
| Maximum Torque | 935 lb-ft @ 1400 rpm 1268 Nm @ 1400 rpm |
| Rated Speed | 2200 rpm 2200 rpm |
| Minimum Power | 172 hp 129 kW |
Emission Standards
| Spec | Value |
|---|---|
| Emissions | U.S. EPA & CARB Tier 4 Final, EU Stage V U.S. EPA & CARB Tier 4 Final, EU Stage V |
General
| Spec | Value |
|---|---|
| Engine Configuration | In-Line 6 In-Line 6 |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.7 in³ 7 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | Turbocharged-Aftercooled (TA) or Series Turbocharged Aftercooled (TTA) Turbocharged-Aftercooled (TA) or Series Turbocharged Aftercooled (TTA) |
| Combustion System | Direct Injection Direct Injection |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
Engine Dimensions - Approximate
| Spec | Value |
|---|---|
| Length | 41.9 in 1064 mm |
| Width | 31.4 in 798 mm |
| Height | 35.9 in 912 mm |
| Weight – Net Dry – Basic Operating Engine Without Optional Attachments | 1658 lb 752 kg |
Aftertreatment Dimensions
| Spec | Value |
|---|---|
| Length | 29 in 733 mm |
| Width | 30.3 in 769 mm |
| Height | 18.1 in 455 mm |
| Weight | 236 lb 107 kg |
Aftertreatment Dimensions*
| Spec | Value |
|---|---|
| Diameter | 13.3 in 338 mm |
Standard Equipment
Air Inlet
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Wide choice of drivetrain interfaces, including SAE No. 1, SAE No. 2, and SAE No. 3 configurations
Fuel System
- Electronic high pressure common rail
- Innovative filter design to ensure maximum protection of the engine
Lube System
- Wide choice of sumps for different applications
General
- Paint: Caterpillar yellow, with optional colors available on request

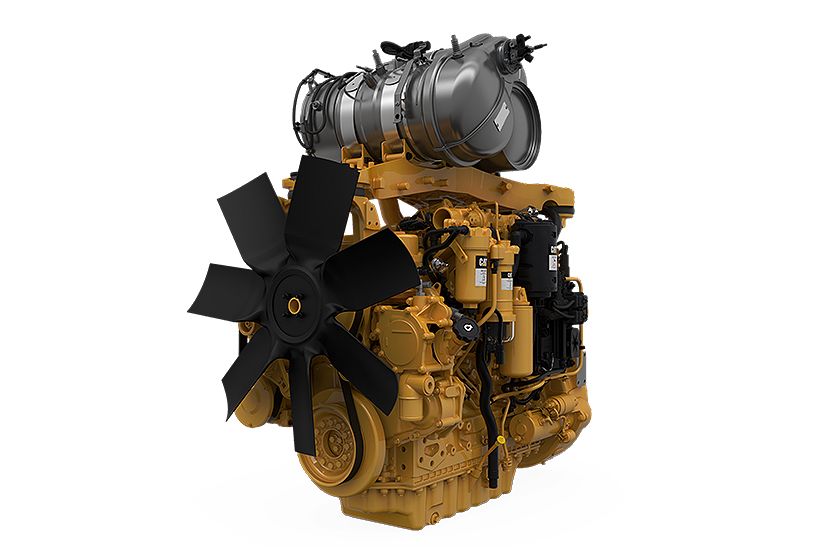

U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) Aftertreatment/ Clean Emissions Control Equipment
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- NOx Reduction System (NRS)
- Selective Catalytic Reduction (SCR)
- 3″ flex pipe connection with straight, 45°, and 90° options for flexibility
