Caterpillar

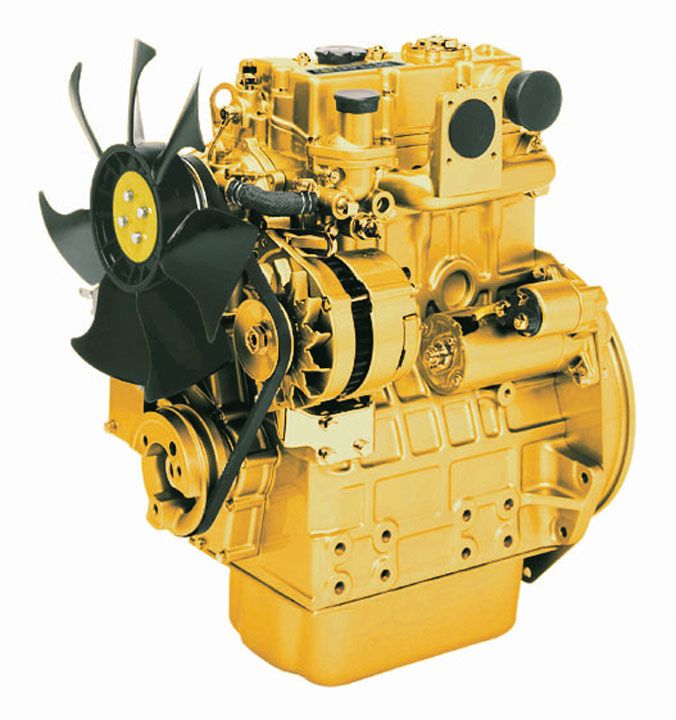

Cat?� C1.5 Diesel Engine

Cat?� C1.5 Industrial Diesel Engines deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Applications powered by C1.5 engines include: Agriculture Tractors, Combines and Harvesters, Aircraft Ground Support, Bore/Drill Rigs, Chippers, Grinders, Compactors, Rollers, Compressors, Construction, Irrigation, Pumps, Turf, Landscaping, Mobile Earthmoving, Paving, Trenchers, Underground Mining, and Material Handling. C1.5 engines, with ratings: 20.9-30 bkW (28-40.2 bhp) @ 2200-3000 rpm, meet EPA Tier 4 Interim equivalent emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.

Media

Photos

C1.5 LRC Diesel Engines – Lesser Regulated & Non-Regulated
C1.5 LRC Diesel Engines – Lesser Regulated & Non-Regulated

Features

Reliable, Quiet and Durable Power

High Performance

Fuel Efficiency

Broad Application Range

Package Size

World-class Product Support Offered Through Global Cat Dealer Network

Details

Specifications

Spec Value
Maximum Power 40.2 hp 30 kW
Maximum Torque 83 lb-ft @ 1800 rpm 112 Nm @ 1800 rpm
Rated Speed 2200-3000 rpm 2200-3000 rpm
Minimum Power 27.8 hp 20.7 kW
Spec Value
Emissions U.S. EPA Tier 4 Interim Equivalent U.S. EPA Tier 4 Interim Equivalent
Spec Value
Engine Configuration Inline 3, 4-Stroke-Cycle Diesel Inline 3, 4-Stroke-Cycle Diesel
Bore 3.3 in 84 mm
Stroke 3.5 in 90 mm
Displacement 91 in³ 1.496 l
Compression Ratio 22.5:1 22.5:1
Aspiration Naturally Aspirated (NA) or Turbocharged (T) Naturally Aspirated (NA) or Turbocharged (T)
Combustion System Indirect Injection Indirect Injection
Rotation from Flywheel End Counterclockwise Counterclockwise
Aftertreatment - -
Spec Value
Length 22.5 in 572 mm
Width 20.3 in 512 mm
Height 25.3 in 643 mm
Weight – Net Dry – Basic Operating Engine Without Optional Attachments 345 lb 157 kg

Standard Equipment

Air Inlet System

  • Inlet manifold with choice of inlets.

Control System

  • Alternator 12 volt 65 amp
  • Starter motor 12 volt
  • Glow plug starting aid

Cooling System

  • Belt-driven coolant pump
  • Coolant temperature switch
  • Choice of cooling fans

Flywheel & Flywheel Housing

  • Naturally Aspirated: SAE No. 7 1/2 flywheel
  • Turbocharged: SAE No. 6 1/2 or SAE No. 7 1/2 flywheel
  • Naturally Aspirated: Choice of SAE No. 4 or standard backplate flywheel housing
  • Turbocharged: Choice of SAE No. 4 or SAE No. 5 or standard backplate flywheel housing

Fuel System

  • Fuel injection pump
  • Spin-on fuel filter
  • Electronic Shut-off Solenoid (ESOS)

Lube System

  • Alternative oil fillers
  • Spin-on lube oil filter
  • Lube oil pressure switch
  • Lube oil sump

General

  • Cast iron, engine block
  • Cast iron exhaust manifold–side outlet
  • Cold start capability to -20° C (-4° F)
  • Gradeability 35° continuous
  • Paint: Caterpillar yellow, with optional colors available at request
