Caterpillar

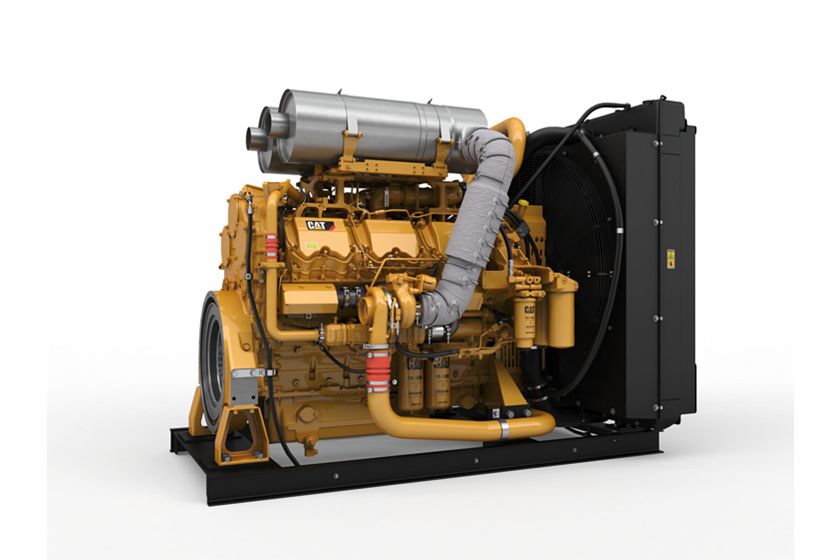

Cat?� C32 Industrial Power Unit

The Cat?� C32 Industrial Power Unit has a rating of 746 bkW (1000 bhp) @ 1800 rpm and meets U.S. EPA Tier 4 Final emission standards.

Media

Photos

C32 Industrial Power Unit – Highly Regulated
C32 Industrial Power Unit – Highly Regulated

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Features

Installation

Ideal Applications

Total Cost of Ownership

Cat Dealer Product Support

Details

Specifications

Spec Value
Maximum Power 1000 hp 746 kW
Maximum Torque 3825 lb-ft @ 1200 rpm 5186 Nm @ 1200 rpm
Rated Speed 1800 rpm 1800 rpm
Minimum Power 1000 hp 746 kW
Spec Value
Emissions U.S. EPA Tier 4 Final and EU Stage V U.S. EPA Tier 4 Final and EU Stage V
Spec Value
Engine Configuration V-12 V-12
Cycle 4 4
Bore 5.7 in 145 mm
Stroke 6.4 in 162 mm
Displacement 1958.9 in³ 32.1 l
Compression Ratio 16.0:1 16.0:1
Aspiration Twin Turbocharged Aftercooled (TTA) Twin Turbocharged Aftercooled (TTA)
Combustion System Direct Injection Direct Injection
Cooling System liquid liquid
Rotation from Flywheel End Counterclockwise Counterclockwise
Aftertreatment DOC DOC
Spec Value
Height 77.6 in 1970 mm
Length 100.7 in 2558 mm
Width 64.4 in 1637 mm

Standard Equipment

Air Inlet System

  • Turbocharged
  • Air-to-Air Aftercooled

Control System

  • Electronic control system
  • Over-foam wiring harness
  • Automatic altitude compensation
  • Power compensated for fuel temperature
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control

Cooling System

  • Thermostats and housing, vertical outlet
  • Jacket water pump, centrifugal
  • Water pump, inlet

Exhaust System

  • Exhaust manifold, dry
  • Optional exhaust outlet

Flywheels and Flywheel Housing

  • Choice of SAE No. 0 or SAE No. 1 flywheel housing

Fuel System

  • MEUI injection
  • Fuel filter, secondary (2 micron)
  • Electronic fuel priming

Lube System

  • Open crankcase ventilation system
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Rear sump oil pan
  • Oil dipstick
  • Gear driven oil pump
