Caterpillar

Cat?� C18 Industrial Power Unit (<560 kW)

The Cat?� C18 Industrial Power Unit is offered in ratings ranging from 429-470 bkW (575-630 bhp)@ 1800-1900 rpm. Conveniently pre-configured for a wide range of applications, the Cat?� Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Media

Photos

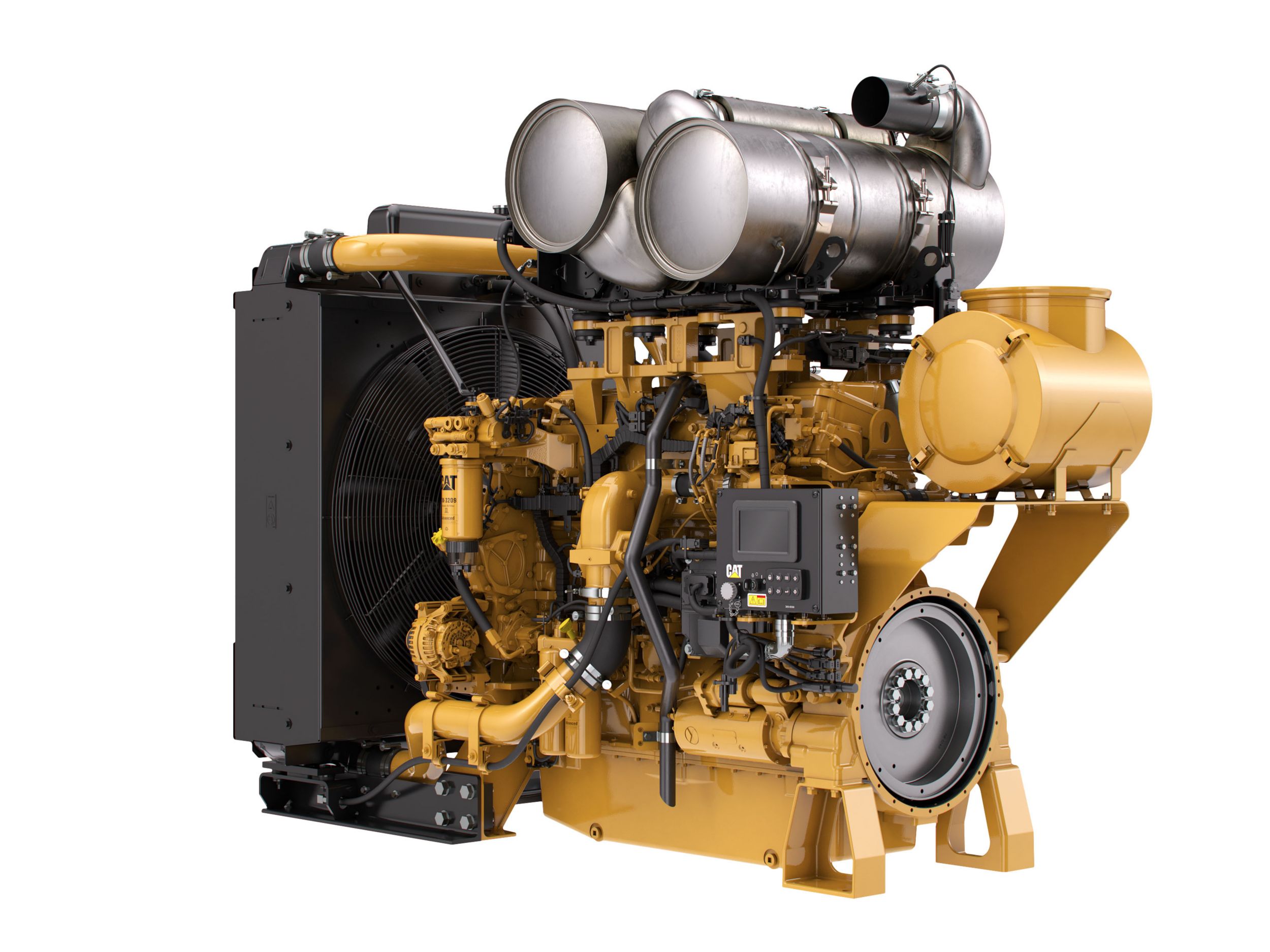

C18 Tier 4 Industrial Power Units &#8211; Highly Regulated
C18 Tier 4 Industrial Power Units – Highly Regulated

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Features

Reliable, Quiet and Durable Power

High Performance

Fuel Efficiency

Fuel & Oil

Broad Application Range

World-class Product Support Offered Through Global Cat Dealer Network

Tier 4 Final, Stage IV Aftertreatment Features

Details

Specifications

Spec Value
Maximum Power 630 hp 470 kW
Maximum Torque 2177 lb-ft @ 1300 rpm 2951 Nm @ 1300 rpm
Rated Speed 1800-2000 rpm 1800-2000 rpm
Minimum Power 575 hp 429 kW
Spec Value
Emissions U.S. EPA Tier 4 Final, EU Stage V, China Nonroad Stage IV U.S. EPA Tier 4 Final, EU Stage V, China Nonroad Stage IV
Spec Value
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel Inline 6, 4-Stroke-Cycle Diesel
Bore 5.7 in 145 mm
Stroke 7.2 in 183 mm
Displacement 1104.5 in³ 18.1 l
Compression Ratio 16.0:1 16.0:1
Aspiration Turbocharged Aftercooled (TA) Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise Counterclockwise
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Spec Value
Length 99.7 in 2532 mm
Width 48.9 in 1241 mm
Height 79 in 2006 mm
Weight 5842 lb 2650 kg
Spec Value
Width 43.8 in 1112 mm
Height 25.7 in 652 mm
Weight 591 lb 268 kg
Spec Value
Diameter 13 in 330 mm
Spec Value
Length 33.6 in 854 mm
Width 11.3 in 287 mm
Height 21.7 in 551 mm
Weight 42.8 lb 19.4 kg
Volume Capacity 51.1 qt (US) 48.4 l

Standard Equipment

Air Inlet System

  • Turbocharged
  • Air-to-Air Aftercooled
  • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)

Control System

  • Electronic control system
  • Over-foam wiring harness
  • Automatic altitude compensation
  • Power compensated for fuel temperature
  • Remote fan control
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated Electronic Control Unit (ECU)

Cooling System

  • Thermostats and housing, vertical outlet
  • Centrifugal water pump
  • Guidance on cooling system design available through your dealer to ensure equipment reliability

Flywheels and Flywheel Housing

  • Choice of SAE No. 0 or SAE No. 1 flywheel housing
  • Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).

Fuel System

  • MEUI injection
  • Primary fuel filter
  • Secondary fuel filters
  • Fuel transfer pump
  • Electronic fuel priming

Lube System

  • Open crankcase ventilation system
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Oil dipstick
  • Gear driven oil pump
  • Choice of front, rear or center sumps
  • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)

Power Take Off (PTO)

  • SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.

General

  • Paint: Caterpillar yellow, with optional colors available at request

U.S. EPA Tier 4 Interim, EU Stage IIIB Aftertreatment / Clean Emissions Control Equipment

  • Cat Regeneration System
  • Aftertreatment information applies to ratings from 429-522 bkW (575-700 bhp)
  • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
  • NOx Reduction System (NRS)
  • Flex pipe connection kit with 90° rotatable elbows to attach to Cat Regeneration System Inlet
  • Available in 12 volt or 24 volt systems

U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/ Clean Emissions Control Equipment

  • Cat Regeneration System
  • Aftertreatment information applies to ratings from 429-522 bkW (575-700 bhp)
  • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
  • Aftertreatment Electronic Control Unit (ECU)
  • NOx Reduction System (NRS)
  • Pump Electronic Control Unit (PETU)
  • Selective Catalytic Reduction (SCR)
  • Available in 12V or 24V systems
