Caterpillar

Cat?� C11 Industrial Power Unit

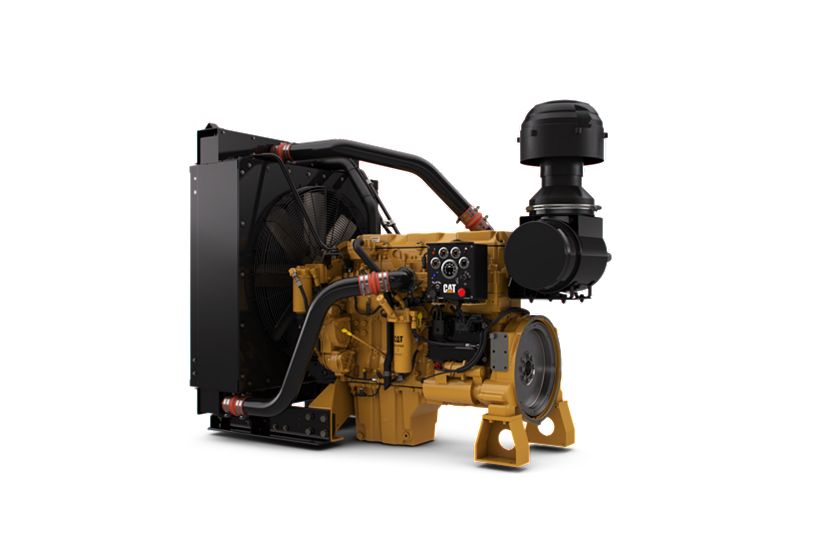

The Cat?� C11 Industrial Diesel Power Unit is offered in ratings ranging from 242-336 kW (325-451 hp) @ 1800-2100 rpm and meet China Nonroad Stage III, Brazil MAR-1, and UN R96 Stage IIIA emission standards. Conveniently pre-configured for a wide range of applications, the Cat?� Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Media

Photos

C11 Industrial Power Units – Lesser Regulated & Non-Regulated
C11 Industrial Power Units – Lesser Regulated & Non-Regulated

Documents

Features

Reliable, Quiet and Durable Power

Broad Application Range

Package Size

World-class Product Support Offered Through Global Cat Dealer Network

Details

Specifications

Spec Value
Maximum Power 451 hp 336 kW
Rated Speed 1800-2100 rpm 1800-2100 rpm
Minimum Power 325 hp 242 kW
Spec Value
Emissions Brazil MAR-1, UN R96 Stage IIIA, U.S. EPA Tier 3 Brazil MAR-1, UN R96 Stage IIIA, U.S. EPA Tier 3
Spec Value
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel Inline 6, 4-Stroke-Cycle Diesel
Bore 5.1 in 130 mm
Stroke 5.5 in 140 mm
Displacement 677.4 in³ 11.1 l
Compression Ratio 17.2:1 17.2:1
Aspiration Turbocharged Aftercooled (TA) Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise Counterclockwise
Aftertreatment - -
Spec Value
Length 92 in 2328 mm
Width 50 in 1271 mm
Height 71 in 1816 mm
Weight 3730 lb 1692 kg

Standard Equipment

Air Inlet System

  • Turbocharged
  • Air-to-Air Aftercooled

Control System

  • Electronic governing, PTO speed control
  • Programmable ratings
  • Automatic altitude compensation
  • Power compensation for fuel temperature
  • Programmable low and high idle and total engine limit
  • Electronic diagnostics and fault logging
  • Engine monitoring system SAE J1939 broadcast and control
  • ADEM™ A4 Electronic Control Unit (ECU)

Cooling System

  • Thermostats and housing, vertical outlet
  • Jacket water pump, centrifugal
  • Water pump, inlet

Exhaust System

  • Exhaust manifold, dry
  • Optional exhaust outlet

Flywheels and Flywheel Housing

  • SAE No. 1 flywheel housing

Fuel System

  • MEUI injection
  • Fuel filter, secondary (2 micron)
  • ACERT™ Technology
  • Fuel transfer pump
  • Fuel priming pump

Lube System

  • Crankcase breather
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Front sump oil pan
  • Oil dipstick
  • Gear driven oil pump

General

  • Vibration damper
  • Lifting eyes
  • Cold start capability to -20° C (-4° F)
  • Paint: Caterpillar yellow, with optional colors available at request
