Caterpillar

Cat?� C4.4 Industrial Power Unit

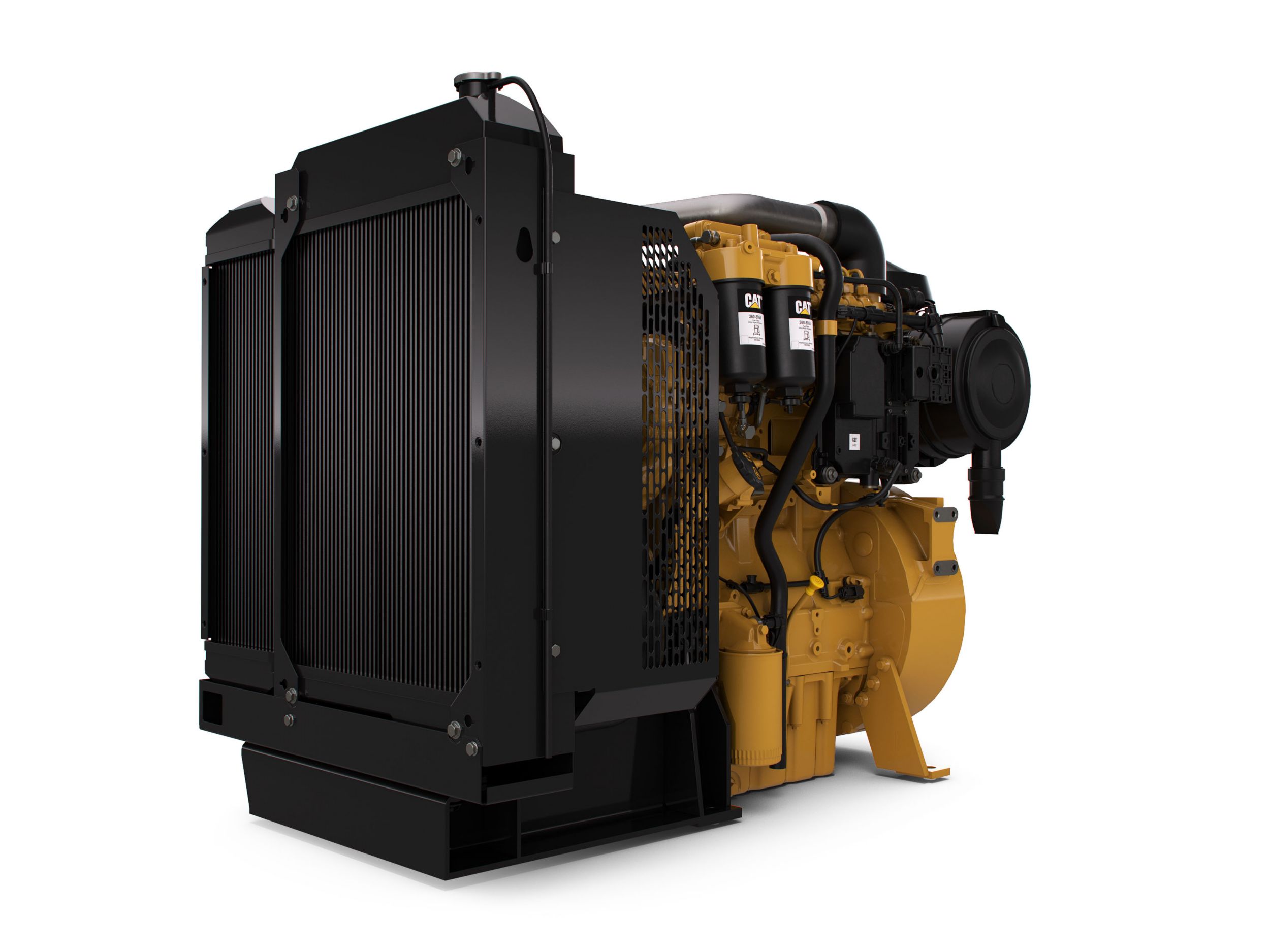

The Cat?� C4.4 Industrial Power Unit is offered in ratings ranging from 96.5 bkW (129.4 bhp) @ 2200 rpm. These ratings meet U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Conveniently pre-configured for a wide range of applications, the Cat?� Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Media

Photos

C4.4 LRC Industrial Power Units – Lesser Regulated & Non-Regulated
C4.4 LRC Industrial Power Units – Lesser Regulated & Non-Regulated

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Reliable, Quiet and Durable Power

Fuel Efficiency

World-class Product Support Offered Through Global Cat Dealer Network

Details

Specifications

Spec Value
Maximum Power 129.4 hp 96.5 kW
Rated Speed 2200 rpm 2200 rpm
Minimum Power 129.4 hp 96.5 kW
Spec Value
Emissions China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
Spec Value
Engine Configuration Inline 4, 4-Stroke-Cycle Diesel Inline 4, 4-Stroke-Cycle Diesel
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in³ 4.4 l
Compression Ratio 16.2:1 16.2:1
Aspiration Turbocharged Aftercooled (TA) Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise Counterclockwise
Aftertreatment - -
Spec Value
Length 53.5 in 1358 mm
Width 29.5 in 749 mm
Height 37.9 in 963 mm
Weight 1146 lb 520 kg

Standard Equipment

Air Inlet System

  • Mounted air filter and turbocharger

Control System

  • Available in 12 volt or 24 volt systems
  • Starter motor 12V or 24V

Cooling System

  • Fan (pusher or puller)
  • Fan drive
  • Radiator
  • Water pump

Flywheels and Flywheel Housing

  • Flywheel
  • SAE No. 3 flywheel housing

Fuel System

  • Fuel filter
  • ACERT™ Technology

Lube System

  • Oil cooler
  • Lube oil filter
  • Timing case oil filler

Mountings

  • Engine mounting brackets

Power Take Off (PTO)

  • SAE A or SAE B front PTO (142/280 NM)

General

  • Paint: Caterpillar yellow, with optional colors available at request
