Caterpillar

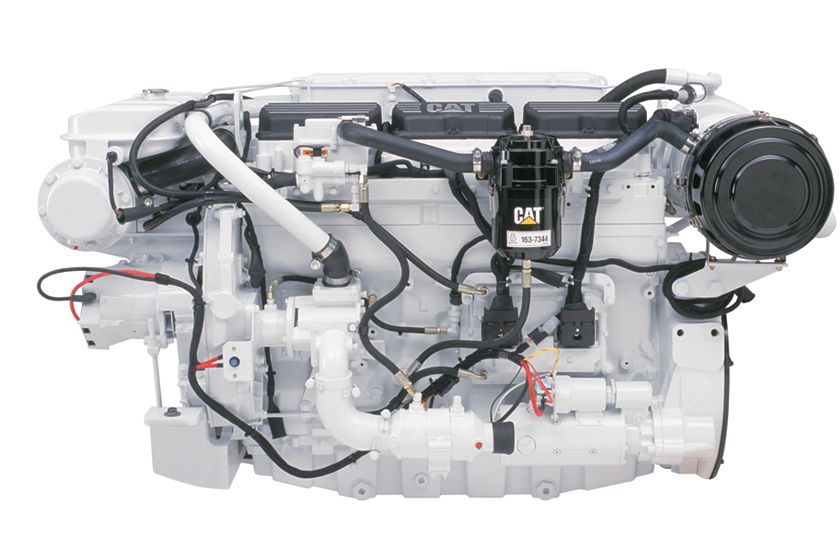

C12 Propulsion Engine
Cat® C12 Diesel Marine Propulsion Engines, with ratings of 340-490 bhp (254-366 bkW) at 1800-2300 rpm, meet IMO II emission standards with the exception of the 497 mhp (490 bhp) rating at 2300 rpm which meets IMO I emissions standards. The C12 takes full advantage of the electronically controlled unit injection fuel system, resulting in an environmentally friendly engine with outstanding performance and fuel economy. There is also a wide range of optional equipment available to meet the needs of your marine commercial or pleasure craft application.
Media
Photos
Details
Specifications
Power Rating
| Spec | Value |
|---|---|
| Power Range | 340-490 bhp (254-366 bkW) 340-490 bhp (254-366 bkW) |
Engine Specifications
| Spec | Value |
|---|---|
| Speed Range | 1800-2300 rpm 1800-2300 rpm |
| Emissions | IMO I, IMO II IMO I, IMO II |
| Aspiration | TA TA |
| Bore | 5.1 in 130 mm |
| Stroke | 5.9 in 150 mm |
| Displacement | 732 in³ 12 l |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Configuration | In-line 6, 4-Stroke-Cycle Diesel In-line 6, 4-Stroke-Cycle Diesel |
Dimensions & Weights
| Spec | Value |
|---|---|
| Width | 38.1 in 969 mm |
| Length | 62 in 1574 mm |
| Dry Weight | 2588 lb 1174 kg |
| Height | 39.5 in 1005 mm |
Standard Equipment
Air Inlet System
- Aftercooler – sea water; corrosion resistant, Air Cleaner/Fumes Disposal (closed system), Turbocharger, Jacket Water Cooled
Control System
- Electronic governing, Cold mode start strategy, Power compensation for fuel temperature, Programmable low idle, Electronic diagnostics and fault logging, Engine and transmission monitoring (speed, temperature, pressure), Fuel/air ratio control, Emergency stop switch (A&B ratings only)
Cooling System
- Thermostat and housing, Jacket water pump; gear driven, Sea water pump; rubber impeller; self-priming; gear-driven, Integral heat exhanger/expansion tank; removable tube bundle; replaceable copper-nickel tubes, Keel cooling – combined circuit (includes pipe thread flange kit)
Exhaust System
- Watercooled Manifold & Turbocharger
Flywheels & Flywheel Housings
- Flywheel; SAE No. 1; 113 teeth, Flywheel housing; SAE No. 1 (10 degree slant pad), SAE standard rotation
Fuel System
- Fuel filer; RH service on Port; LH service on Starboard, Fuel transfer pump, Fuel priming pump, Flexible fuel lines
Instrumentation
- Service meter, electric
Lube System
- Crankcase breather, Oil cooler, Oil filter; spin-on; RH service on Port; LH service on Starboard, Oil filler, Dipstick; RH service on Port; LH service on Starboard, Oil pump; gear driven
Mounting System
- Front support
Power Take-Offs
- Hydraulic pump drive; SAE A; 11 tooth spline, 57 ft-lbs max torque; counterclockwise as viewed from the rear of hte engine looking into the pump drive and turns 1.41 x engine speed, Crankshaft pulley; 345 mm (13.6 in) single groove; 15.88 mm (.63in) width
Protection System
- Shutdown; electronic; 12 or 24 volt; energized to run
General
- Vibration damper, Lifting eyes, RH or LH service options, Literature, Variable engine wiring, Upper rear-facing customer wiring connector and ECAP connection, Electronic installation kit (connectors, pins, sockets)
Optional Equipment
Air Inlet System
- Low Profile Air Inlet Line, Shield (Air Inlet Line)
Charging System
- Charging Alternators, Voltmeter Guages, Voltmeter Guage Mounting, Alternator Mounting Group
Cooling System
- Sea Water Pump, Coolant Recovery Tank, Flange Kit
Exhaust System
- Flexible Fitting, Elbow, Dry Elbow, Watercooled Elbow, Exhaust Connection, Exhaust Outlet Pipe, EXH Outlet Flange, Rain Cap, Muffler
Fuel System
- Fuel Cooler, Fuel Connections, Primary Fuel Filter, Primary Fuel/Water Separator
Instrumentation
- OEM Wiring Harness, Engine to Engine Harness, Digital Tachometer, Tachometer Mounting, Magnetic Pickup, RH 4 Hole Instrument Panel, LH 4 Hole Instrument, Marine Power Display System, Marine Power Display Unit (for additional monitoring stations), Marine Power Display Bracket, Wiring Group, Transmission Sensors
Lube System
- Manual sump pump, Transmission oil cooler
Mounting System
- Vibration Isolators
Power Take-Offs
- Crankshaft Pulley, Front Stub Shaft, Front Stub Shaft & Pulley
Starting System
- Air Pressure Regulator, Air Start Silencer, Start Switch, Jacket Water Heater, Battery sets (24 volt – dry)
General
- Wiring Harness Removal, Belt Guard – Alternator, Belt Guard – Alternator Pulley, Filter Cover Kit
Packing
- Overseas Preservation, Engine Protective Cover, Storage Preservation, Export Packing
