Caterpillar

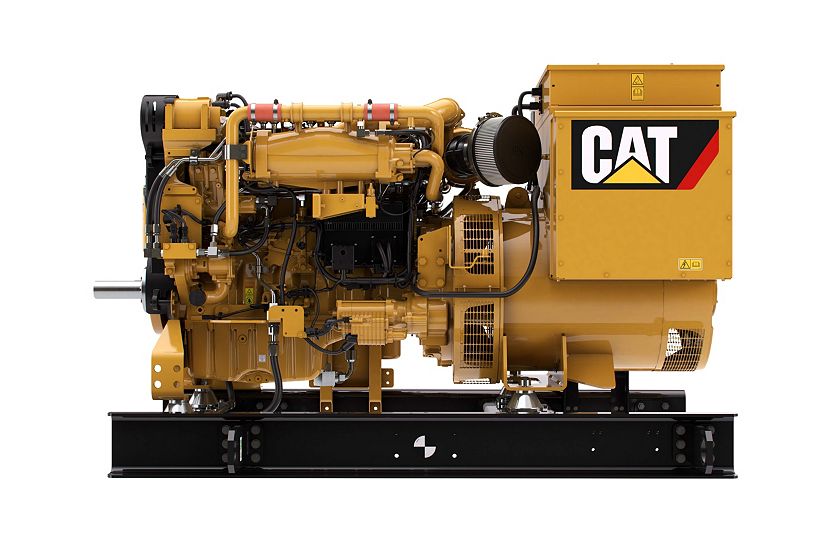

C9.3 Marine Generator Set

C9.3 Marine Generator Set

Media

Photos

C9.3 Marine Generator Set
C9.3 Marine Generator Set

Documents

Features

Key Features & Benefits

Details

Specifications

Spec Value
Power Range 200 - 300 ekW 200 - 300 ekW
Spec Value
Frequency 50 / 60 50 / 60
Emissions/Fuel Strategy IMO II, IMO III, U.S. EPA Tier 3, China Stage II IMO II, IMO III, U.S. EPA Tier 3, China Stage II
Speed 200 ekW - 300 ekW 200 ekW - 300 ekW
Spec Value
Aspiration Turbocharged - Aftercooled Turbocharged - Aftercooled
Bore 4.5 in 115 mm
Stroke 5.8 in 149 mm
Rated Engine Speed 1500 / 1800 rpm 1500 / 1800 rpm
Cooling Heat exchanger and separate or combined keel cooled options Heat exchanger and separate or combined keel cooled options
Displacement 567.5 in 9.3 l
Oil Change Interval 500 hrs 500 hrs
Configuration Inline 6, 4-Stroke Cycle diesel Inline 6, 4-Stroke Cycle diesel
Refill Capacity Lube Oil System w/oil filter change: 24.5 L (6.5 gal) Lube Oil System w/oil filter change: 24.5 L (6.5 gal)
Governor Electronic Electronic
Rotation from Flywheel End Counterclockwise Counterclockwise
Spec Value
Width 38.5 in / 978 mm 38.5 in / 978 mm
Length 57.2 in / 1,452 mm 57.2 in / 1,452 mm
Engine Dry Weight 2083 - 2474 lb / 945 - 1122 kg 2083 - 2474 lb / 945 - 1122 kg
Height 43.0 in 43.0 in

Standard Equipment

Standard Equipment

  • Water-cooled turbocharger and exhaust manifold
  • Electronic control system
  • Thermostats and housing
  • Gear-driven Sea water pump (self-priming)
  • Common rail fuel system
  • Shell and tube jacket water heat exchanger
  • Corrosion-resistant Sea water aftercooler
  • Engine oil cooler
  • Vibration damper and guard
  • Primary fuel filters

Optional Equipment

Optional Attachments

  • Alternators – 24V 70 or 105 amp, 12V 110 amp
  • Closed crankcase ventilation
  • Transmission gear oil cooler (engine mounted for HEX)
  • Additional engine and transmission sensor packages
  • Instrument panels
  • Electric starting motors – 12V or 24V
  • Air starting motor
  • Dual electric starting motors or combined electric/air
  • Electric fuel priming pump
  • Fuel cooler
  • PTO Drives – V-belt pulley stack, stub shaft
  • Duplex fuel and oil filters
  • Double wall fuel rail
