Caterpillar

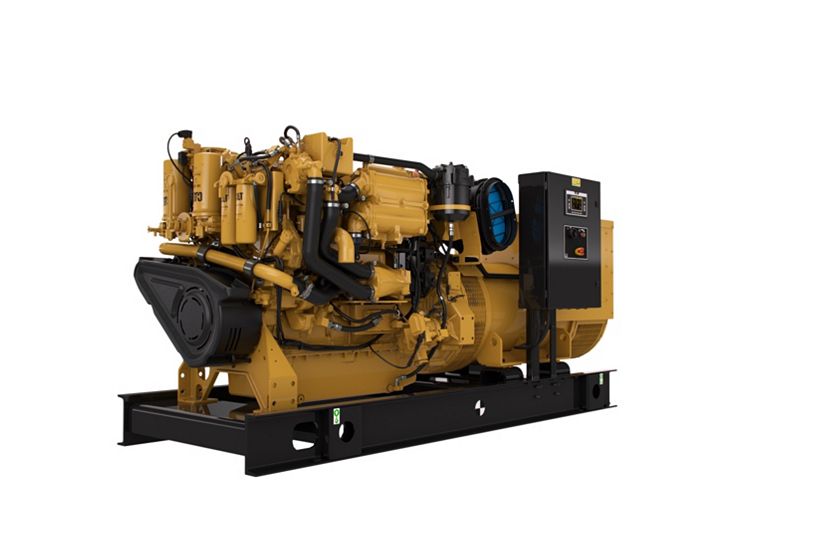

C18 Marine Generator Set

The C18 is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings.

Media

Photos

C18 ACERT Tier 3
C18 ACERT Tier 3

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Separate circuit aftercooling system

Emissions

Cooling system

Turbo Configurations

Marine Certifications

Details

Specifications

Spec Value
Power Range 260 - 565 ekW 260 - 565 ekW
Spec Value
Frequency 50 / 60 50 / 60
Minimum Rating 260 ekW (325 kVA) 260 ekW (325 kVA)
Maximum Rating 565 ekW (706 kVA) 565 ekW (706 kVA)
Spec Value
Configuration In-line 6, 4-Stroke-Cycle Diesel In-line 6, 4-Stroke-Cycle Diesel
Aspiration Turbocharged - Aftercooled Turbocharged - Aftercooled
Bore 5.7 in 145 mm
Stroke 7.2 in 183 mm
Fuel System MEUI MEUI
Oil Change Interval 250 / 500 hours 250 / 500 hours
Governor Electronic Electronic
Refill Capacity 68 68
Cooling Heat Exchanger, Keel, Radiator Cooled Heat Exchanger, Keel, Radiator Cooled
Rotation from Flywheel End SAE No. (136 teeth) SAE No. (136 teeth)
Spec Value
Emissions EPA Tier 3, IMO II, EU IWW, EU Stage V, China II EPA Tier 3, IMO II, EU IWW, EU Stage V, China II
Spec Value
Height 94.8 in 2408 mm
Length 55.6 in 4741 mm
Width 66.9 in 1699 mm
Weight – Approximate 13396 lb 6076 kg
Spec Value
Length 119.6 in 3038 mm
Height 64.9 in 1648 mm
Width 55.6 in 1411 mm
Weight – Approximate 9747 lb 4221 kg
Spec Value
Excitation SRMP SRMP
Insulation Class H Class H
IP Rating IP23 (standard), IP 44 (optional) IP23 (standard), IP 44 (optional)
Voltage Regulator CDVR (Digital Voltage) CDVR (Digital Voltage)

Standard Equipment

Air inlet system

  • Separate circuit after-cooled (SCAC)
  • Open Crankcase Ventilation (OCV) system
  • Turbocharger, jacket water cooled
  • Turbocharger inlet, 152 mm (6 in) OD straight connection

Cooling system

  • SCAC pump, gear driven, for HEX cooled engines only
  • Jacket water pump, gear driven
  • SCAC and JW shunt tanks for maintaining proper pump inlet pressures

Exhaust system

  • Water-cooled exhaust manifold & turbocharger
  • Round flanged exhaust outlet

Fuel system

  • Hybrid fuel line design
  • Fuel transfer pump, gear driven
  • Front service simplex fuel system
  • Manual fuel priming pump

Lube system

  • Center sump oil pan: Deep 500 hour oil change interval
  • Front and top service oil filler locations
  • Front service dipstick

Lube System

  • Oil pump, gear driven

Mounting system

  • Vibration Isolators
  • Formed C-channel rails

Control system

  • Common Interface to all Genset Control Panels
  • Programmable Low Idle
  • Electronic Diagnostics and Fault Logging
  • Electronic Fuel/Air Ratio Control

Control System

  • Programmable ECM Shutdowns for: High Jacket Water Coolant Temp Low Engine Oil Pressure Engine Overspeed

Optional Equipment

Exhaust system

  • Dry Elbows
  • Water-Cooled Elbows
  • Flexible Fitting
  • Flange
  • Muffler
  • Muffler, Spark Arresting

Air inlet system

  • Air Inlet Adapter

Charging system

  • Battery Chargers 10 amp
  • Charging alternator 24V 105 amp

Control system

  • Caterpillar alarm and protection
  • EMCP 4.2 control panel
  • MGCP III B control panel

Fuel system

  • Duplex fuel filter – front service
  • Fuel cooler
  • Primary fuel/water separator

Instrumentation

  • Generator service side – LH, RH
  • Generator terminal box extension
  • Load sharing module (option for type approved module)

Lube system

  • Duplex oil filter
  • Sump pump

Protection system

  • Generator protection – IP44

Starting system

  • Starting motors – electric and/or air
  • Jacket water heaters
