Caterpillar

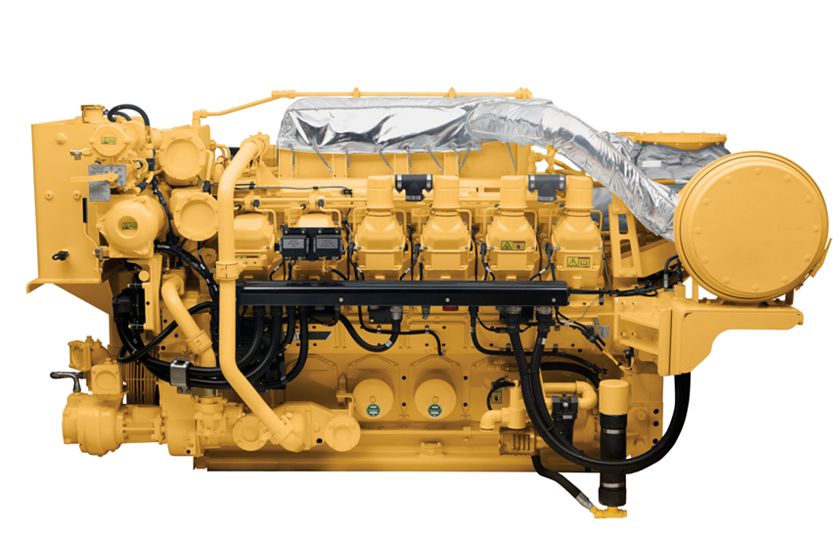

3512C High Displacement Marine Generator Set

3512C High Displacement Marine Generator Set

Media

Photos

Details

Specifications

Spec Value
Minimum Rating 1550 eKW (1937 kVA) 1550 eKW (1937 kVA)
Maximum Rating 1700 eKW (2125 kVA) 1700 eKW (2125 kVA)
Frequency 60 hz 60 hz
Speed 1800 1800
Spec Value
Configuration Vee 12 4-Stroke-Cycle Diesel Vee 12 4-Stroke-Cycle Diesel
Aspiration TTA TTA
Bore 6.7 in 170 mm
Stroke 8.46 in 215 mm
Displacement 3574 in³ 58.56 l
Spec Value
Emissions IMO II IMO II
Spec Value
Length 200.2 in 5085.3 mm
Width 84.3 in 2142.1 mm
Height 83.9 in 2131.1 mm
Weight – Estimated 28136 lb 12762 kg

Standard Equipment

AIR INLET SYSTEM

  • Corrosion resistant separate circuit aftercooler core, regular duty air cleaners, dual turbochargers

CONTROL SYSTEM

  • Caterpillar A-III electronic engine control, Electronic Unit Injection fuel system, rigid wiring harness

COOLING SYSTEM

  • Auxiliary fresh water pump, centrifugal non-self-priming auxiliary sea water pump, gear driven centrifugal jacket water pump, expansion tank, engine oil cooler, thermostats and housing

EXHAUST SYSTEM

  • Dry gas-tight exhaust manifolds with heat shields, dual turbochargers with water-cooled bearings and heat shields, vertical exhaust outlet

FLYWHEELS & FLYWHEEL HOUSINGS

  • Flywheel, SAE No. 00, 183 teeth Flywheel housing, SAE No. 00

FUEL SYSTEM

  • Fuel filter, RH, with service indicators
  • Fuel transfer pump
  • Electronically Controlled Unit Injectors

INSTRUMENTATION

  • Engine mounted instrument panel with four position switch, over speed shutdown notification light, emergency stop notification light, graphical display unit for analog or digital display of: oil and fuel pressure, oil and fuel filter differential, system DC voltage, exhaust and water temperature, air inlet restriction, service meter, engine speed, fuel consumption (total and instantaneous)

LUBE SYSTEM

  • Top mounted crankcase breather, RH oil filter, RH oil filler, gear type oil pump, deep sump oil pan, recommended use of Caterpillar Diesel Engine Oil 10W30 or 15W40

MOUNTING SYSTEM

  • Industrial type engine mounting rails)

POWER TAKE-OFFS

  • Accessory drive Lower RH, Lower LH Front housing, Two-sided

PROTECTION SYSTEM

  • A-III Electronic Monitoring System provides customer programmable engine de-ration strategies to protect against adverse operating conditions
  • Emergency stop push button (located in Electronic Instrument Panel) Safety shutoff protection for oil pressure and water temperature, over speed protection

GENERAL

  • Vibration damper and guard Paint, Caterpillar Yellow engine with black rails. Lifting eyes

Optional Equipment

AIR INLET SYSTEM

  • Air Cleaner Removal
  • Remote Air Inlet Adapters

CHARGING SYSTEM

  • Battery Chargers
  • Charging Alternators

CONTROL SYSTEM

  • Load Sharing module
  • Local speed throttle control

COOLING SYSTEM

  • Water level switch gauge
  • Coolant level sensors
  • Connections
  • Keel Cooling Conversions
  • Radiator cooling conversion
  • Heat exchangers
  • Auxiliary water pumps
  • Sea water pump removal
  • Air separator

EXHAUST SYSTEM

  • Exhaust outlet
  • Flexible fittings
  • Elbows
  • Flanges
  • Flange and exhaust expanders
  • Mufflers

FUEL SYSTEM

  • Fuel Cooler
  • Fuel priming pumps
  • Flexible fuel lines
  • Rigid Fuel Lines
  • Primary fuel filter
  • Fuel level switch

GENERATORS AND GENERATOR ATTACHMENTS

  • 1500/1800 RPM, 1000/1200 RPM
  • Low Voltage Connection
  • Generator Conversion
  • Low Voltage Extension Box
  • RFI Filter
  • Bearing Temperature Detectors
  • Manual Voltage Control
  • Air Filter

INSTRUMENTATION

  • PL1000T Communication Module
  • PL1000E Communication Module
  • Customer Interface Box
  • Thermocouples
  • Remote panel display
  • Remote cylinder temperature display

LUBE SYSTEM

  • Oil Pan
  • Oil pan accessories
  • Sump pumps
  • Prelubrication Options
  • Lubricating oil
  • Centrifugal Oil Filter

MOUNTING SYSTEM

  • Vibration isolators
  • Rails

POWER TAKE-OFFS

  • Flywheel guard
  • Flexible coupling
  • Coupling hub
  • Front housing accessories
  • Upper left hand front location
  • Upper left hand rear location
  • Upper right hand front location:
  • Upper right hand rear location
  • Lower left hand front location
  • Front housing accessory drives
  • Front power take-offs
  • Crankshaft pulleys
  • Damper guard removals

PROTECTION SYSTEM

  • Air inlet shutoffs
  • Switches and contactors
  • Explosion relief valve
  • Sensors

STARTING SYSTEM

  • Starting motors or barring divice
  • Air starting motors options
  • Battery sets – 24 volt – Dry
  • Battery rack
  • Jacket Water Heater

GENERAL

  • Tool set
  • Caterpillar datalink wire

SVCE TOOLS/SHIP PROT/FACTORY SUPPORT

  • Commissioning
