Caterpillar
C1.5 Marine Generator Set Engine

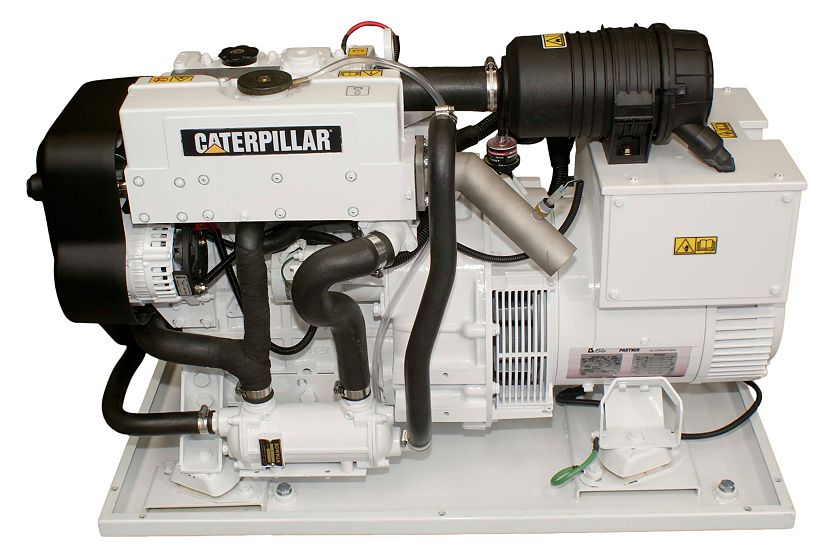

Cat® C1.5 Diesel Marine Generator Set
Media
Photos
Documents
Details
Specifications
Power Rating
| Spec | Value |
|---|---|
| Power Range | 10 - 12 ekW 10 - 12 ekW |
Generator Set Specifications
| Spec | Value |
|---|---|
| Frequency | 50 / 60 50 / 60 |
| Minimum Rating | 10 ekW (10 kVA) 10 ekW (10 kVA) |
| Speed | 1500 / 1800 rpm 1500 / 1800 rpm |
Engine Specifications
| Spec | Value |
|---|---|
| Displacement | 91 in³ 1.5 l |
| Aspiration | Naturally Aspirated Naturally Aspirated |
| Governor Type | Electrical Isochronous Electrical Isochronous |
| Bore | 3.31 in 84 mm |
| Stroke | 3.5 in 90 mm |
| Emissions | U.S. EPA Tier 3 U.S. EPA Tier 3 |
| Configuration | Inline 3, 4-Stroke Cycle diesel Inline 3, 4-Stroke Cycle diesel |
| Refill Capacity | Lube Oil System w/oil filter change: 6 L (1.6 gal) Lube Oil System w/oil filter change: 6 L (1.6 gal) |
| Oil Change Interval | 500 hrs 500 hrs |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Cooling | Hex or Single Circuit Keel Hex or Single Circuit Keel |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 40.8 in / 1,038 mm (open) 43.1 in / 711 mm (enclosed) 40.8 in / 1,038 mm (open) 43.1 in / 711 mm (enclosed) |
| Width | 21.1 in / 535 mm (open) 24.0 in / 608 mm (enclosed) 21.1 in / 535 mm (open) 24.0 in / 608 mm (enclosed) |
| Height | 27.1 in / 535 mm (open) 27.9 in / 711 mm (enclosed) 27.1 in / 535 mm (open) 27.9 in / 711 mm (enclosed) |
| Engine Dry Weight | 703 lb / 319 kg 703 lb / 319 kg |
Standard Equipment
Standard Equipment
- Single element air cleaner
- Water-cooled exhaust manifold
- Single or Three phase brushless generator
- 12 or 24 volt electric starting motor
- 12 volt 55 amp alternator
- Single sided service points
- Anti-vibration mounts.
- Electronic automatic safety shutdowns
Optional Equipment
Optional Attachments
- Sound attenuated enclosure (Factory Fit or Upgrade Kit)
- Keel cooling kit
- Basic, Deluxe and remote panel options
- AC circuit breakers
- Flexible fuel lines
- Primary fuel filter/water separator
- Siphon break
- Exhaust system components
- Insulated electrical system
