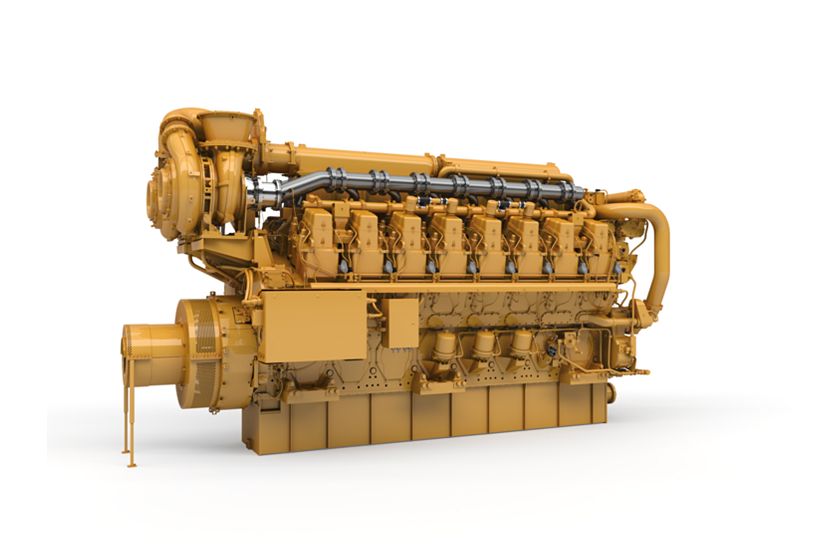

Cat C280-16 Marine Generator Set
Cat C280-16 Marine Generator Set
Media
Photos
360° View
Exterior
360° Exterior View. Double click on the image to zoom in on any of the products.
Details
Specifications
Generator Set Specifications
Spec | Value |
---|---|
Minimum Rating | 4700 ekW (5875 kVA) 4700 ekW (5875 kVA) |
Maximum Rating | 4840 ekW (6050 kVA) 4840 ekW (6050 kVA) |
Frequency | 50 Hz or 60 Hz 50 Hz or 60 Hz |
Speed | 1000 rpm (50 hz) or 900 rpm (60 hz) 1000 rpm (50 hz) or 900 rpm (60 hz) |
Emissions/Fuel Strategy | EPA Tier 2, IMO II EPA Tier 2, IMO II |
Engine Specifications
Spec | Value |
---|---|
Aspiration | Turbocharged-Aftercooled Turbocharged-Aftercooled |
Bore | 11 in 280 mm |
Stroke | 11.8 in 300 mm |
Displacement | 18062 in³ 296 l |
Governor Type | Electronic Electronic |
Fuel System | EUI EUI |
Compression Ratio 50 Hz | 13.1 13.1 |
Compression Ratio 60 Hz | 13:1 13:1 |
Engine Model | Vee 16, 4-Stroke-Cycle Diesel Vee 16, 4-Stroke-Cycle Diesel |
Generator Set Dimensions
Spec | Value |
---|---|
Length | 366.7 in 9314 mm |
Width | 78.3 in 1990 mm |
Height | 164.1 in 4167 mm |
Weight | 31000 kg/ 68343 lb (engine dry weight), 18145 kg/ 40000 lb (generator weight) 31000 kg/ 68343 lb (engine dry weight), 18145 kg/ 40000 lb (generator weight) |
Standard Equipment
Air Inlet System
- Aftercooler — fresh water, corrosion resistant coated (air side); air inlet shutoff; breather — crankcase, top-mounted; turbocharger — engine oil lubricated
Control System
- Single Caterpillar® A3 electronic control unit (ECU) with electronic unit injector fuel system, rigid wiring harness (10 amp, 24 volt power required to drive ECUs)
Cooling System
- Engine coolant water drains
Exhaust System
- Dry, gas tight, exhaust manifold
Fuel System
- Distillate fuel (requires viscosity ranging from 1.4 cSt to 20 cSt at 38° C), fuel transfer pump (mounted on left-hand side), duplex fuel filters, electronically controlled unit injectors
Lube Oil System
- Centrifugal oil filters with single shutoff, service side engine mounted on cylinder block inspection covers includes installed oil lines and single shutoff valve, filters centrifuge bypass oil from the main lubricating oil pump, can be serviced with the engine running, oil filler and dipstick valve, oil pressure regulating valves, crankcase explosion relief valves
General
- Caterpillar yellow paint; gear-driven pumps: fuel, oil, jacket water, aftercooler/oil cooler water; service literature
