Cat

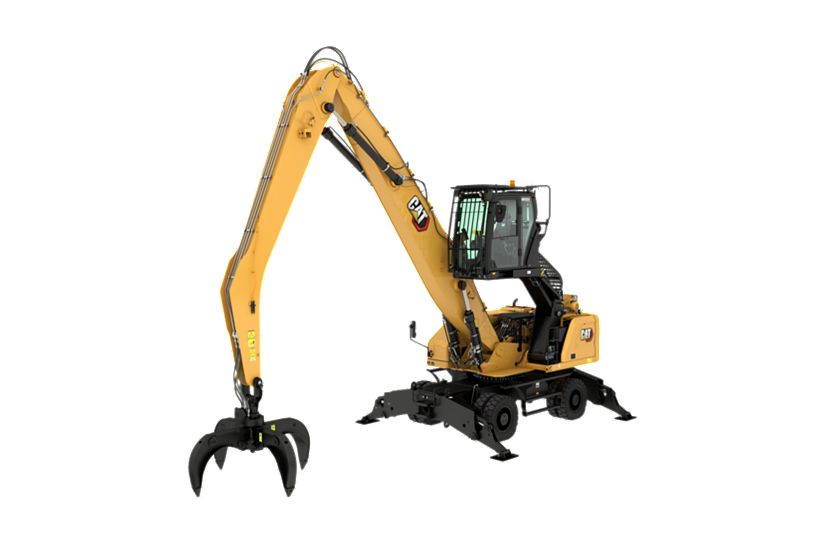

MH3026 Wheel Material Handler
Engine Model
Cat C7.1
Cat C7.1
Maximum Operating Weight
64370 lb
29200 kg
Maximum Reach
42.7 ft
13000 mm
Overview
We know that when it comes to material handling equipment, your success depends on productivity and low operating costs. The Cat® MH3026 has simple-to-use technologies, a redesigned cab for enhanced comfort, and more machine options to match your work. Combine these features with up to 10 percent lower operating costs and you have a safe, quality, and reliable product that will provide you with the superior performance you need for your toughest indoor material handling applications.
Media
Photos
Videos
360° View
Interior
MH3026 Interior 360 View
Features
High Performance
Take the Guesswork Out of Managing Your Equipment

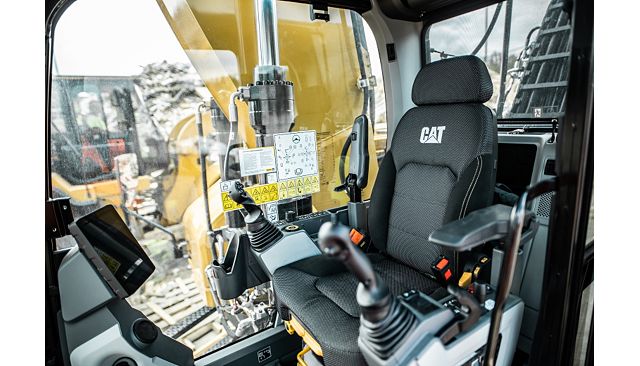

Work in Comfort
Reliable, Durable, and Versatile
Safety

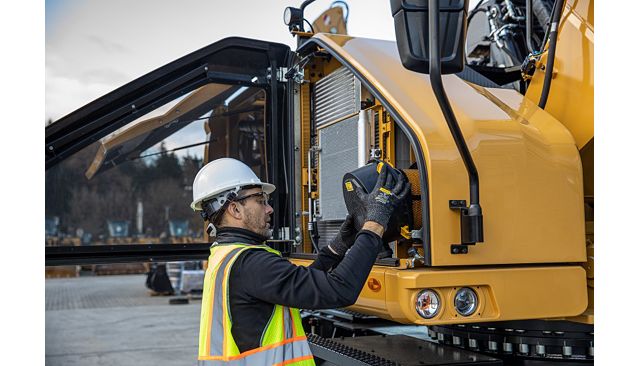

Maintenance
Sustainability
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Model | Cat C7.1 Cat C7.1 |
| Net Power – ISO 9249 | 171 hp 128 kW |
| Net Power – ISO 9249 (DIN) | 174 hp (metric) 174 hp (metric) |
| Engine Power – Maximum – ISO 14396 | 174 hp 129 kW |
| Engine Power – ISO 14396 (DIN) | 176 hp (metric) 176 hp (metric) |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.8 in³ 7 l |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Transmission
| Spec | Value |
|---|---|
| Maximum Gradeability (23 500 kg/51,810 lb) | 52 52 |
| Maximum Travel Speed (with steering wheel) | 12.4 mile/h 20 km/h |
| Maximum Travel Speed (with joysticks) | 9.3 mile/h 15 km/h |
| Drawbar Pull | 28551 lb/ft 127 kN |
Hydraulic System
| Spec | Value |
|---|---|
| Maximum Pressure – Implements | 5366 psi 37000 kPa |
| Maximum Pressure – Travel | 5076 psi 35000 kPa |
| Maximum Pressure – Swing | 5656 psi 39000 kPa |
Machine Weights
| Spec | Value |
|---|---|
| Maximum Operating Weight | 64370 lb 29200 kg |
| Minimum Operating Weight | 58200 lb 26400 kg |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 109.9 gal (US) 416 l |
| Engine Oil | 5.3 gal (US) 20 l |
| Hydraulic Tank | 55.2 gal (US) 209 l |
| Hydraulic System – Including Tank | 91.1 gal (US) 345 l |
| Rear Axle – Housing (Differential) | 3.7 gal (US) 14 l |
| Front Steering Axle – Differential | 2.9 gal (US) 11 l |
| Powershift Transmission | 0.7 gal (US) 2.5 l |
Service Refill Capabilities
| Spec | Value |
|---|---|
| Diesel Exhaust Fluid Tank | 7.9 gal (US) 30 l |
| Cooling System | 10.6 gal (US) 40 l |
| Final Drive – Each | 0.7 gal (US) 2.5 l |
Swing Mechanism
| Spec | Value |
|---|---|
| Maximum Swing Torque | 51800 ft·lbf 70 kN·m |
Dimensions
| Spec | Value |
|---|---|
| Boom | MH Boom 7.5 m (24'7") MH Boom 7.5 m (24'7") |
| Stick | Drop Nose 6.0 m (19'8") Drop Nose 6.0 m (19'8") |
| Shipping Height (with OPG, without stick) | 11.1 ft 3375 mm |
| Shipping Length | 35.1 ft 10700 mm |
| Shipping Length (with push blade) | 36.8 ft 11190 mm |
| Machine Length | 17.9 ft 5450 mm |
| Machine Length (with push blade) | 20.1 ft 6115 mm |
| Tail Swing Radius | 9.2 ft 2800 mm |
| Counterweight Clearance | 4.3 ft 1305 mm |
| Cab Height- Lowered | 11 ft 3350 mm |
| Cab Height-Lowered with OPG | 11.1 ft 3375 mm |
| Cab Height-Raised | 18.9 ft 5750 mm |
| Cab Height-Raised with OPG | 18.9 ft 5775 mm |
| Wheel Base | 9 ft 2750 mm |
| Shipping Width | 9.9 ft 2990 mm |
| Ground Clearance | 1.1 ft 320 mm |
| Undercarriage Length | 17.4 ft 5300 mm |
| Undercarriage Length (with push blade) | 19.6 ft 5970 mm |
| Upper Frame Width (including handrails) | 9 ft 2740 mm |
Working Ranges
| Spec | Value |
|---|---|
| Maximum Reach | 42.7 ft 13000 mm |
| Boom | MH Boom 7.5 m (24'7") MH Boom 7.5 m (24'7") |
| Stick | Drop Nose 6.0 m (19'8") Drop Nose 6.0 m (19'8") |
| Maximum Height | 46.9 ft 14270 mm |
| Minimum Dump Height | 12.5 ft 3810 mm |
| Maximum Reach at Ground Line | 42.2 ft 12850 mm |
| Maximum Depth | 9.8 ft 2970 mm |
| Boom Pin Height | 30.5 ft 9300 mm |
Standard Equipment
Note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
- Advanced sound-suppressed TOPS cab (ISO 12117-2 compliant)

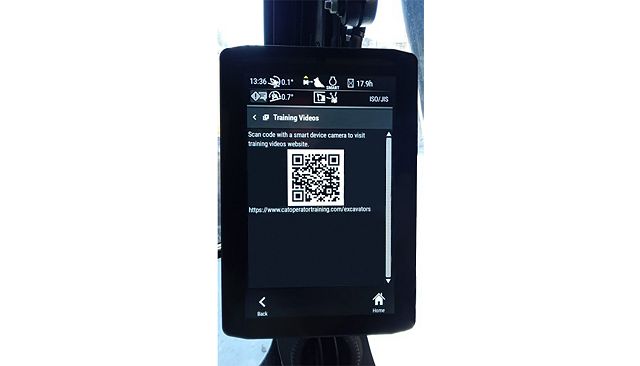

- 10″ touchscreen monitor
- Keyless push-to-start engine control
- LED dome lights
Cat Technology
- Cat VisionLink®
- Cat Payload
Electrical System
- Roading and indicator lights at front and rear
- Maintenance-free batteries
- LED chassis light, left-hand/right-hand boom and stick lights, cab lights -1800 lumens
- Centralized electrical disconnect switch
- Programmable time delay LED working lights
Service and Maintenance
- Automatic lubrication system for implement and swing system
- Sampling ports for Scheduled Oil Sampling (S·O·S℠)
- Integrated vehicle health management system
Engine
- Cat C7.1 single turbo diesel engine
- One-touch low idle with automatic engine speed control
- Automatic engine shutdown
- 52°C (125°F) high-ambient capability
- Cold start capability -18°C (-0°F)
- Electric fuel priming pump
- Double element air filter with integrated precleaner
- On-demand electric cooling fans with auto-reverse function
Hydraulic System
- Electric main control valve
- Automatic hydraulic oil warm up
- Automatic swing brake
- Separate dedicated swing pump
- Boom and stick lowering check valves
- Medium pressure auxiliary circuit
- Element type main hydraulic filter
- SmartBoom™
- SmartStick
- Heavy lift mode
Safety and Security
- Rear- and right-side-view cameras
- Secondary engine shutoff switch
- Lockable disconnect switch
- 2D E-fence with Cab Avoidance
Undercarriage and Structures
- 5700 kg (12,500 lb) counterweight
- All wheel drive
- Automatic brake/axle lock
- Creeper speed
- Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force
- Lockable, oscillating front axle with remote greasing point
Optional Equipment
Note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Booms and Sticks
- 6.9 m (22’8″) Straight MH boom
- 7.5 m (24’7″) Straight MH boom
- 5.0 m (16’5″) Straight MH stick
- 5.5 (18’1) Drop Nose MH stick
- 6.0 m (19’8″) Drop Nose MH stick
- Bucket linkage, B-type with lifting eye
Cab
- Deluxe cab: air suspension heated seat, 10″ touchscreen monitor
- Premium cab: heated and cooled seat with automatic adjustable suspension, 10″ touchscreen monitor
- Fixed one-piece laminated windshield and roof window (P5A glass)
- Fixed two-piece laminated windshield and roof window (P8B glass)
- Auxiliary relay
- Operator Protective Guards (OPG)
Electrical System
- Electrical refueling pump
Safety and Security
- 360° visibility
- Travel alarm
- Inspection lighting
Undercarriage and Structures
- 2.99 m (9’10”) wide undercarriage
- 2.99 m (9’10”) wide undercarriage with push blade
- 10.00-20 dual solid rubber tires
- 11.00-20 16 dual pneumatic tires
Related Products

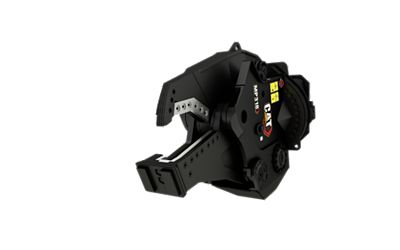

Multi-Processor with Shear Jaws
