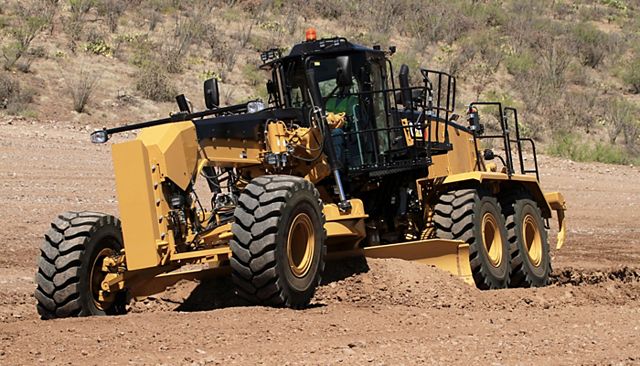

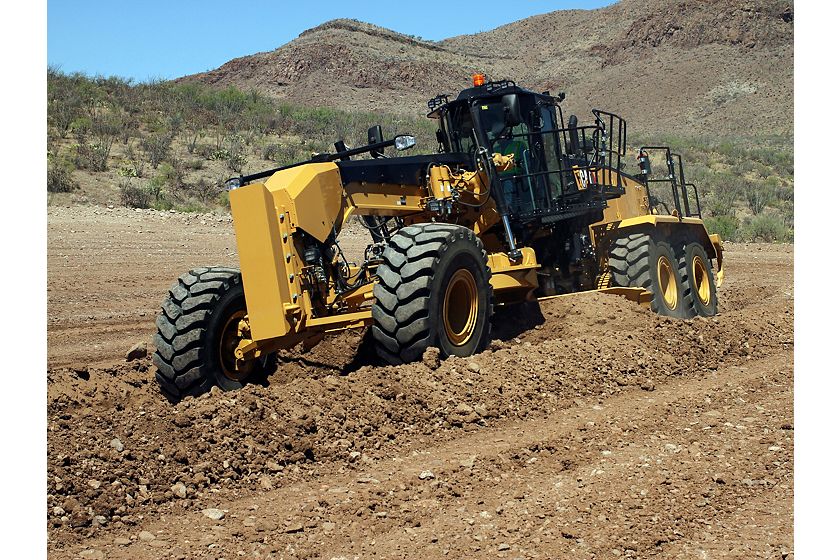

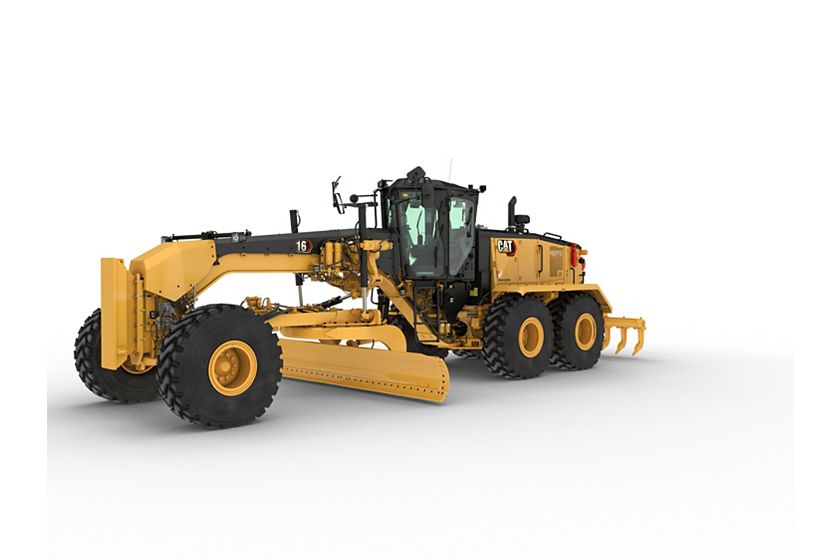

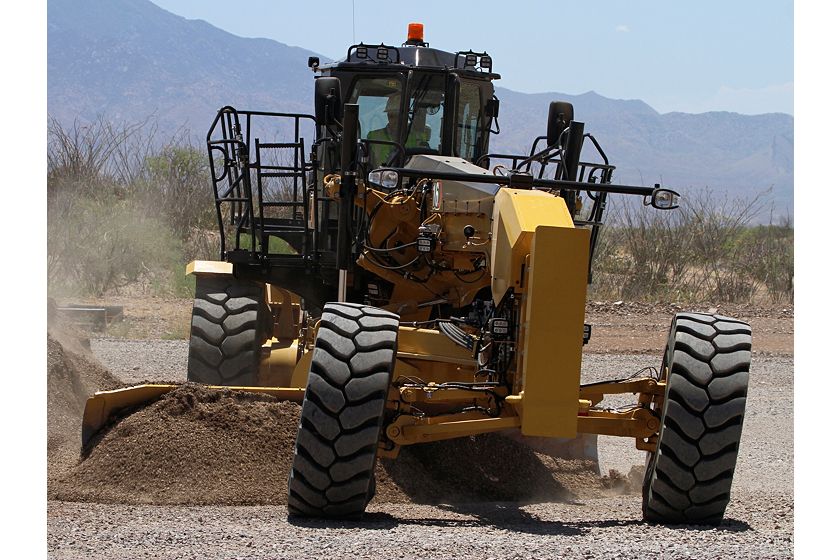

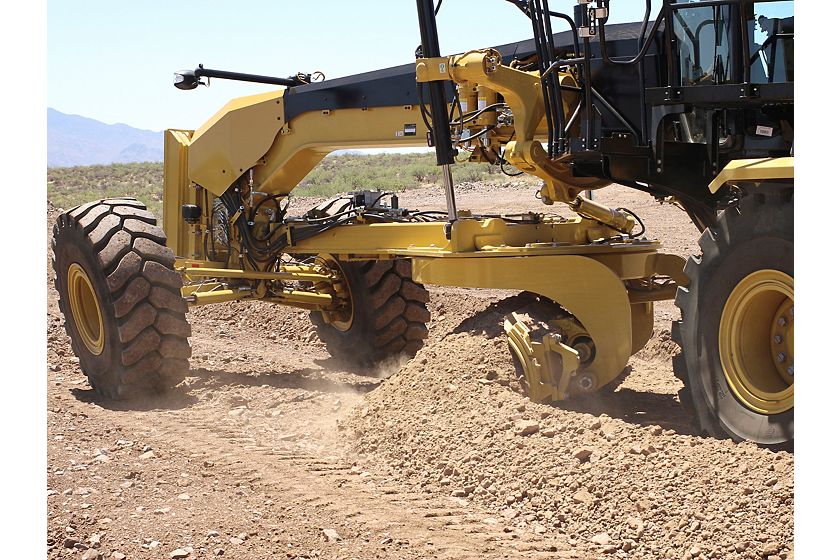

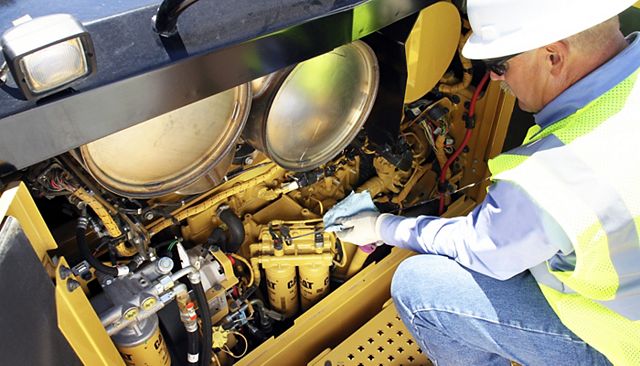

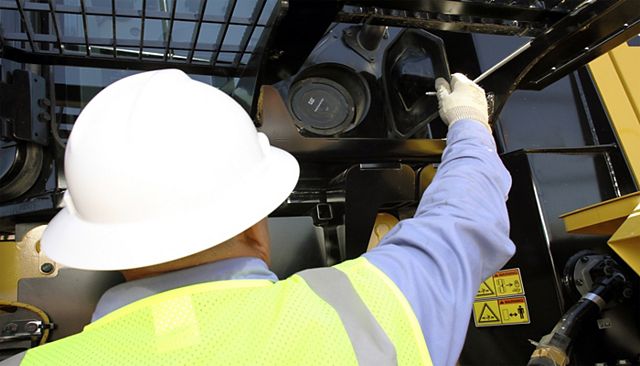

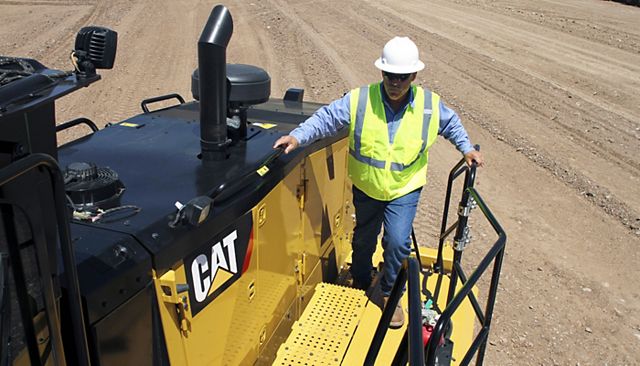

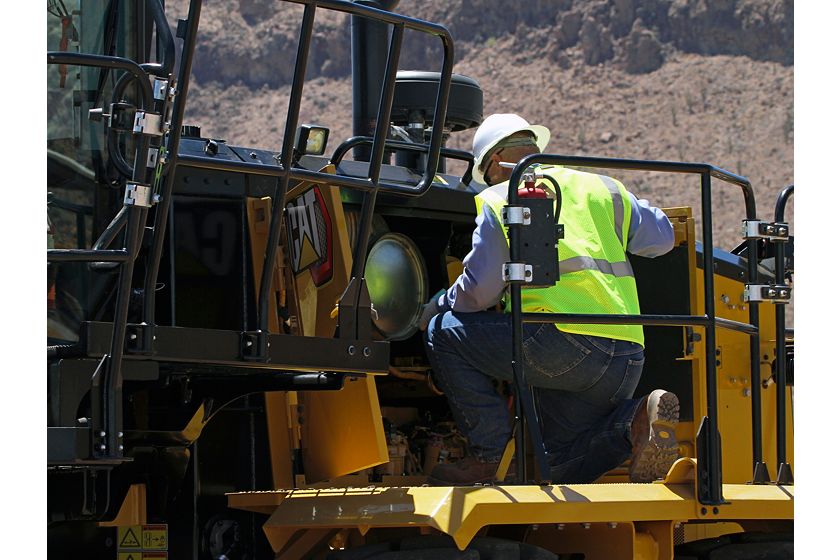

Cat
16 Motor Grader
Base Power (1st Gear) – Net
290 hp
216 kW
Operating Weight – Typically Equipped
71454 lb
32411 kg
Blade Width
16 ft
4.9 m
Overview
Specially configured for mine operation and haul road development and maintenance, the Cat® 16 maximizes availability and controls operating costs. Fuel efficient technologies and legendary Cat robust design and construction ensure these machines help your operation optimize profits.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Documents
Details
Specifications
Engine
Spec | Value |
---|---|
Base Power (1st Gear) – Net | 290 hp 216 kW |
Engine Model | Cat® C13 Cat® C13 |
Bore | 5.1 in 130 mm |
Stroke | 6.2 in 157 mm |
Speed at Rated Power | 2,000 rpm 2,000 rpm |
Derating Altitude – Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent | 12176 ft 3711 m |
Maximum Torque – ISO 9249 – Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent | 1270 lb/ft 1721 N·m |
Maximum Torque – ISO 9249 – Tier 4/Stage IV/Japan 2014 (Tier 4) | 1306 lb/ft 1771 N·m |
Maximum Torque – ISO 9249 – Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent | 1270 lb/ft 1721 N·m |
Emissions (2) | Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards – depending on emission standards of specific country Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards – depending on emission standards of specific country |
Torque Rise – Tier 4/Stage IV/Japan 2014 (Tier 4) | 43% 43% |
Torque Rise – Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent | 39% 39% |
Standard – Ambient Capability | 122 °F 50 °C |
Derating Altitude – Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent | 12973 ft 3954 m |
VHP Range – Net – Metric | 216-259 kW (294-353 hp) 216-259 kW (294-353 hp) |
Base Power (1st Gear) – Net – Metric | 294 hp 216 kW |
Standard – Fan Speed – Minimum | 550 rpm 550 rpm |
Standard – Fan Speed – Maximum | 1,450 rpm 1,450 rpm |
Emissions (3) | Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards – depending on emission standards of specific country Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards – depending on emission standards of specific country |
Torque Rise – Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent | 39% 39% |
Emissions (1) | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final) U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final) |
VHP Range – Net | 216-259 kW (290-348 hp) 216-259 kW (290-348 hp) |
Derating Altitude – Tier 4/Stage IV/Japan 2014 (Tier 4) | 12500 ft 3810 m |
Displacement | 763 in³ 12.5 l |
Number of Cylinders | 6 6 |
Optimized VHP Range – Net | 216-259 kW (290-348 hp) 216-259 kW (290-348 hp) |
Weights
Spec | Value |
---|---|
Operating Weight – Typically Equipped | 71454 lb 32411 kg |
Power Train
Spec | Value |
---|---|
Forward/Reverse Gears | 8 Forward/6 Reverse 8 Forward/6 Reverse |
Transmission | Direct drive, power shift, countershaft Direct drive, power shift, countershaft |
Brakes – Dynamic Brake Torque per Wheel | 27069.27 lb/ft 36701 N·m |
Brakes – Secondary | Oil-actuated, oil-disc Oil-actuated, oil-disc |
Brakes – Service | Oil-actuated, oil disc Oil-actuated, oil disc |
Brakes – Parking | Spring applied, hydraulically released Spring applied, hydraulically released |
Moldboard
Spec | Value |
---|---|
Blade Width | 16 ft 4.9 m |
Arc Radius | 16.3 in 413 mm |
Throat Clearance | 5 in 126 mm |
Thickness | 1 in 25 mm |
End Bit – Width | 6 in 152 mm |
Blade Pull* – Base GVW | 41039 lb 18615 kg |
Cutting Edge Width | 8 in 203 mm |
Cutting Edge Thickness | 1 in 25 mm |
Down Force – Maximum GVW | 43861 lb 19895 kg |
Height | 31 in 787 mm |
Width | 16 ft 4.9 m |
Down Force – Base GVW | 30743 lb 13945 kg |
Blade Pull* – Maximum GVW | 52878 lb 23985 kg |
End Bit – Thickness | 0.75 in 19 mm |
Note | *Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight. *Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight. |
Hydraulic System
Spec | Value |
---|---|
Circuit Type | Electro-hydraulic load sensing, closed center Electro-hydraulic load sensing, closed center |
Pump Type | Variable piston Variable piston |
Maximum System Pressure | 3590 psi 24750 kPa |
Standby Pressure | 856 psi 5900 kPa |
Pump Output* | 74 gal/min 280 l/min |
Note | *Pump output measured at 2,150 rpm. *Pump output measured at 2,150 rpm. |
Operating Specifications
Spec | Value |
---|---|
Steering Range – Left/Right | 47.5° 47.5° |
Forward – 6th | 16 mile/h 25.8 km/h |
Forward – 4th | 7.6 mile/h 12.3 km/h |
Forward – 5th | 11.8 mile/h 19 km/h |
Turning Radius – Outside Front Tires | 30.5 ft 9.3 m |
Forward – 7th | 22 mile/h 35.5 km/h |
Top Speed – Forward | 32.1 mile/h 51.7 km/h |
Forward – 3rd | 5.5 mile/h 8.9 km/h |
Reverse – 6th | 25.3 mile/h 40.8 km/h |
Reverse – 5th | 17.4 mile/h 28 km/h |
Reverse – 2nd | 4.1 mile/h 6.6 km/h |
Reverse – 3rd | 6 mile/h 9.7 km/h |
Forward – 8th | 32.1 mile/h 51.7 km/h |
Reverse – 1st | 2.2 mile/h 3.6 km/h |
Forward – 1st | 2.8 mile/h 4.5 km/h |
Top Speed – Reverse | 25.4 mile/h 40.8 km/h |
Forward – 2nd | 3.8 mile/h 6.1 km/h |
Reverse – 4th | 9.3 mile/h 15 km/h |
Articulation Angle – Left/Right | 20° 20° |
Note | Calculated with no slip and 23.5 R25 L-3 tires. Calculated with no slip and 23.5 R25 L-3 tires. |
Service Refill
Spec | Value |
---|---|
Fuel Capacity | 131 gal (US) 496 l |
Cooling System | 18.5 gal (US) 70 l |
DEF Tank | 4.2 gal (US) 16 l |
Hydraulic System – Total | 38.6 gal (US) 146 l |
Hydraulic System – Tank | 18.5 gal (US) 70 l |
Engine Oil | 9.5 gal (US) 36 l |
Transmission – Differential – Final Drives | 34 gal (US) 98.5 l |
Tandem Housing – Each | 34 gal (US) 129 l |
Front Wheel Spindle Bearing Housing | 0.24 gal (US) 0.9 l |
Circle Drive Housing | 2.6 gal (US) 10 l |
Frame
Spec | Value |
---|---|
Front Frame Structure – Height | 18.1 in 460 mm |
Front Frame Structure – Width | 14 in 356 mm |
Drawbar – Width | 3 in 76 mm |
Drawbar – Height | 8 in 203 mm |
Front Axle – Total Oscillation per Side | 35° 35° |
Circle – Diameter | 71.7 in 1822 mm |
Circle – Blade Beam Thickness | 2 in 50 mm |
Front Frame Structure – Thickness | 0.6 in 14 mm |
Front Axle – Wheel Lean | 18° Left/17° Right 18° Left/17° Right |
Front Axle – Height to Center | 26.4 in 670 mm |
Tandems
Spec | Value |
---|---|
Tandem Oscillation – Front Up | 15° 15° |
Sidewall Thickness – Outer | 0.9 in 22 mm |
Sidewall Thickness – Inner | 0.9 in 22 mm |
Tandem Oscillation – Front Down | 25° 25° |
Height | 25.5 in 648 mm |
Width | 9.3 in 236 mm |
Drive Chain Pitch | 2.5 in 63.5 mm |
Wheel Axle Spacing | 72.5 in 1841 mm |
Blade Range
Spec | Value |
---|---|
Maximum Blade Position Angle | 65° 65° |
Maximum Lift Above Ground | 15.7 in 400 mm |
Maximum Depth of Cut | 18.5 in 470 mm |
Maximum Shoulder Reach Outside of Tires – Right | 91 in 2311 mm |
Moldboard Sideshift – Left | 29.1 in 740 mm |
Circle Centershift – Right | 22 in 560 mm |
Circle Centershift – Left | 27.2 in 690 mm |
Moldboard Sideshift – Right | 31.1 in 790 mm |
Maximum Shoulder Reach Outside of Tires – Left | 91 in 2311 mm |
Blade Tip Range – Forward | 40° 40° |
Blade Tip Range – Backward | 5° 5° |
Ripper
Spec | Value |
---|---|
Ripping Depth – Maximum | 17.8 in 452 mm |
Shank Holder Spacing – Minimum | 17.5 in 445 mm |
Ripper Shank Holders | 7 7 |
Penetration Force | 30311 lb 13749 kg |
Pry-Out Force | 43700 lb 19822 kg |
Machine Length Increase, Beam Raised | 63.4 in 1610 mm |
Shank Holder Spacing – Maximum | 20 in 500 mm |
Weights Tier 4/Stage IV/Japan 2014 (Tier 4 Final)*
Spec | Value |
---|---|
Gross Vehicle Weight – Maximum Tested – Total | 84877 lb 38500 kg |
Gross Vehicle Weight – Base** – Total | 63528 lb 28816 kg |
Gross Vehicle Weight – Typically Equipped – Rear Axle | 52201 lb 23678 kg |
Gross Vehicle Weight – Typically Equipped – Total | 71454 lb 32411 kg |
Gross Vehicle Weight – Maximum Tested – Front Axle | 26125 lb 11850 kg |
Gross Vehicle Weight – Typically Equipped – Front Axle | 19253 lb 8733 kg |
Gross Vehicle Weight – Maximum Tested – Rear Axle | 58753 lb 26650 kg |
Gross Vehicle Weight – Base** – Front Axle | 17932 lb 8134 kg |
Gross Vehicle Weight – Base** – Rear Axle | 45596 lb 20682 kg |
Note (1) | *For machines not equipped with Tier 4 Final emission engine, subtract 150 kg (331 lb) from rear axle weight and total weight. *For machines not equipped with Tier 4 Final emission engine, subtract 150 kg (331 lb) from rear axle weight and total weight. |
Note (2) | **Base operating weight calculated on standard machine configuration with 23.5 R25 tires, full fuel tank operator and ROPS cab. **Base operating weight calculated on standard machine configuration with 23.5 R25 tires, full fuel tank operator and ROPS cab. |
Dimensions (Approximate)
Spec | Value |
---|---|
Ground Clearance – Rear Axle | 15.6 in 396 mm |
Length – Counterweight to Ripper | 474.4 in 12051 mm |
Length – Front Axle to Moldboard | 120.7 in 3066 mm |
Length – Front Axle to Mid Tandem | 290 in 7365 mm |
Height – Top of Cylinders | 121.6 in 3088 mm |
Width – Tire Center Lines | 106.4 in 2703 mm |
Width – Outside Rear Tires | 134.3 in 3411 mm |
Length – Between Tandem Axles | 72.5 in 1841 mm |
Height – Top of Cab | 146.4 in 3719 mm |
Width – Outside Front Tires | 134.3 in 3411 mm |
Height – Front Axle Center | 28.9 in 733 mm |
Length – Front Tire to Rear of Machine – Including Tow Hitch | 417 in 10593 mm |
Height – Exhaust Stack | 140 in 3557 mm |
Standards
Spec | Value |
---|---|
Steering | ISO 5010:2007 ISO 5010:2007 |
Brakes | ISO 3450:2011 ISO 3450:2011 |
Sound | ISO 6394:2008/ISO 6395:2008/ISO 6396:2008 ISO 6394:2008/ISO 6395:2008/ISO 6396:2008 |
ROPS/FOPS | ISO 3471:2008/ISO 3449:2005 ISO 3471:2008/ISO 3449:2005 |
Note (1) | The dynamic spectator sound power level is 109 dB(A) for Stage IV certified configurations and 109 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine was equipped with a sound suppression system. The dynamic spectator sound power level is 109 dB(A) for Stage IV certified configurations and 109 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine was equipped with a sound suppression system. |
Note (2) | The dynamic operator sound pressure level is 71 dB(A) for Stage IV certified configurations and 72 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed, with the cab doors and the cab windows closed. The cab was properly installed and maintained. The machine was equipped with a sound suppression system. The dynamic operator sound pressure level is 71 dB(A) for Stage IV certified configurations and 72 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed, with the cab doors and the cab windows closed. The cab was properly installed and maintained. The machine was equipped with a sound suppression system. |
Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Net
Spec | Value |
---|---|
Gear – Reverse 3rd-6th | 298 hp 222 kW |
Gear – Forward 8th | 348 hp 259 kW |
Gear – Forward 3rd | 298 hp 222 kW |
Gear – Forward 6th | 320 hp 239 kW |
Gear – Forward 5th | 311 hp 232 kW |
Gear – Reverse 1st | 290 hp 216 kW |
Gear – Reverse 2nd | 290 hp 216 kW |
Gear – Forward 4th | 304 hp 227 kW |
Gear – Forward 7th | 328 hp 244 kW |
Gear – Forward 1st | 290 hp 216 kW |
Gear – Forward 2nd | 290 hp 216 kW |
Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) - Metric
Spec | Value |
---|---|
Gear – Forward 4th | 309 hp 227 kW |
Gear – Reverse 1st | 294 hp 216 kW |
Gear – Forward 3rd | 302 hp 222 kW |
Gear – Reverse 3rd-6th | 302 hp 222 kW |
Gear – Reverse 2nd | 294 hp 216 kW |
Gear – Forward 7th | 332 hp 244 kW |
Gear – Forward 6th | 325 hp 239 kW |
Gear – Forward 8th | 353 hp 259 kW |
Gear – Forward 1st | 294 hp 216 kW |
Gear – Forward 5th | 315 hp 232 kW |
Gear – Forward 2nd | 294 hp 216 kW |
Optional Tire Arrangements
Spec | Value |
---|---|
Wheel Group – 19.5×25 MP (1) | Tires: 23.5R25 Bridgestone VKT 2 Star Tires: 23.5R25 Bridgestone VKT 2 Star |
Wheel Group – 19.5×25 MP (2) | Tires: 23.5R25 Bridgestone VKT 1 Star Tires: 23.5R25 Bridgestone VKT 1 Star |
Wheel Group – 19.5×25 MP (3) | Tires: 23.5R25 Bridgestone VJT 1 Star Tires: 23.5R25 Bridgestone VJT 1 Star |
Wheel Group – 19.5×25 MP (4) | Tires: 23.5R25 Michelin XHA 2 Star Tires: 23.5R25 Michelin XHA 2 Star |
Wheel Group – 19.5×25 MP (5) | Tires: 23.5R25 Michelin XLDD 2 Star L5 Tires: 23.5R25 Michelin XLDD 2 Star L5 |
Air Conditioning System
Spec | Value |
---|---|
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Adjustable Electric Arm rest
- Adjustable wrist rest
- Air conditioner with heater
- Articulation, automatic Return-to-Center
- Centershift pin indicator
- Coat hook
- Cup holder
- Display, digital speed and gear
- Doors, left and right side with wiper
- Gauges (analog) inside the cab (includes fuel, articulation, engine coolant temp, engine rpm, and hydraulic oil temp)
- Gauges, machine level
- Information display touch screen
- Joystick gear selection
- Joystick hydraulic controls for implements, steering, transmission
- Ladders, cab, left and right side
- Lights, left and right side lights
- Lights, night time cab
- Meter, hour, digital
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio ready, entertainment
- ROPS cab, sound suppressed, less than 73 dB(A) ISO 6394 (70% fan speed)
- Seat, cloth-covered, comfort air suspension
- Storage compartments
- Throttle control, electronic
POWER TRAIN
- Air cleaner, dual stage dry type radial seal with service indicator through messenger and automatic dust ejector
- Air-to-air after cooler (ATAAC)
- Auto Diff Lock
- Belt, serpentine, automatic tensioner
- Brake wear indication
- Brakes, oil disc, four-wheel, hydraulic
- Consistent Power to ground
- Critically Low Fluid Level Monitoring System
- Differential, lock/unlock
- Drain, engine oil, high speed
- Electronic over speed protection
- Engine ECO Mode: Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) and Tier 2/Stage II/Japan 2001 (Tier 2) equivalent emission standards
- Engine, compression brake
- Ether starting aid
- Fuel tank, fast fill, ground level
- Fuel-water separator
- Hydraulic Demand Fan
- Muffler, under hood (Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3)
- OK-to-Start
- Optimized VHP
- Parking brake – multi disc, sealed, oil-cooled
- Priming pump, fuel
- Rear axle, modular
- Sediment drain, fuel tank
- Three variations of the C13 engine. One meets U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final) emission standards and is required for sale in higher regulated countries. The other options are capable of meeting Tier 2/Stage II/Japan 2001 (Tier 2) or Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standards and are available for lesser or non-regulated countries, depending on the emission standards of the specific country.
- Transmission, 8F/6R, power shift
- VIMS no telematics
ELECTRICAL
- Alternator, 150 ampere, sealed
- Batteries, maintenance free, heavy duty, 1,400 CCA
- Breaker panel
- Electrical system, 24V
- Lights: brake, reversing, roof-mounted roading, stop and tail (LED), work front
- Product Link
- Starter, electric, heavy duty
SAFETY
- Alarm, back up
- Ground level engine shutdown
- Hammer (emergency exit)
- Horn, electric
- Lockout, hydraulic implement for roading
- Operator not present monitoring System
- Paint, glare reducing – top of front frame, rear enclosure an ripper cylinders
- Rearview camera
- Seat belt indicator
- Seat belt, retractable 76 mm (3 in)
- Secondary steering
- Windows, laminated glass: – Fixed front with intermittent wiper – Door with intermittent wipers (2)
- Windows, tempered: – Left and right side wipers – Rear with intermittent wiper
OTHER STANDARD EQUIPMENT
- 3-Bolt blade Bracket
- AccuGrade ARO
- Accumulators, blade lift
- Brake accumulators, dual certified
- Cat Grade Control Cross Slope
- CD ROM Parts Book
- Clutch, circle drive slip
- Cutting edges, curved DH-2 steel: – 203 mm × 25 mm (8 in × 1 in) – 19 mm (3∕4 in) mounting bolts
- Doors (four), engine compartment, (two left, two right hand) locking
- Doors, two service, left and right side
- Drawbar – six shoe with replaceable wear strips
- End bits, 16 mm (5∕8 in) DH-2 steel, 19 mm (3∕4 in) mounting bolts
- Fast fill fuel, 567.8 L/min (150 gpm)
- Fluid check
- Frame, articulated, with safety lock
- Hydraulics, load-sensing
- Metallic Fuel tank, 496 L (131 gal)
- Metallic DCM wear strips
- Modular cooling package
- Moldboard: – 4880 mm × 787 mm × 25 mm (16 ft × 31 in × 1 in) – Hydraulic side shift and tip
- Radiator, two cleanout access doors
- Rear bumper
- Rear tandem access steps and hand bars
- S∙O∙S ports: engine, hydraulic, transmission, coolant
- Tandem walkway
- Top adjust circle wear strips
- Tow hitch (not available with ripper)
TIRES, RIMS, AND WHEELS
- A partial allowance for tires on 597 mm × 609.6 mm (23.5 in × 24 in) multi-piece rims is included in the base machine price and weight
FLUIDS
- Extended Life Coolant to –35° C (–31° F)
WORK TOOLS/G.E.T.
- 4.9 m (16 ft) blade with curved cutting edge 203 mm × 25 mm (8 in × 1 in)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Air horn
- Comfort package
- Heated door
- Mirrors high visibility
- Mirrors, outside heated 24V
- Mirrors, outside mounted
- Seat heated
- Seat heated/ventilated
- Windows cleaning platform and ladders left-right hand side
POWER TRAIN
- Transmission, autoshift
GUARDS
- Debris guard
- Front axle cylinder guard
- Rear fenders
- Sound suppression, engine enclosure and transmission
- Transmission guard
ELECTRICAL
- Light, LED, warning strobe
- Lights front LED
- Lights, front headlights high
- Lights, front headlights low
- Mounting, for warning light
- Service lights
- Working lights halogen
- Working lights LED
SAFETY
- Additional monitor for rearview camera
- Enhanced access platform
- Fire suppression ready
- Machine Security System Key
- Service access platform
OTHER ATTACHMENTS
- Auto-lube, Centro-matic
- Auto-lube, ripper enhancement
- Control, blade, variable float
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
- Hydraulic arrangements with additional hydraulic valves Base+1
- Hydraulic arrangements with additional hydraulic valves Base+5
- Product Link Elite dual
- Rim, 495.3 mm × 635 mm (19.5 in × 25 in) MP (spare)
- Weather, Cold Plus package
WORK TOOLS/G.E.T.
- 4.9 m (16 ft) blade with flat cutting edge 254 mm × 35 mm (10 in × 1 3∕8 in)
- Push block, counterweight
- Ripper, rear
- Tooth, ripper
FLUIDS
- Coolant, –51° C (–60° F)
