Cat

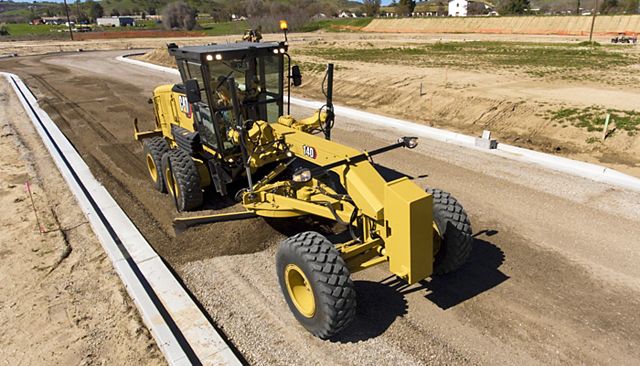

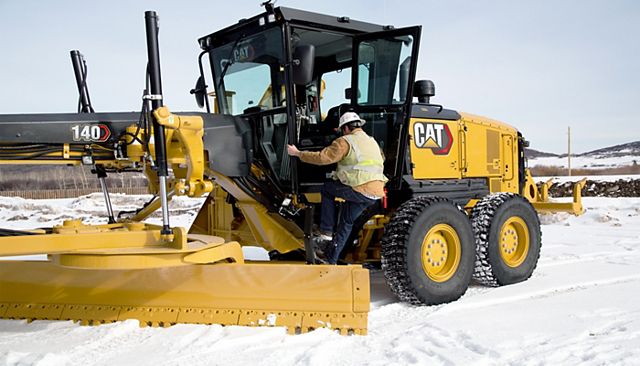

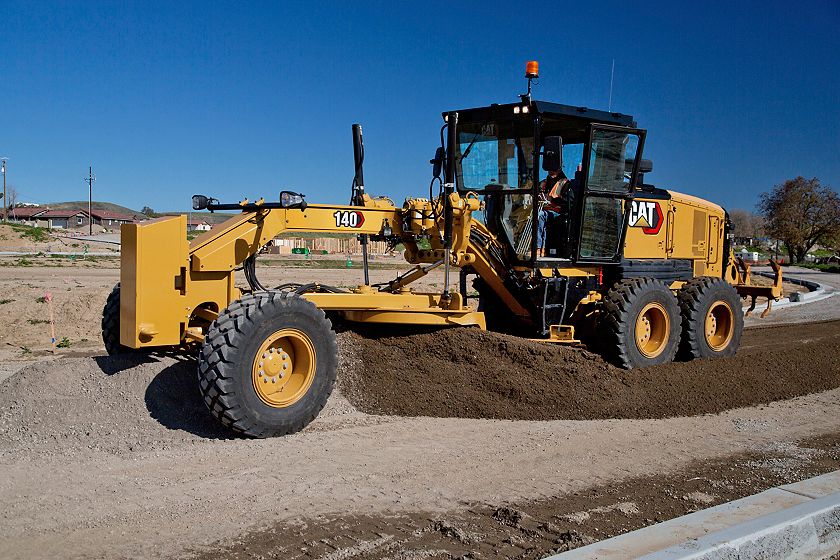

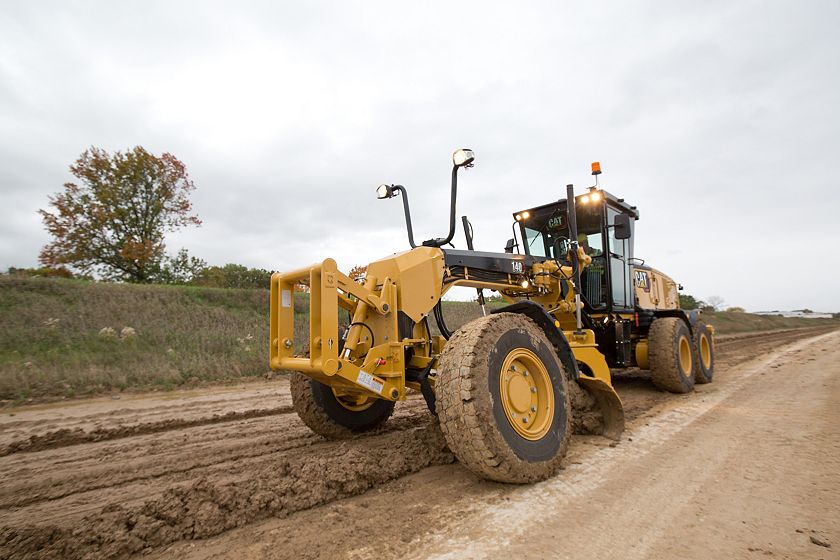

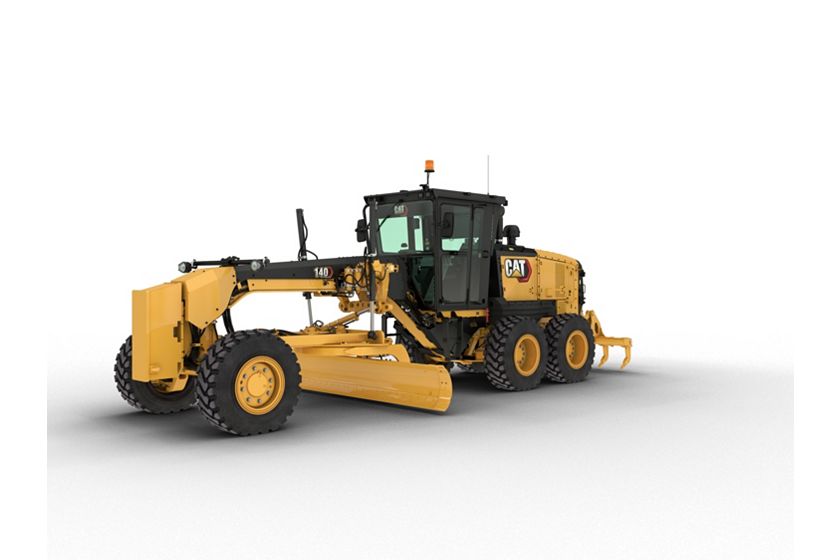

140 Motor Grader LVR
Net Power – EEC 80/1269
250 hp
186 kW
Operating Weight – Typically Equipped
44613 lb
20236 kg
Blade Width
12 ft
3.7 m
Overview
The Cat® 140 uses 45 years of refined steering wheel and lever controls experience for more precise grading. With a range of technology options, you can improve grading accuracy and save on materials. With lowered maintenance intervals, the 140 Motor Grader sets the pace for low operating costs, while maintaining productivity and efficiency.
Media
Photos
Videos
360° View
Exterior
360 Product Tour
Interior
360 Product Tour
Features
INTEGRATED CAT TECHNOLOGY

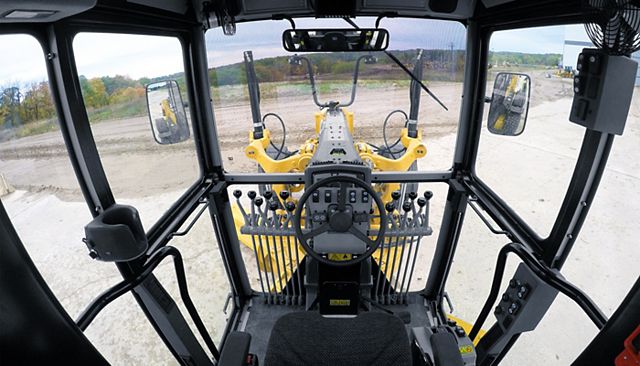

WORK IN COMFORT

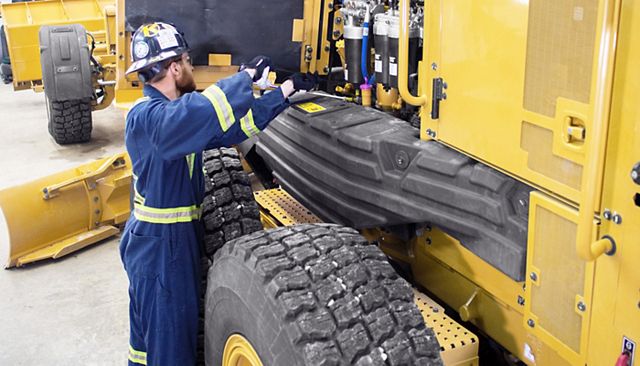

LOWER MAINTENANCE COSTS
SAFELY HOME EVERY DAY
OPTIONS TO MEET YOUR NEEDS
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Net Power – EEC 80/1269 | 250 hp 186 kW |
| Net Power – ISO 9249/SAE J1349 | 250 hp 186 kW |
| Standard Capability | 109 °F 43 °C |
| Engine RPM | 2,000 2,000 |
| Engine Model | Cat C9.3 Cat C9.3 |
| Bore | 4.5 in 115 mm |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V U.S. EPA Tier 4 Final/EU Stage V |
| Displacement | 567.5 in³ 9.3 l |
| Stroke | 5.9 in 149 mm |
| Number of Cylinders | 6 6 |
| Torque Rise – ISO 9294 | 44% 44% |
Weights
| Spec | Value |
|---|---|
| Operating Weight – Typically Equipped | 44613 lb 20236 kg |
Moldboard
| Spec | Value |
|---|---|
| Blade Width | 12 ft 3.7 m |
| Cutting Edge | 6 in 152 mm |
| Arc Radius | 16.3 in 413 mm |
| Throat Clearance | 6.5 in 166 mm |
| End Bit | 6 in 152 mm |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. |
Dimensions
| Spec | Value |
|---|---|
| Basic Blade Width | 140 in 3556 mm |
| Length of Machine* | 397.6 in 10100 mm |
| Width | 97.6 in 2480 mm |
| Note | *Typically equipped with push block and ripper. *Typically equipped with push block and ripper. |
| Maximum Height | 132 in 3354 mm |
Service Refill
| Spec | Value |
|---|---|
| Hydraulic System | 14.5 gal (US) 55 l |
| Engine Crankcase | 7.9 gal (US) 30 l |
| Circle Drive | 1.8 gal (US) 7 l |
| Fuel Tank | 100 gal (US) 378 l |
| Front Wheel Spindle Bearing – Each | 0.13 gal (US) 0.5 l |
Machine Weight
| Spec | Value |
|---|---|
| Note | *Typically equipped with push block and ripper. *Typically equipped with push block and ripper. |
| All-Wheel Drive (AWD) Weight | 44613 lb 20236 kg |
Blade Range
| Spec | Value |
|---|---|
| Maximum Lift Above Ground | 18.9 in 480 mm |
| Maximum Depth of Cut | 28.9 in 735 mm |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Vinyl Seat
- Information Display Screen
- Base cab
- Entertainment Radio Ready
- HVAC
- ROPS, Standard Sound Suppression
- Halogen Lighting
CAT TECHNOLOGY

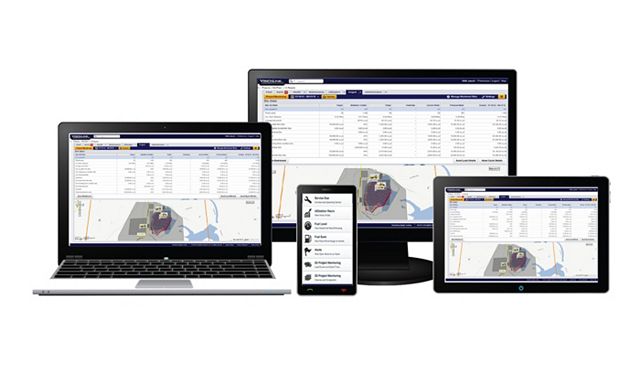

- Product Link
ENGINE
- C9.3
- ECO Mode
DRAWBAR CIRCLE MOLDBOARD
- Standard Drawbar Circle Moldboard
- Circle Drive Slip Clutch
SAFETY
- Rearview Mirror
- Hydraulic Brakes
- Secondary Steering System
- Signaling/Warning Horn
- Side View Mirrors
VERSATILITY
- Front Bolster
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
CAB
- Air Suspension Adjustable Seat
- Canopy
- Cab Plus
- Rear Wiper
- Communication Radio Mounting
- Rear Window Screen
- Defrost Fans
- LED Lighting
CAT TECHNOLOGY
- Cat Grade with Cross Slope
- Cat Grade Attachment Ready Option (ARO)
- Cat Grade with Cross Slope Indicate
- Digital Blade Slope Meter
- Stable Blade
- Remote Services
ENGINE
- Reversing Fan
- All-Wheel Drive (AWD)
DRAWBAR CIRCLE MOLDBOARD
- Top Adjust Drawbar Circle Moldboard
- Circle Saver
SAFETY
- Rearview Camera
VERSATILITY
- Counterweight
- Push Block
- Front Lift Group

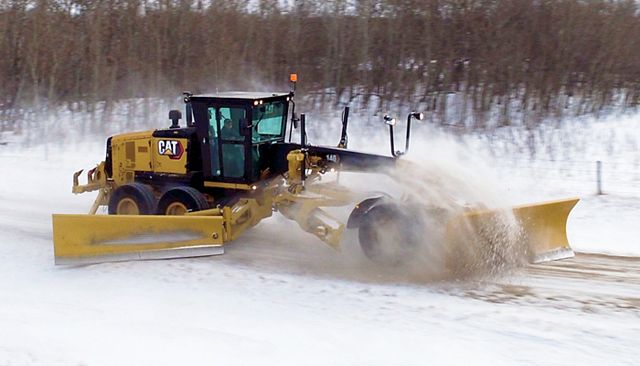

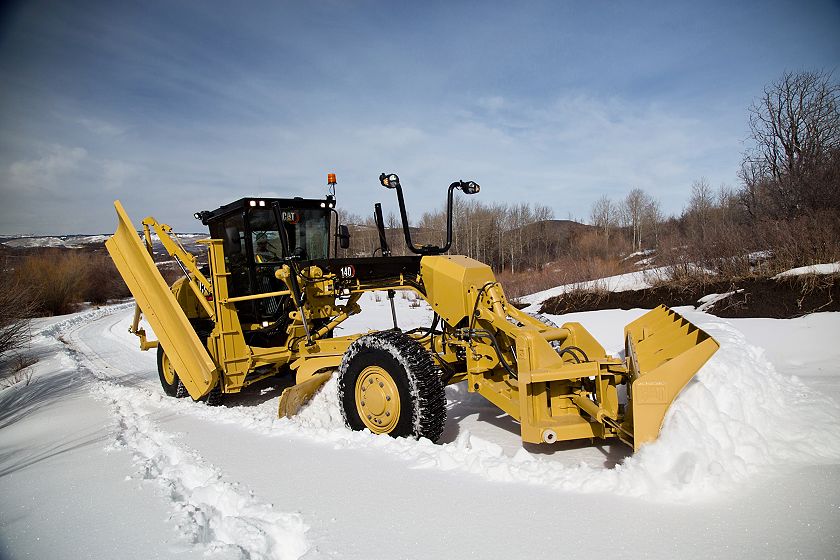

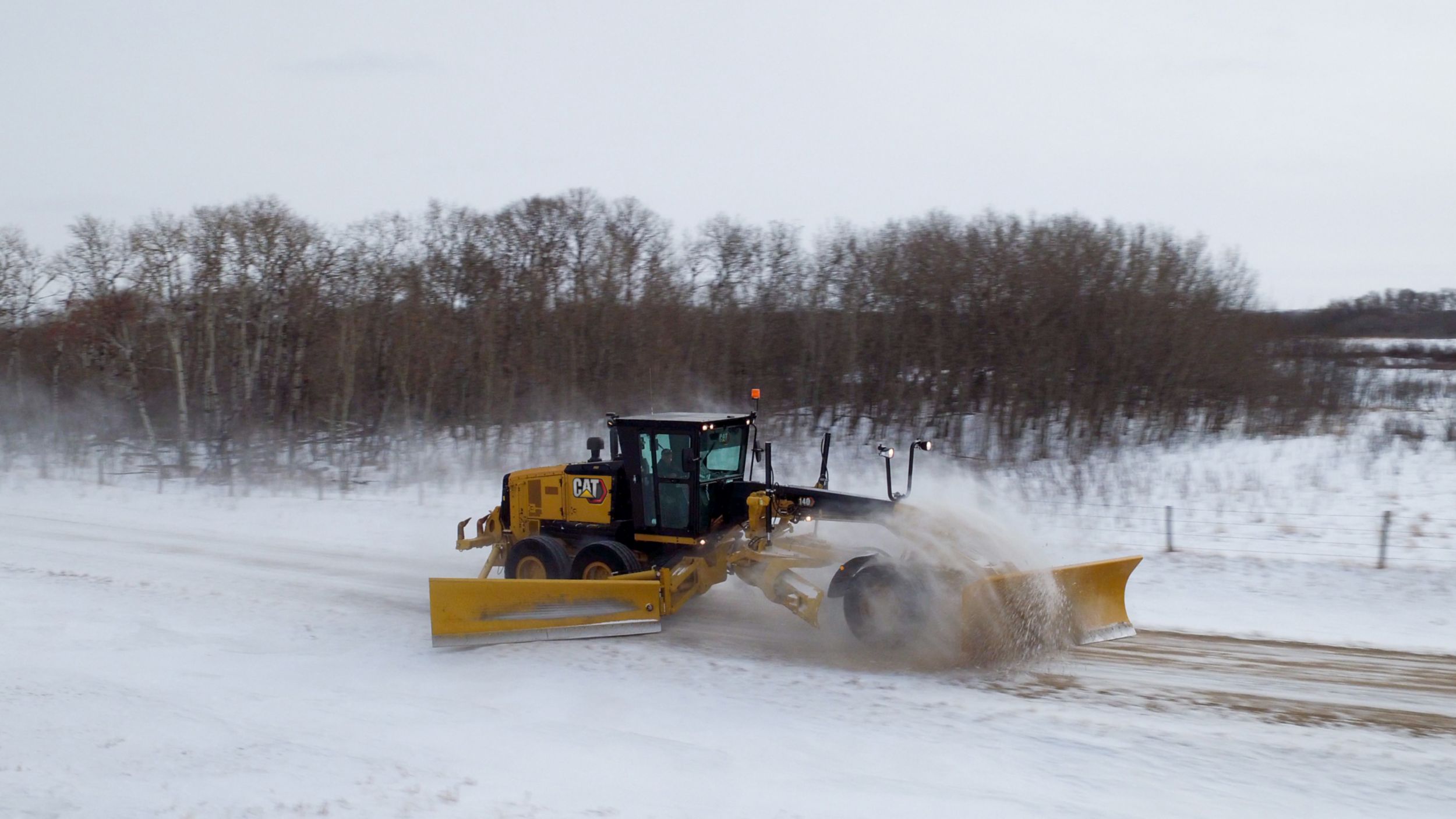

- Mast Type – Snow Wing
- Mast-Less – Snow Wing
- Ripper/Scarifier
- Auxiliary Hydraulic Lines
- Moldboard Extension
- Front Blade
