Caterpillar

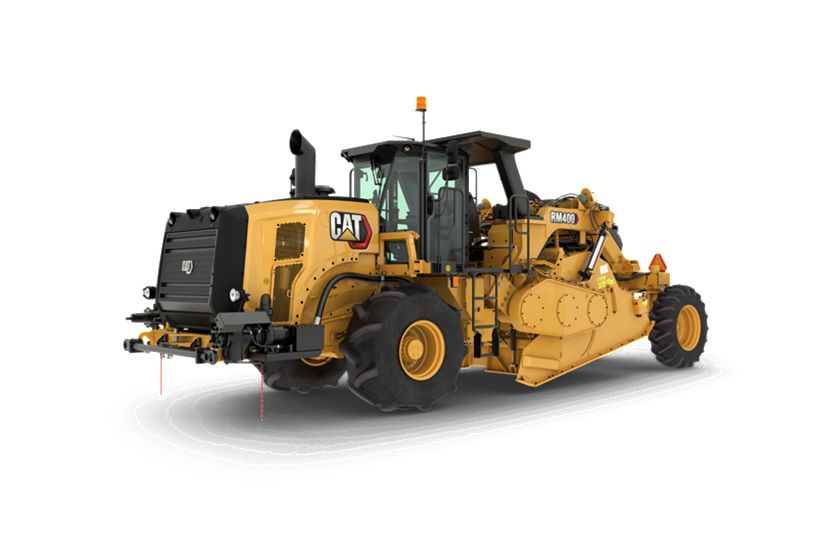

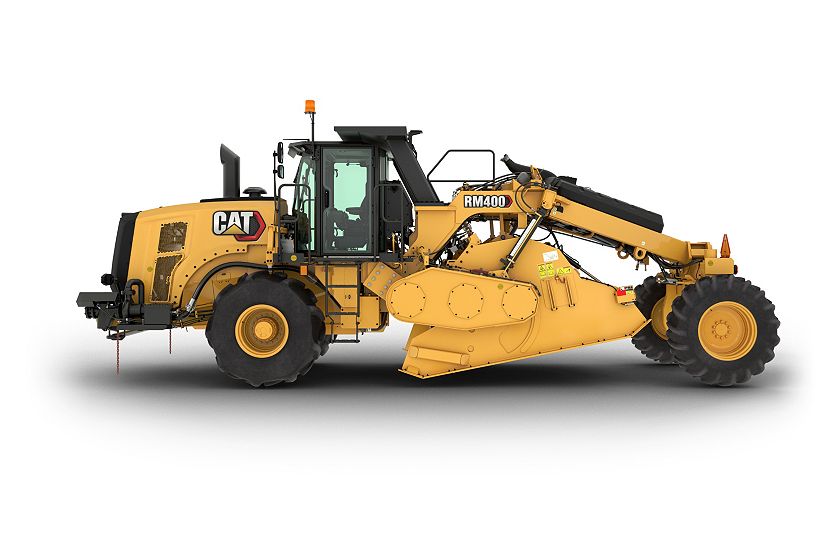

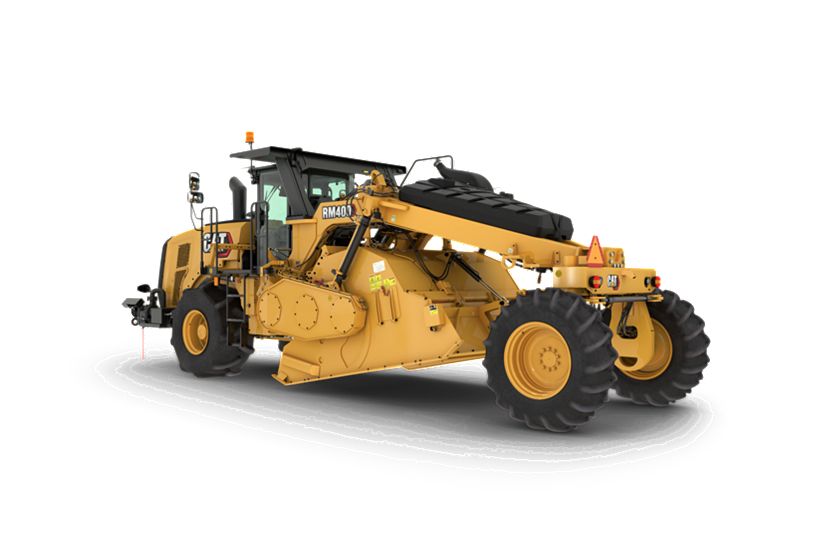

RM400 Road Reclaimer
Maximum Operating Weight
57682 lb
26164 kg
Cutting/Mixing Width
96 in
2438 mm
Gross Power
415.7 HP
310 kW
Overview
The versatile Cat® RM400 Reclaimer/Stabilizer delivers excellent material gradation, outstanding maneuverability, and simple operation with superb visibility for excellent overall job site performance. Your toughest road rehabilitation and soil stabilization jobs have met their match.
Media
Photos
Videos
360° View

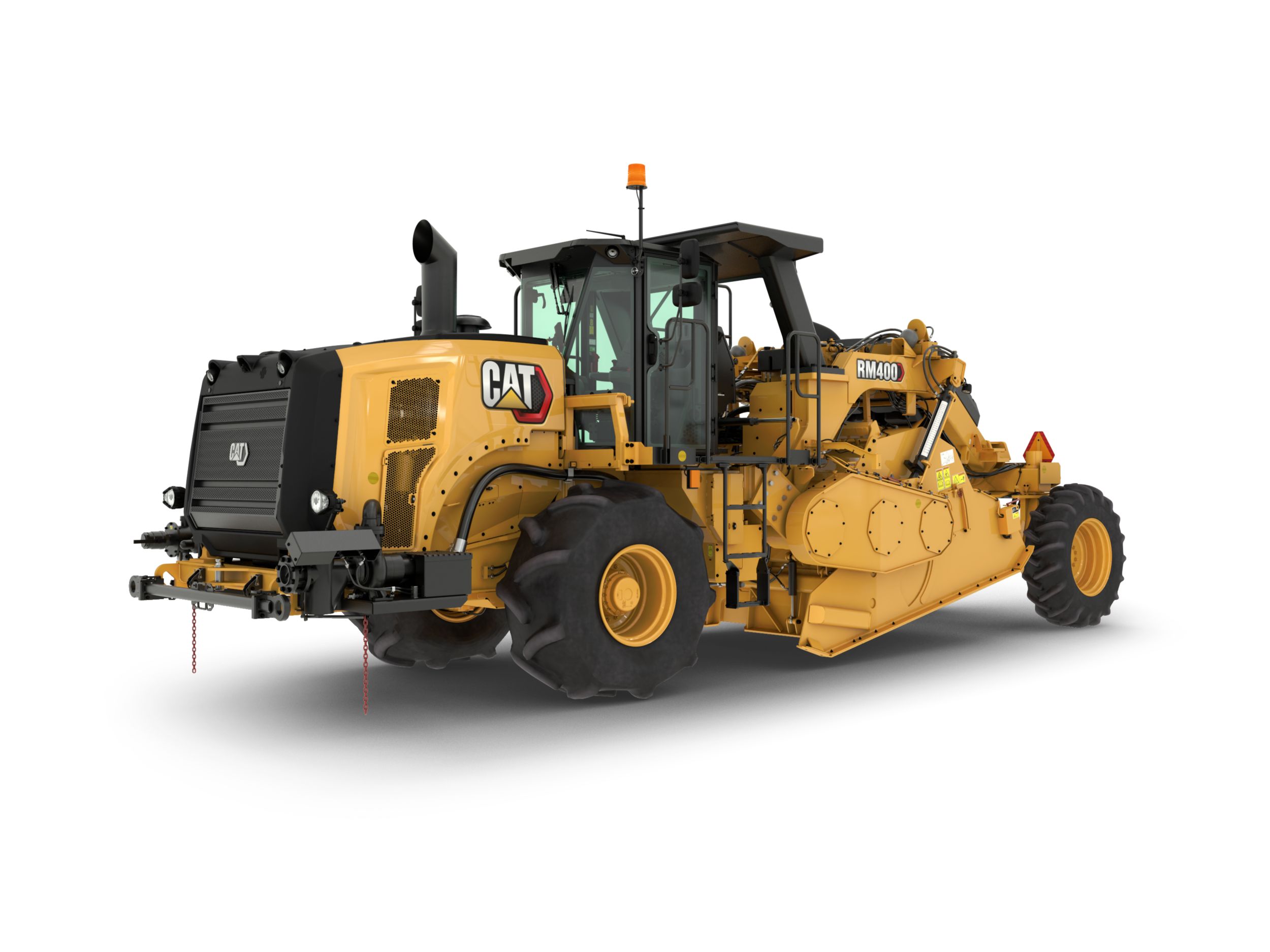

Exterior
360� Exterior view. Double click on the image to zoom in on any area of the product.

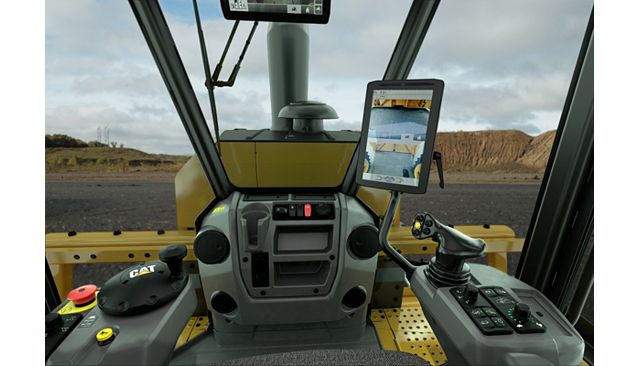

Interior
360� Interior view. Double click on the image to zoom in on any area of the product.
Features

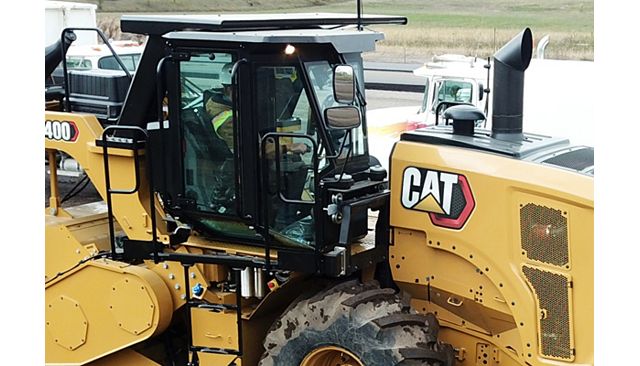

Boost Performance with Enhanced Visibility

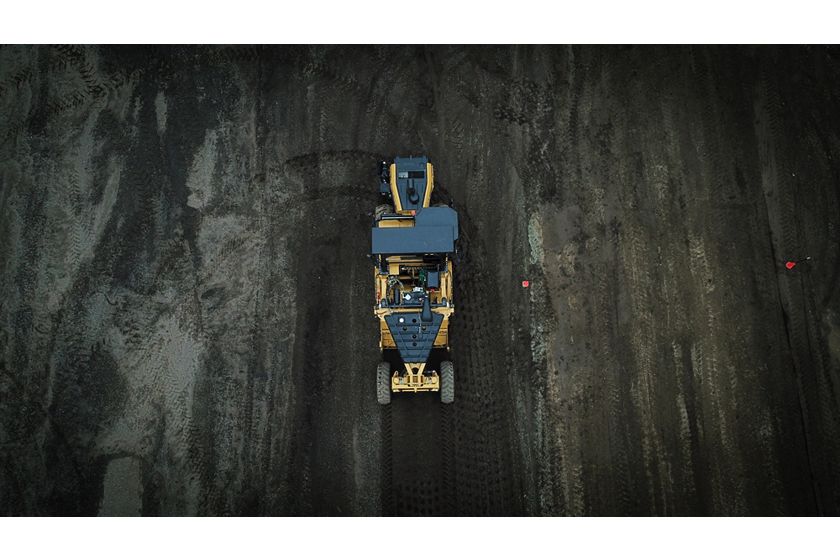

Efficient Power with Increased Mobility

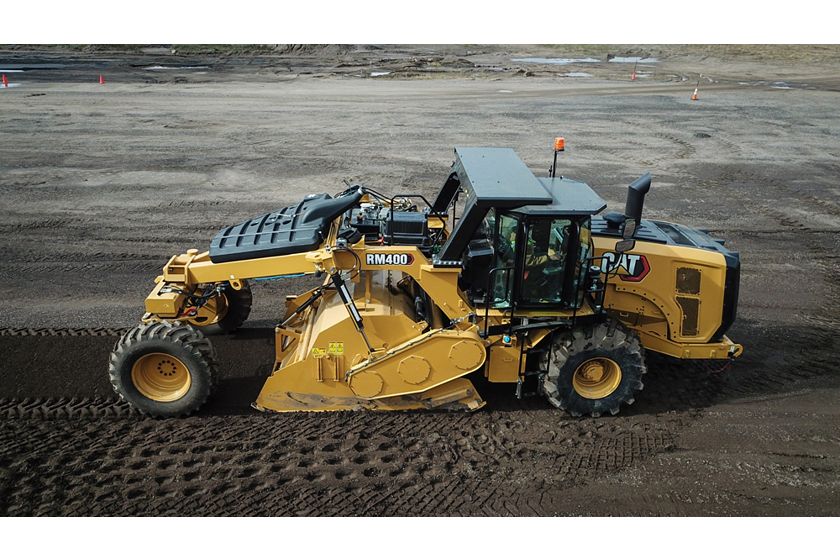

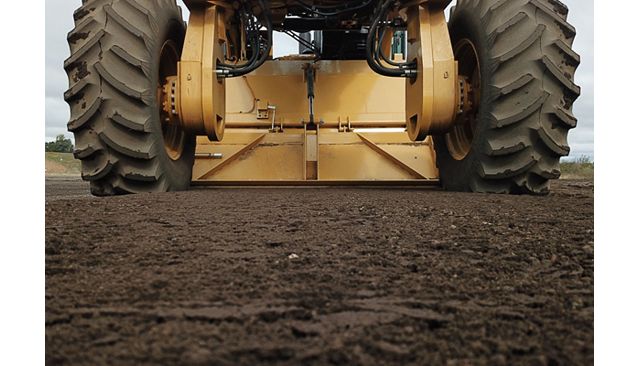

Deliver Superior Mix Quality

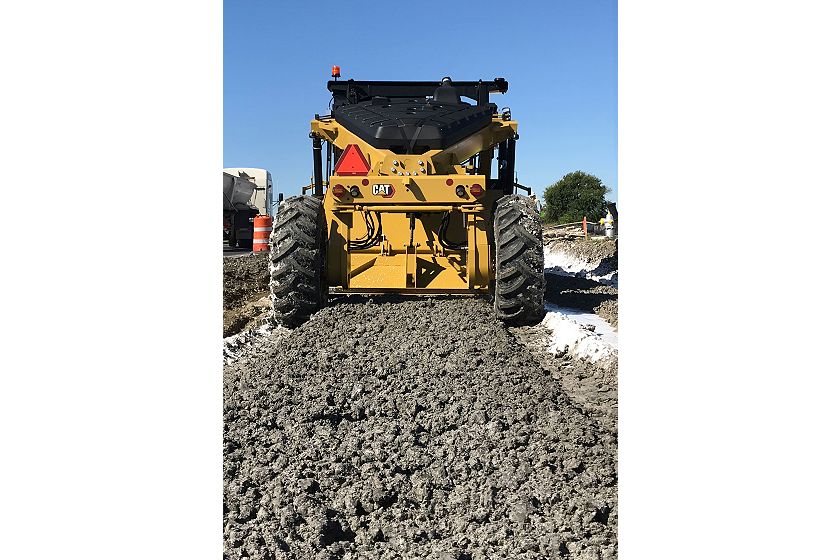

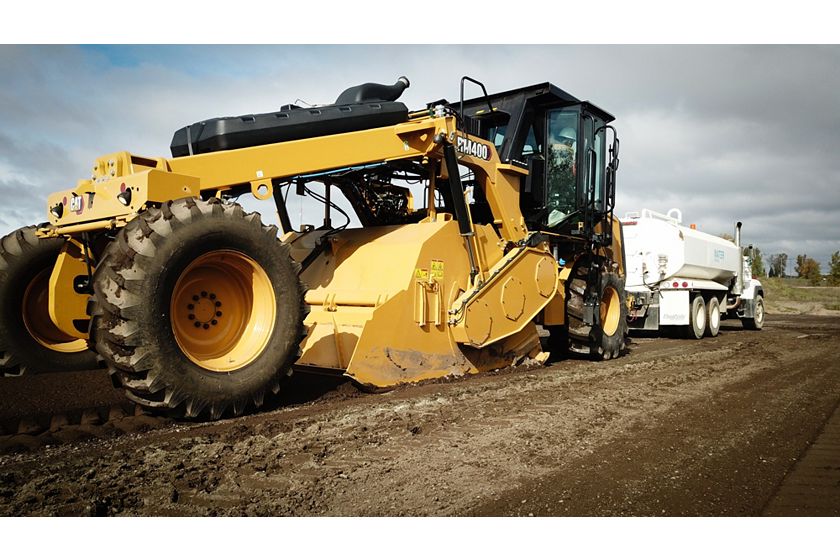

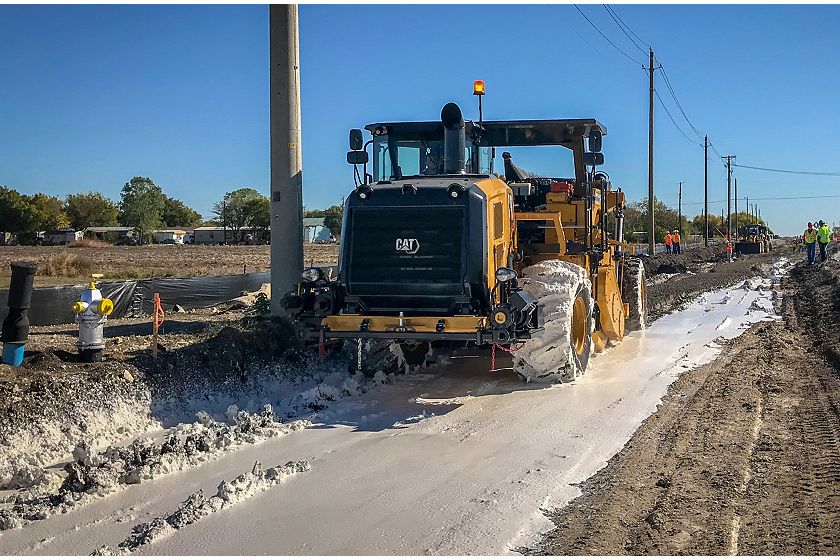

Optional Spray Systems Deliver Precise Mix Quality

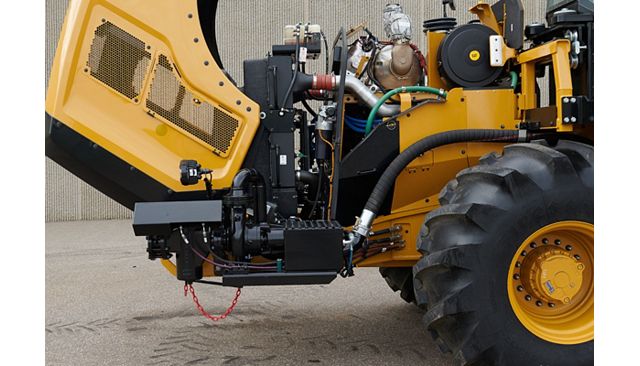

Easier Service, More Uptime
Details
Specifications
Weights
| Spec | Value |
|---|---|
| Maximum Operating Weight | 57682 lb 26164 kg |
Operating Specifications
| Spec | Value |
|---|---|
| Cutting/Mixing Width | 96 in 2438 mm |
| Maximum Cutting/Mixing Depth | 20 in 508 mm |
| Operating Speed | 2.97 mile/h 4.8 km/h |
| Maximum Travel Speed | 6.8 mile/h 11 km/h |
| Rotor Options | Universal, Combination, Spade Universal, Combination, Spade |
| Rotor Speed – First (at 2100 Engine rpm) | 108 r/min 108 r/min |
| Rotor Speed – Second (at 2100 Engine rpm) | 134 r/min 134 r/min |
| Rotor Speed – Third (at 2100 Engine rpm) | 159 r/min 159 r/min |
Engine
| Spec | Value |
|---|---|
| Gross Power | 415.7 HP 310 kW |
| Engine Model | Cat C9.3B Cat C9.3B |
Dimensions
| Spec | Value |
|---|---|
| Length | 31.4 ft 9.56 m |
| Width | 9.8 ft 3 m |
| Maximum Height | 11.5 ft 3.5 m |
| Wheel Base | 20.7 ft 6.32 m |
| Ground Clearance | 19.7 in 500 mm |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 279 gal (US) 1056 l |
Standard Equipment
OPERATING ENVIRONMENT
- Adjustable armrests
- Air-ride, heated suspension seat
- Audio-ready with speakers
- Full width sliding cab with heat and air conditioning
- Push button start
- Illuminated dual-side access ladders
- High visibility retractable seat belt
- Mini-wheel steering control
- Multifunction propel lever
- Steering guides
- Color touch screen operator interface
POWERTRAIN
- Air to Air Aftercooler (ATAAC)
- Dual element air cleaner with pre-cleaner
- Extended life coolant with protection to -37 degrees C (-35 degrees F)
- On-demand fan with auto-reversing function
- Four steering modes
- All-Wheel Drive
- Electronic differential
- Oil-bath brake system
- Powertrain guard
ELECTRICAL SYSTEM
- 150 amp alternator
- 24-volt charging system
- Automotive-type fuse system
- Remote start/charge receptacle
- Two 1365 CCA maintenance-free batteries
ROTOR DRIVE SYSTEM
- Maintenance-free drive shafts
- Self-lubricating roller and bearings
- Shear disk driveline protection
- Automatic depth control
- Hydraulically-controlled dry clutch
- Three rotor speeds
- Variable volume mixing chamber
SERVICE AND MAINTENANCE
- Grouped filters with ground level access
- Cat Product Link™
- Remote Flash
- Remote access drains
- Ports for Scheduled Oil Sampling (S·O·S)
- Fluid level sight gauges
- Service light receptacles
- Toolbox
SAFETY
- Back-up alarm (front and rear)
- Front and rear facing cameras
- Ground level emergency shutdown switches (3)
- Horn (front and rear)
- ROPS
- Platform handrails and guardrails
- Mirrors
- Working lights (halogen or LED)
Optional Equipment
OPERATING ENVIRONMENT
- Additional color touch screen
POWERTRAIN
- Bio-friendly hydraulic oil
SPRAY SYSTEMS
- Water spray system
- Emulsion spray system

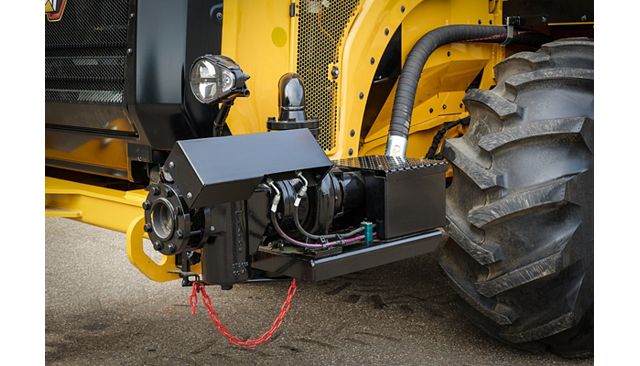

- Push bar
ROTOR DRIVE SYSTEM
- Torque limiter driveline protection
- Rotor – Universal
- Rotor – Combination
- Rotor – Spade
- Material sizing breaker bar
SERVICE AND MAINTENANCE
- Integrated air compressor
- Pneumatic bit removal tool
- Additional toolbox
SAFETY
- LED roading lights
- Folding LED safety beacon
- Folding side view cameras (2)
- Front and rear rotor chamber door cameras
