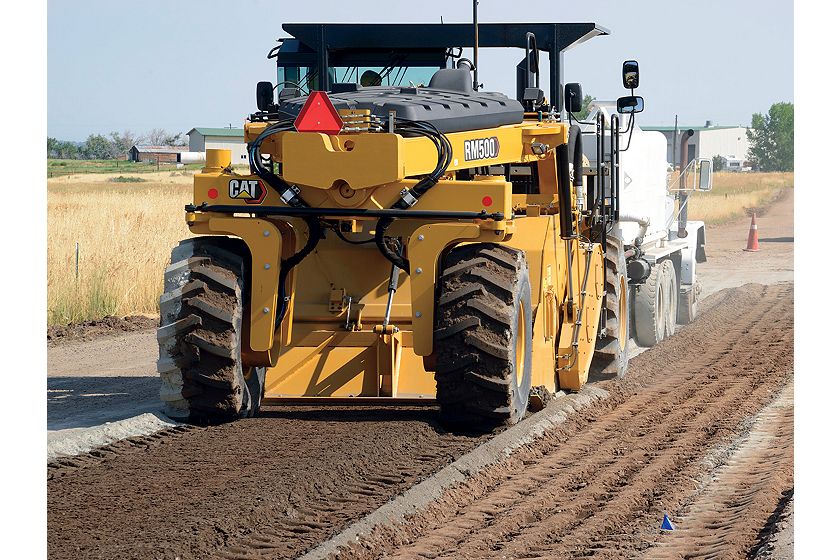

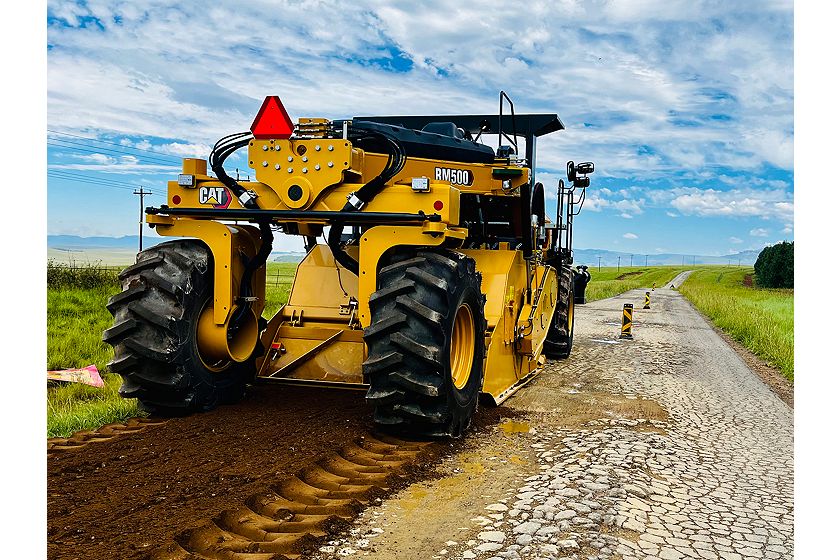

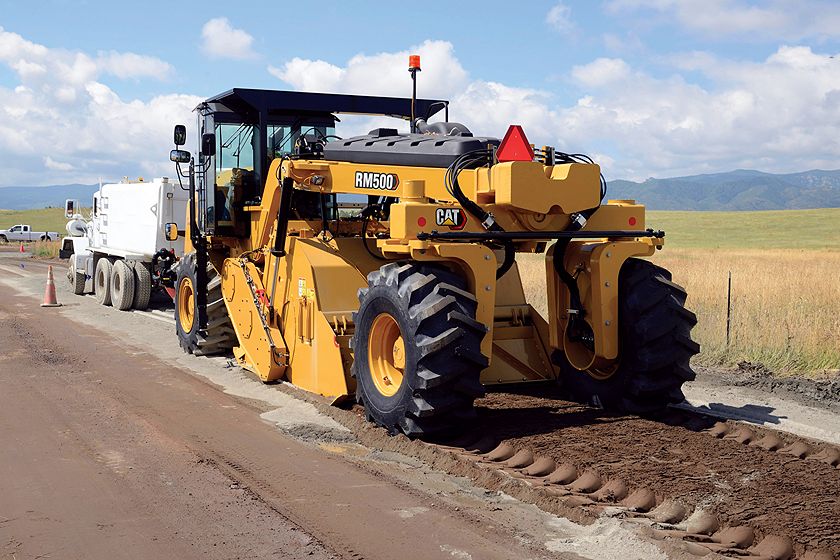

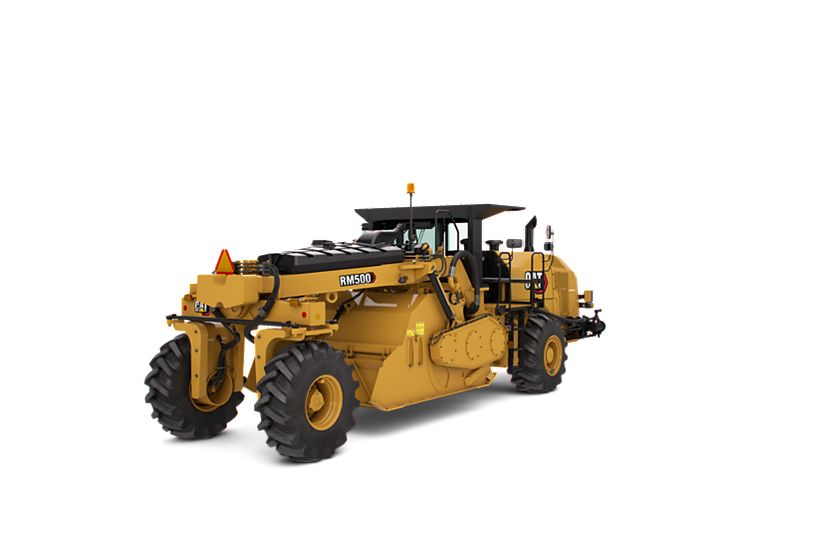

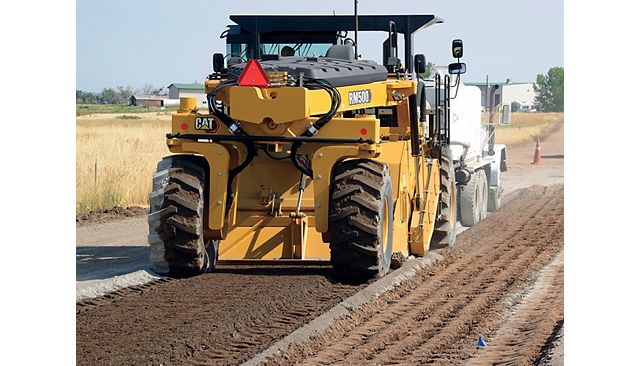

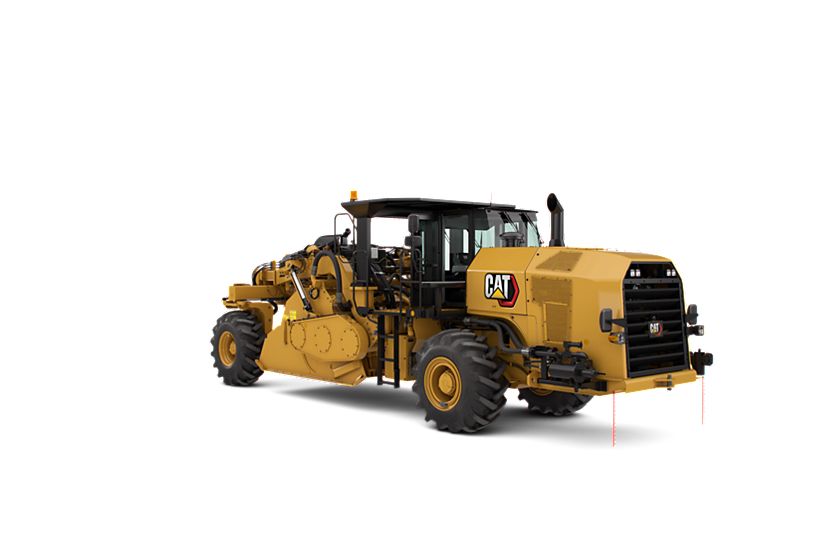

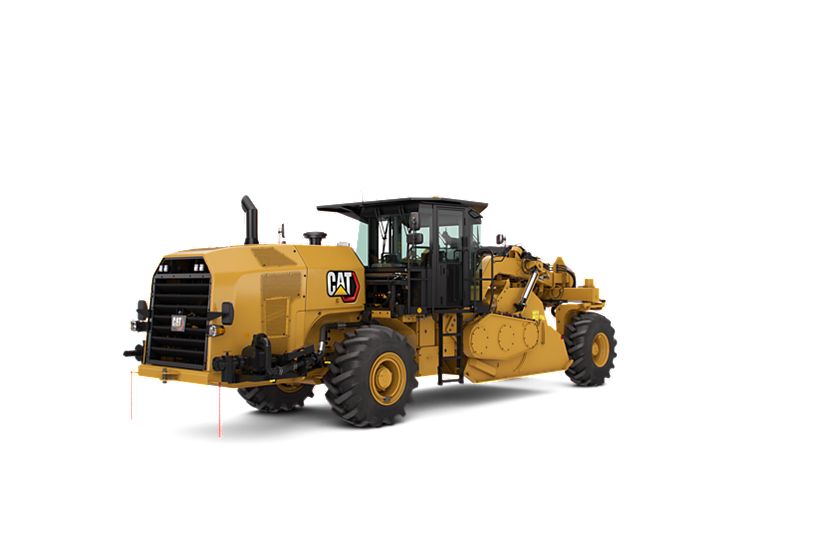

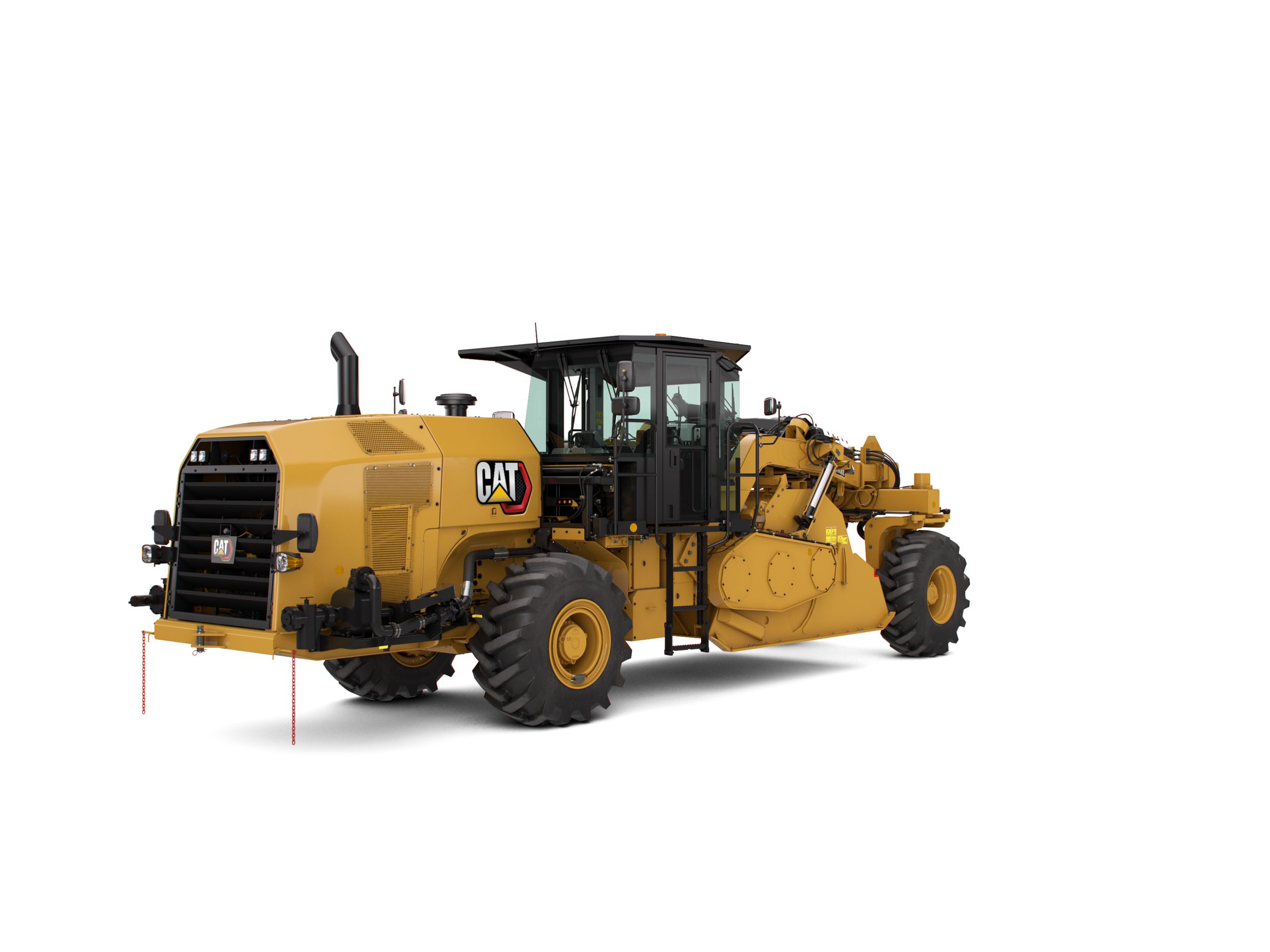

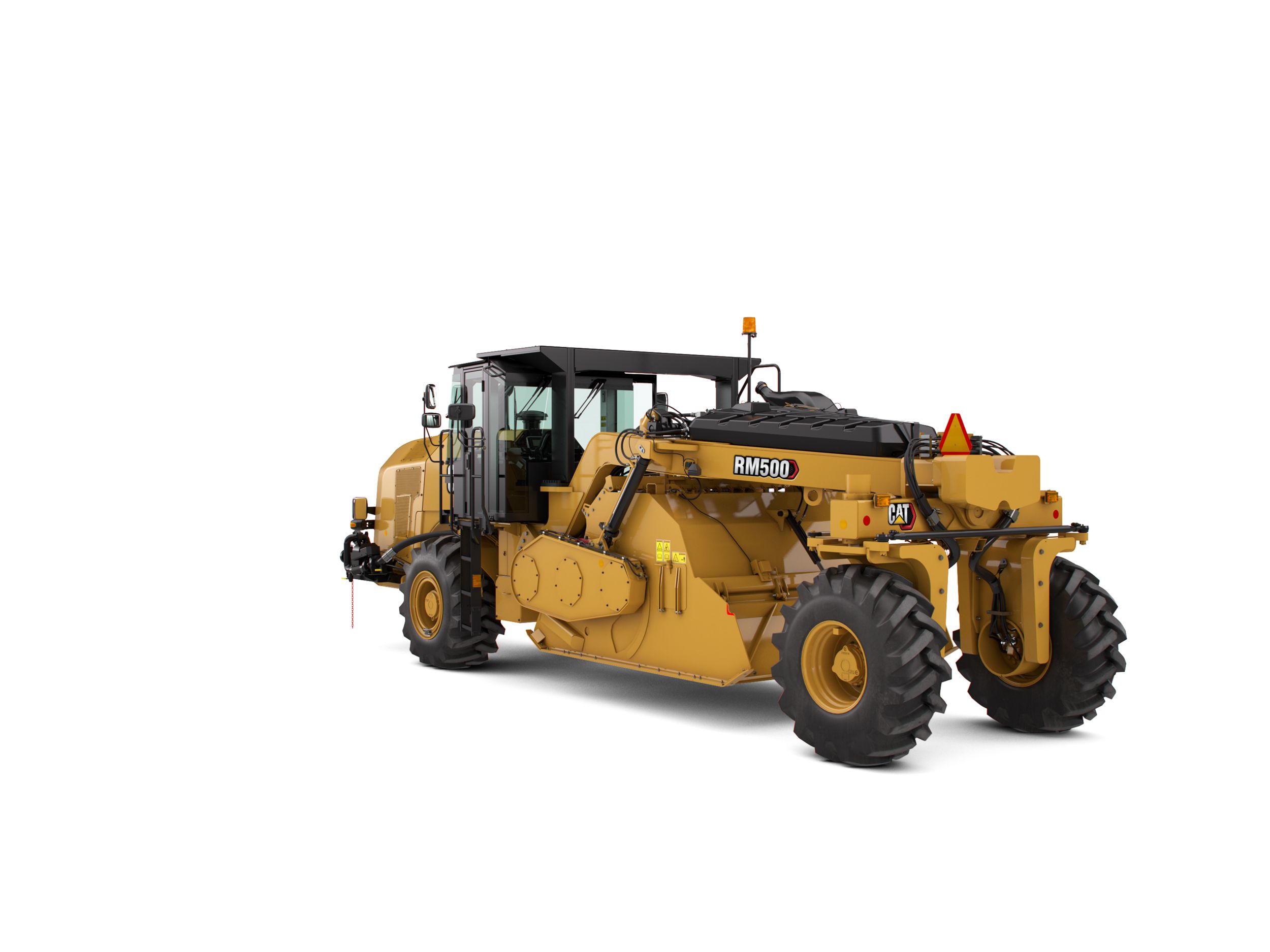

RM500 Road Reclaimer
Maximum Operating Weight
69518 lb
31533 kg
Cutting/Mixing Width
96 in
2438 mm
Gross Power
546 hp
407 kW
Overview
The Cat RM500 features simple operation, a robust rotor drive system and a versatile design that make this durable industry workhorse an exceptional value. High production and excellent material quality go hand-in-hand with low operating and maintenance costs. Rotor and spray system options provide the ability to adapt to a wide range of full-depth reclamation and soil stabilization applications.
Media
Photos
Videos
Features

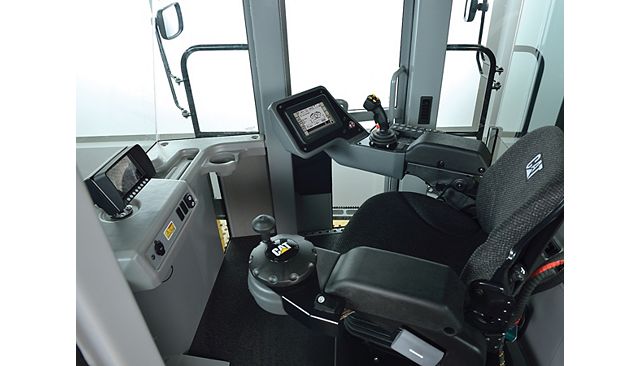

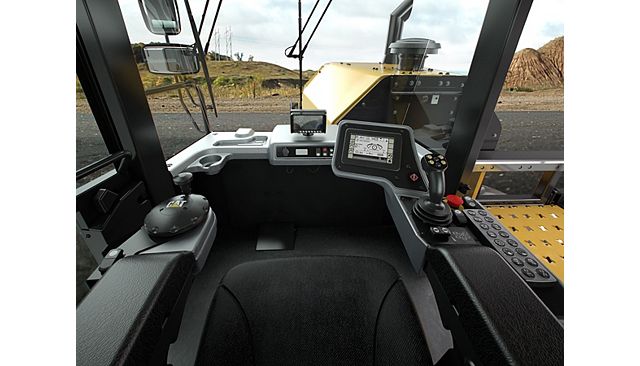

Operator Comfort and Visibility to Enhance Performance
Easy To Use

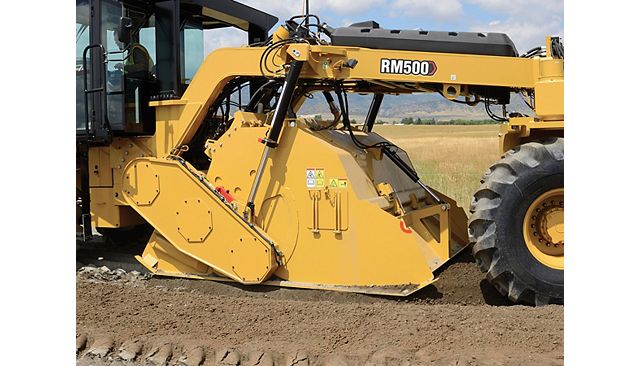

Durable Rotor Drive System
Superior Mix Quality

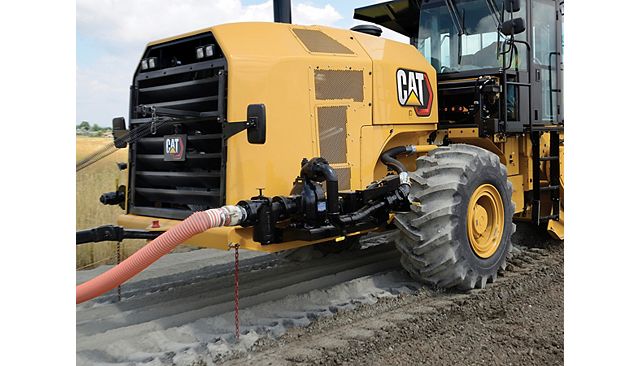

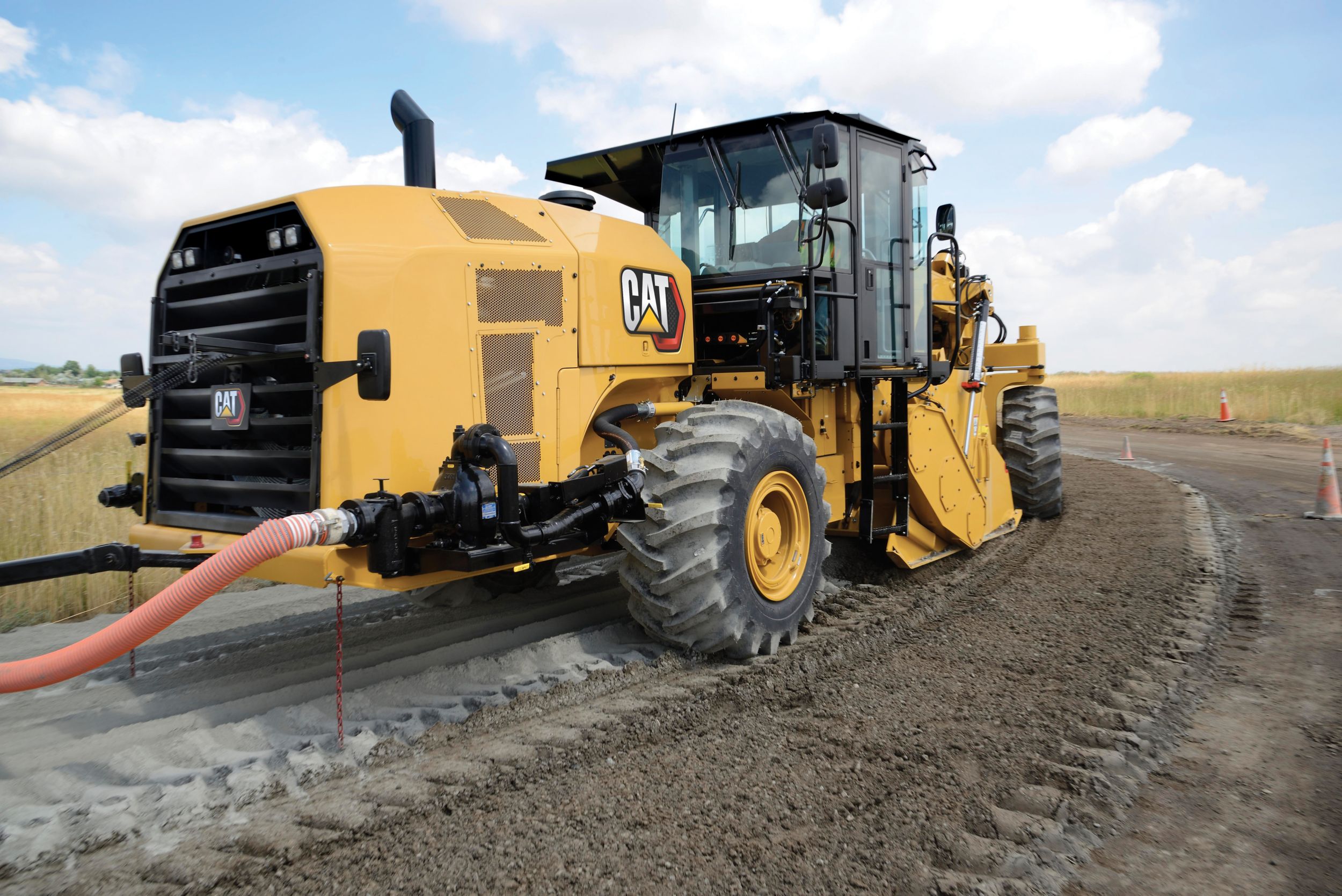

Optional Spray Systems Perform with Accuracy

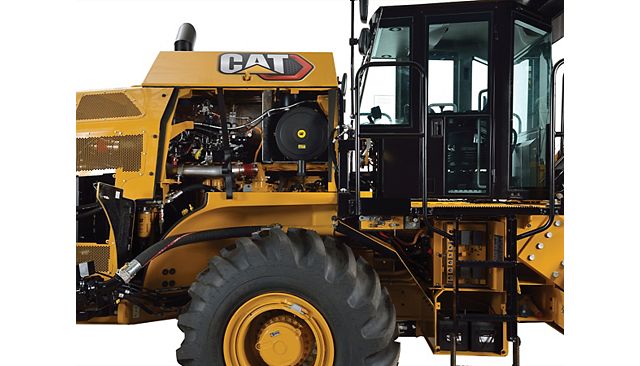

Easy Service
Sustainability
Details
Specifications

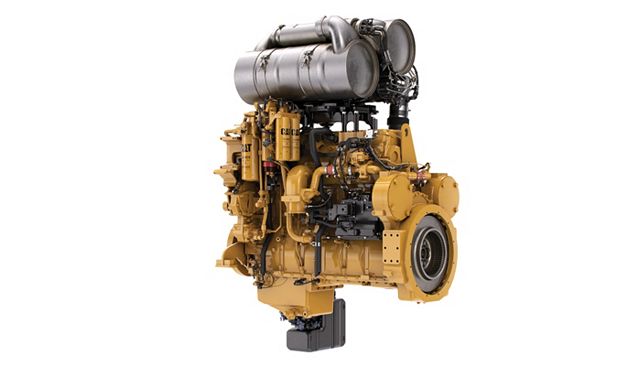

Engine
| Spec | Value |
|---|---|
| Gross Power | 546 hp 407 kW |
| Engine Power | 539 hp 402 kW |
| Engine Model | Cat® C15 Cat® C15 |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Build Number | 02A 02A |
Weights
| Spec | Value |
|---|---|
| Maximum Operating Weight | 69518 lb 31533 kg |
| Note (1) | Maximum weight includes base machine, all options, ROPS, cab, coolant, lubricants, Universal 16 rotor, full fuel tank,full water tank and 75 kg (165 lb) operator. Maximum weight includes base machine, all options, ROPS, cab, coolant, lubricants, Universal 16 rotor, full fuel tank,full water tank and 75 kg (165 lb) operator. |
| Operating Weight | 62920 lb 28540 kg |
| Note (2) | Operating weight includes base machine, no options, ROPS, cab, coolant, lubricants, Universal 16 rotor, 50% full fuel tank,50% full water tank and 75 kg (165 lb) operator Operating weight includes base machine, no options, ROPS, cab, coolant, lubricants, Universal 16 rotor, 50% full fuel tank,50% full water tank and 75 kg (165 lb) operator |
Operating Specifications
| Spec | Value |
|---|---|
| Cutting/Mixing Width | 96 in 2438 mm |
| Maximum Cutting/Mixing Depth | 20 in 508 mm |
| Note (1) | Maximum cutting/mixing depth varies by rotor. Maximum cutting/mixing depth varies by rotor. |
| Rotor Options | Universal 16, Universal 18, Combination, Soil (Stabilization) Universal 16, Universal 18, Combination, Soil (Stabilization) |
| Rotor Drive | 3-Speed Chain 3-Speed Chain |
| Rotor Speeds | 110 / 152 / 205 rpm 110 / 152 / 205 rpm |
| Maximum Travel Speed | 6.5 mile/h 10.5 km/h |
| Inside Turn Radius | 14.2 ft 4.33 m |
Dimensions
| Spec | Value |
|---|---|
| Length | 33.83 ft 10.32 m |
| Width | 9.58 ft 2.98 m |
| Maximum Height | 11.78 ft 3.59 m |
| Wheel Base | 21.33 ft 6.55 m |
| Ground Clearance | 19.9 in 506 mm |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank Capacity | 279 gal (US) 1056 l |
| DEF Tank | 12.2 gal (US) 46 l |
| Cooling Systems | 18.5 gal (US) 70 l |
| Engine Oil | 13.7 gal (US) 52 l |
| Hydraulic Tank | 59.2 gal (US) 224 l |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 97% 97% |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATING ENVIRONMENT
- Adjustable armrests
- Heated suspension seat
- 180° rotating operating station
- Audio-ready with speakers
- Full width sliding cab with heat and air conditioning
- Access ladder, right and left side
- High visibility retractable seat belt
- Mini-wheel steering control
- Multifunction propel lever
- Steering guides
- LCD touch screen operator interface
POWERTRAIN
- Air to Air Aftercooler (ATAAC)
- Dual element air cleaner with pre-cleaner
- Extended life coolant with protection to -37 degrees C (-35 degrees F)
- On-demand fan with auto-reversing function
- Four steering modes
- All-Wheel Drive
- Electronic differential
- Oil-bath brake system
- Powertrain guard
ELECTRICAL SYSTEM
- 150 amp alternator
- 24-volt charging system
- Automotive-type fuse system
- Remote start/charge receptacle
- Two 1365 CCA maintenance-free batteries
ROTOR DRIVE SYSTEM
- Maintenance-free drive shafts
- Self-lubricating roller chain and bearings
- Shear disk driveline protection
- Automatic Return-to-cut
- Powershift 3-speed transmission
- Three rotor speeds
- Variable volume mixing chamber
SERVICE AND MAINTENANCE
- Grouped filters with ground level access
- Cat Product Link™ – Cellular
- Remote access drains
- Ports for Scheduled Oil Sampling (S·O·S℠)
- Fluid level sight gauges
- Toolbox
SAFETY
- Back-up alarm
- Remote cameras (front, rear and rear rotor chamber door)
- Ground level emergency shutdown switch
- Horn (front and rear)
- ROPS
- Platform handrails and guardrails
- Mirrors
- Halogen working lights
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWERTRAIN
- Cat Bio HYDO™ biodegradable hydraulic oil
- CE certificate
SPRAY SYSTEMS
- Water spray system
- Ultra Low-flow water spray system
- Emulsion spray system
- Folding telescoping push bar
ROTOR DRIVE SYSTEM
- Torque limiter driveline protection
- Rotor – Universal 16
- Rotor – Universal 18
- Rotor – Combination
- Rotor – Soil (Stabilization)
- Material sizing breaker bar
- Bolt-on counterweight – 1600 kg (3500 lb)
SERVICE AND MAINTENANCE
- Additional toolbox
SAFETY
- Roading lights
- Folding LED safety beacon
