Cat

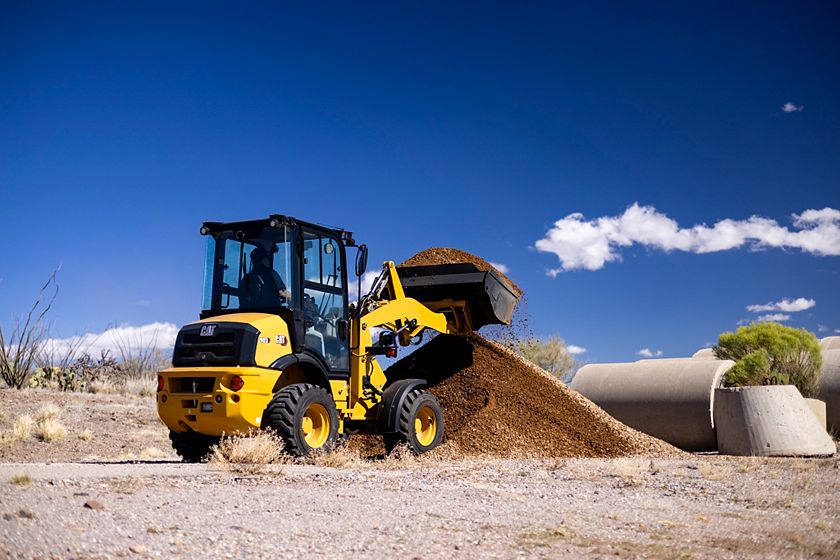

903 Compact Wheel Loader
Maximum Gross Power
48 hp
36 kW
Operating Weight
9200 lb
4173 kg
Bucket Capacities
0.6-1.0 m3 (0.8-1.3 yd3)
0.6-1.0 m3 (0.8-1.3 yd3)
Overview
The Cat® 903 is compact, yet powerful, delivering high performance with outstanding versatility. The all new C1.7 engine provides better all-around performance. Features such as engine and ground speed control, provides customizable control when running hydromechanical work tools. With an ergonomic cab, multi-function joystick, and optional ride control, the 903 allows the operator to enjoy all day comfort.
Media

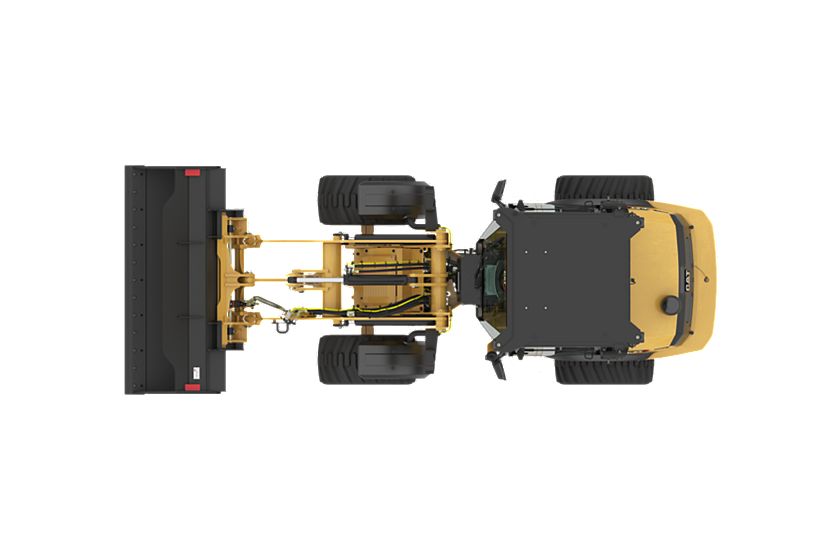

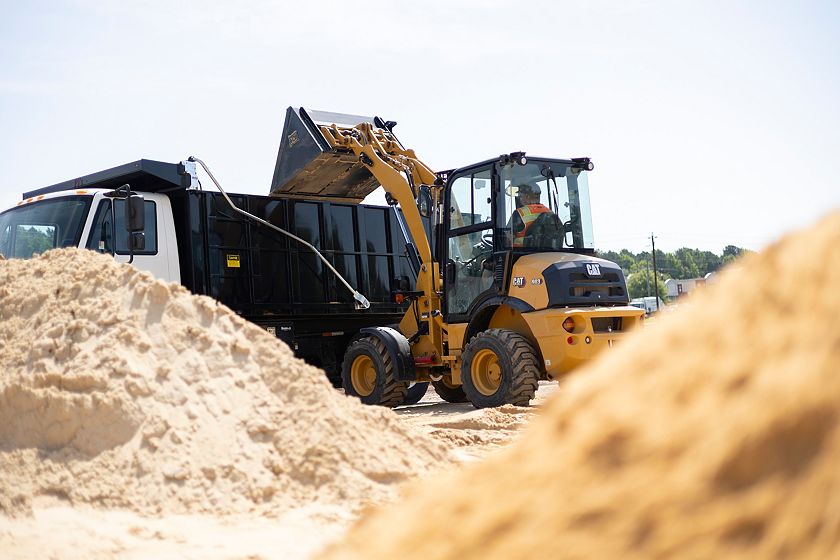

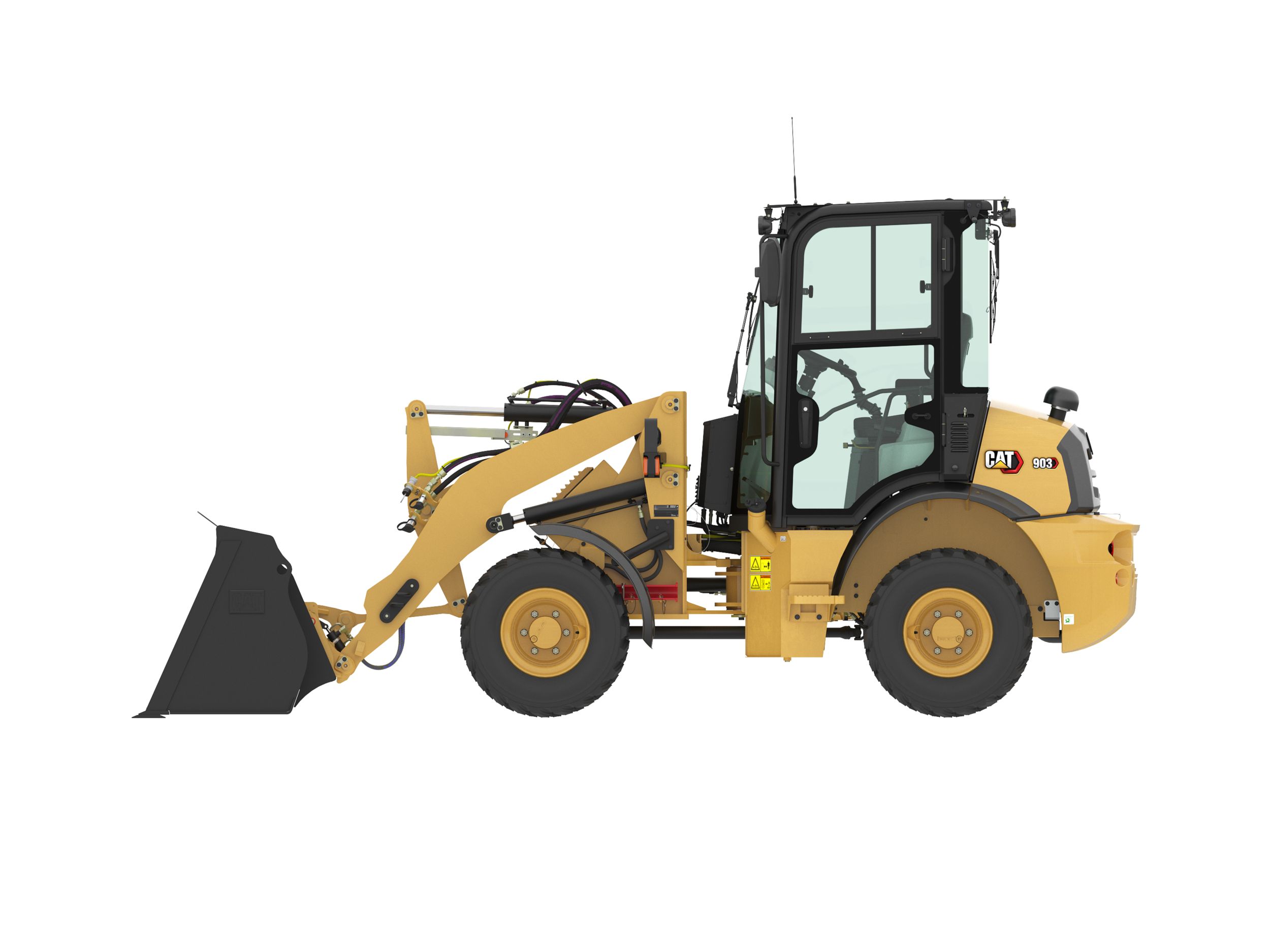

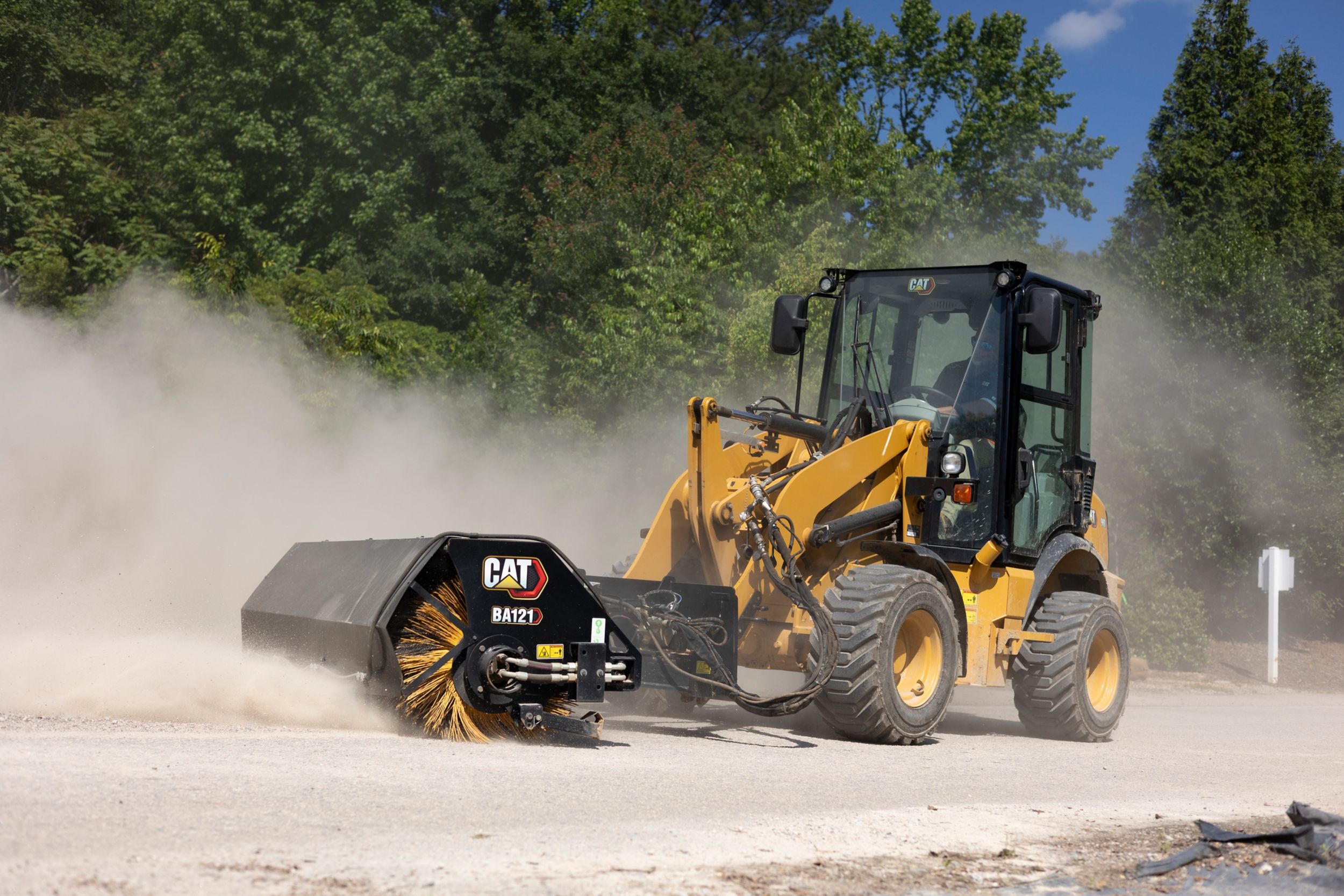

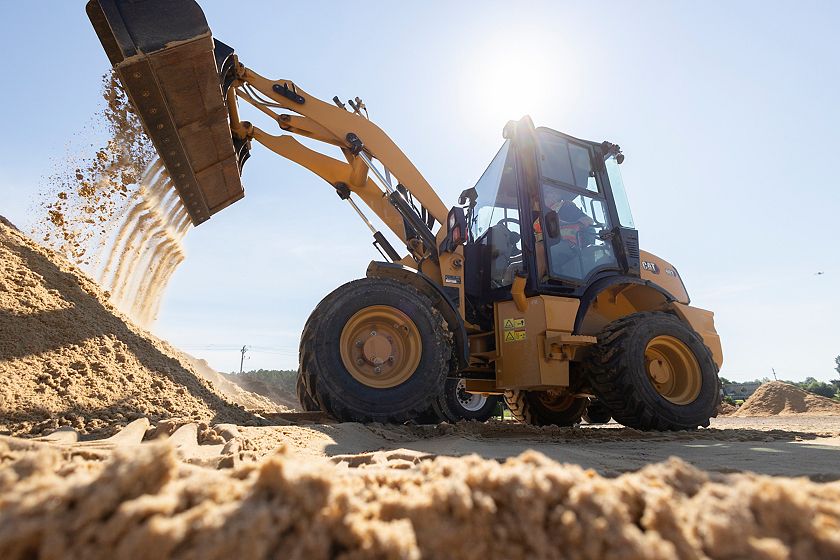

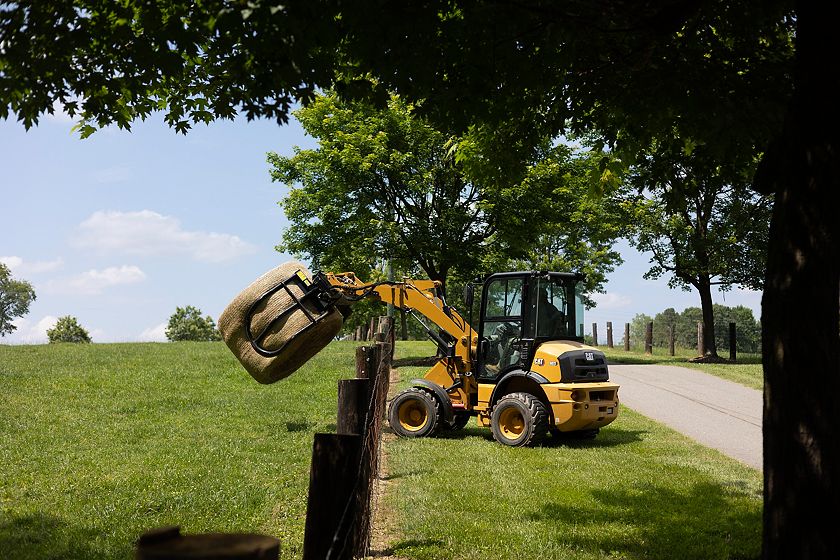

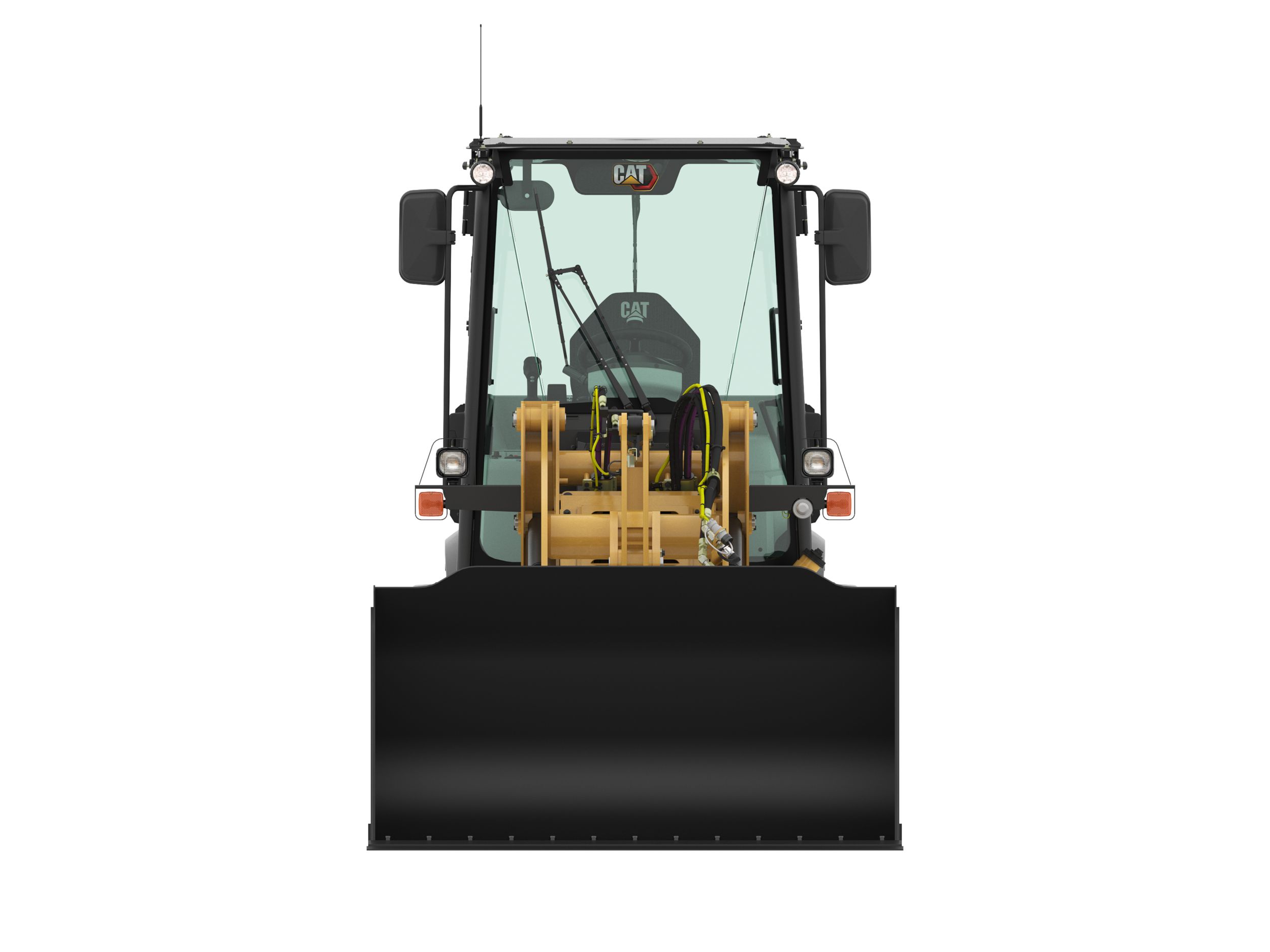

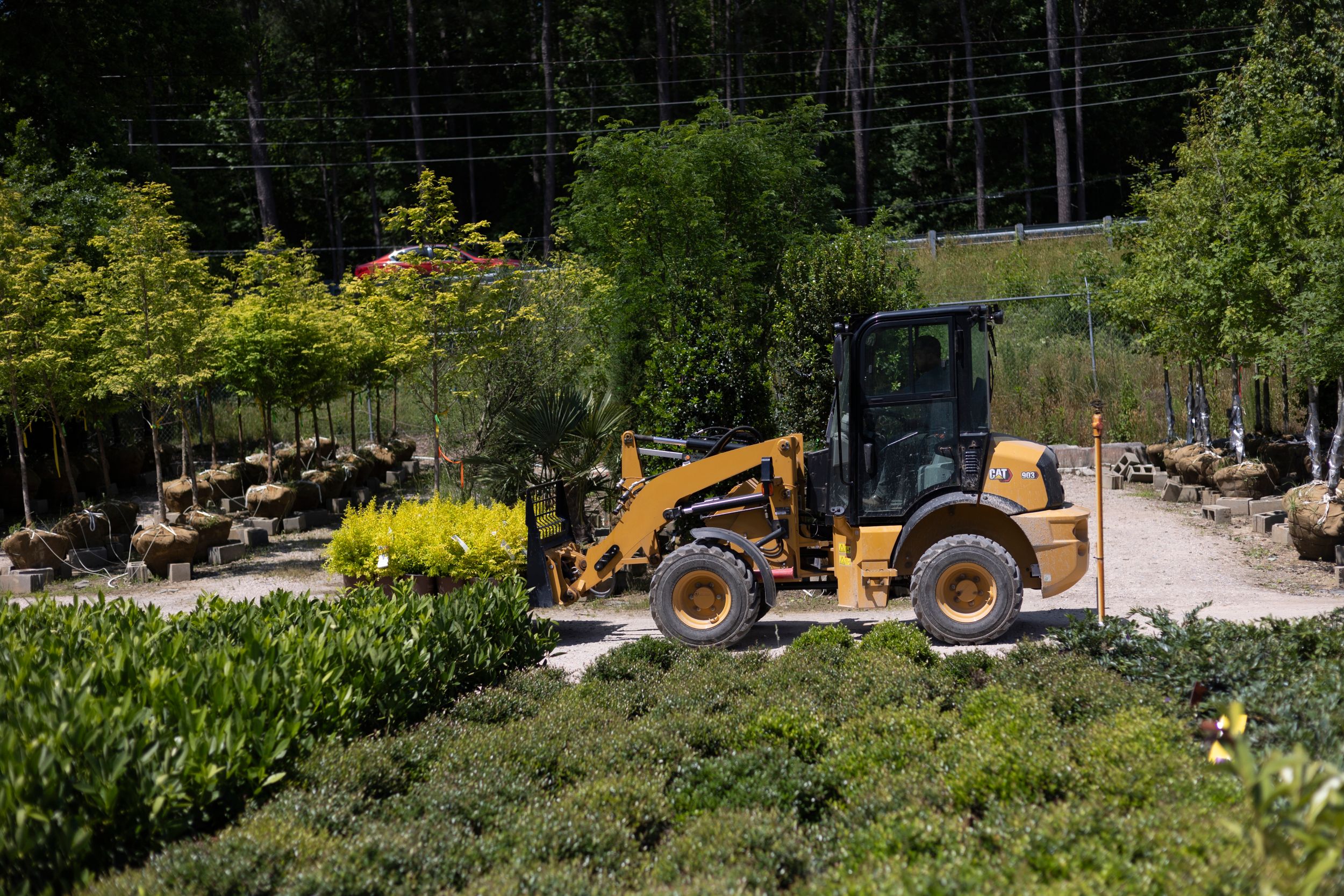

Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Enjoy All Day Comfort
Configured for Success
Simply Reliable
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Maximum Gross Power | 48 hp 36 kW |
| Engine Model | Cat C1.7* Cat C1.7* |
| Net Power @ 2,200 rpm – SAE J1349:2011 | 45 hp 33.6 kW |
| Net Power @ 2,200 rpm – ISO 9249:2007 | 45 hp 33.6 kW |
| Bore | 3.3 in 84 mm |
| Stroke | 3.9 in 100 mm |
| Displacement | 104 in² 1.7 l |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Net power advertised is the power available at the flywheel. Net power advertised is the power available at the flywheel. |
| Note | *Engine meets U.S. EPA Tier 4 Final emission standards. *Engine meets U.S. EPA Tier 4 Final emission standards. |
Weights
| Spec | Value |
|---|---|
| Operating Weight | 9200 lb 4173 kg |
Buckets
| Spec | Value |
|---|---|
| Bucket Capacities | 0.6-1.0 m3 (0.8-1.3 yd3) 0.6-1.0 m3 (0.8-1.3 yd3) |
| Bucket Capacities – General Purpose | 0.6 m3 (0.8 yd3) 0.6 m3 (0.8 yd3) |
| Bucket Capacities – Light Material | 1.0 m3 (1.3 yd3) 1.0 m3 (1.3 yd3) |
Transmission
| Spec | Value |
|---|---|
| Travel Speed | 12.4 mile/h 20 km/h |
Hydraulic System
| Spec | Value |
|---|---|
| Main Relief | 3336 psi 230 bar |
| 3rd Auxiliary Flow | 14.1 gal/min 53.5 l/min |
| Hydraulic Cycle Time – Lift | 4.5 s 4.5 s |
| Hydraulic Cycle Time – Dump | 0.7 s 0.7 s |
| Hydraulic Cycle Time – Lower, Float | 2.3 s 2.3 s |
Cab
| Spec | Value |
|---|---|
| ROPS | ISO 3471:2008 ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level II ISO 3449:2005 Level II |
Service Refill Capacities
| Spec | Value |
|---|---|
| Cooling System | 3 gal (US) 11 l |
| Fuel Tank | 11.4 gal (US) 43 l |
| Hydraulic System | 6.3 gal (US) 24 l |
| Engine Oil | 1.6 gal (US) 6 l |
Dimensions (Approximate) - Standard Lift
| Spec | Value |
|---|---|
| Cab Height | 8.25 ft 2510 mm |
| Ground Clearance | 10 in 250 mm |
| Wheel Base | 6.42 ft 1950 mm |
| Overall Length – With Bucket* | 15.4 ft 4693 mm |
| Reach at Maximum Dump Height* | 2.33 ft 705 mm |
| Dig Depth | 5 in 131 mm |
| Maximum Dump Height* | 7.75 ft 2355 mm |
| Load Over Height | 9.25 ft 2832 mm |
| Hinge Pin at Maximum Height | 10.08 ft 3086 mm |
| Departure Angle – Degrees | 30° 30° |
| Overall Length – With Forks | 16.83 ft 5129 mm |
| Reach – Ground Level | 2.5 ft 765 mm |
| Maximum Reach | 4.33 ft 1311 mm |
| Fork Depth Above Ground | 3 in 67 mm |
| Fork Height at Maximum Reach | 4.75 ft 1447 mm |
| Maximum Fork Height | 9.9 ft 3031 mm |
| Fork Reach at Maximum Height | 1.75 ft 543 mm |
| Turning Radius – Over Bucket* | 12.75 ft 3891 mm |
| Turning Radius – Inside Tire** | 6 ft 1834 mm |
| Width – Over Bucket* | 5.83 ft 1790 mm |
| Tire Gauge | 4.33 ft 1314 mm |
| Machine Width** | 5.58 ft 1708 mm |
| Articulation Angle | 40° 40° |
| Steering Angle | 80° 80° |
| Dump Angle at Maximum Height | 40° 40° |
| Note (1) | *Vary with bucket size. *Vary with bucket size. |
| Note (2) | **Vary with tire size. **Vary with tire size. |
| Note (3) | Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner. Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner. |
Dimensions (Approximate) - High Lift
| Spec | Value |
|---|---|
| Cab Height | 8.25 ft 2510 mm |
| Ground Clearance | 10 in 250 mm |
| Wheel Base | 6.42 ft 1950 mm |
| Overall Length – With Bucket* | 16.03 ft 4894 mm |
| Reach at Maximum Dump Height* | 2.33 ft 715 mm |
| Dig Depth | 6 in 163 mm |
| Maximum Dump Height* | 8.16 ft 2496 mm |
| Load Over Height | 9.75 ft 2974 mm |
| Hinge Pin at Maximum Height | 10.58 ft 3227 mm |
| Departure Angle – Degrees | 30° 30° |
| Overall Length – With Forks | 17.25 ft 5263 mm |
| Reach – Ground Level | 2.9 ft 900 mm |
| Maximum Reach | 4.66 ft 1429 mm |
| Fork Depth Above Ground | 2 in 40 mm |
| Fork Height at Maximum Reach | 4.66 ft 1429 mm |
| Maximum Fork Height | 10.4 ft 3172 mm |
| Fork Reach at Maximum Height | 1.8 ft 552 mm |
| Turning Radius – Over Bucket* | 13.4 ft 3977 mm |
| Turning Radius – Inside Tire** | 6 ft 1834 mm |
| Width – Over Bucket* | 5.83 ft 1790 mm |
| Tire Gauge | 4.33 ft 1314 mm |
| Machine Width** | 5.58 ft 1708 mm |
| Articulation Angle | 40° 40° |
| Steering Angle | 80° 80° |
| Dump Angle at Maximum Height | 40° 40° |
| Note (1) | *Vary with bucket size. *Vary with bucket size. |
| Note (2) | **Vary with tire size. **Vary with tire size. |
| Note (3) | Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner. Dimensions listed are based on a machine configured with cab, air conditioning, remote quick coupler, general purpose bucket or 1067 mm (42 in) forks, 75 kg (165 lb) operator, 33 × 15.5-16.5, 12 PR tires, without ride control, without precleaner. |
Operating Specifications - Standard Lift
| Spec | Value |
|---|---|
| Tire Size | 33 × 15.5-16.5, 12 PR 33 × 15.5-16.5, 12 PR |
| Rated Bucket Capacity | 0.8 yd³ 0.6 m³ |
| Breakout Force | 6294 lbf 28 kN |
| Operating Weight | 9200 lb 4173 kg |
| Rated Operating Load at Full Turn – Bucket*** | 2756 lb 1251 kg |
| Straight Tipping Load – Bucket*** | 6415 lb 2910 kg |
| Full Turn Static Tipping Load – Bucket (ISO 14397-1*)*** | 5516 lb 2502 kg |
| Full Turn Static Tipping Load – Bucket (Rigid Tire**)*** | 5626 lb 2552 kg |
| Rack Back – Transport Position | 51° 51° |
| Rated Operating Load at Full Turn – Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)*** | 3393 lb 1539 kg |
| Rated Operating Load at Full Turn – Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)*** | 2544 lb 1154 kg |
| Note (1) | *Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing. *Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing. |
| Note (2) | **Compliance to ISO 14397-1 (2007) Sections 1 thru 5. **Compliance to ISO 14397-1 (2007) Sections 1 thru 5. |
| Note (3) | ***Manual quick coupler, precleaner hood. ***Manual quick coupler, precleaner hood. |
| Note (4) | Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted. Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted. |
Operating Specifications - High Lift
| Spec | Value |
|---|---|
| Tire Size | 33 × 15.5-16.5, 12 PR 33 × 15.5-16.5, 12 PR |
| Rated Bucket Capacity | 0.8 yd³ 0.6 m³ |
| Breakout Force | 6519 lbf 29 kN |
| Operating Weight | 9231 lb 4187 kg |
| Rated Operating Load at Full Turn – Bucket*** | 2553 lb 1158 kg |
| Straight Tipping Load – Bucket*** | 5975 lb 2710 kg |
| Full Turn Static Tipping Load – Bucket (ISO 14397-1*)*** | 5108 lb 2317 kg |
| Full Turn Static Tipping Load – Bucket (Rigid Tire**)*** | 5238 lb 2376 kg |
| Rack Back – Transport Position | 51° 51° |
| Rated Operating Load at Full Turn – Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% FTSTL)*** | 3175 lb 1440 kg |
| Rated Operating Load at Full Turn – Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% FTSTL)*** | 2381 lb 1080 kg |
| Note (1) | *Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing. *Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification be-tween calculation and testing. |
| Note (2) | **Compliance to ISO 14397-1 (2007) Sections 1 thru 5. **Compliance to ISO 14397-1 (2007) Sections 1 thru 5. |
| Note (3) | ***Manual quick coupler, precleaner hood. ***Manual quick coupler, precleaner hood. |
| Note (4) | Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted. Operating specifications shown are based on machine equipped with enclosed ROPS cab with air conditioning, remote quick coupler, 75 kg (165 lb) operator and general purpose bucket (GP), without ride control, without precleaner unless otherwise noted. |
Maximum Material Densities - General Purpose
| Spec | Value |
|---|---|
| Bucket Type | General Purpose General Purpose |
| Rated Capacity | 0.8 yd³ 0.6 m³ |
| Dump Height | 93 in 2355 mm |
| Maximum Material Density | 3169 lb/yd³ 1880 kg/m³ |
| Bucket Width | 70 in 1790 mm |
| Note | Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage. Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage. |
Maximum Material Densities - Light Material
| Spec | Value |
|---|---|
| Bucket Type | Light Material Light Material |
| Rated Capacity | 1.3 yd³ 1 m³ |
| Dump Height | 88 in 2225 mm |
| Maximum Material Density | 1989 lb/yd³ 1180 kg/m³ |
| Bucket Width | 74 in 1880 mm |
| Note | Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage. Based on ISO 7546:1983 and rated operating loads at full turn and standard linkage. |
Sound Levels
| Spec | Value |
|---|---|
| Interior Sound | 80.8 dB(A) 80.8 dB(A) |
| Exterior Sound | 99.8 dB(A) 99.8 dB(A) |
Sustainability
| Spec | Value |
|---|---|
| Recyclability | 95% 95% |
Standard Equipment
POWER TRAIN
- Air cleaner, two stage with visual indicator
- Cat C.7 engine:
– Meets U.S. EPA Tier 4 Final emission standards - Closed circuit breather
- Cold start plugs
- Electrical fuel priming pump
- Eco drain, engine oil
- Extended life coolant protects to –37° C (–34° F)
- Frame mounted heavy duty axles with outboard planetary reduction
- Maintenance free, sealed for life, prop shaft and universal joints
- Transmission, 20 km/h (12.4 mph)
ELECTRICAL
- 12 volt direct electric starting
- Alternator, 70A
- Battery disconnect switch
- Cab mounted fuse panel
- Ignition key start/stop switch
- Maintenance free, sealed for life, 650 CCA heavy duty battery
OPERATOR ENVIRONMENT
- Cup holder
- Digital service hour meter
- Engine coolant temperature gauge
- Fuel level gauge
- Heavy duty, easy clean floor mat
- Operator warning system indicators:
– DPF monitor
– Parking brake applied
– Hydraulic oil temperature
– Engine oil pressure
– Service brake pressure
– Hydraulic filter bypass - Seat:
– Static, vinyl with 51 mm (2 in) retractable seat belt - Two external mirrors – knock back
OTHER STANDARD EQUIPMENT
- 3rd valve auxiliary hydraulics with continuous flow detent, standard flow
- Engine enclosure – lockable
- Guarded front headlight
- Hydraulic auxiliary lines with quick disconnects
- Hydraulic oil level sight gauge
- Lift arm safety brace
- Loader arm float function
- Lockable fuel filler cap
- Manual quick coupler, skid steer loader compatible
- Parking brake (secondary brake)
- Product Link™, PL243
- Quick release fuel filter/water separator
- Reversing light
- Self-canceling direction indicators
- Work tool return to dig
- Z-bar linkage
Optional Equipment
OPTIONAL EQUIPMENT
- Air conditioning/heater
- Alternator, 90 amp for air conditioning
- Antifreeze/coolant, extended life, protects to –50° C (–58° F)
- Beacon ready
- Cab:
– Open
– Enclosed - Differential lock, front and rear axles
- Hydraulic quick coupler, skid steer loader compatible
- Engine air precleaner
- Engine block heater 120V (dealer installed)
- Engine Speed Control (Throttle Lock)
- Fenders:
– Rear only
– Front and rear - Ground Speed Control (Creeper Control)
- Linkage:
– Standard lift
– High lift - Radiator debris screen
- Radio Ready or AM/FM radio
- Ride Control
- Seats:
– Mechanical suspension, vinyl with 51 mm (2 in) seat belt
– Mechanical suspension, vinyl with 75 mm (3 in) seat belt
– Mechanical suspension, fabric with 51 mm (2 in) seat belt
– Mechanical suspension, fabric with 75 mm (3 in) seat belt - Tires:
– 12-16.5 10PR
– Flotation 33-15.5 × 16.5
– Flexport™ 33 × 6 × 11 - Working lights, front and rear:
– Halogen
– LED - Work Tool Electrical Harness
WORK TOOLS
- For all work tool options, consult your Cat dealer.
