Cat

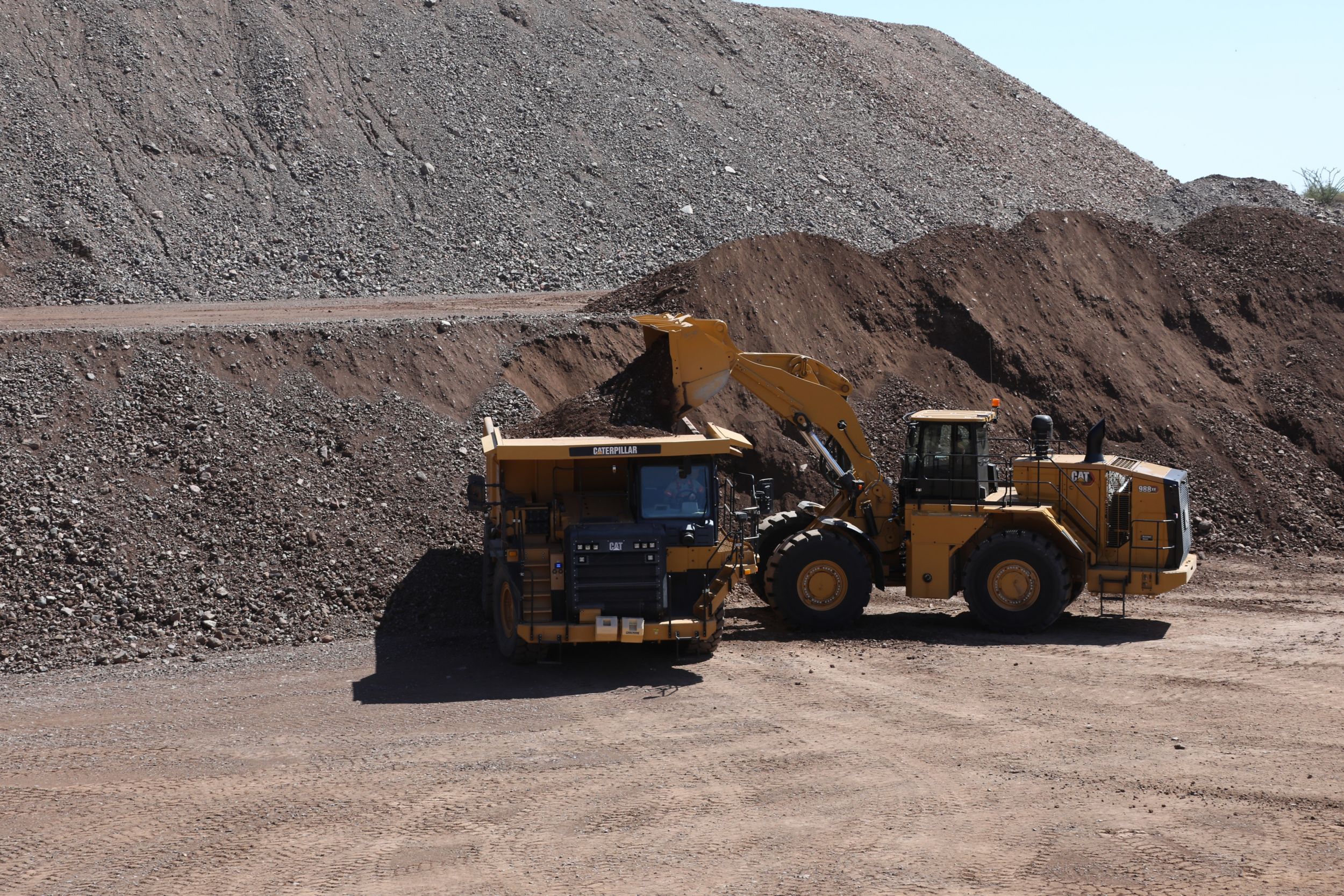

988 XE Wheel Loader
Engine Power – ISO 14396:2002
580 hp
432 kW
Operating Weight
116362 lb
52781 kg
Bucket Capacity Range
4.7-13 m3 (6.2-17 yd3)
4.7-13 m3 (6.2-17 yd3)
Overview
Move more material in less time at a low cost per ton with the Cat® 988 XE wheel loader. The electric-drive 988 XE is faster and more efficient than the powershift 988 in applications that demand high performance and production. Get a fast return on your investment with great overall fuel efficiency and designed-in durability for multiple life cycles.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Details
Specifications
Engine
| Spec | Value |
|---|---|
| Engine Power – ISO 14396:2002 | 580 hp 432 kW |
| Engine Model | Cat® C18 Cat® C18 |
| Rated Speed | 1,700 rpm 1,700 rpm |
| Peak Power Speed | 1,500 rpm 1,500 rpm |
| Net Power – SAE J1349:2011 | 538 hp 401 kW |
| Gross Power – SAE J1995:2014 | 588 hp 436 kW |
| Bore | 5.7 in 145 mm |
| Stroke | 7.2 in 183 mm |
| Displacement | 1105 in³ 18.1 l |
| Peak Torque – 1,200 rpm | 2230 lbf·ft 3023 N·m |
| Torque Rise | 58% 58% |
| Note (1) | Two engine emissions options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. Two engine emissions options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Note (2) | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. |
Operating Specifications
| Spec | Value |
|---|---|
| Operating Weight | 116362 lb 52781 kg |
| Bucket Capacity Range | 4.7-13 m3 (6.2-17 yd3) 4.7-13 m3 (6.2-17 yd3) |
| Rated Payload – Quarry Face | 12.5 t 11.3 t |
| Rated Payload – Loose Material | 16 t 14.5 t |
Transmission
| Spec | Value |
|---|---|
| Transmission Type | Cat switched reluctance electric drive Cat switched reluctance electric drive |
| Forward 1 (virtual) | 4.3 mile/h 7 km/h |
| Forward 2 (virtual) | 7 mile/h 11.3 km/h |
| Forward 3 (virtual) | 13.8 mile/h 22.2 km/h |
| Forward 4 (virtual) | 20 mile/h 32.1 km/h |
| Reverse 1 (virtual) | 4.3 mile/h 7 km/h |
| Reverse 2 (virtual) | 7 mile/h 11.3 km/h |
| Reverse 3 (virtual) | 17.5 mile/h 28.2 km/h |
Hydraulic System - Lift/Tilt
| Spec | Value |
|---|---|
| Lift/Tilt System – Circuit | EH-Positive Flow Control, Flow Sharing EH-Positive Flow Control, Flow Sharing |
| Lift/Tilt System – Pump | Variable displacement piston Variable displacement piston |
| Maximum Flow at 1,400-1,600 rpm | 153 gal/min 580 l/min |
| Relief Valve Setting – Lift/Tilt | 4757 psi 32800 kPa |
| Lift Cylinder – Bore | 8.7 in 210 mm |
| Lift Cylinder – Stroke | 41.3 in 1050 mm |
| Tilt Cylinder – Bore | 8.7 in 269 mm |
| Tilt Cylinder – Stroke | 27 in 685 mm |
Hydraulic Cycle Times
| Spec | Value |
|---|---|
| Rack Back | 4.5 s 4.5 s |
| Raise | 8 s 8 s |
| Dump | 2.2 s 2.2 s |
| Lower Float Down | 3.5 s 3.5 s |
| Total Hydraulic Cycle Time | 18.2 s 18.2 s |
Hydraulic System - Steering
| Spec | Value |
|---|---|
| Steering System – Circuit | Pilot, load sensing Pilot, load sensing |
| Steering System – Pump | Piston, variable displacement Piston, variable displacement |
| Maximum Flow at 1,400-1,600 rpm | 71.3 gal/min 270 l/min |
| Steering Cut Off Pressure | 4351 psi 30000 kPa |
| Total Steering Angle | 86° 86° |
| Steering Cycle Times – High Idle | 3.4 s 3.4 s |
| Steering Cycle Times – Low Idle | 5.6 s 5.6 s |
Air Conditioning System
| Spec | Value |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons). |
Axles
| Spec | Value |
|---|---|
| Front | Fixed Fixed |
| Rear | Trunnion Trunnion |
| Oscillation Angle | 13° 13° |
Brakes
| Spec | Value |
|---|---|
| Brakes | ISO 3450:2011 ISO 3450:2011 |
Operator's Cab
| Spec | Value |
|---|---|
| ROPS/FOPS | ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards |
Sound Performance - Tier 4 Final / Stage V
| Spec | Value |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 109 dB(A) 109 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 109 dB(A) 109 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Sound Performance - Tier 3 / Stage IIIA
| Spec | Value |
|---|---|
| Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008) | 110 dB(A) 110 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) 72 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) 110 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 ** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Service Refill Capacities
| Spec | Value |
|---|---|
| Fuel Tank | 147 gal (US) 555 l |
| Cooling System – Jacket Water | 30 gal (US) 112 l |
| Cooling Systems – Power Train | 8 gal (US) 30 l |
| Engine Crankcase | 16 gal (US) 60 l |
| Diesel Exhaust Fluid Tank | 8.7 gal (US) 33 l |
| Transmission | 16 gal (US) 60 l |
| Differential – Final Drives – Front | 49 gal (US) 186 l |
| Differential – Final Drives – Rear | 49 gal (US) 186 l |
| Hydraulic System – Implement/Steering | 126 gal (US) 475 l |
| Note | All non-road Tier 4 Final/Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: – 20% biodiesel FAME (fatty acid methyl ester)* – 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. • Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** • For pre-Tier 4 engines: Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: – 100% biodiesel FAME (fatty acid methyl ester)* – 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. All non-road Tier 4 Final/Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: – 20% biodiesel FAME (fatty acid methyl ester)* – 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. • Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** • For pre-Tier 4 engines: Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels** up to: – 100% biodiesel FAME (fatty acid methyl ester)* – 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Dimensions (Approximate) - Standard Lift
| Spec | Value |
|---|---|
| Ground to Top of ROPS | 13.8 ft 4202 mm |
| Ground to Top of Exhaust Stacks | 14.8 ft 4498 mm |
| Ground to Top of Hood | 10.9 ft 3334 mm |
| Ground to Bumper Clearance | 3.1 ft 933 mm |
| Rear Axle – Centerline to Bumper | 10.5 ft 3187 mm |
| Front Axle Centerline to Bucket Tip | 14 ft 14 mm |
| Wheel Base | 14.9 ft 4550 mm |
| Maximum Overall Length | 39.3 ft 11991 mm |
| Ground to Lower Hitch Clearance | 1.9 ft 568 mm |
| Ground to Center of Axles | 3.2 ft 978 mm |
| Clearance at Maximum Lift | 11.9 ft 3641 mm |
| B-Pin Height – Maximum Lift | 18 ft 5479 mm |
| Maximum Overall Height – Bucket Raised | 24.5 ft 7455 mm |
| Reach – Maximum Lift | 6.5 ft 1981 mm |
| Note | Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. |
Dimensions (Approximate) - High Lift
| Spec | Value |
|---|---|
| Ground to Top of ROPS | 13.8 ft 4202 mm |
| Ground to Top of Exhaust Stacks | 14.8 ft 4498 mm |
| Ground to Top of Hood | 10.9 ft 3334 mm |
| Ground to Bumper Clearance | 3.1 ft 933 mm |
| Rear Axle – Centerline to Bumper | 10.5 ft 3187 mm |
| Front Axle Centerline to Bucket Tip | 15.3 ft 4661 mm |
| Wheel Base | 14.9 ft 4550 mm |
| Maximum Overall Length | 40.7 ft 12398 mm |
| Ground to Lower Hitch Clearance | 1.9 ft 568 mm |
| Ground to Center of Axles | 3.2 ft 978 mm |
| Clearance at Maximum Lift | 13.3 ft 4043 mm |
| B-Pin Height – Maximum Lift | 19.3 ft 5881 mm |
| Maximum Overall Height – Bucket Raised | 25.8 ft 7849 mm |
| Reach – Maximum Lift | 6.8 ft 2062 mm |
| Note | Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height. |
Dimensions - Millyard Linkage
| Spec | Value |
|---|---|
| Ground to Top of ROPS | 13.8 ft 4221 mm |
| Ground to Top of Exhaust Stacks | 13.8 ft 4214 mm |
| Ground to Top of Hood | 10.9 ft 3334 mm |
| Ground to Bumper Clearance | 3.1 ft 933 mm |
| Rear Axle – Centerline to Bumper | 10.5 ft 3187 mm |
| Front Axle Centerline to Fork Tip | 16.5 ft 5023 mm |
| Wheel Base | 14.9 ft 4550 mm |
| Maximum Overall Length | 41.9 ft 12761 mm |
| Ground to Lower Hitch Clearance | 1.9 ft 568 mm |
| Ground to Center of Front Axle | 3.2 ft 978 mm |
| Fork Height with Level Arms | 8.1 ft 2474 mm |
| Fork Top Clamp Opening | 13.1 ft 4006 mm |
| Fork Height at Maximum Lift | 17.2 ft 5242 mm |
| Hinge Pin Height at Maximum Lift | 16.1 ft 4918 mm |
| Dump Angle at Maximum Lift | -39.4 ° -39.4 ° |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
- Alarm, back-up
- Alternator, single 150 amp
- Batteries, dry
- Converter, 10/15 amp, 24V to 12V
- Lighting system (LED, work lights, access and service platform lighting)
- Starting and charging system, 24V
- Auxiliary jump start receptacle
- Starter lockout in bumper
- Transmission lockout in bumper
- Hazardous voltage lamp
OPERATOR ENVIRONMENT
- Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
- Air conditioner
- Cat Vision, rear vision camera system
- Cab, sound suppressed and pressurized, integrated rollover protective structure / falling objects protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12‑volt 5-amp) and power port
- Controls, lift and tilt function
- Heater, defroster
- Horn, electric
- Instrumentation, gauges
– Coolant temperature
– Engine hour meter
– Hydraulic oil temperature
– Powertrain oil temperature - Light, cab, dome
- Lunchbox, beverage holders
- CB radio-ready
- Mirrors, rearview (externally mounted)
- Rimpull Control System (RCS)
- Seat, Deluxe
- Seat belt minder
- Seat belt, retractable, 76 mm (3 in) wide
- Steering and Transmission Integrated Control (STIC™) system
- UV glass
- Virtual gear indicator
- Vital Information Management System (VIMS™) with Graphical Information Display: External Data Port
- Wet-arm wipers/washers (front and rear)
– Intermittent front and rear wipers - Lights, directional
POWERTRAIN
- Brakes, oil-cooled, multi-disc, service/secondary
- Case drain screens
- Electro hydraulic parking brake
- Engine, C18 Mechanically Actuated Electronic Unit Injection (MEUI™) diesel, turbocharged/aftercooled
- Ground level engine shutdown switch
- Turbine precleaner, engine air intake
- Radiator, Aluminum Modular Radiator (AMR)
- Starting aid, ether, automatic
- Throttle lock, electronic
- Manual switch and automatic fuel priming
- Cat Production Measurement ready
- Cat switched reluctance (SR) generator/pump drive
- Cat switched reluctance (SR) drive motor
- Cat Integrated Powered Electronics
- Automatic retarding controls
ADDITIONAL EQUIPMENT
- Automatic bucket lift kickout/positioner
- Base machine price includes a rim allowance
- Hydraulically driven demand fan
- Couplings, Cat O-ring face seals
- Doors, service access (locking)
- Ecology drains for engine, radiator, hydraulic tank
- Fuel tank, 555 L (147 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, steering and brake filtration/screening system
- Cat Clean Emission Module (CEM)
- Oil sampling valves
- Premixed 50 percent concentration of extended life coolant with freeze protection to –34° C (–29° F)
- Rear access to cab and service platform
- Steering, load sensing
- Toe kicks
- Vandalism protection caplocks
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWERTRAIN
- –50° C (–58° F) antifreeze
- Engine oil change system, high speed, Wiggins
- Engine block heater 120V or 240V
- High ambient cooling – software
- Cat Production Measurement
- Crankcase guard
- Engine brake, software enabled attachment (SEA)
OPERATOR ENVIRONMENT
- Cab precleaner
- Cat Detect, object detection system
- Cat Production Measurement
- Radio, AM/FM/CD/MP3 Bluetooth® with Satellite SiriusXM
- LED warning strobe
- Window pull down visor
- Handrail mounted mirrors
ADDITIONAL EQUIPMENT
- Front and rear roading fenders
- Fast fill fuel system (Shaw-Aero)
- Cold Weather Package: Additional Starter and 2 Batteries, Engine Block Heater 120V or 240V, Heated Fuel Lines
- Engine Compartment Lights
- Autolube with Auto shutoff
- High Performance LED Lighting
- Wheel Chocks
- Operator Coaching
- Tire Pressure Monitoring System
- Autodig, Tire Slip Prevention, Auto Set Tires, and Lift Stall Prevention
- Additional Counterweight
OTHER OPTIONAL CONFIGURATIONS
- Aggregate Handler
- Load and Carry
- Millyard
