Caterpillar

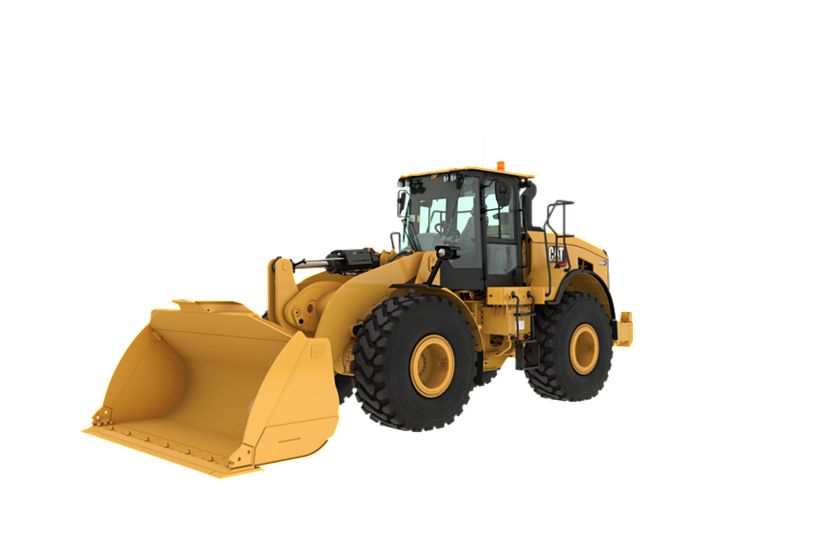

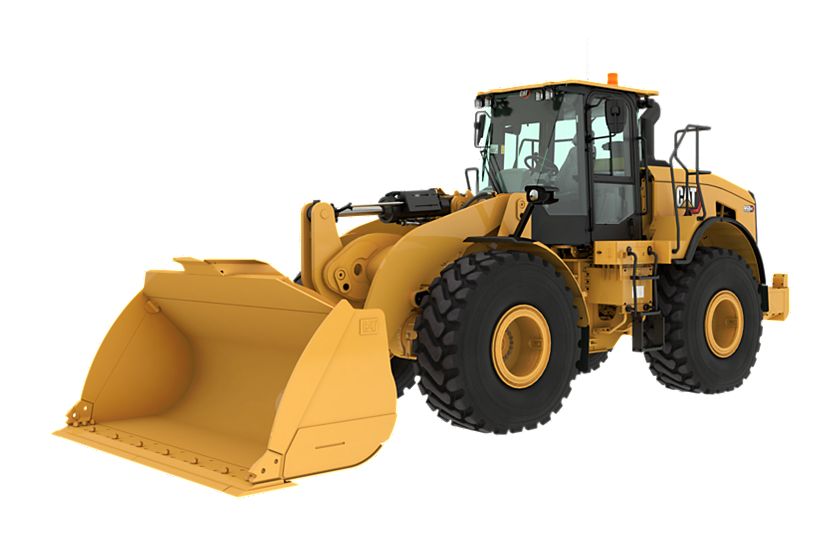

950 GC Wheel Loader | Front Loader

Net Power – ISO 9249

225 hp

168 kW

Operating Weight

41554 lb

18849 kg

Bucket Capacities

2.9-4.4 m³ (3.75-5.75 yd³)

2.9-4.4 m³ (3.75-5.75 yd³)

Overview

The Cat® 950 GC wheel loader is designed specifically to handle all the jobs on your worksite from material handling and truck loading to general construction and stockpiling. Great machine performance combined with the low owning and operating costs makes the 950 GC the right choice for your business.

Media

Photos

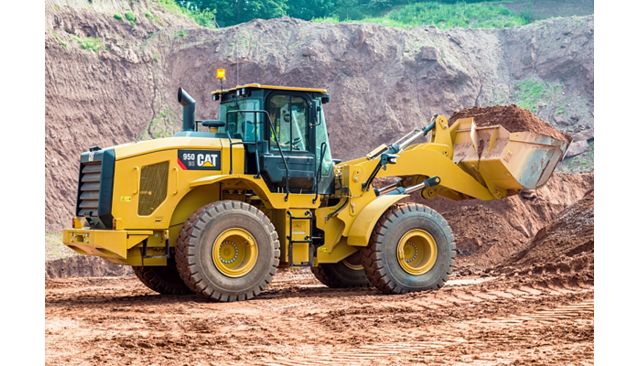

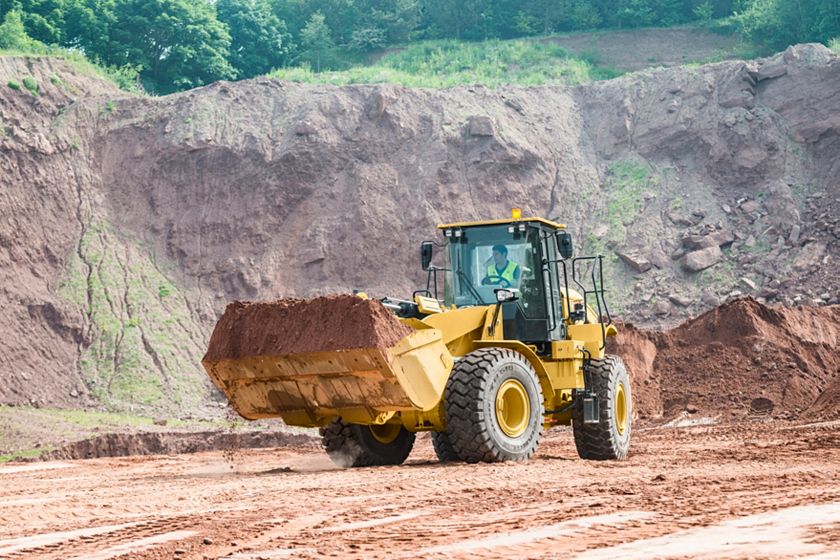

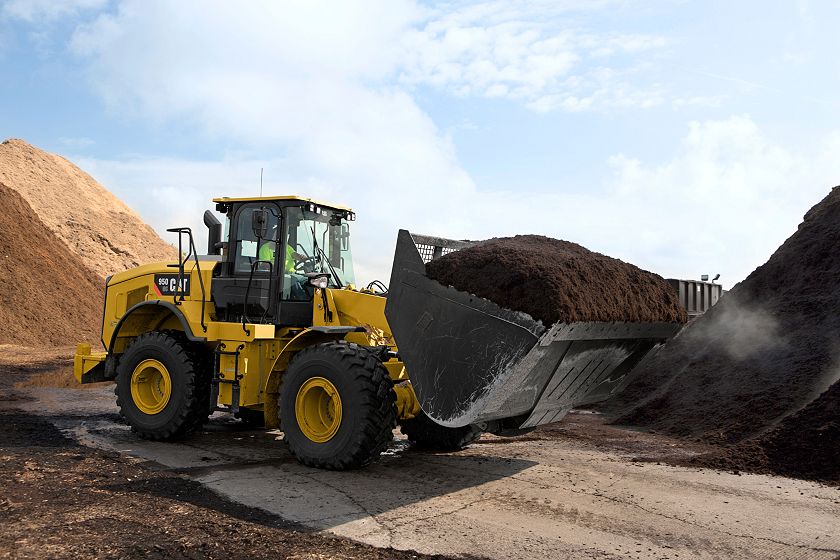

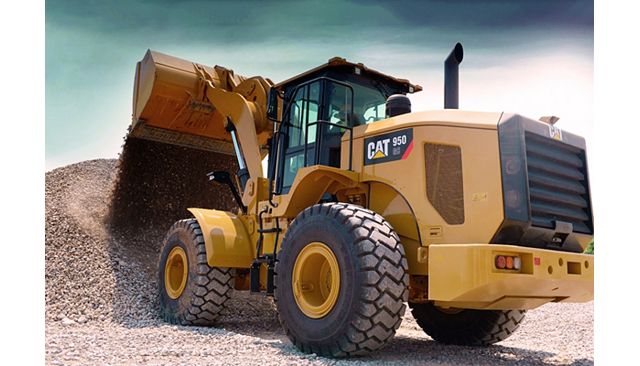

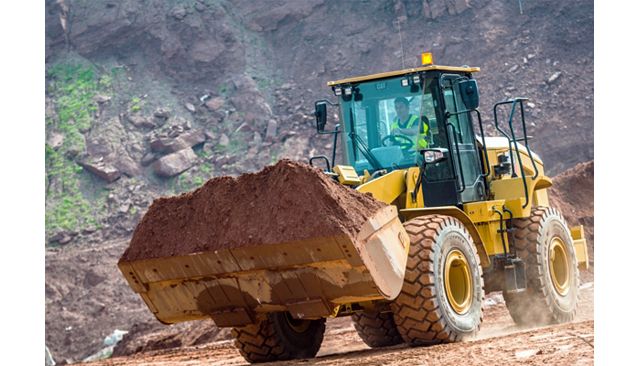

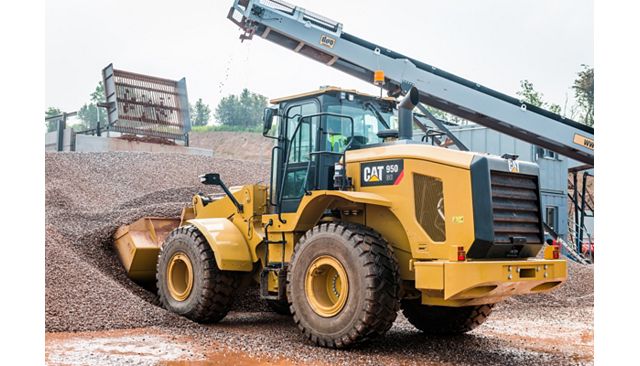

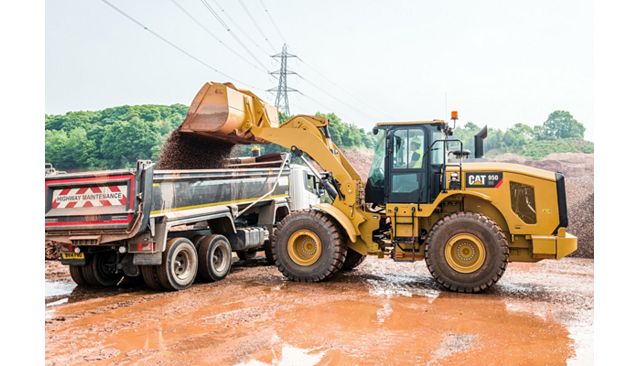

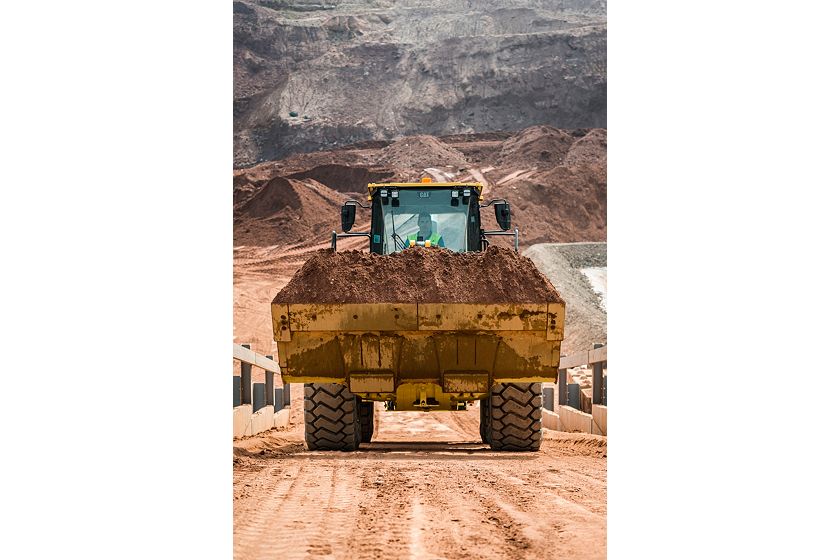

950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC
950 GC

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Cat 950 GC Wheel Loader - RELIABILITY YOU CAN COUNT ON

RELIABILITY YOU CAN COUNT ON

Cat 950 GC Wheel Loader - ACHIEVE GREATER PRODUCTIVITY

ACHIEVE GREATER PRODUCTIVITY

Cat 950 GC Wheel Loader - DO MORE WITH LESS FUEL

DO MORE WITH LESS FUEL

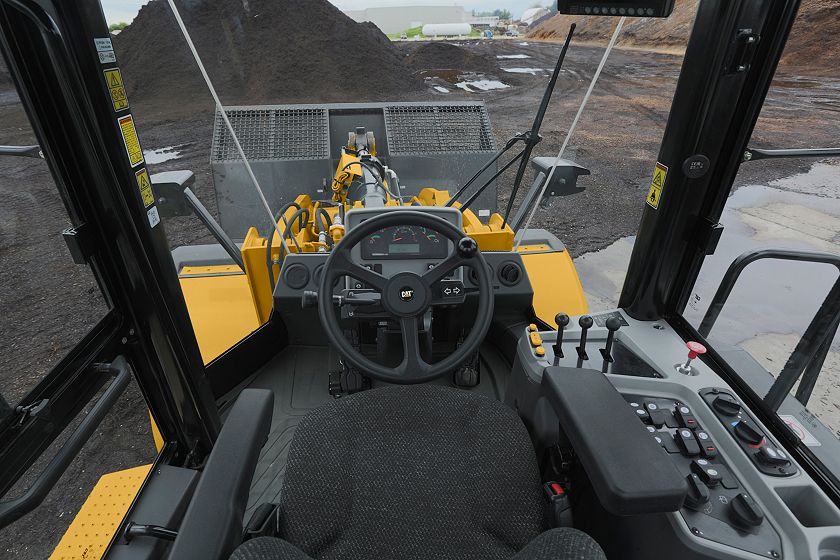

Cat 950 GC Wheel Loader - DESIGNED FOR OPERATORS

DESIGNED FOR OPERATORS

Cat 950 GC Wheel Loader - SAFELY HOME EVERY DAY

SAFELY HOME EVERY DAY

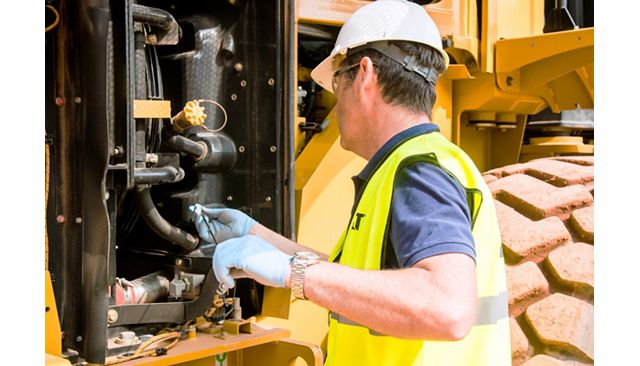

Cat 950 GC Wheel Loader - SAVE ON SERVICE AND MAINTENANCE

SAVE ON SERVICE AND MAINTENANCE

Cat 950 GC Wheel Loader - CAT PRODUCTION MEASURMENT KIT

CAT PRODUCTION MEASURMENT KIT

Details

Specifications

Spec Value
Net Power – ISO 9249 225 hp 168 kW
Emissions Tier 4/Stage V Tier 4/Stage V
Displacement 428 in³ 7.01 l
Maximum Net Power – 1,700 rpm – ISO 9249 – Metric 228 hp 168 kW
Maximum Power – 1,700 rpm – ISO 14396 240 hp 179 kW
Maximum Power – 1,700 rpm – ISO 14396 – Metric 243 hp 179 kW
Peak Gross Torque – 1,400 rpm – SAE J1995 811 ft·lbf 1099 N·m
Peak Gross Torque – 1,400 rpm – ISO 14396 805 ft·lbf 1092 N·m
Engine Model Cat C7.1 Cat C7.1
Maximum Net Power – 1,700 rpm – ISO 9249 225 hp 168 kW
Maximum Net Power – 1,700 rpm – SAE J1349 225 hp 168 kW
Maximum Power – 1,700 rpm – SAE J1995 241 hp 180 kW
Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons).
Bore 4.13 in 105 mm
Stroke 5.31 in 135 mm
Spec Value
Operating Weight 41554 lb 18849 kg
Spec Value
Bucket Capacities 2.9-4.4 m³ (3.75-5.75 yd³) 2.9-4.4 m³ (3.75-5.75 yd³)
Spec Value
Reverse – 3 14.2 mile/h 22.8 km/h
Forward – 3 14.2 mile/h 22.8 km/h
Forward – 1 4.5 mile/h 7.3 km/h
Forward – 2 8 mile/h 12.8 km/h
Forward – 4 22.4 mile/h 36 km/h
Reverse – 2 8 mile/h 12.8 km/h
Reverse – 1 4.5 mile/h 7.3 km/h
Note Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius. Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius.
Spec Value
Hydraulic Cycle Time – Total Cycle Time 9.4 s 9.4 s
Steering System – Pump Type Piston Piston
Implement System – Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min) 4047 psi 27900 kPa
Implement System – Maximum Pump Output at 2,390 rpm 68 gal/min 256 l/min
Spec Value
DEF Tank 4.2 gal (US) 16 l
Transmission 11.9 gal (US) 45 l
Fuel Tank Size 76.6 gal (US) 290 l
Cooling System 13.2 gal (US) 50 l
Differential – Final Drives – Rear 10 gal (US) 38 l
Differential – Final Drives – Front 10.6 gal (US) 40 l
Crankcase 4.8 gal (US) 18 l
Hydraulic Tank 29.6 gal (US) 112 l
Spec Value
With Cooling Fan Speed at Maximum Value – Operator Sound Pressure Level (ISO 6396:2008) 73 dB(A) 73 dB(A)
With Cooling Fan Speed at Maximum Value – Exterior Sound Power Level (ISO 6395:2008) 109 dB(A) 109 dB(A)
With Cooling Fan Speed at Maximum Value – Exterior Sound Pressure Level (SAE J88:2013) 76 dB(A)* 76 dB(A)*
Note (1) *Distance of 15 m (49.2 ft), moving forward in second gear ratio. *Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value: Note (2) European Union Directive "2000/14/EC" as amended by "2005/88/EC." European Union Directive "2000/14/EC" as amended by "2005/88/EC."
With Cooling Fan Speed at 70% of Maximum Value – Operator Sound Pressure Level (ISO 6396:2008)** 73 dB(A) 73 dB(A)
With Cooling Fan Speed at 70% of Maximum Value: Note (1) For machines in European Union countries and in countries that adopt the EU Directives For machines in European Union countries and in countries that adopt the EU Directives
With Cooling Fan Speed at Maximum Value – Note Distance of 15 m (49.2 ft), moving forward in second gear ratio. Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value – Exterior Sound Power Level (ISO 6395:2008)** 107 LWA*** 107 LWA***
Note (3) ***European Union Directive "2000/14/EC" as amended by "2005/88/EC." ***European Union Directive "2000/14/EC" as amended by "2005/88/EC."
Note (2) **For machines in European Union countries and in countries that adopt the "EU Directives." **For machines in European Union countries and in countries that adopt the "EU Directives."
Spec Value
Rack Back – Ground 40 degrees 40 degrees
Height – Top of Exhaust Pipe 11.17 ft 3416 mm
Centerline of Rear Axle to Hitch 5.42 ft 1650 mm
Lift Arm Clearance 12 ft 3649 mm
B-Pin Height 13.75 ft 4188 mm
Centerline of Rear Axle to Edge of Counterweight 6.75 ft 2055 mm
Ground Clearance 1.5 ft 460 mm
Rack Back – Maximum Lift 60 degrees 60 degrees
Height – Top of Hood 8.75 ft 2673 mm
Wheel Base 10.83 ft 3300 mm
Height – Top of ROPS 11.33 ft 3458 mm
Rack Back – Carry 45 degrees 45 degrees
Note All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires. All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires.
Spec Value
Note (2) *Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing. *Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Tipping Load – Full Turn – Rigid Tires** 25875 lb 11737 kg
Breakout Force 34638 lbf 154 kN
Tipping Load – Full Turn – ISO 14397-1* 24264 lb 11006 kg
Note (3) **Compliance to ISO (2007) 14397-1 Sections 1 thru 5. **Compliance to ISO (2007) 14397-1 Sections 1 thru 5.
Operating Weight 41554 lb 18849 kg
Note (1) For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound suppression. For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound suppression.
Spec Value
Emissions Tier 4/Stage IV Tier 4/Stage IV

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

  • Engine – Cat C7.1 meets Tier 4 Final/Stage IV emissions standards
  • Torque converter
  • Transmission, automatic, power shift (4F/3R), kick-down function, overspeed protection
  • Brakes, full hydraulic enclosed wet-disc
  • EIMS (Engine Idle Management System)
  • EIS (Auto Idle Shutdown)
  • Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
  • Filter, fuel primary-water separator/secondary
  • Radiator, unit core (9.5 fpi) with ATAAC
  • Starting aid, glow plugs
  • Switch, transmission neutralizer lockout

HYDRAULICS

  • Load sensing implement system pilot operated
  • Dedicated load sensing steering pump
  • Dedicated brake and fan gear pump

ELECTRICAL

  • Alarm, back-up/main disconnect switch
  • Alternator (145-amp, brush type)
  • Batteries (2), maintenance free
  • Ignition key; start/stop switch
  • Lighting system, halogen (6 total) – Four (4) halogen work lights; Two (2) halogen road lights
  • Starting and charging system (24-volt)
  • Starter, electric (heavy duty)

OPERATOR ENVIRONMENT

  • Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
  • Bucket/work tool function lockout
  • Cab, pressurized and sound suppressed
  • Hydroformed (ROPS/FOPS) structure
  • 12V power port (10A)
  • Coat hook
  • Radio ready
  • Rear vision camera and display
  • Pilot hydraulic controls, lift and tilt function
  • Computerized monitoring system
  • Gauges – Engine coolant temperatures/fluid level; Hydraulic/transmission oil temperature; Tachometer/DEF level
  • Digital indicators – Gear indicator; Speedometer; Service meter units; Fault codes
  • Warning indicators – Air inlet heater; Electrical malfunction; Engine inlet manifold temperature; Engine oil pressure, fuel level; Fuel pressure high/low; Hydraulic oil level, parking brake; Primary steering oil pressure; Service brake oil pressure; Action light, engine malfunction; Transmission filter bypass
  • Heater and defroster
  • Horn
  • Cup holders and personal tray on right console
  • Storage tray behind seat
  • Mirrors, rearview external
  • Seat, Cat Comfort (clotch) suspension
  • Seat belt
  • Steering column, adjustable angle
  • Wipers/washers (front and rear)
  • Window, sliding (left and right side)

TIRES, RIMS, AND WHEELS

  • Tires are available from Triangle, Maxam and Bridgestone
  • Offerings vary by region. Consult your local Cat dealer for further details

FLUIDS

  • Premixed 50% concentration of extended life coolant with freeze protection to -34° C (-29° F)

OTHER STANDARD EQUIPMENT

  • Lift and bucket return-to-dig kick outs (Electro-Magnetic), mechanical adjustment
  • Couplings, Cat O-ring face seal
  • Doors, service access (locking)
  • Front fender, steel
  • Grill, airborne debris
  • Hitch, drawbar with pin
  • Hood, wing doors
  • Hoses, Cat XT
  • Counterweight
  • Linkage, Z-bar, fabricated crosstube/tilt lever
  • S•O•S oil sampling valves
  • Sight gauges – Engine coolant, hydraulic oil; Transmission oil level
  • Diagnostic pressure taps
  • Product Link Ready

Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

  • Cold weather starting (jacket water heater, electric and ether starting aid)
  • Third hydraulic function, additional dedicated single axis level
  • Quick coupler control
  • Limited slip differentials
  • Ride control
  • Air suspended seat
  • Secondary steering, electrical
  • Reversing cooling fan (auto/manual controlled)
  • Toolbox
  • Sun visor, rear
  • High capacity converted 12V/15A
  • Warning beacon
  • Extra working lights (4), Halogen or LED
  • Radio
  • Fender extensions/roading

Related Products

Model

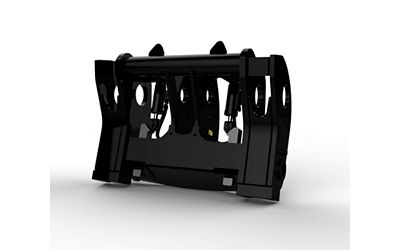

Fusion™ Coupler - Loader

Model

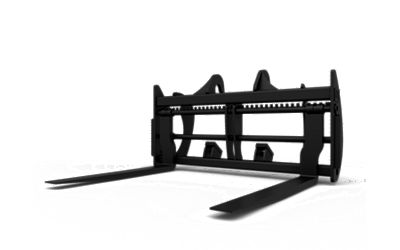

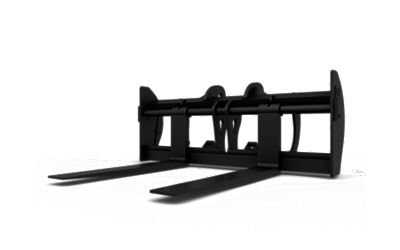

Pallet Forks

Model Shot

Construction Forks

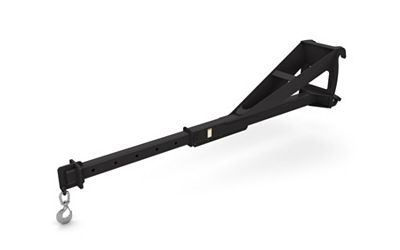

Material Handling Arms
