Cat

651 Wheel Tractor-Scraper

Flywheel Power – Tractor/Scraper

469kW (629 hp)

469kW (629 hp)

Tractor Engine

Cat C18

Cat C18

Scraper Capacity – Heaped

44 yd³

33.6 m³

Overview

Caterpillar is excited to announce the 651 comeback into our Wheel Tractor-Scraper lineup in 2022. Delivering high levels of productivity, the 651 single engine earthmoving system is a wise choice on numerous large-scale projects by providing fast cycle times when working in lower grades and rolling resistance applications. First introduced into the Cat® Wheel Tractor-Scraper lineup in 1962, the 651 continues to uphold its legacy as one of our signaturemachines. Its single engine power gives the ability to work with a Cat D10 or D11 push dozer delivering ultra-fast load times and the ability to work in abrasive or rocky conditions. Improvements in productivity, combined with enhancements in operator comfort, and new safety features – Powered Access System and effective wet disc brakes – for a machine offering high returns on profit and time

Media

Photos

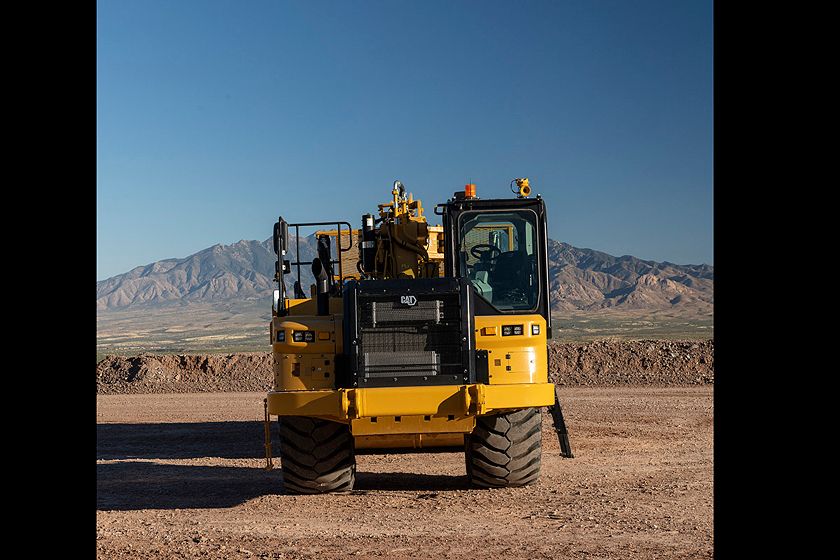

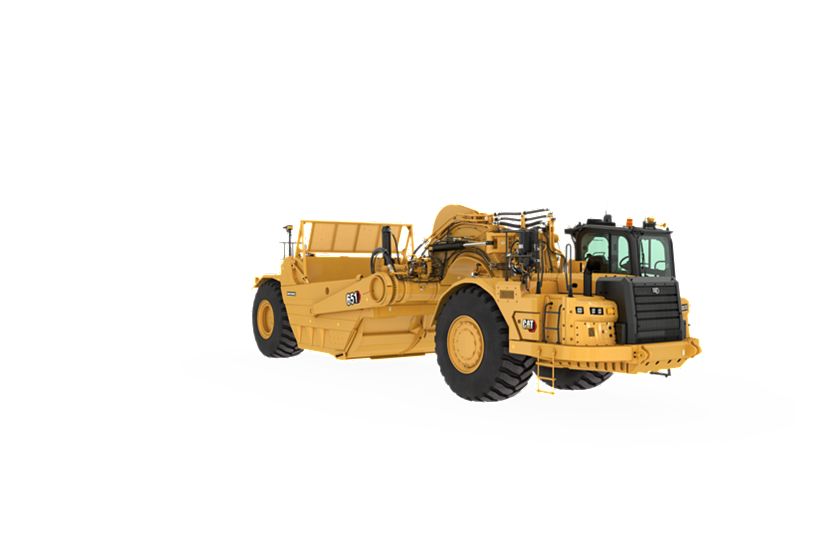

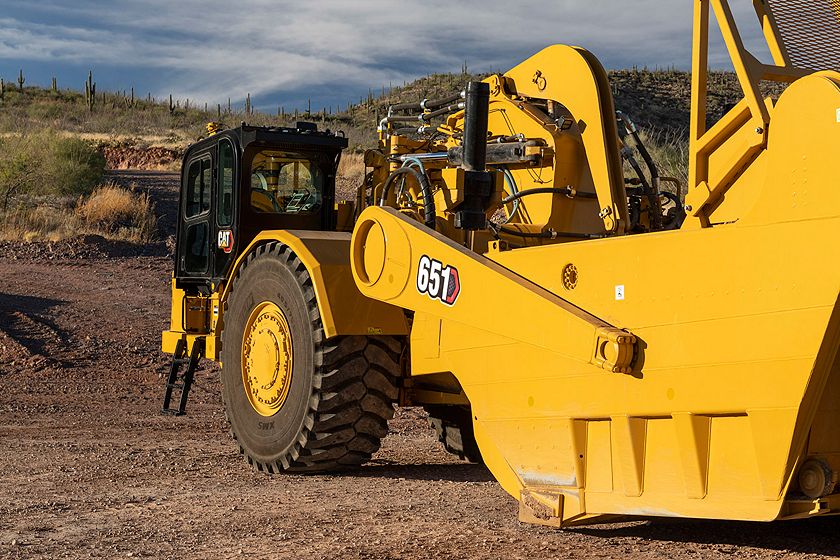

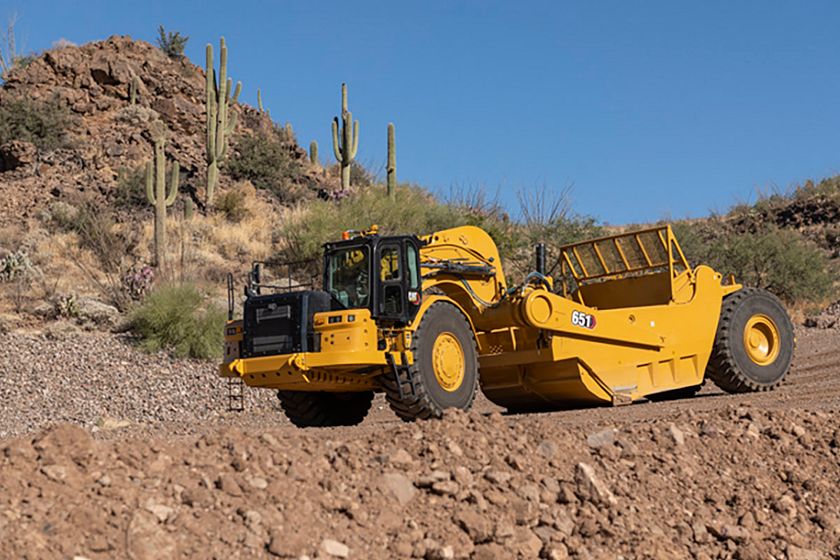

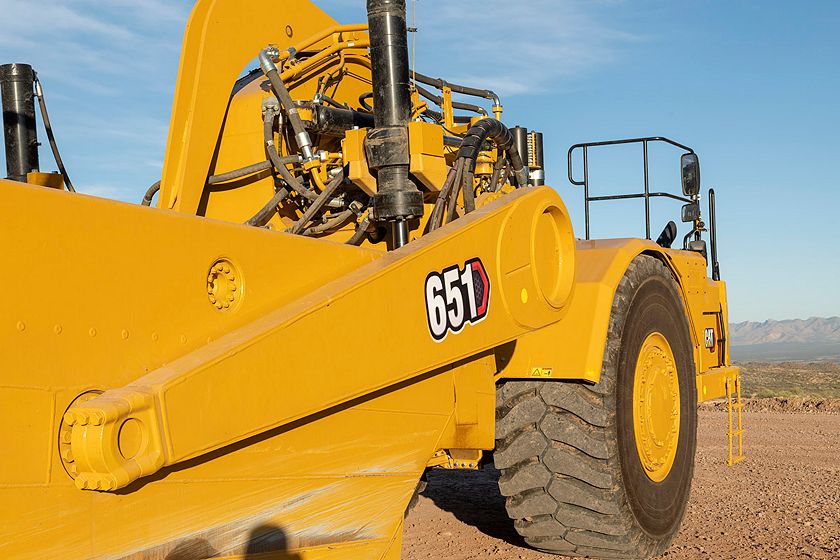

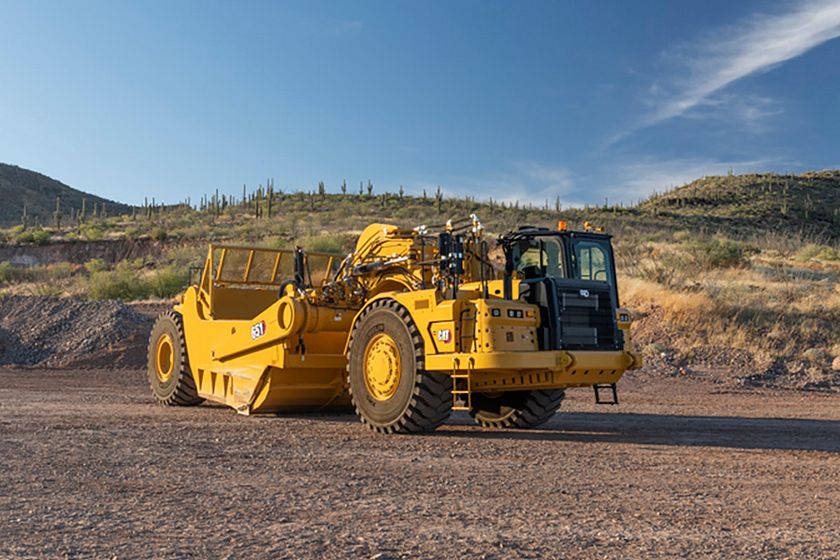

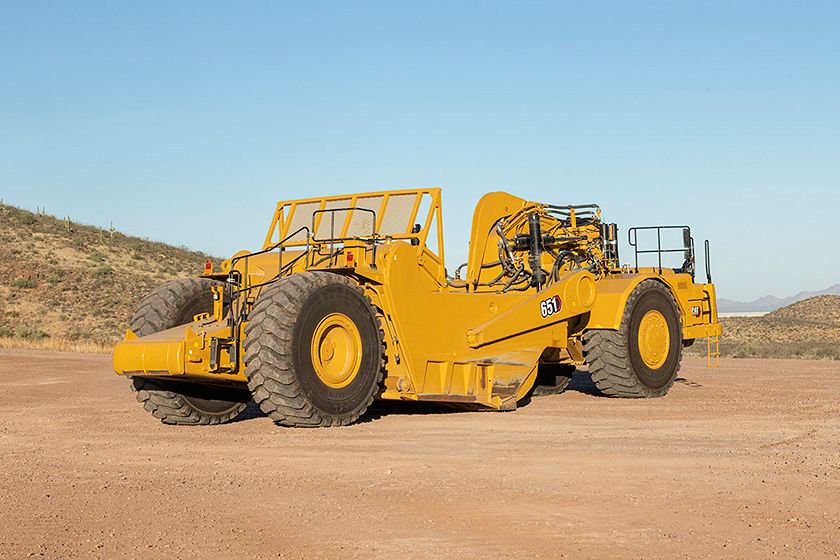

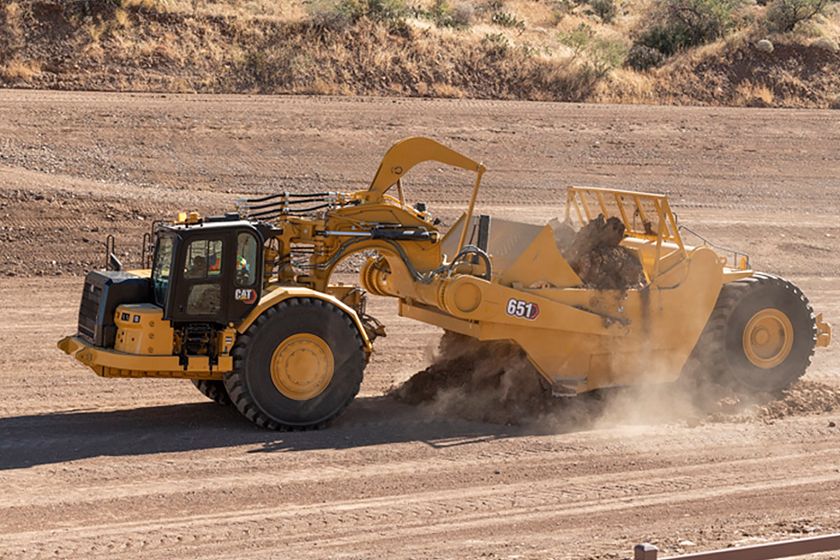

651
651
651
651
651
651
651
651
651
651
651
651
651
651
651
651

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Documents

Details

Specifications

Spec Value
Tractor Engine Cat C18 Cat C18
Spec Value
Flywheel Power – Tractor/Scraper 469kW (629 hp) 469kW (629 hp)
Net Power 469 kW/637 hp 469 kW/637 hp
Gross Power (SAE J1995) 637 hp 475 kW
Net Power (ISO 14396) 585 hp 436 kW
Bore 5.7 in 145 mm
Stroke 7.2 in 183 mm
Displacement 1105 in³ 18.1 l
Net Power (SAE J1349/ISO 9249) 592 hp 436 kW
Spec Value
Scraper Capacity – Heaped 44 yd³ 33.6 m³
Rated Load 104058 lb 47200 kg
Capacity – Struck 32 yd³ 24.5 m³
Depth of Cut – Maximum 17.3 in 417 mm
Width – Cut – To Router Bits 12.5 ft 3.8 m
Ground Clearance – Maximum 2.3 ft 0.7 m
Hyd. Penetration Force – 657G 121000 lb 542 kN
Depth of Spread – Maximum 26 in 530 mm
Apron Opening 92 in 2337 mm
Apron Closure Force 39200 lb 176 kN
Spec Value
Top Speed – Loaded 34.9 mile/h 56.1 km/h
1 Forward 3.5 mile/h 5.7 km/h
2 Forward 6.5 mile/h 10.5 km/h
3 Forward 7.8 mile/h 12.5 km/h
4 Forward 10.6 mile/h 17 km/h
5 Forward 14.2 mile/h 22.8 km/h
6 Forward 19.2 mile/h 30.9 km/h
7 Forward 25.7 mile/h 41.4 km/h
8 Forward 34.9 mile/h 56.1 km/h
Reverse 6.7 mile/h 10.8 km/h
Spec Value
Bowl Cylinder Bore 7.08 in 180 mm
Bowl Cylinder Stroke 37.4 in 950 mm
Apron Cylinder Bore 7.08 in 180 mm
Apron Cylinder Stroke 29.92 in 759.5 mm
Steering Circuit (@ High Idle) 76.08 gal/min 288 l/min
Cushion Hitch Circuit 19.54 gal/min 74 l/min
Secondary Steering Circuit 14.52 gal/hr 55 l/hr
Relief Valve – Steering Circuit 1959 psi 13500 kPa
Relief Valve – Implement Circuit 1999 psi 13780 kPa
Compensator Settings – Cushion Hitch Circuit 3002 psi 20700 kPa
Spec Value
Width – 180° Turn – Right 44.6 ft 13.6 m
Width – 180° Turn – Left 47.57 ft 14.5 m
Steering Angle – Right 90 90
Steering Angle – Left 85 85
Spec Value
Crankcase 13.7 gal (US) 38 l
Transmission 35.9 gal (US) 136 l
Differential 36 gal (US) 136 l
Final Drive – Each 6 gal (US) 29.5 l
Cooling System 23.4 gal (US) 88.6 l
Hydraulic Reservoir 39.6 gal (US) 150 l
Windshield Washer 0.5 gal (US) 5 l
Spec Value
Width – Overall Machine 14.3 ft 4.36 m
Width – Tractor 12.3 ft 3.75 m
Width – Rear Tire Center Lines 9.21 ft 2.81 m
Width – Inside of Bowl 12.07 ft 3.68 m
Width – Outside Bowl – Shipping Width 12.98 ft 3.93 m
Height – Overall Shipping 15.29 ft 4.66 m
Height – Top of Cab 12.86 ft 3.92 m
Ground Clearance – Tractor 2.3 ft 0.7 m
Front of Tractor to Front Axle 14.93 ft 4.55 m
Axle to Vertical Hitch Pin 1.8 ft 0.55 m
Height – Scraper Blade Maximum 2.17 ft 0.66 m
Wheel Base 32.68 ft 9.96 m
Length – Overall Machine 58.96 ft 17.97 m
Rear Axle – Rear of Machine 8.07 ft 2.46 m
Spec Value
Total Shipping 160505 lb 72804 kg
Tractor Shipping 93635 lb 42472 kg
Scraper Shipping 64068 lb 29061 kg
Total Operating – Empty 164244 lb 74500 kg
Front Axle 93842 lb 42566 kg
Rear Axle 66663 lb 30238 kg
Total Operating – Loaded 268302 lb 121700 kg
Front Axle – Loaded 134165 lb 60856 kg
Rear Axle – Loaded 130340 lb 59121 kg
Spec Value
Fuel Tank 430 gal (US) 1628 l
Differential 44 gal (US) 168 l
Final Drive – Each 7.8 gal (US) 30 l
Transmission 31.9 gal (US) 121 l
Crankcase 8.9 gal (US) 34 l
Cooling System 16.6 gal (US) 63.2 l

Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

  • Alarm, backup
  • Alternator, 115 amp – tractor engine
  • Alternator, 65 amp – scraper engine
  • Batteries Tractor (4), 12V Maintenance Free, High Output
  • Batteries Scraper (4), 12V Maintenance Free, High Output
  • Electrical System, 24V
  • Lighting System – Tractor
  • Lighting System – Scraper
  • Starting Receptacle – tractor and scraper engines

OPERATOR ENVIRONMENT

  • Air Conditioner (includes heater and defroster)
  • Automotive style fuse panel with fuse puller
  • Lunch box platform with holding strap
  • Coat Hook
  • Cup holder
  • Diagnostic Connection Port (12V)
  • Dome Courtesy Light
  • Engine speed lock
  • Fan defroster
  • Gauge Group
  • Horn
  • Implement Control Joystick
  • Rearview Mirrors
  • Radio Ready
  • 2 radio openings, speakers, and 5-amp converter
  • ROPS Cab with Sound Suppression and Pressurization
  • Static Seatbelt, 2 piece
  • Scraper Engine Controls
  • Seat, Air Suspension, Cat Advanced Ride Management
  • Steering Wheel – tilt and telescoping
  • Storage Compartment
  • Transmission Hold
  • Windows – sliding side
  • Windshield – laminated glass
  • Windshield Wiper/Washer – front and rear
  • Wrist Rest/Grab Handle

POWER TRAIN

  • Tractor
  • Scraper

OTHER STANDARD EQUIPMENT

  • Tractor
  • Scraper
