Cat

1.0 m3 (1.3 yd3) Pin On General Purpose Bucket With Bolt-On Cutting Edge

Load, carry, dump and perform general clean-up work.

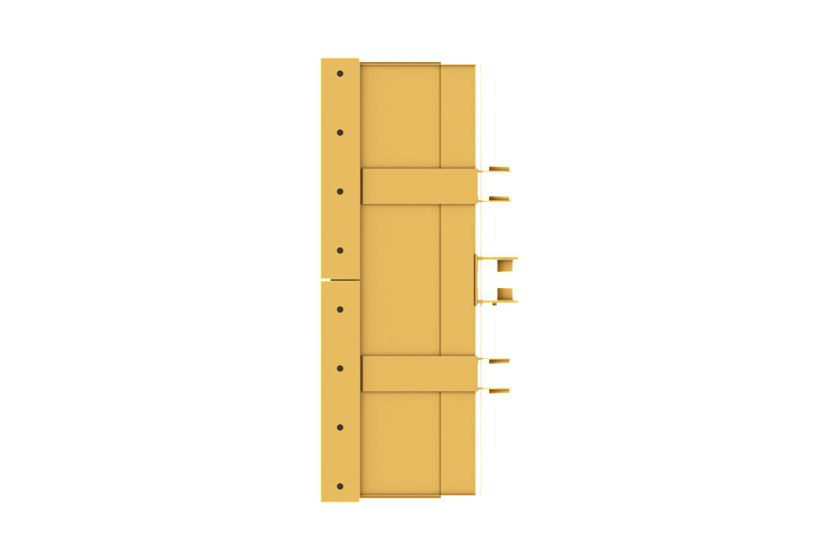

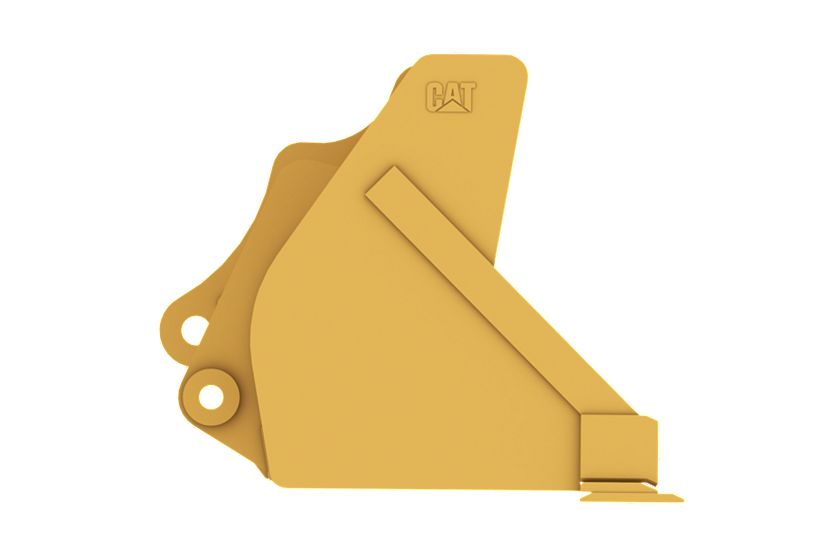

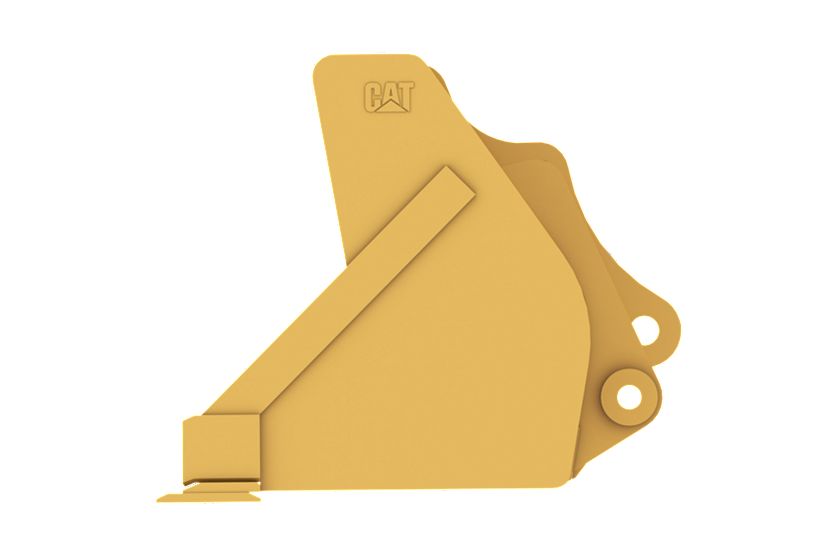

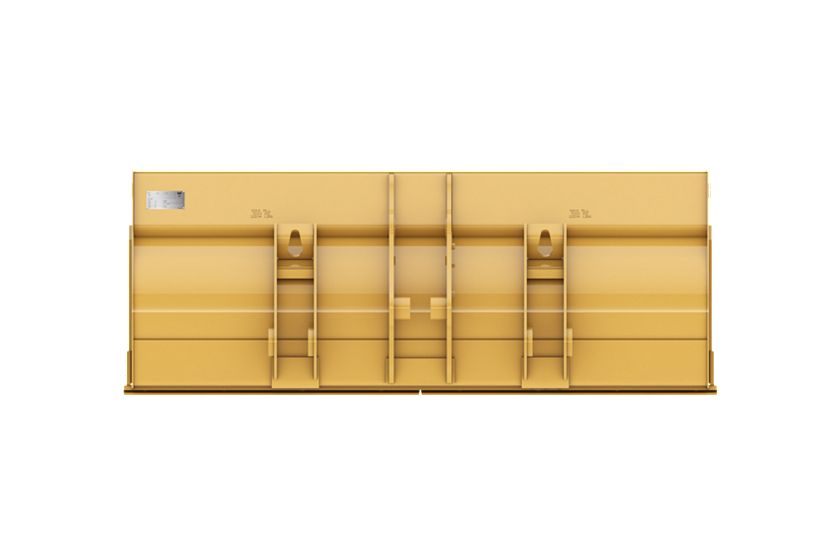

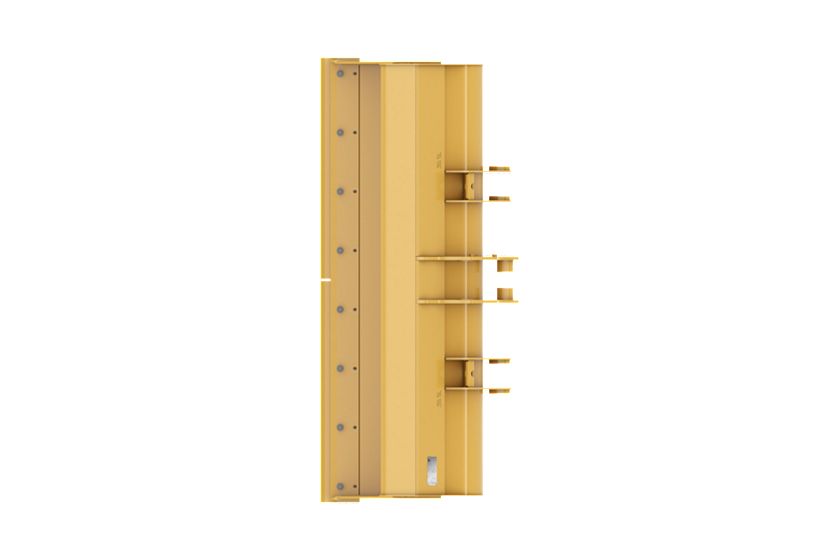

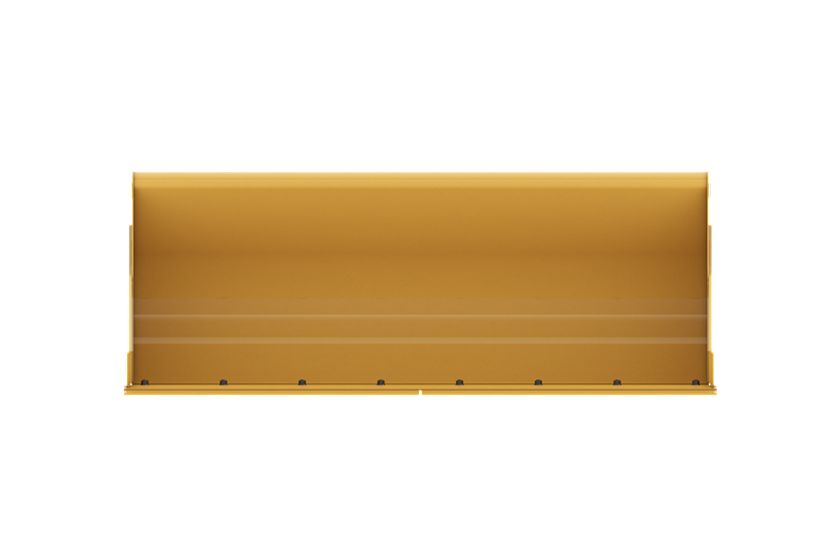

Media

Studio Shot

Front View

Top View

Left View

Rear View

Bottom View

Right View

An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Cat® Backhoes – Front Loader Buckets and Forks Brochure

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Email
This field is for validation purposes and should be left unchanged.

Features

Application

Bucket Design

Superior Bucket Fill

Ground Engaging Tools

Specifications

US Metric

General

Spec	Value
Width	89.1 in 2262 mm
Height	33.9 in 862 mm
Weight	1021 lb 463.1 kg
Length	40 in 1016 mm
Capacity	1.3 yd³ 1 m³
Base Edge Thickness	0.8 in 20 mm
Cutting Edge Thickness	0.7 in 19 mm
Interface Type	Pin On Pin On
