Caterpillar

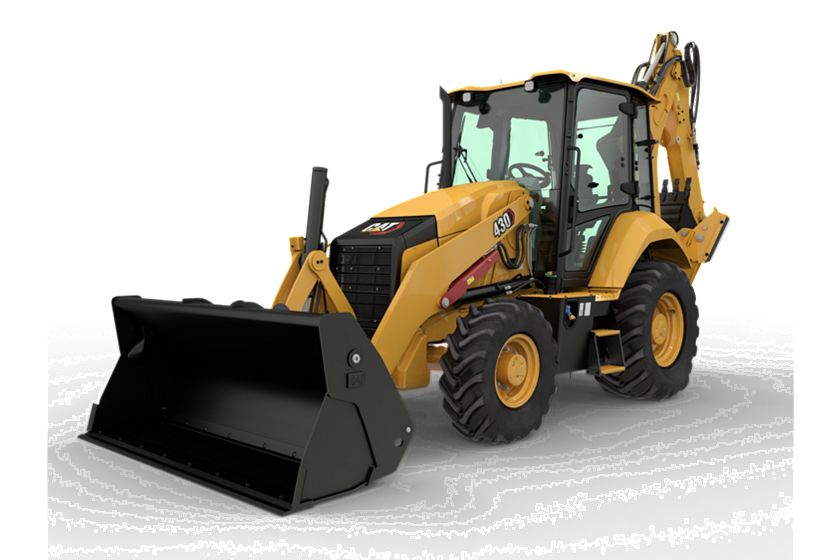

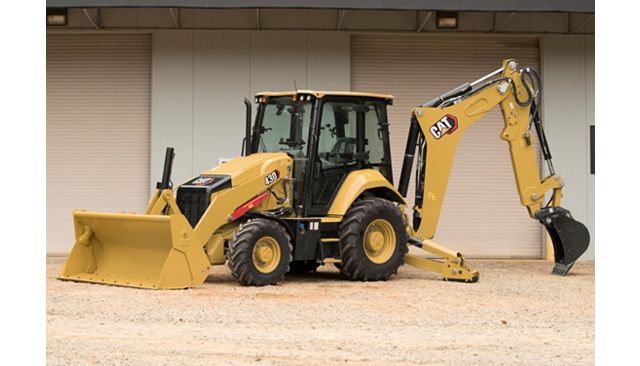

430 Backhoe Loader

Name: 430 Backhoe Loader
Brand: Caterpillar

Maximum Gross Power – SAE J1995: 2014

118 hp (88 kW)

Dig Depth – Standard

15.1 ft

4612 mm

Operating Weight – Maximum

24251 lb

11000 kg

Overview

The Cat^® 430 Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system, versatility and an updated operator station.

Media

0:02 / 4:46 Cat® 420 and 430 Backhoe Loader – Features and Benefits (North America)

Documents

Get more info

Facebook
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.

Features

Ergonomic Operator Station

Load Sensing Hydraulics

Machine Performance

Machine Versatility

Cat Attachments

Powershift Transmission

Spring Applied Hydraulically Released (SAHR) Parking Brake

Sustainability

Specifications

US Metric

Engine

Spec	Value
Maximum Gross Power – SAE J1995: 2014	118 hp (88 kW) 118 hp (88 kW)
Engine Model	C3.6 86 kW (115 hp) Electronic Turbo Intercooled C3.6 86 kW (115 hp) Electronic Turbo Intercooled
Emissions	Engine meets Tier 4 Final/Stage V emission standards. Engine meets Tier 4 Final/Stage V emission standards.
Ratings at 2,200 rpm – Gross Power SAE J1995	118 hp 88 kW
Ratings at 2,200 rpm – Gross Power ISO 14396	115 hp 86 kW
Net Power Rating at 2,200 rpm – SAE J1349	107 hp 80 kW
Net Power Rating at 2,200 rpm – ISO 9249	106 hp 79 kW
Net Peak Power Rating @ 2,200 rpm – SAE J1349	107 hp 80 kW
Net Peak Power Rating @ 2,200 rpm – ISO 9249	106 hp 79 kW
Dimensions – Bore	3.86 in 98 mm
Dimensions – Stroke	4.72 in 120 mm
Displacement	220 in³ 3.6 l
Net Torque Rise – 1,400 rpm – SAE J1349	41% 41%
Net Torque Rise – 1,400 rpm – SAE J1349	358 ft-lb 486 N·m
Power Rating Conditions – No De-Rating Required Up To	10000 ft 3048 m

Weights

Spec	Value
Operating Weight – Maximum	24251 lb 11000 kg
Operating Weight – Estimated*	18051 lb 8188 kg
Operating Weight – Maximum – ROPS Capacity	24251 lb 11000 kg
Operating Weight (minimum)**	16590 lb 7525 kg
Cab – ROPS/FOPS	320 lb 145 kg
Auto-Shift Transmission	STD STD
Ride Control	33 lb 15 kg
Air Conditioning	99 lb 45 kg
All-Wheel Drive	STD STD
MP Bucket (0.96 m3/1.25 yd3) – With Fold-Over Forks	2017 lb 915 kg
MP Bucket (0.96 m3/1.25 yd3) – Without Fold-Over Forks	1642 lb 745 kg
Loader QC	540 lb 245 kg
Extendible Stick (excludes ft. counterweight)	655 lb 297 kg
Counterweights, base	256 lb 115 kg
Counterweights, base – Stackable, one	529 lb 240 kg
Counterweights, base – Maximum	1014 lb 460 kg
Note (1)	Machine configuration: standard stick hoe, OROPS canopy, AWD powershift shift transmission, 0.96 m3 (1.25 yd3) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 460 kg (1,014 lb) counterweight, 80 kg (176 lb) operator, full fuel tank. Machine configuration: standard stick hoe, OROPS canopy, AWD powershift shift transmission, 0.96 m3 (1.25 yd3) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 460 kg (1,014 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.
Note (2)	Minimum weight configuration is the same as configuration above, however, excludes counterweight, hoe bucket, and operator. Minimum weight configuration is the same as configuration above, however, excludes counterweight, hoe bucket, and operator.

Backhoe

Spec	Value
Dig Depth – Standard	15.1 ft 4612 mm

Transmission

Spec	Value
Power Shift Transmission – Standard – Forward – 1st	3.7 mile/h 5.9 km/h
Power Shift Transmission – Standard – Forward – 2nd	5.9 mile/h 9.5 km/h
Power Shift Transmission – Standard – Forward – 3rd	12 mile/h 20 km/h
Power Shift Transmission – Standard – Forward – 4th	26 mile/h 41 km/h
Power Shift Transmission – Standard – Reverse – 1st	3.7 mile/h 5.9 km/h
Power Shift Transmission – Standard – Reverse – 2nd	7.7 mile/h 12.4 km/h
Power Shift Transmission – Standard – Reverse – 3rd	17 mile/h 27 km/h
Power-Shift Transmission – Optional – Forward -1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission – Optional – Forward – 2nd	5.9 mile/h 9.5 km/h
Power-Shift Transmission – Optional – Forward – 3rd	8 mile/h 12 km/h
Power-Shift Transmission – Optional – Forward – 4th	12 mile/h 20 km/h
Power-Shift Transmission – Optional – Forward – 5th	17 mile/h 27 km/h
Power-Shift Transmission – Optional – Forward – 6th	26 mile/h 41 km/h
Power-Shift Transmission – Optional – Reverse – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission – Optional – Reverse – 2nd	7.7 mile/h 12 km/h
Power-Shift Transmission – Optional – Reverse – 3rd	17 mile/h 27 km/h
Power-Shift Transmission with LTC – Optional – Forward – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission with LTC – Optional – Forward – 2nd	5.9 mile/h 9.5 km/h
Power-Shift Transmission with LTC – Optional – Forward – 3rd	8 mile/h 12 km/h
Power-Shift Transmission with LTC – Optional – Forward – 4th	12 mile/h 20 km/h
Power-Shift Transmission with LTC – Optional – Forward – 5th	17 mile/h 27 km/h
Power-Shift Transmission with LTC – Optional – Forward – 5th LTC	18 mile/h 29 km/h
Power-Shift Transmission with LTC – Optional – Forward – 6th	26 mile/h 41 km/h
Power-Shift Transmission with LTC – Optional – Forward – 6th LTC*	25 mile/h 40 km/h
Power-Shift Transmission with LTC – Optional – Reverse – 1st	3.7 mile/h 5.9 km/h
Power-Shift Transmission with LTC – Optional – Reverse – 2nd	7.7 mile/h 12 km/h
Power-Shift Transmission with LTC – Optional – Reverse – 3rd	17 mile/h 27 km/h
Note (1)	Travel speeds of backhoe loader at full throttle, when equipped with 500/70-24 rear tires. Travel speeds of backhoe loader at full throttle, when equipped with 500/70-24 rear tires.
Note (2)	Limited by engine speed to 40 km/h (25 mph). Limited by engine speed to 40 km/h (25 mph).

Axle Ratings

Spec	Value
Front Axle, AWD – Static	26455 lb 12000 kg
Front Axle, AWD – Dynamic	20233 lb 6000 kg
Rear Axle – Static	28660 lb 13000 kg
Rear Axle – Dynamic	15432 lb 7000 kg

Hydraulic System

Spec	Value
Type	Closed Center Closed Center
Pump Type	Variable-flow, Axial Piston Variable-flow, Axial Piston
Pump Capacity at 2,200 rpm	49.4 gpm 187 L/min
System Pressure – Backhoe	3626 psi 25000 kPa
System Pressure – Loader	3626 psi 25000 kPa

Steering

Spec	Value
Type	Front Wheel Steering Front Wheel Steering
Power Steering	Hydrostatic Hydrostatic
Cylinder	One Double-Acting One Double-Acting
Bore	2.6 in 65 mm
Stroke	4.2 in 106 mm
Rod Diameter	1.6 in 40 mm
Axle Oscillation	11° 11°
Turning Circle – (inner wheel not braked) – Outside Front Wheels	26.92 ft 8.205 m
Turning Circle – (inner wheel not braked) – Outside Widest Loader Bucket	35.25 ft 10.745 m

Service Refill Capacities

Spec	Value
Cooling System with Air Conditioning	4.8 gal (US) 18 l
Fuel Tank	42.3 gal (US) 160 l
Engine Oil – With Filter	2.4 gal (US) 9 l
Diesel Exhaust Fluid (DEF)	5 gal (US) 19 l
Transmission – Power Shuttle – AWD	4.8 gal (US) 18 l
Transmission – Power Shift – AWD	5 gal (US) 19 l
Rear Axle	4.2 gal (US) 16 l
Rear Axle – Planetaries	0.4 gal (US) 1.7 l
Front Axle (AWD)	2.9 gal (US) 11 l
Front Axle (AWD) – Planetaries	0.2 gal (US) 0.7 l
Hydraulic System	25.1 gal (US) 95 l
Hydraulic Tank	11.1 gal (US) 42 l

Sustainability

Spec	Value
Recyclability	92% 92%

Standard Equipment

STANDARD EQUIPMENT

Adjustable auxiliary controls, backhoe loader
Air cleaner
Alarm, back-up
Audible system fault alarm
Automatic Engine Speed Control (AESC)
Battery, maintenance-free, 850 CCA
Battery disconnect switch
Boom transport lock
Brace, lift cylinder
Brake, parking, Spring Applied Hydraulically Released (SAHR)
Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
Bucket level indicator
Canopy, ROPS/FOPS
Cat cushion swing system
Coat restraint
Coolant/antifreeze, extended life
Dome light (cab only)
Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
Differential lock, loader joystick
Drink holders, two
Engine, Cat C3.6 ACERT (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
Engine enclosure, sound suppression, removable side panels
Face seals, O-ring
Fan, suction and guard
Fast reversing shuttle, all gears
Fenders, rear
Filters, spin-on: fuel, engine oil, transmission oil, water separator
Filters, bowl and cartridge: hydraulic fluid
Flashing hazards/signal lights
Floor mat
Fuel tank, fully enclosed
Four wheel drive
Four wheel drive shaft guard
Fully hinged front grill for cooling package cleaning access
Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
Ground level fuel fill and DEF fill
Halogen lights, working (4 front, 4 rear)
High ambient cooling package
Hood lock, inside cab
Hydraulic hose, XT™
Hydraulic oil cooler
Hydraulic oil level sight gauge
Hydraulic valves, loader 2 function
Hydraulic valves, backhoe 5 function
Hydraulics, load sensing with variable displacement piston pump
Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
Instrument panel lights
Joystick controls: pilot operated, excavator-style with pattern changer
Key start/stop system
LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
Loader, self-leveling, return-to-dig and transmission disconnect switch
Loader, single tilt
Mirror, interior, rearview
One-touch low idle
Open circuit breather
Pattern changer, in cab
Power receptacle, 5 volt USB, 1 internal
Power receptacle, 12 volt, 2 internal, 1 external
Power steering, hydrostatic
Product Link™, satellite, network manager
Product Link, cellular, network manager
Seat belt, retractable, 51 mm (2 in)
Socket, two roof
Stabilizer shoes, street
Steering knob
Seat, air suspension, vinyl cover, with armrest
Stabilizers, EH Control, Auto-UP
Starting system, glow plugs
Steering column, tilting, telescopic
Storage compartment, lockable
Storage tray
Stop and tail lights
Swing transport lock
Tires
Toolbox, external, lockable
Torque converter
Throttle, hand and foot, electronic
Transmission, 4 speed, powershift
Transmission neutralizer switch
Transport tie-downs
Vandalism locks, four
Warning horn, electric

Optional Equipment

OPTIONAL EQUIPMENT

Auxiliary hydraulics, loader, adjustable flow
Auxiliary hydraulics, rear, adjustable flow
Battery, additional, 850 CCA
Cab, deluxe
Cold weather fuel (–30° C/–22° F)
Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
Fenders, front with integral steps
Guard, boom protection plate
Guard, stabilizer, rock
Hydraulic valves, loader with auxiliary thumb control (3rd valve for MP or Quick Coupler)
Hydraulic valves, backhoe (with 6th function)
Hydraulic lines, combined function auxiliary
LED lights, working (4 front, 4 rear)
Quick Coupler, hydraulic, dual lock
Quick Coupler, manual, dual lock
Quick Coupler, manual, pin lock
Radio and CD player, Bluetooth®
Ride Control
Rotating beacon, magnetic mount
Seat, air suspension, fabric with armrest
Seat, air suspension, fabric with armrest, heated
Seat belt, retractable, 75 mm (3 in)
Security system, Bluetooth
Security system, operator display
Side mirrors, cab, external
Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
Stabilizer pads, reversible
Stick, extendible
Transmission, AutoShift with lock-up torque converter, 6 speed
Vandalism protection, gauge cover
Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
