Cat

1200 mm (47 in) Pin On Grading Bucket With Bolt-On Cutting Edge

For cleaning ditches, sloping, grading and other finishing work.

Media

Photos

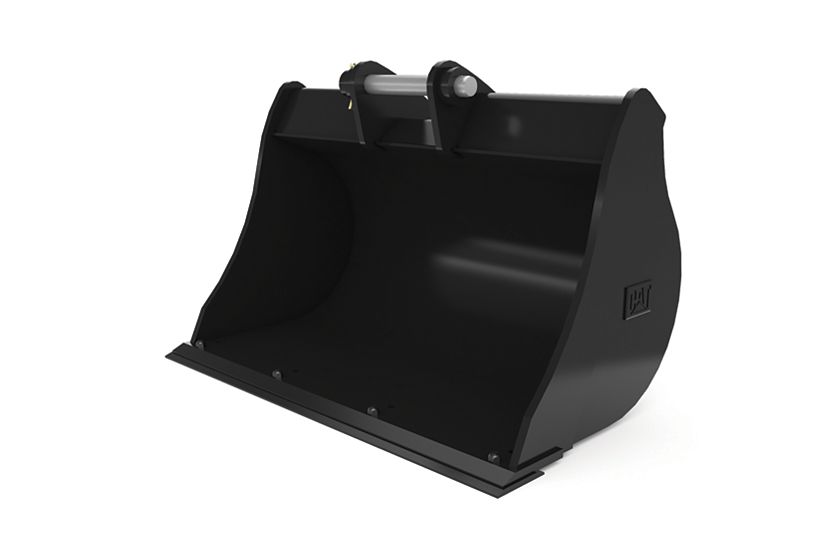

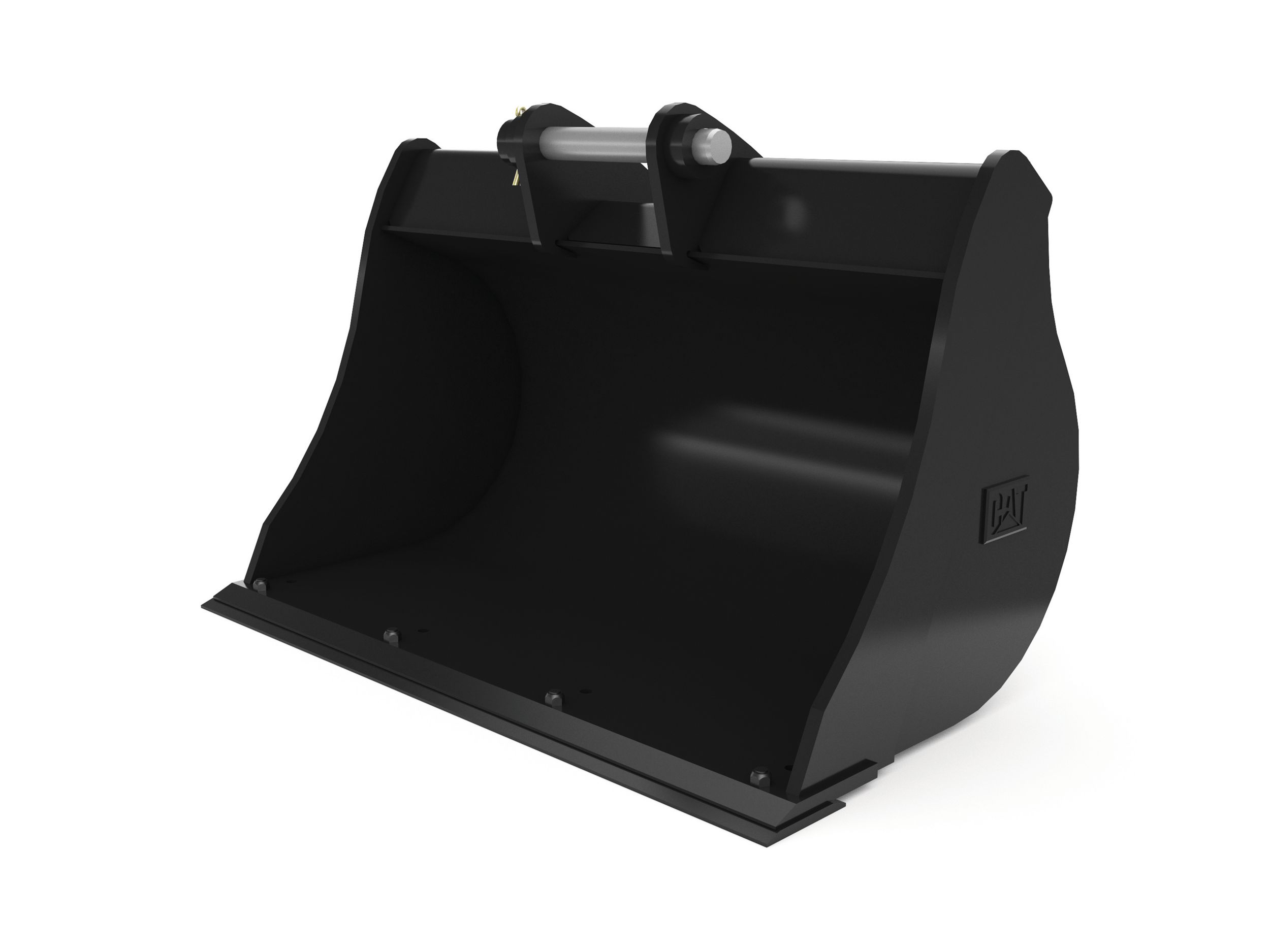

Studio Shot
Studio Shot

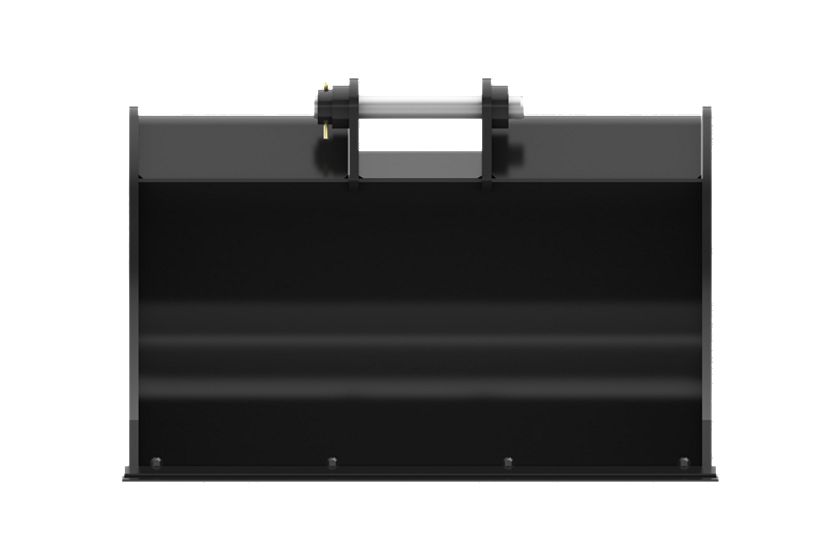

Front View
Front View

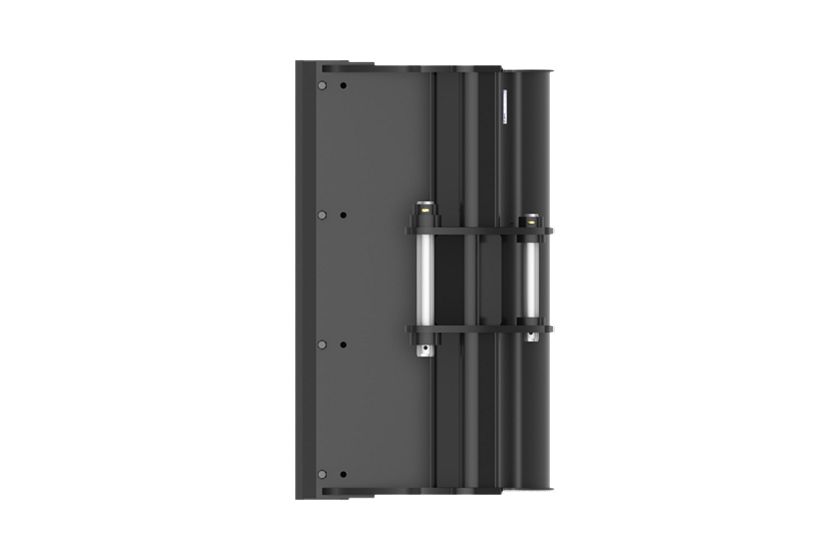

Top View
Top View

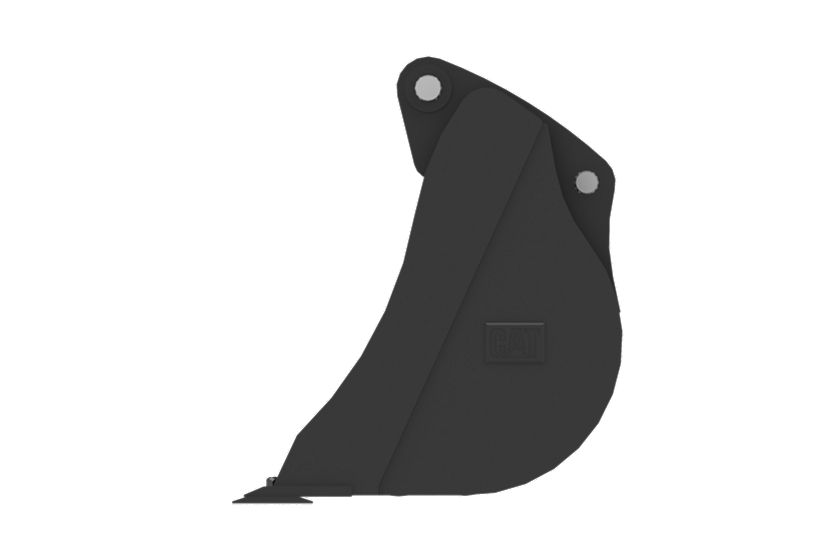

Left View
Left View

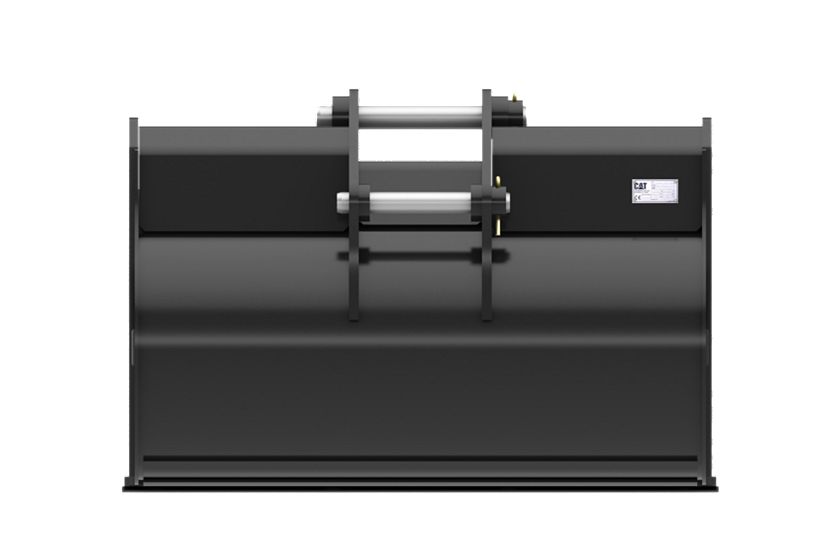

Rear View
Rear View

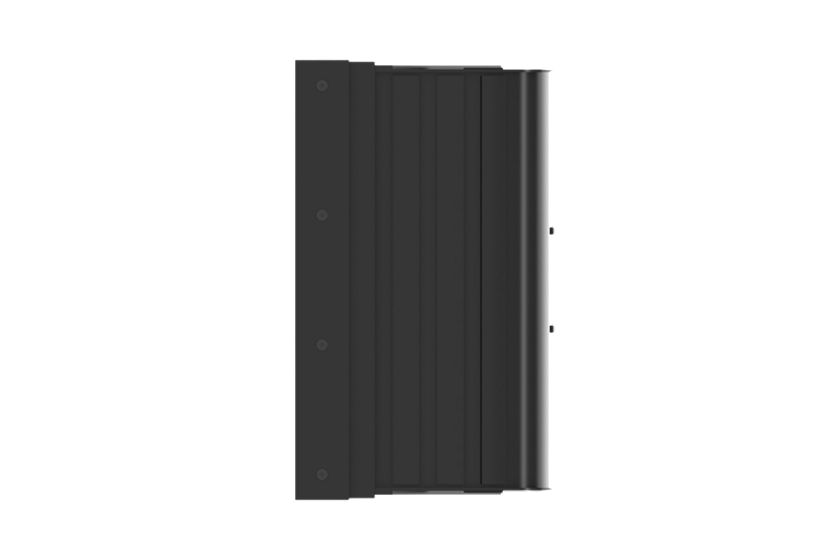

Bottom View
Bottom View

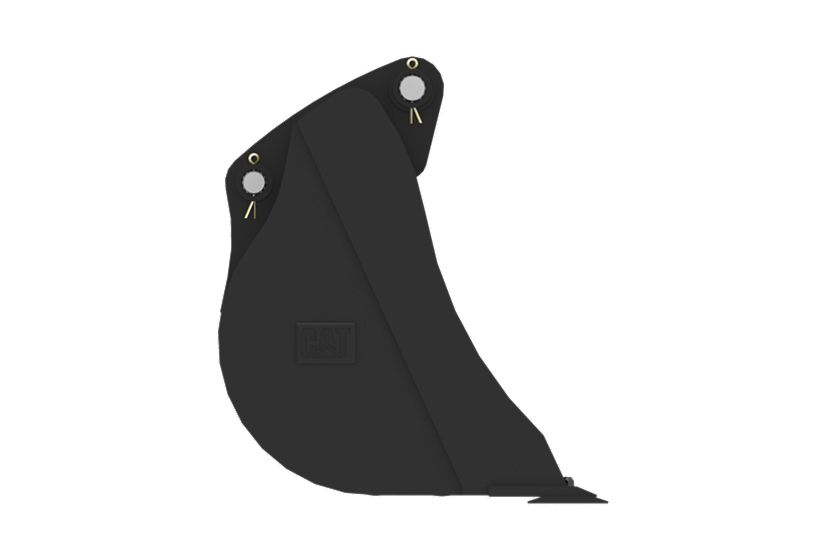

Right View
Right View

Videos

An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Features

Bucket Nesting

Bolt-On Cutting Edge

Lack of Drainage Holes

Included Pins

Details

Specifications

Spec Value
Width 47.2 in 1200 mm
Capacity 14.6 ft³ 413 l
Weight 632.7 lb 287 kg
Base Edge Thickness 0.8 in 20 mm
Bolt-On Cutting Edge Thickness 0.5 in 12.7 mm
Tip Radius 33.9 in 860 mm
Interface Type Pin On Pin On

Related Products

416 Backhoe Loader

Center-Pivot
