Cat

457 mm (18 in), 119 L (4.2 ft3) Pin On Heavy Duty Bucket With Weld-On Adapters

Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

Media

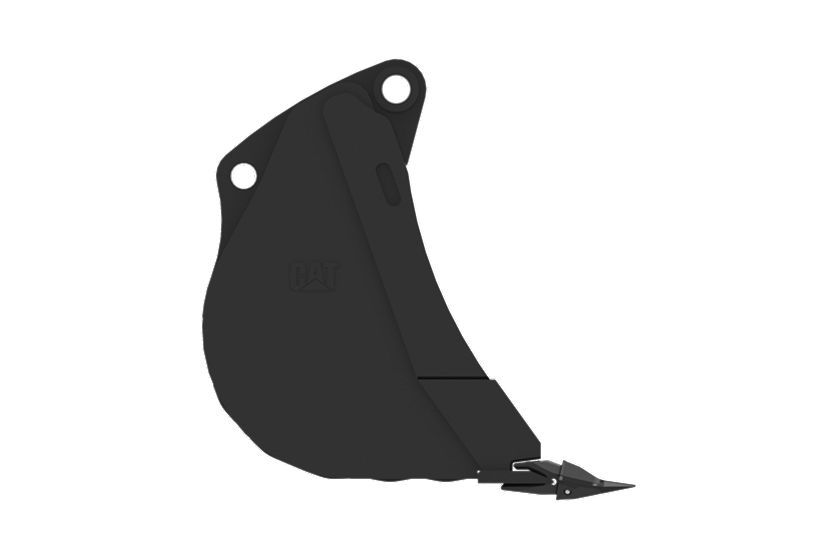

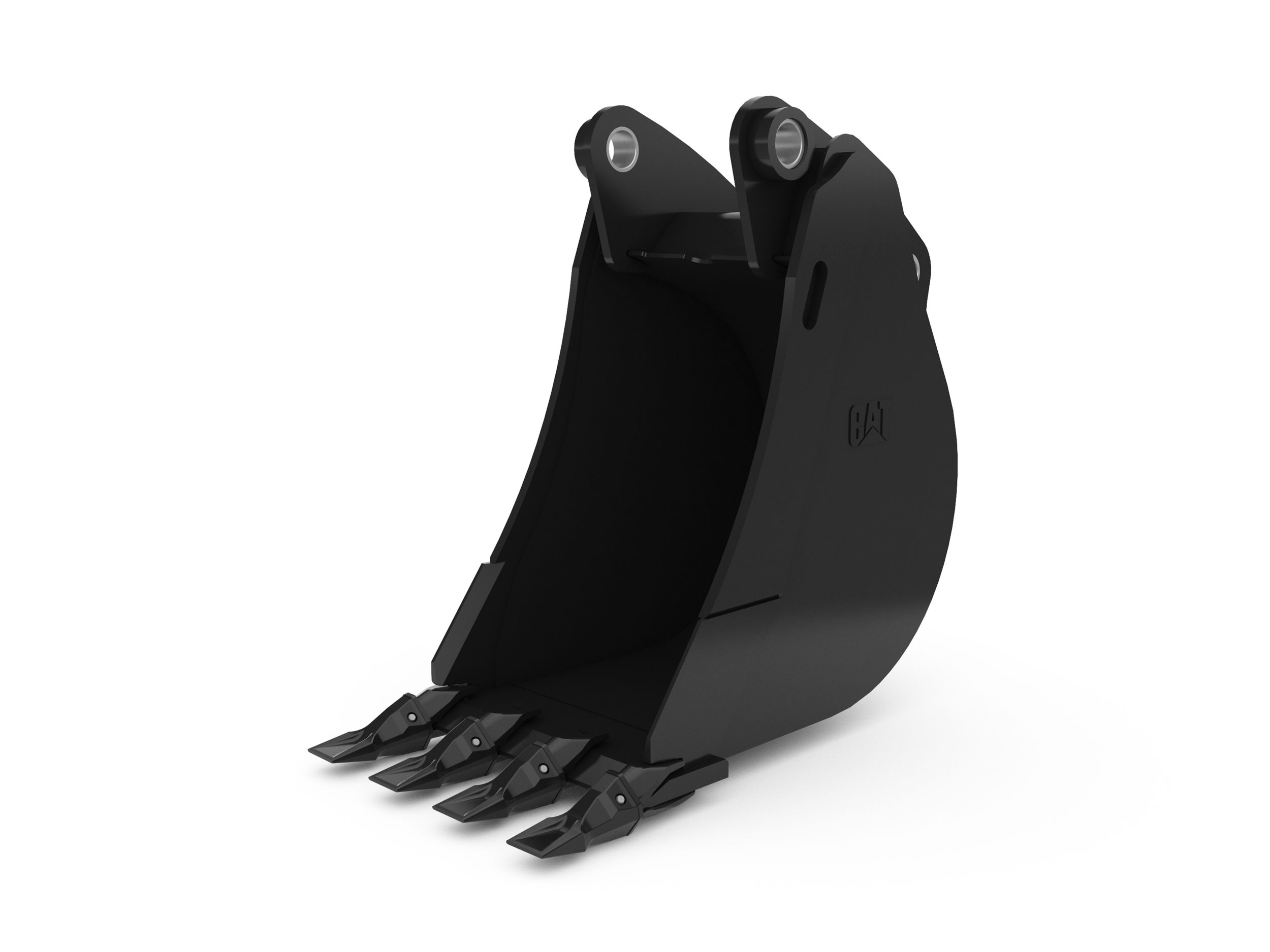

Studio Shot

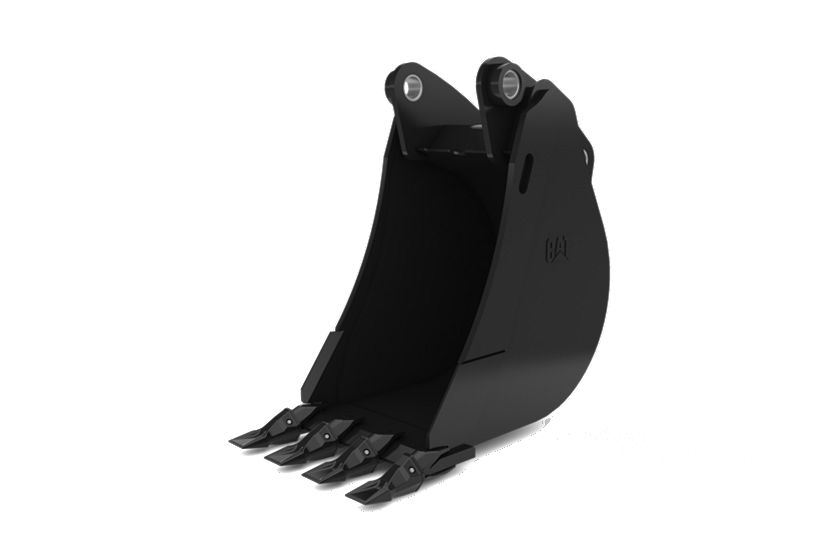

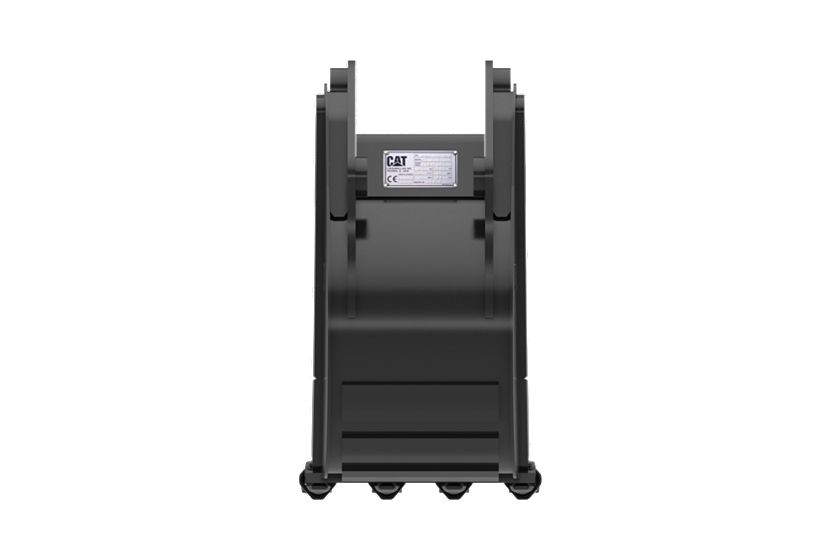

Front View

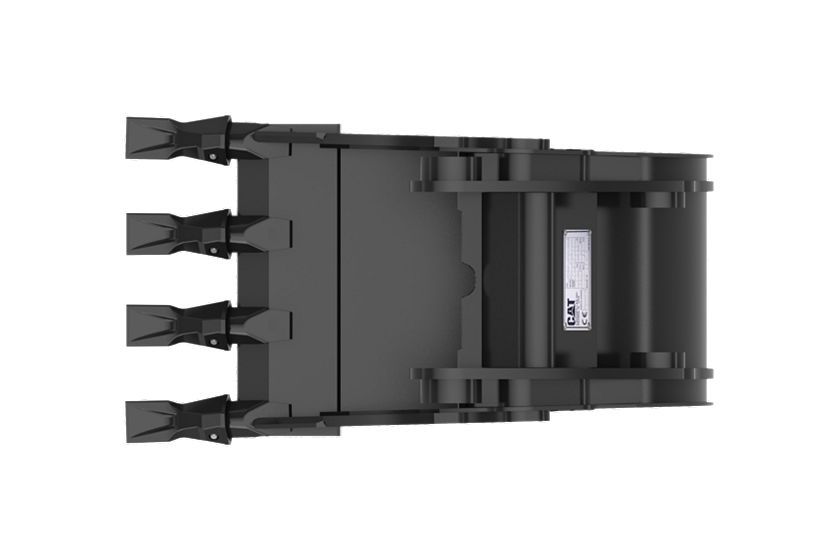

Top View

Left View

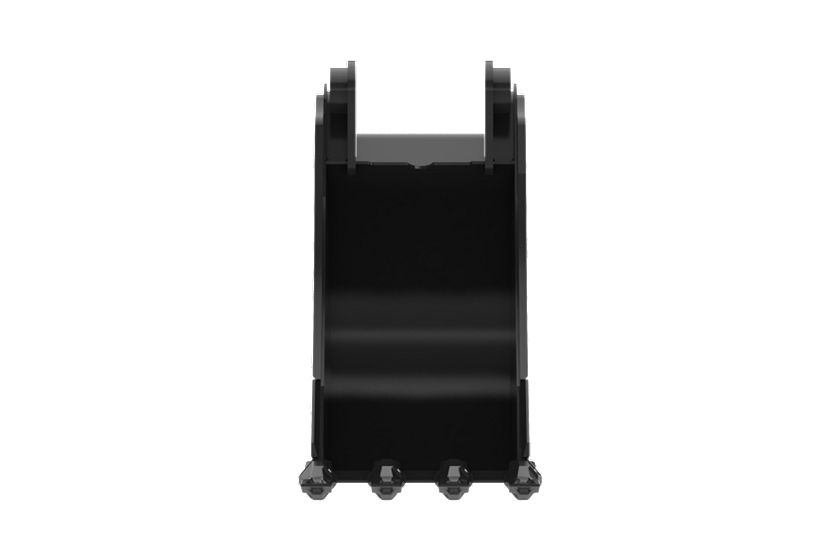

Rear View

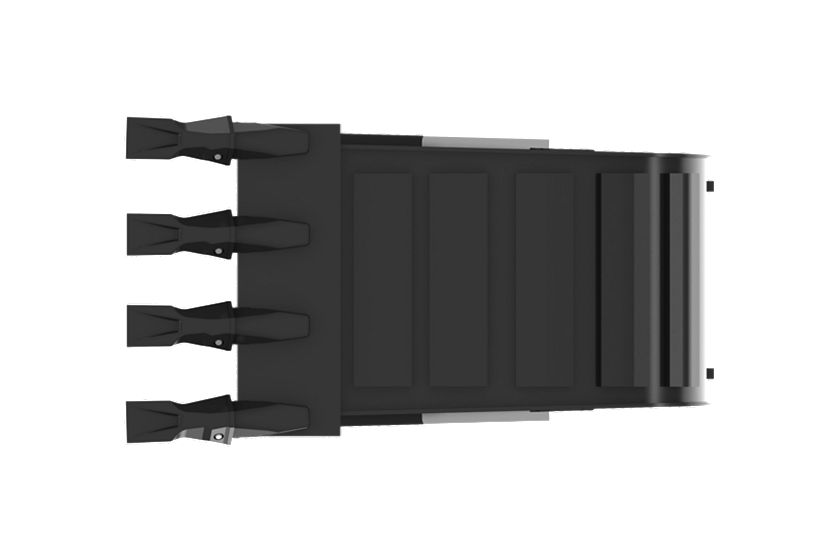

Bottom View

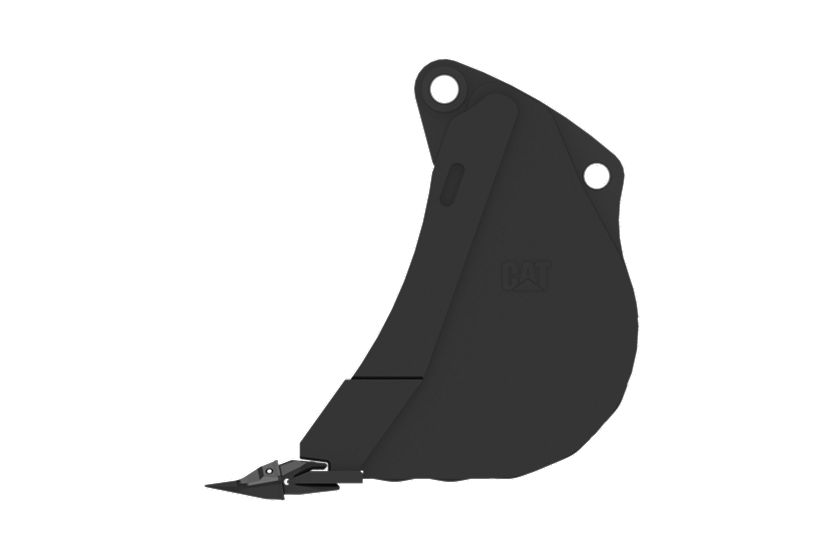

Right View

An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Cat® Backhoe Loaders – Rear Buckets Brochure

Get more info

Phone
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Application

Bucket Shape

Rugged Design

Specifications

US Metric

General

Spec	Value
Width	18 in 457 mm
Capacity	4.2 ft³ 119 l
Weight	284.4 lb 129 kg
Base Edge Thickness	1 in 25 mm
Tip Radius	35.8 in 909 mm
Interface Type	Pin On Pin On
