Cat

762 mm (30 in) Pin On Heavy Duty Rock Bucket

Designed to work in the harsh rocky conditions found in various regions of the world.

Media

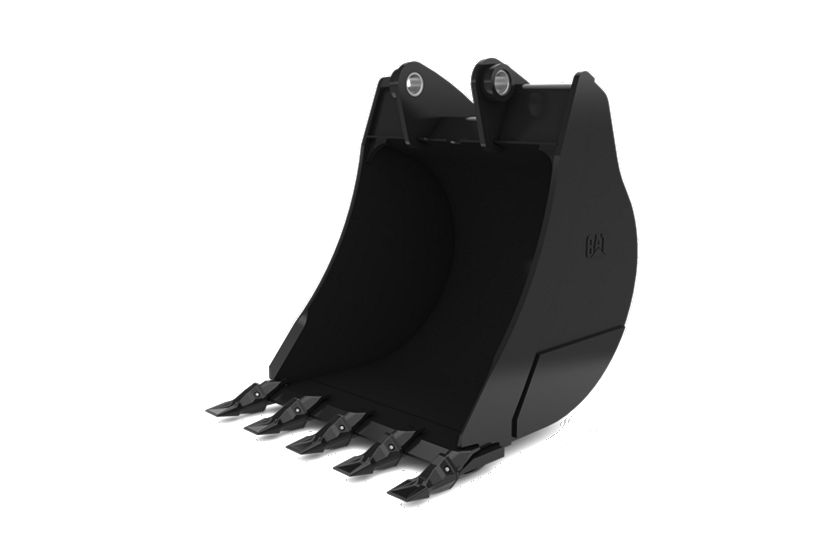

Studio Shot

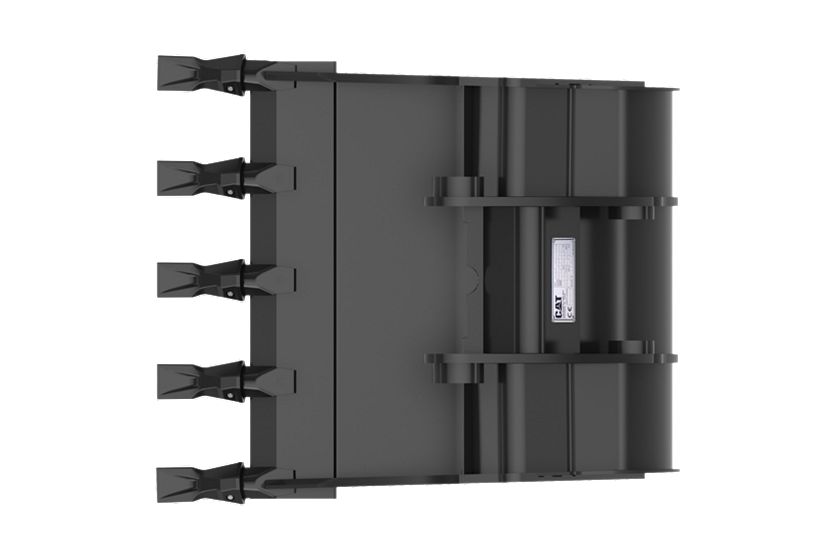

Front View

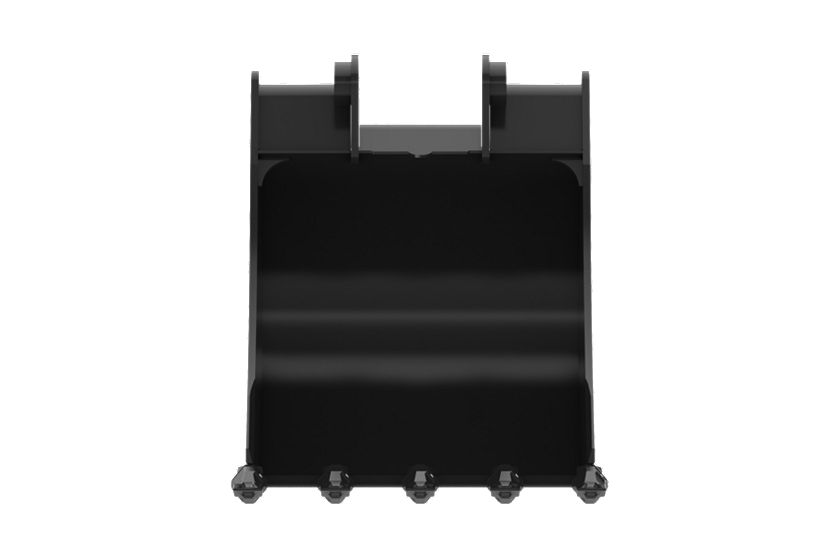

Top View

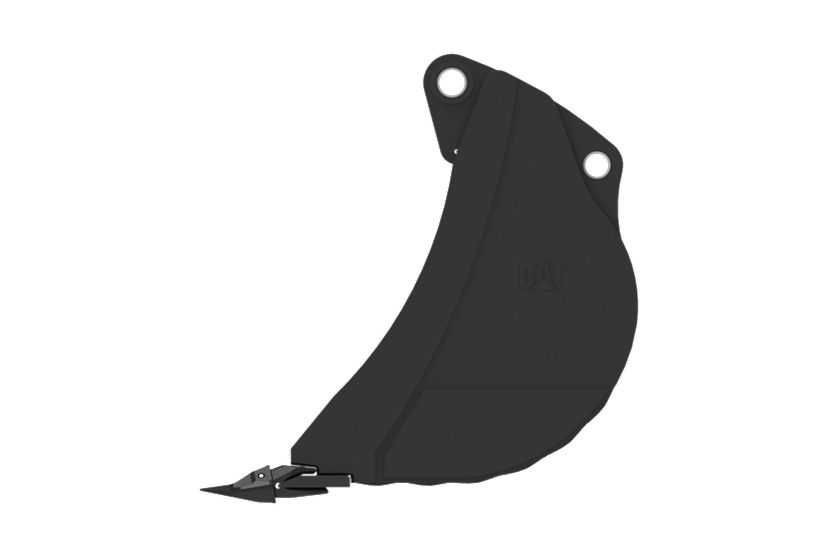

Left View

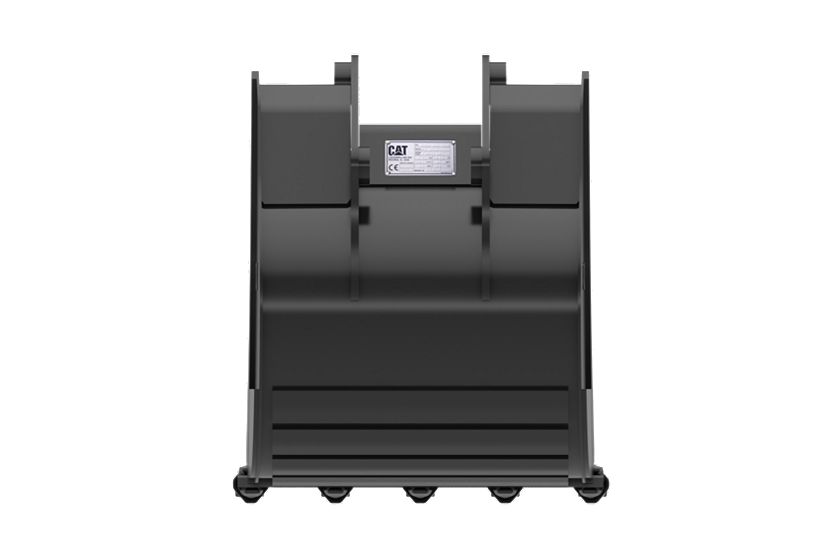

Rear View

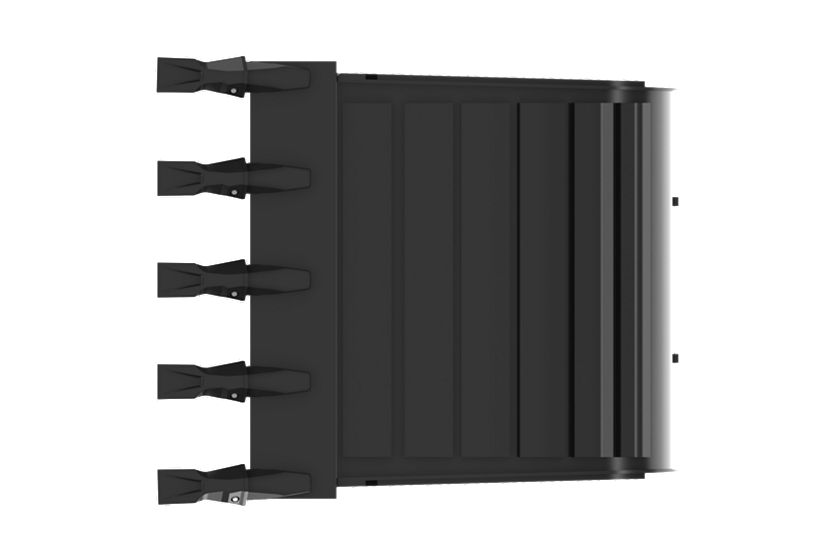

Bottom View

Right View

An Attachment for Every Job – Cat® Work Tool Attachments

Documents

Cat® Backhoe Loaders – Rear Buckets Brochure

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Application

Bucket Shape

Rugged Design

Specifications

US Metric

General

Spec	Value
Width	30 in 762 mm
Capacity	9.5 ft³ 269 l
Weight	396.8 lb 180 kg
Base Edge Thickness	1 in 25 mm
Tip Radius	38.9 in 988 mm
Interface Type	Pin On Pin On
