Cat

3.0 m3 (3.9 yd3) Pin On Light Material Bucket With Bolt-On Cutting Edge

Used for loading light, loosely-packed materials.

Media

Studio Shot

Front View

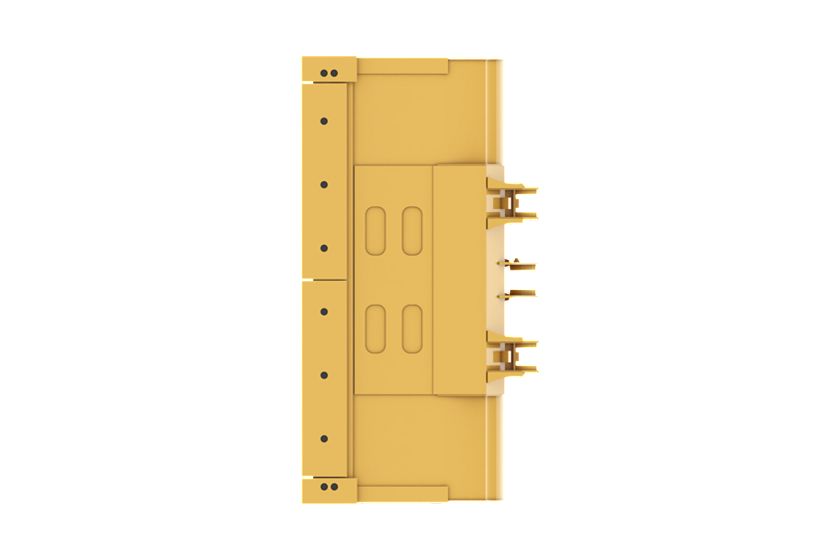

Top View

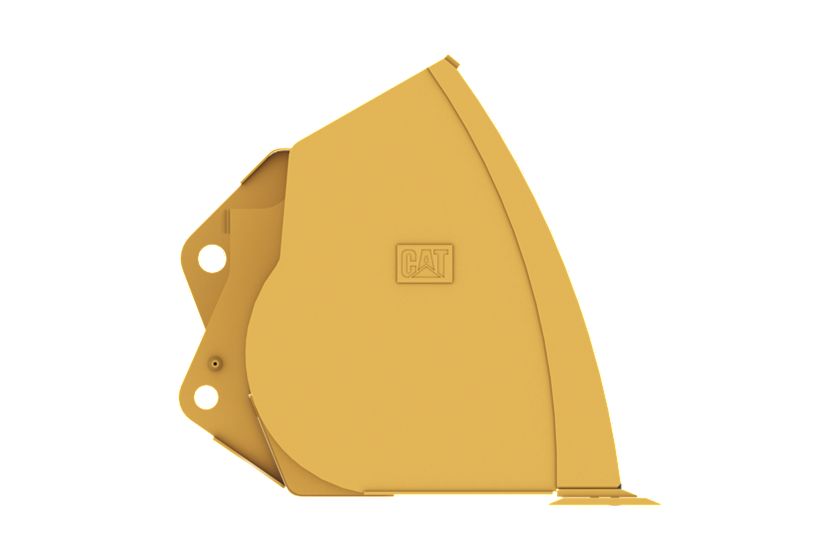

Left View

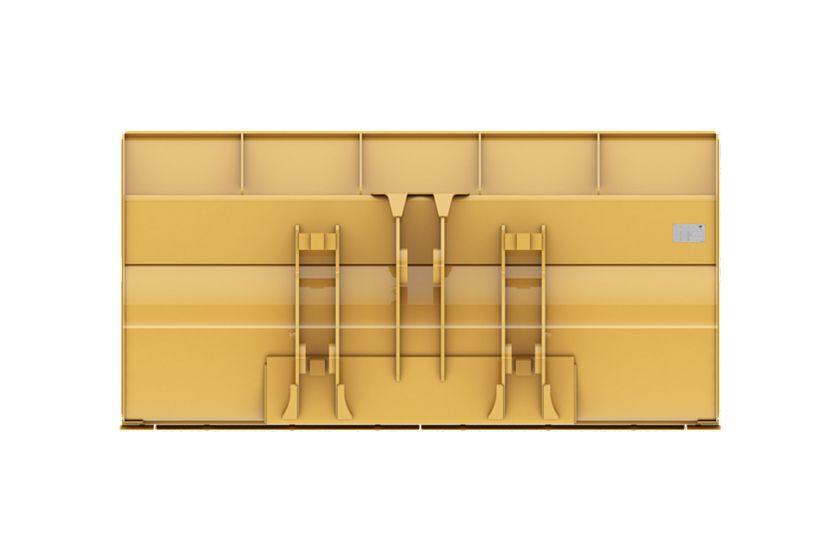

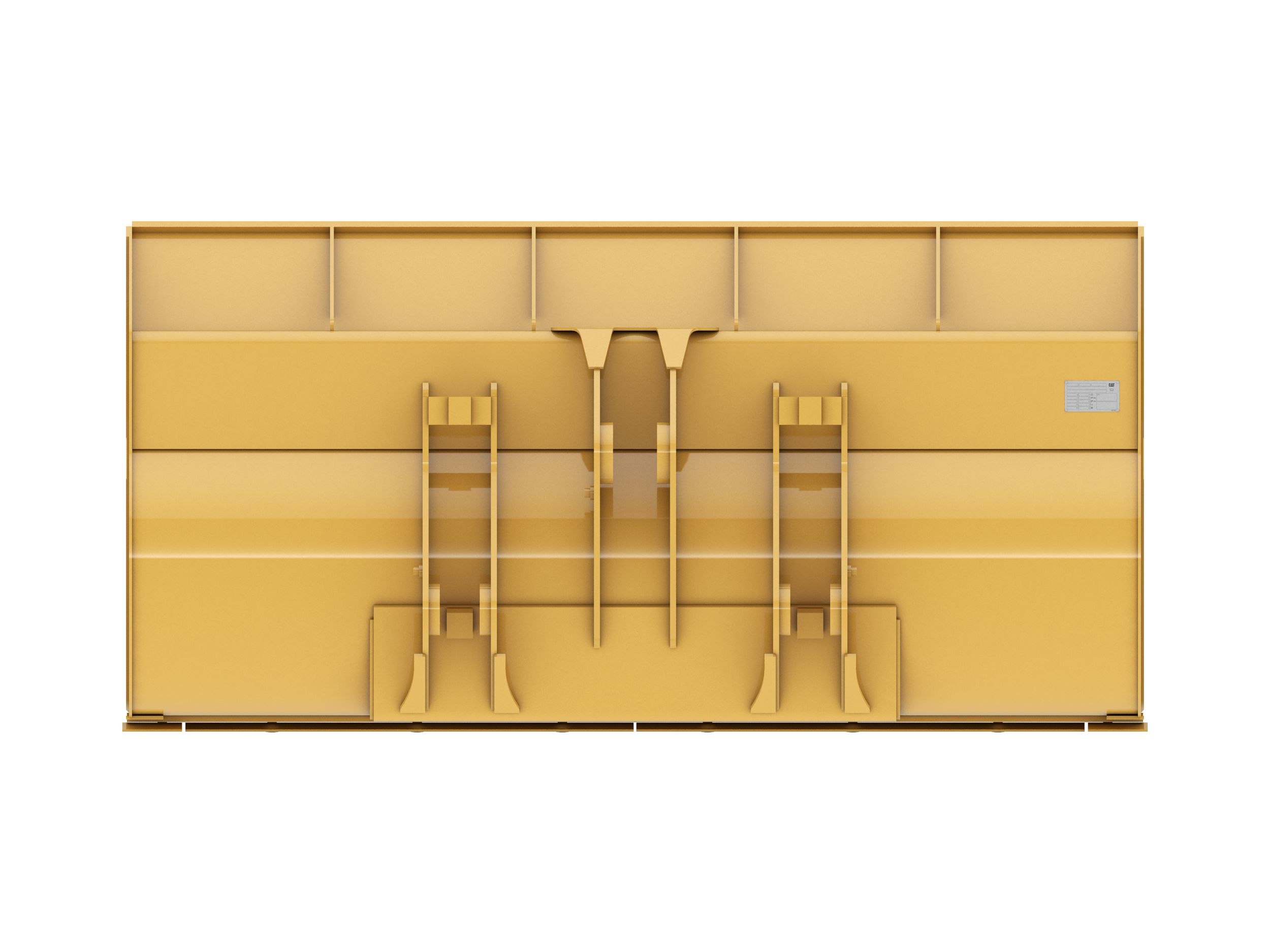

Rear View

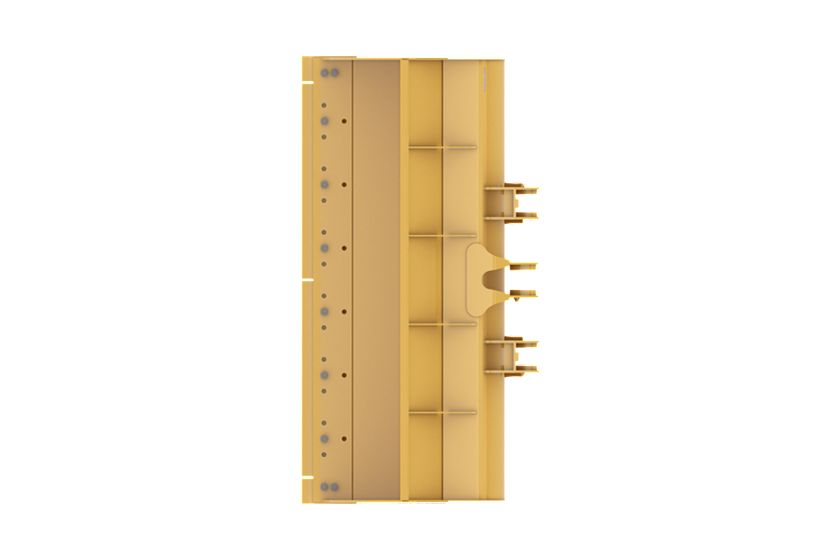

Bottom View

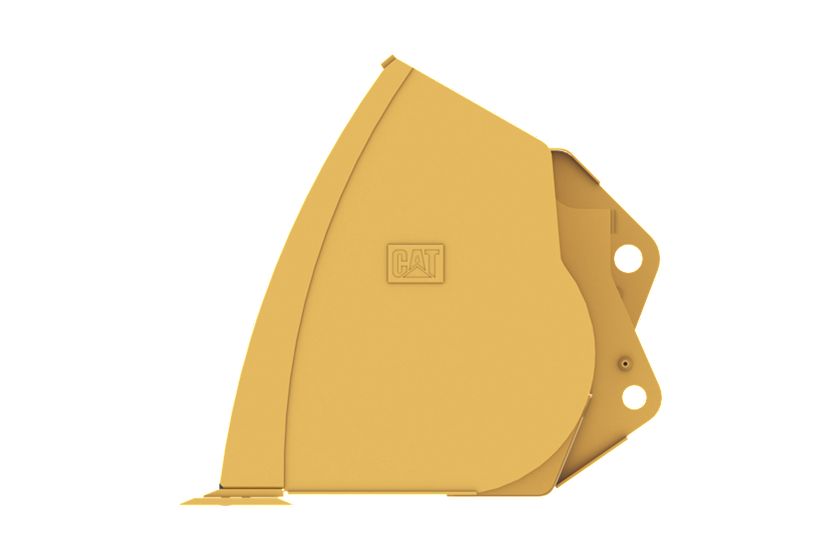

Right View

An Attachment for Every Job – Cat® Work Tool Attachments

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Hidden
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Application

Versatile Design

High Capacity Design

Material Density Rating

Optional Top Clamp

Specifications

US Metric

General

Spec	Value
Width	108.1 in 2747 mm
Height	53.9 in 1369 mm
Weight	2731.5 lb 1239 kg
Length	57.6 in 1462 mm
Capacity	3.9 yd³ 3 m³
Base Edge Thickness	1 in 25 mm
Interface Type	Pin On Pin On
