Cat

3.8 m3 (5.0 yd3) Pin On Light Material Bucket With Bolt-On Cutting Edge

Used for loading light, loosely-packed materials.

Media

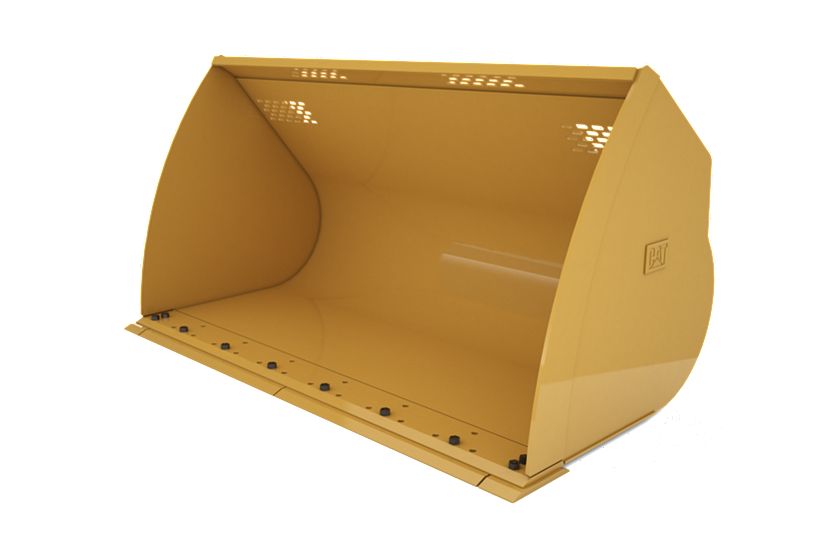

Studio Shot

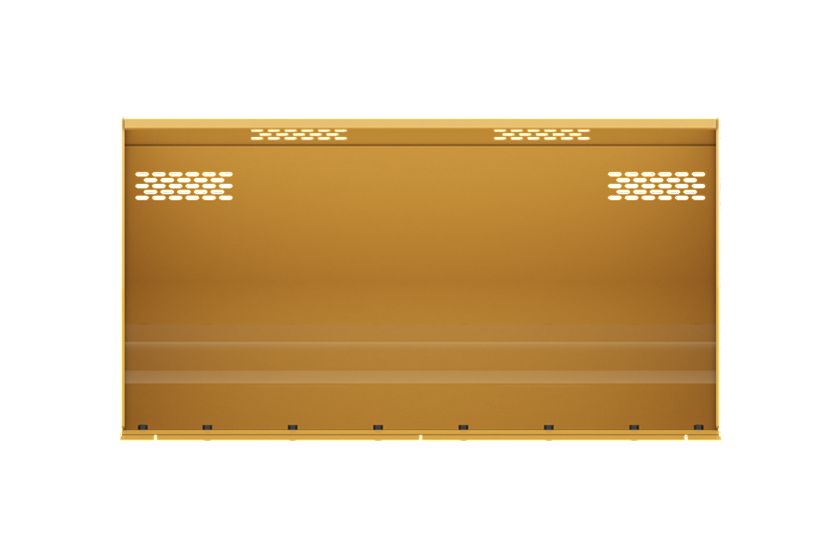

Front View

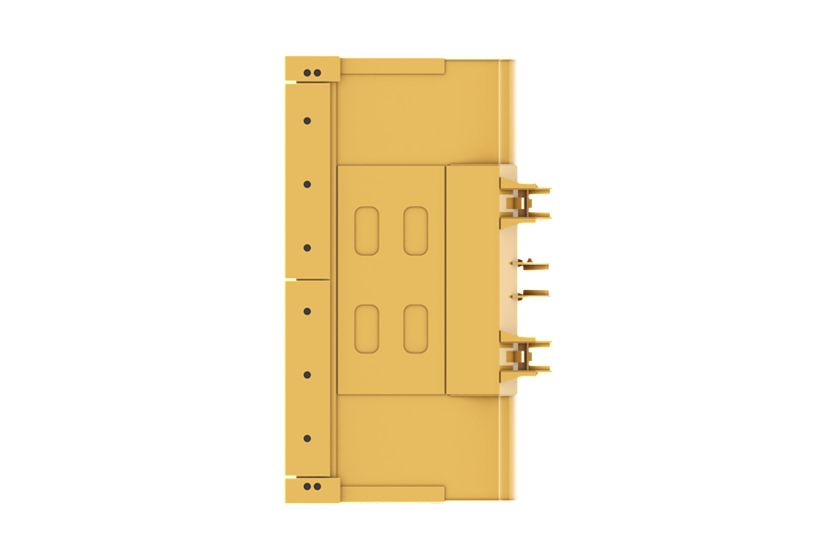

Top View

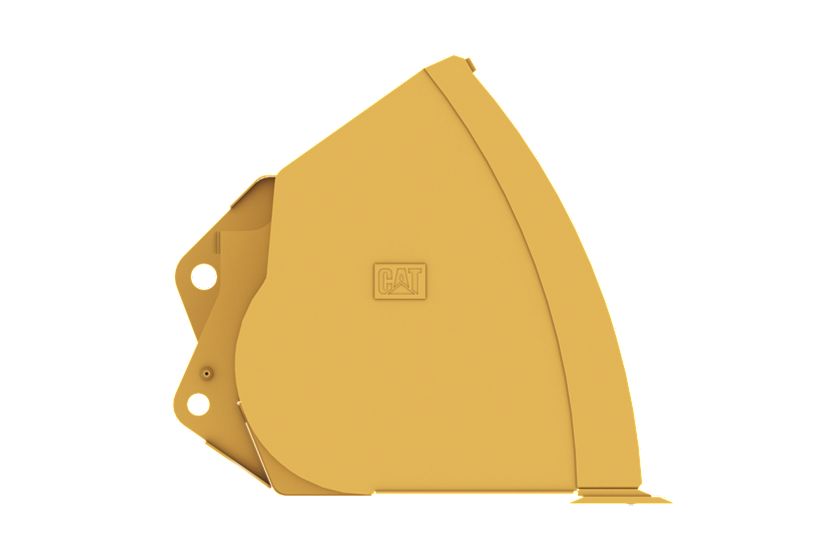

Left View

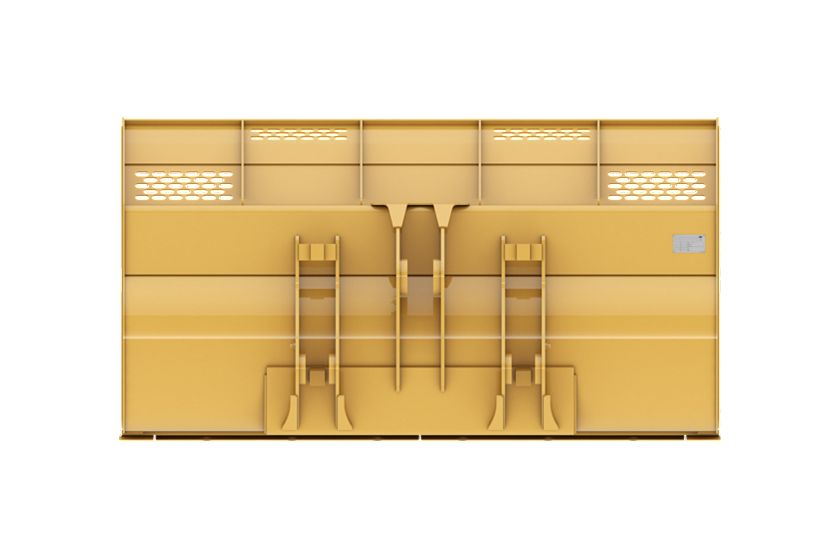

Rear View

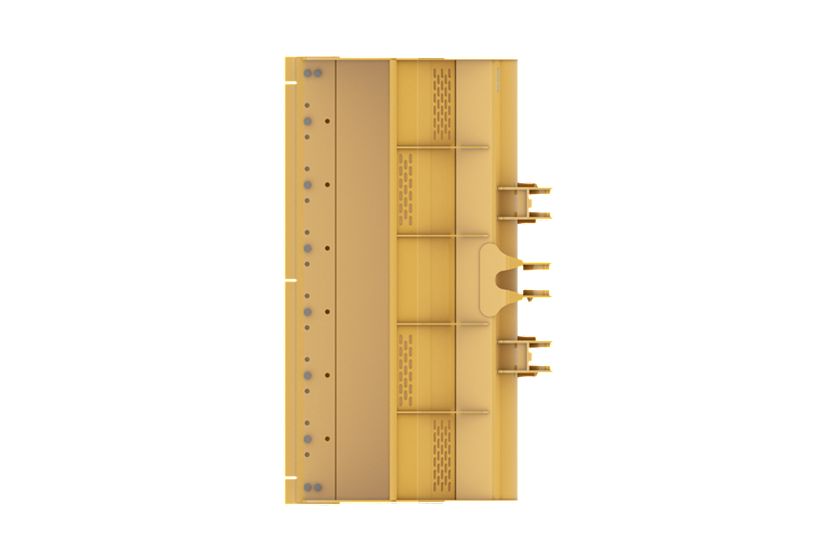

Bottom View

Right View

An Attachment for Every Job – Cat® Work Tool Attachments

Get more info

Facebook
This field is for validation purposes and should be left unchanged.
First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
This field is hidden when viewing the form
Quote Information
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Referral or Other, please explain below.

Features

Application

Versatile Design

High Capacity Design

Material Density Rating

Optional Top Clamp

Specifications

US Metric

General

Spec	Value
Width	108 in 2750 mm
Height	57.9 in 1471 mm
Weight	3062.2 lb 1389 kg
Length	64.8 in 1647 mm
Capacity	5 yd³ 3.8 m³
Base Edge Thickness	1 in 25 mm
Cutting Edge Thickness	1 in 25 mm
Interface Type	Pin On Pin On
