Caterpillar

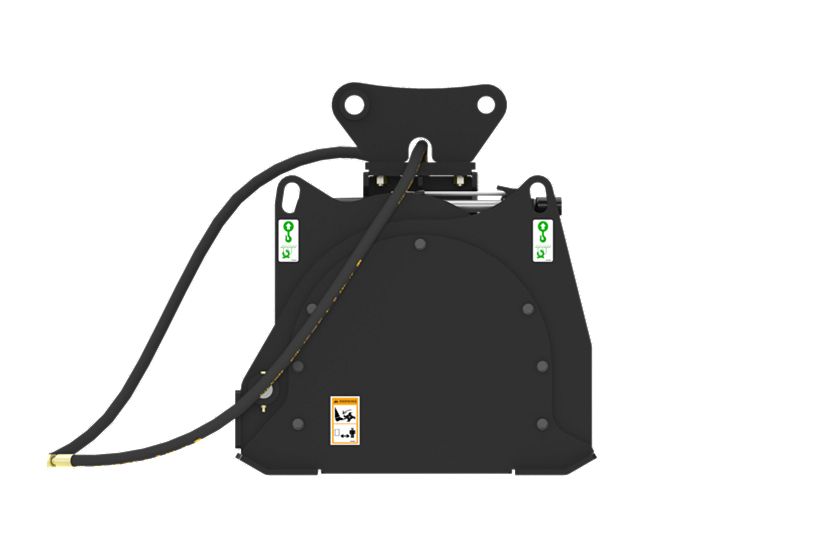

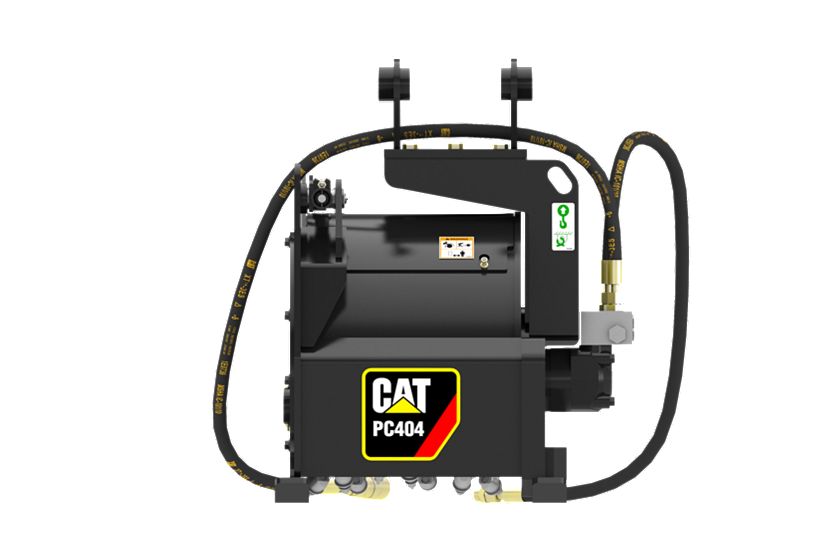

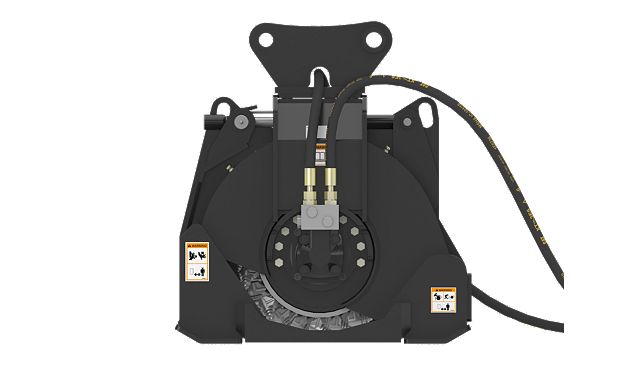

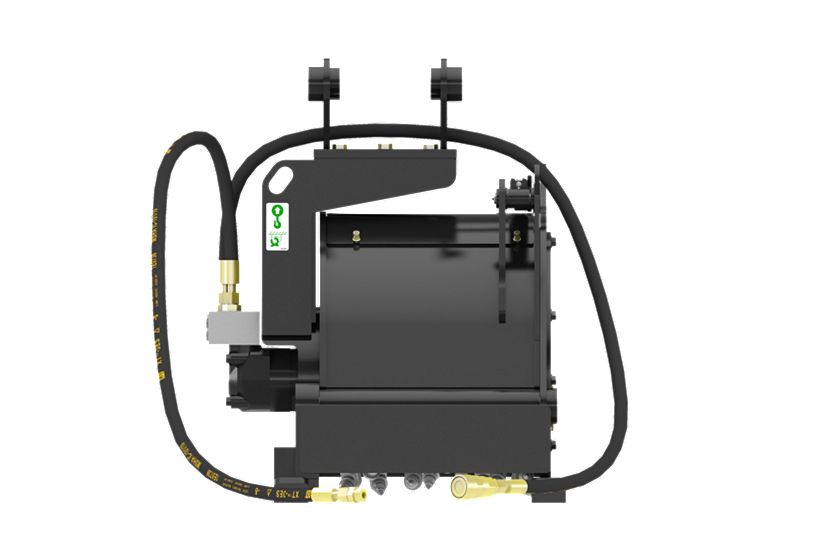

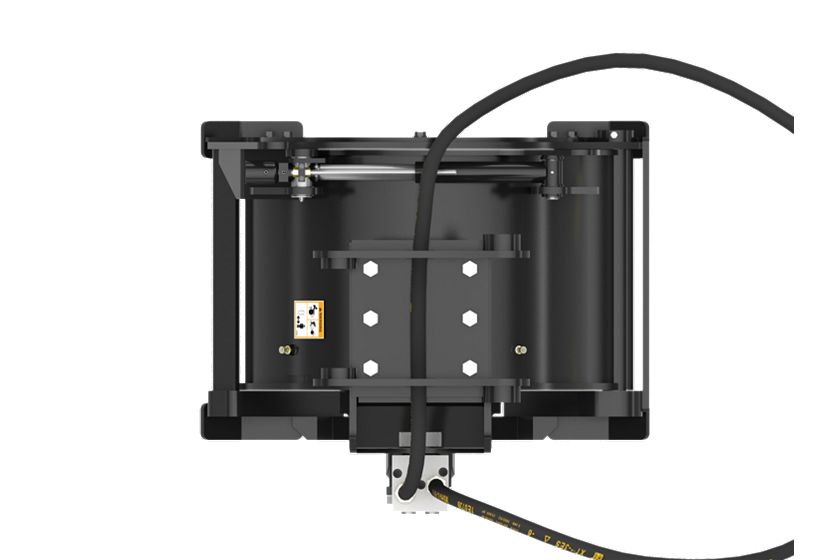

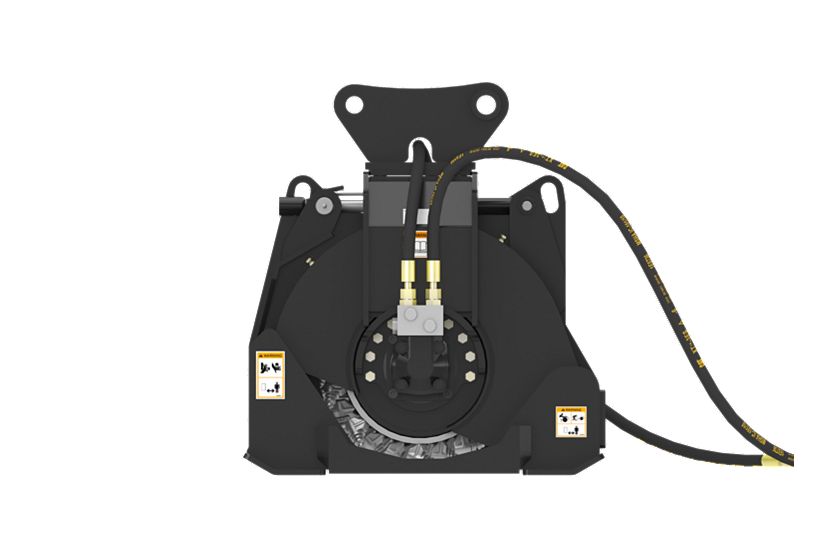

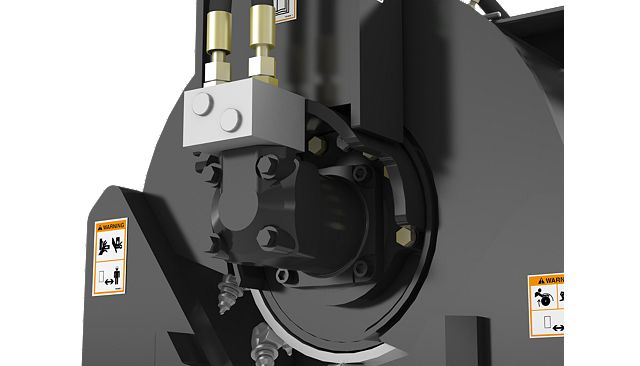

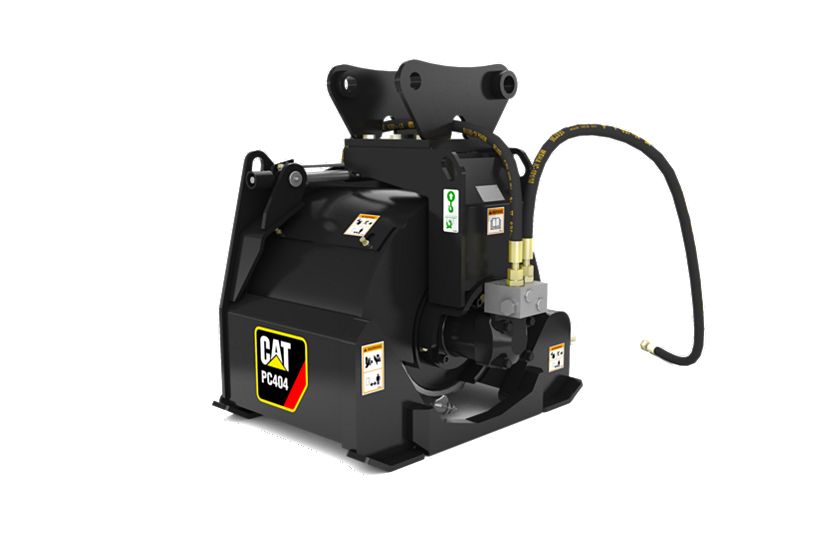

PC404 Cold Planer

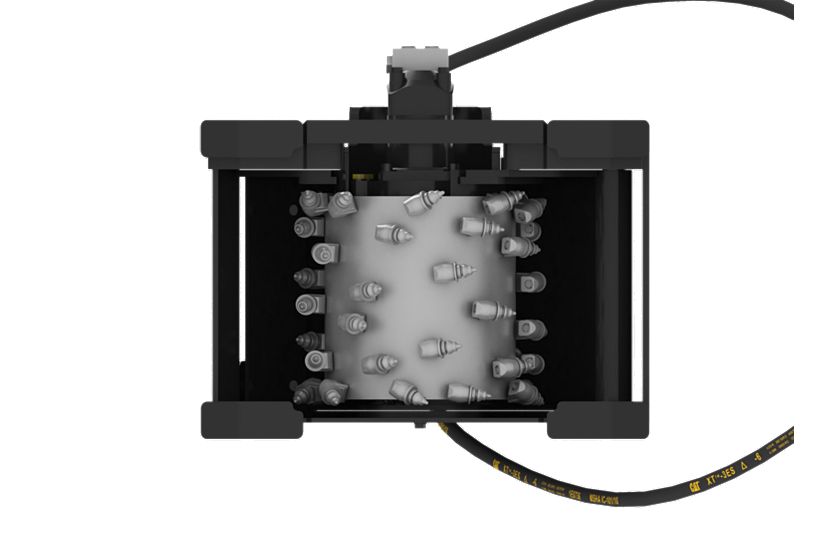

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Media

Photos

Videos

Features

Details

Specifications

Spec Value
Working Width 17.7 in 450 mm
Maximum Cutting Depth 4.9 in 125 mm
Required Hydraulics Standard Flow Standard Flow
Overall Width 32.6 in 828 mm
Overall Length 37.4 in 950 mm
Overall Height 40.6 in 1030 mm
Weight 1499.1 lb 680 kg
Optimal Hydraulic Flow 80-160 L/min (21-42 gal/min) 80-160 L/min (21-42 gal/min)
Optimal Hydraulic Pressure 160-240 bar (2320-3480 psi) 160-240 bar (2320-3480 psi)
Maximum Drum Width 17.7 in 450 mm
Standard Bit Type Asphalt/Concrete Asphalt/Concrete
