Cat

T315 High Flow Trencher with standard teeth

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Media

Photos

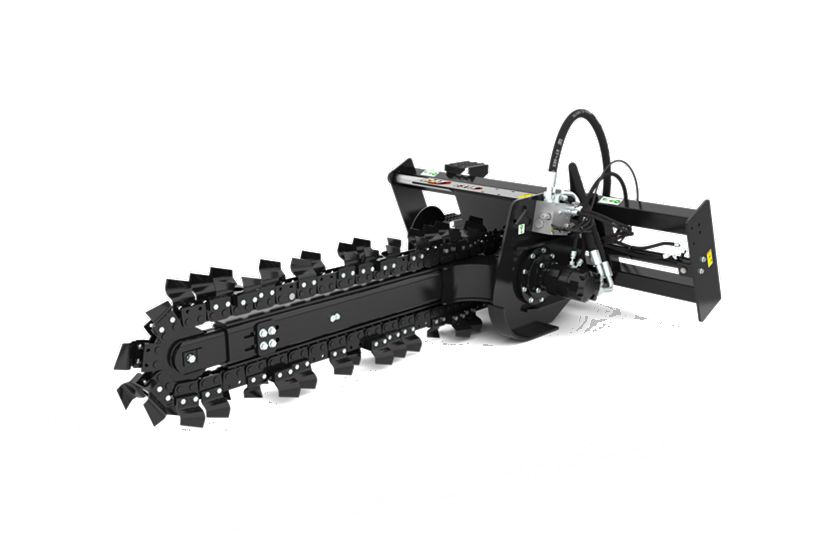

Studio Shot
Studio Shot

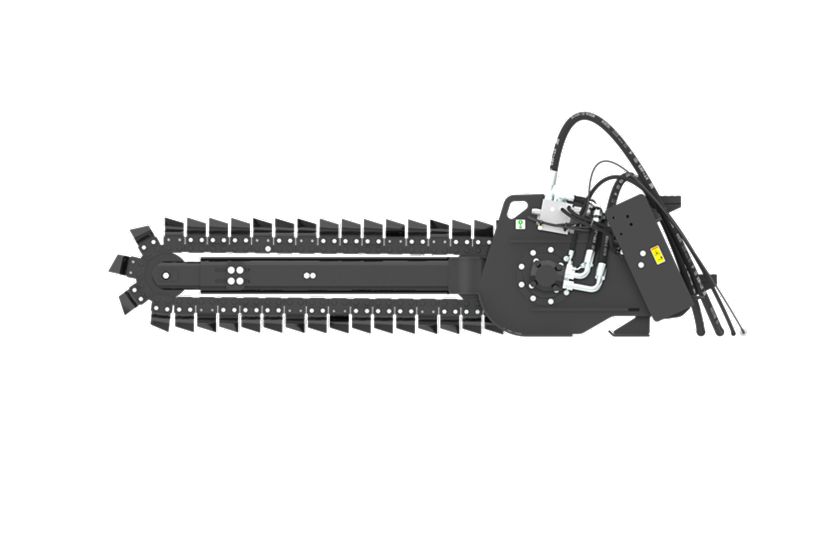

Front View
Front View

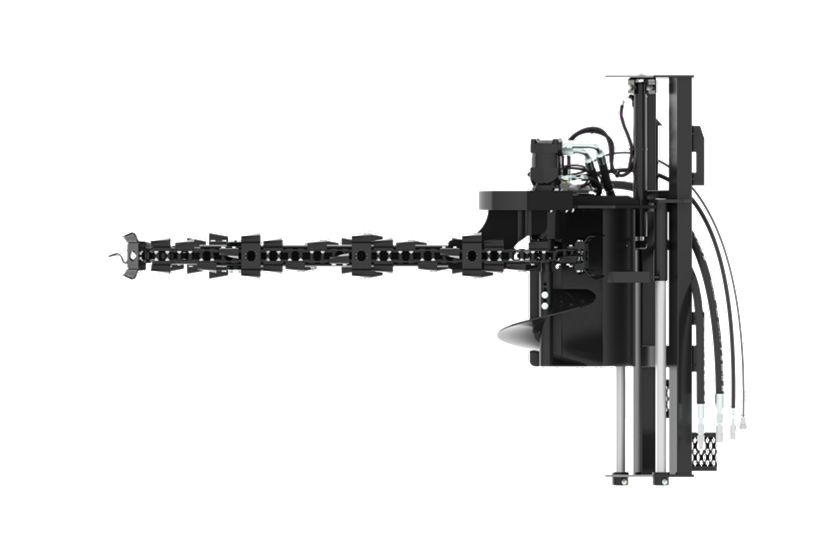

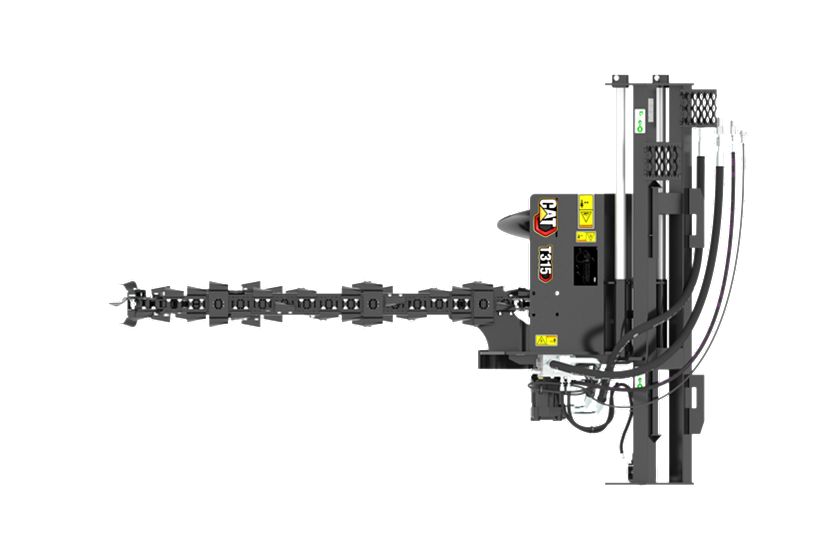

Top View
Top View
Left View
Left View

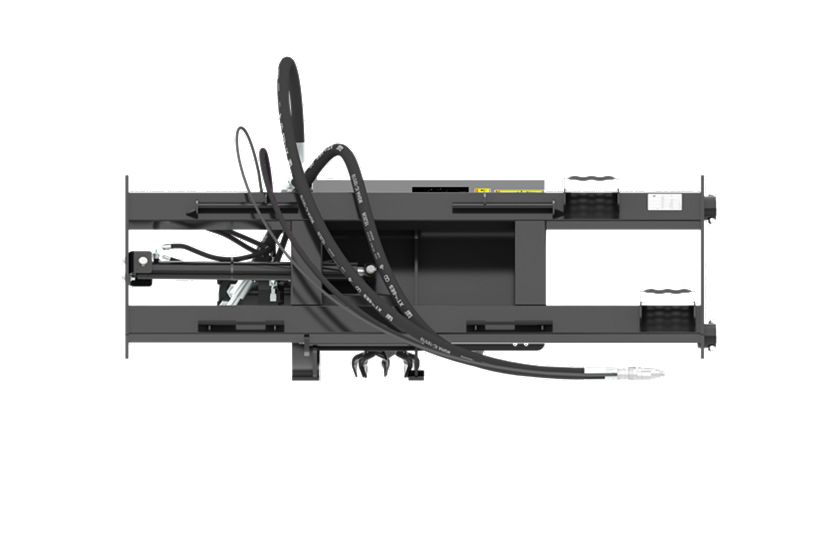

Rear View
Rear View

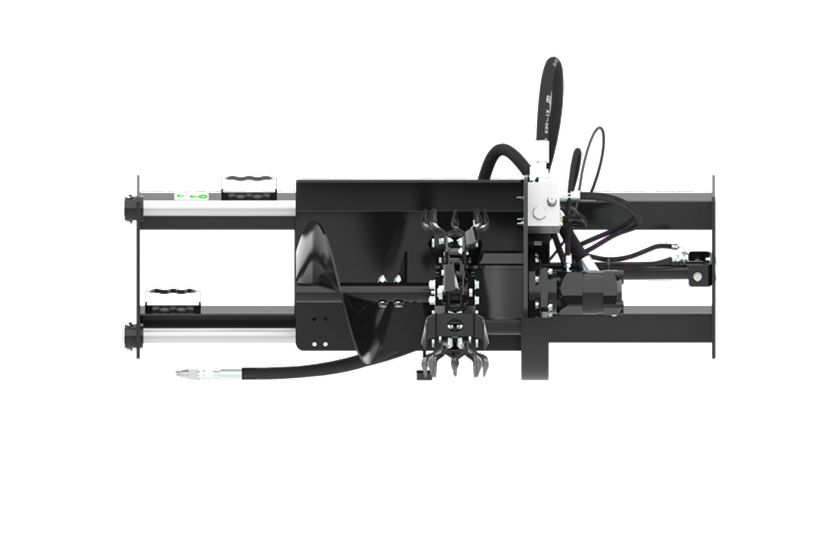

Bottom View
Bottom View

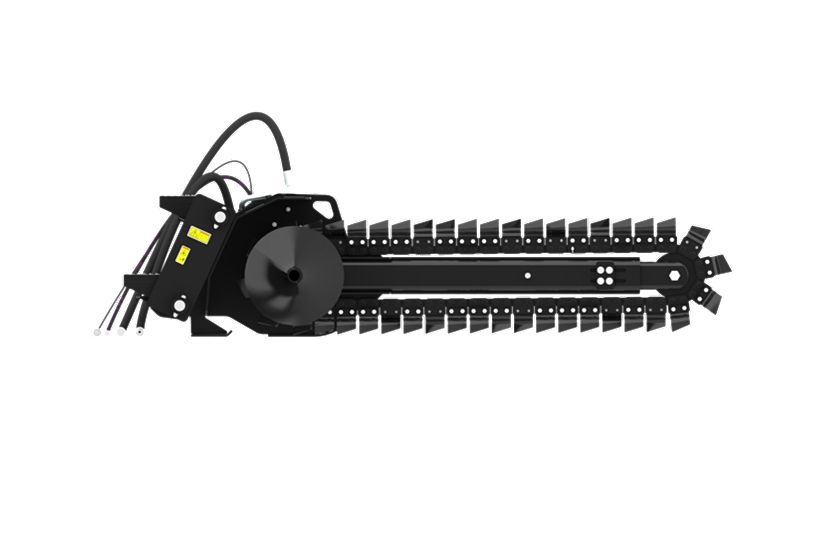

Right View
Right View
Cat® 259D Compact Track Loader and T9B Trencher Attachment Digging a Trench
Cat® 259D Compact Track Loader and T9B Trencher Attachment Digging a Trench
Cat® T9B Trencher in Landscaping Application
Cat® T9B Trencher in Landscaping Application
Cat® Trencher in Working Application
Cat® Trencher in Working Application

Videos

Cat® Trenchers at Work
Cat® Trenchers Production Study
Cat® Trencher Operating Tips
Cat® Trencher Overview
An Attachment for Every Job – Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Trenchers except where indicated.

Documents

Features

Application

Direct Drive System

Durable Anti-Back Flex Chain

Hard-faced, Tungsten Carbide Steel Cupped Teeth

Hydraulic or Manual Side Shift

Optional Chain Types and Cutting Widths

Large Diameter Bolt-On Spoil Auger

Optional Bolt-On Crumber Bar

Details

Specifications

Spec Value
Standard Boom Length 60 in 1524 mm
Cutting Width 8 in 203 mm
Chain Type Standard Standard
Required Hydraulics High Flow XPS High Flow XPS
Overall Width 74.8 in 1901 mm
Overall Length 118.5 in 3010 mm
Weight 1287.1 lb 583.8 kg
Overall Height 30.9 in 786 mm
Optimal Hydraulic Flow 95-152 L/min (25-40 gpm) 95-152 L/min (25-40 gpm)
Optimal Hydraulic Pressure 207-310 bar (3300-4500 psi) 207-310 bar (3300-4500 psi)
Drive Shaft Speed at Maximum Flow 207 rpm 207 rpm
Side Shift Travel 22 in 559 mm
Maximum Auger Clearance 21 in 534 mm
Spoil Auger Diameter 18 in 457 mm
Optional Cutting Widths 152, 254, 305 mm (6, 10, 12 in) 152, 254, 305 mm (6, 10, 12 in)
