Caterpillar

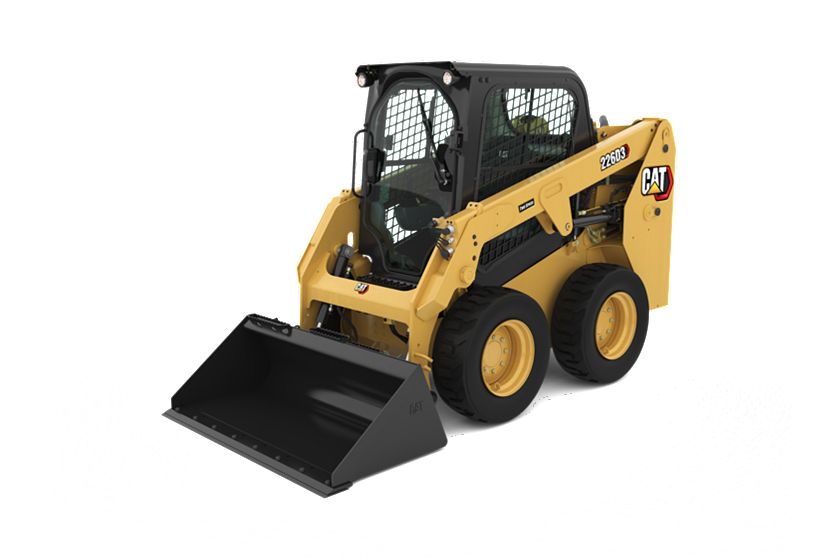

226D3 Skid Steer Loader

Name: 226D3 Skid Steer Loader
Brand: Caterpillar

Gross Power – SAE J1995

67.1 HP

50.1 kW

Rated Operating Capacity

1550 lb

705 kg

Operating Weight

5849 lb

2653 kg

Overview

The Cat® 226D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

Media

Overview

Features and Benefits

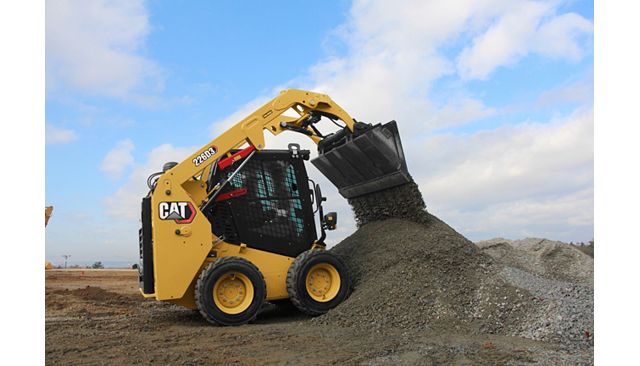

At Work

SSL and CTL At Work

Daily Maintenenace

Experience What You Inspired

Exterior

Interior

Documents

Get Price

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Quiet and Comfortable

Maximum Performance

Making Your Job Easier

Optimized Machine Capability

Sustainability

Specifications

US Metric

Engine

Spec	Value
Gross Power – SAE J1995	67.1 HP 50.1 kW
Net Power – SAE 1349	65.8 HP 49.1 kW
Displacement	134.3 in³ 2.2 l
Stroke	3.9 in 100 mm
Bore	3.3 in 84 mm
Engine Model	Cat C2.2 CRDI Cat C2.2 CRDI
Peak Torque – 1,500 rpm – SAE J1995	153 ft·lbf 208 N·m
Net Power – ISO 9249	66.5 HP 49.6 kW

Operating Specifications

Spec	Value
Rated Operating Capacity	1550 lb 705 kg
Rated Operating Capacity with Optional Counterweight	1650 lb 750 kg
Tipping Load	3100 lb 1410 kg
Breakout Force – Tilt Cylinder	3927 lb 1781 kg
Note	* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Weights

Spec	Value
Operating Weight	5849 lb 2653 kg
Note	* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Dimensions

Spec	Value
Wheel Base	41.5 in 1054 mm
Length – With Bucket on Ground	127.3 in 3234 mm
Length – Without Bucket	99.4 in 2524 mm
Height – Top of Cab	79.8 in 2028 mm
Vehicle Width over Tires	58.9 in 1497 mm
Maximum Overall Height	143.8 in 3652 mm
Bucket Pin Height – Maximum Lift	110.9 in 2818 mm
Bucket Pin Height – Carry Position	8.5 in 215 mm
Reach – Maximum Lift/Dump	21 in 533 mm
Clearance at Maximum Lift and Dump	81.8 in 2077 mm
Ground Clearance	6.9 in 175 mm
Departure Angle	27.9° 27.9°
Maximum Dump Angle	46.7° 46.7°
Rack Back Angle – Maximum Height	88.9° 88.9°
Bumper Overhang – Behind Rear Axle	35.2 in 8944 mm
Turning Radius from Center – Bucket	77.8 in 1977 mm
Maximum Reach – With Arms Parallel to Ground	50.7 in 1288 mm
Turning Radius from Center – Machine Rear	59.6 in 1513 mm
Turning Radius from Center – Coupler	43.5 in 1104 mm
Note	* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Hydraulic System

Spec	Value
Hydraulic Flow – Standard – Loader Hydraulic Pressure	3336 psi 23000 kPa
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Pressure	3336 psi 23000 kPa
Hydraulic Flow – Standard – Hydraulic Power (Calculated)	33.5 HP 26.5 kW
Hydraulic Flow – High Flow – Hydraulic Power (Calculated)	50.9 HP 38 kW
Hydraulic Flow – Standard – Loader Hydraulic Flow	18 gal/min 69 l/min
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Flow	26 gal/min 99 l/min

Cab

Spec	Value
ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 Level I ISO 3449:2005 Level I

Power Train

Spec	Value
Travel Speed – Forward or Reverse – One Speed	7.6 mile/h 12.3 km/h
Travel Speed – Forward or Reverse – Two Speed Option	11.1 mile/h 17.8 km/h

Service Refill Capacities

Spec	Value
Chain Box – Each Side	1.8 gal (US) 7 l
Cooling System	3.2 gal (US) 12 l
Engine Crankcase	2.6 gal (US) 10 l
Fuel Tank	15.1 gal (US) 57 l
Hydraulic System	11.9 gal (US) 45 l
Hydraulic Tank	9 gal (US) 34 l

Air Conditioning System (if equipped)

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Noise Level

Spec	Value
Outside Cab***	102 dB(A) 102 dB(A)
Inside Cab**	83 dB(A) 83 dB(A)
Note (3)	*The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. *The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Standard Equipment

ELECTRICAL

12 volt Electrical System
80 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

Gauges: Fuel Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) Throttle, Electronic
Adjustable Joystick Controls
Anti-theft Security System with 6-button Keypad
Storage Compartment with Netting

POWER TRAIN

Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released Parking Brakes
Hydrostatic Transmission
Four Wheel Chain Drive

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Hydraulics, Standard or High Flow
Quick Coupler, Mechanical or Powered
Highly Visible Seat Belt, 50 mm (2 in) or 75 mm (3 in)
EU Preparation Package (Europe only)
Power Train: One Speed, One Speed with Ride Control, Two Speed
Tires, 10 × 16.5
PERFORMANCE PACKAGES:
– Performance Package H1: Standard Flow Hydraulics (No Self Level)
– Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
– Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGES:
– Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (High Back, Heated, Air Ride Seat) (No Heater or Door)
– Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Air Conditioner, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)

Optional Equipment

OPTIONAL EQUIPMENT

Hand-Foot Style Controls
External Counterweights
Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Product Link PL641, Cellular
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control; Standard Equipment in Europe Only
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
