Cat

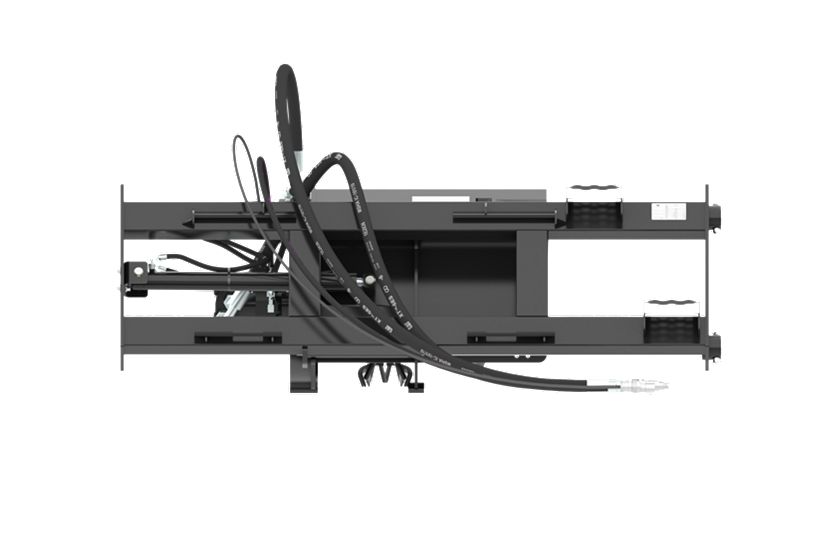

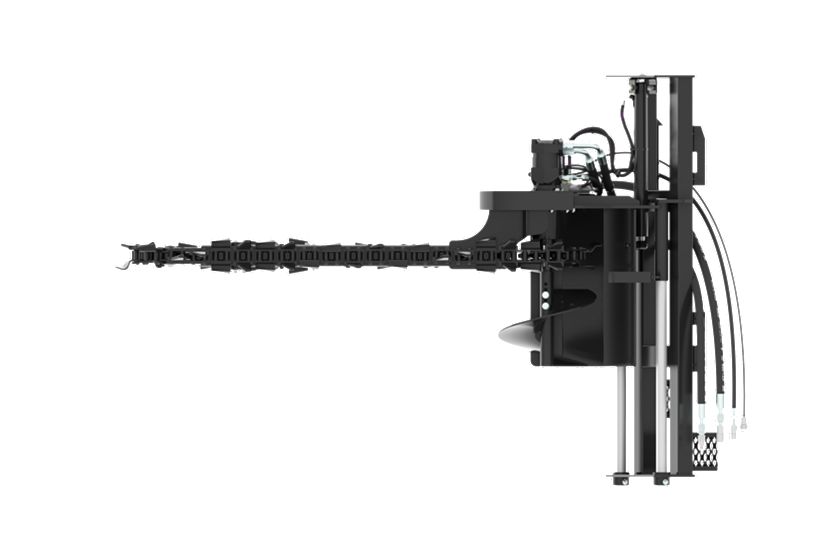

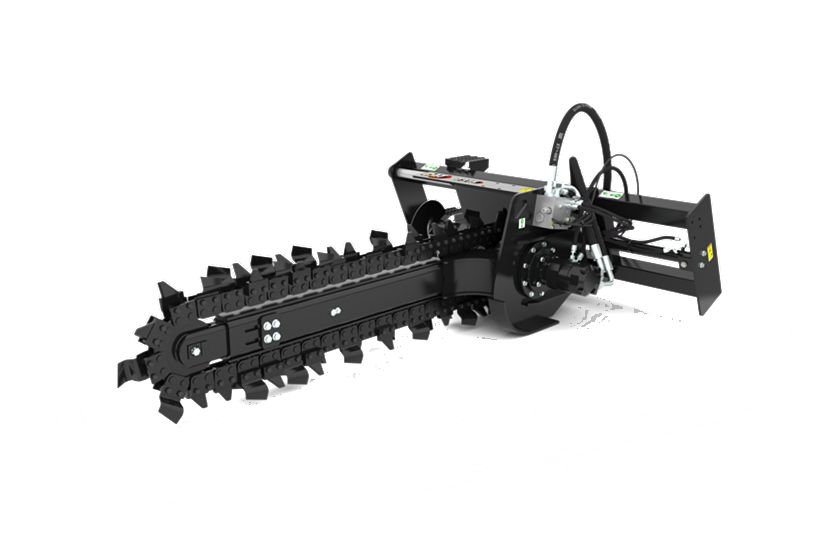

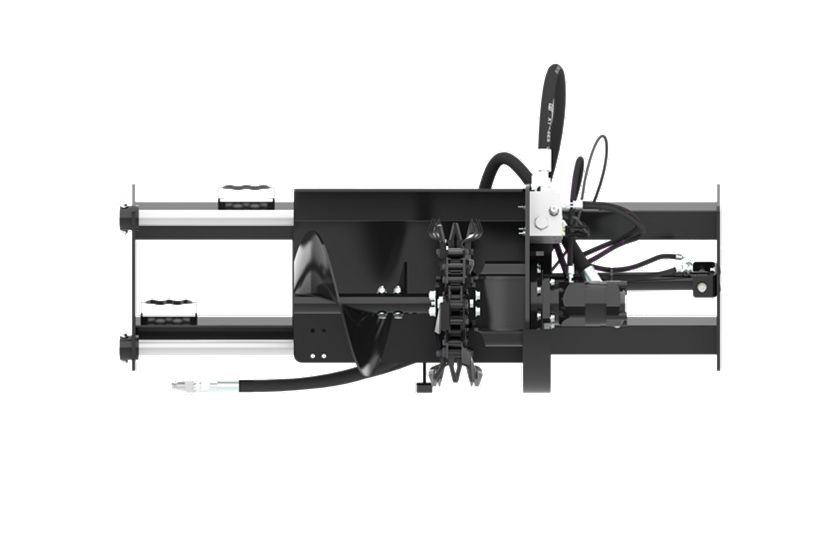

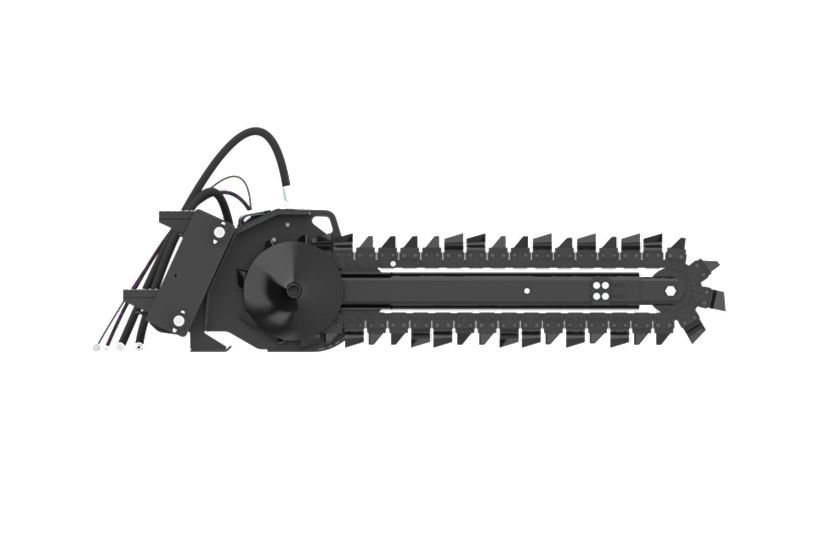

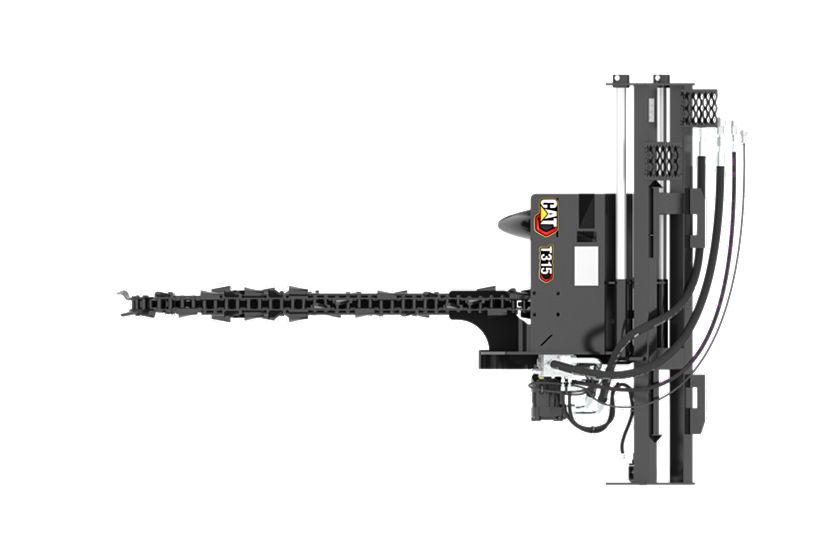

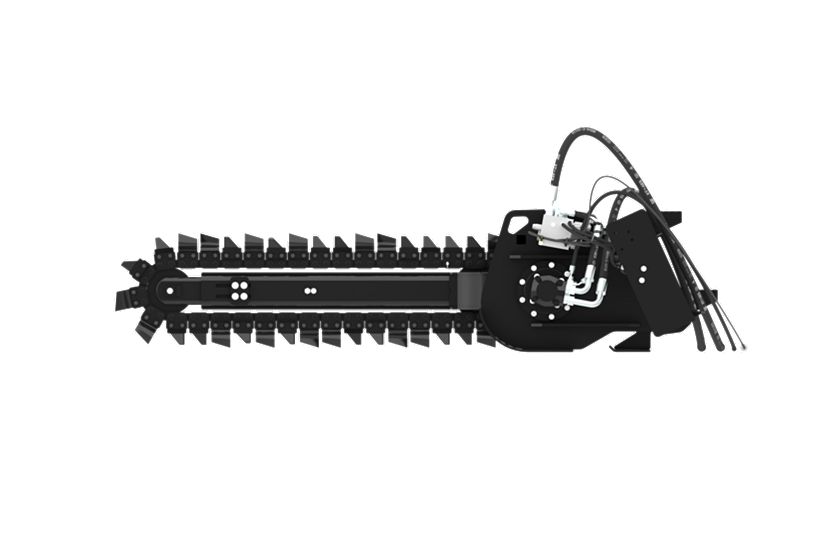

T315 High Flow Trencher with combo teeth

Name: T315 High Flow Trencher with combo teeth
Brand: Cat

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Media

Cat® Trenchers at Work

Cat® Trenchers Production Study

Cat® Trencher Operating Tips

Cat® Trencher Overview

An Attachment for Every Job – Cat® Work Tool Attachments

Model shown represents features on all Cat® Trenchers except where indicated.

Application

Direct Drive System

Durable Anti-Back Flex Chain

Hard-faced, Tungsten Carbide Steel Cupped Teeth

Hydraulic or Manual Side Shift

Optional Chain Types and Cutting Widths

Large Diameter Bolt-On Spoil Auger

Optional Bolt-On Crumber Bar

US Metric

Spec	Value
Standard Boom Length	60 in 1524 mm
Cutting Width	6 in 152 mm
Chain Type	Standard Standard
Required Hydraulics	High Flow XPS High Flow XPS
Overall Width	74.8 in 1901 mm
Overall Length	118.5 in 3010 mm
Weight	1212.1 lb 549.79 kg
Overall Height	30.9 in 786 mm
Optimal Hydraulic Flow	95-152 L/min (25-40 gpm) 95-152 L/min (25-40 gpm)
Optimal Hydraulic Pressure	207-310 bar (3300-4500 psi) 207-310 bar (3300-4500 psi)
Drive Shaft Speed at Maximum Flow	207 rpm 207 rpm
Side Shift Travel	22 in 559 mm
Maximum Auger Clearance	21 in 534 mm
Spoil Auger Diameter	18 in 457 mm
Optional Cutting Widths	203, 254, 305 mm (8, 10, 12 in) 203, 254, 305 mm (8, 10, 12 in)
